16-port 10/100M Switch, 16 10/100M RJ45 ports, 1U 19-inch rack-mountable steel case

• Innovative energy-efficient technology saves power up to 40%
• 100% Data filtering rate eliminates all error packets
• Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
• Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
• 3.2Gbps Switching Capacity
• Auto-MDI/MDIX eliminates the need for crossover cables
• Supports MAC address auto-learning and auto-aging
• Support the port N-Way Auto-Negotiation, Store and Forward
• Compact size design for desktops, Rackmountable
• Plug and Play design simplifies installation

What This Product Does

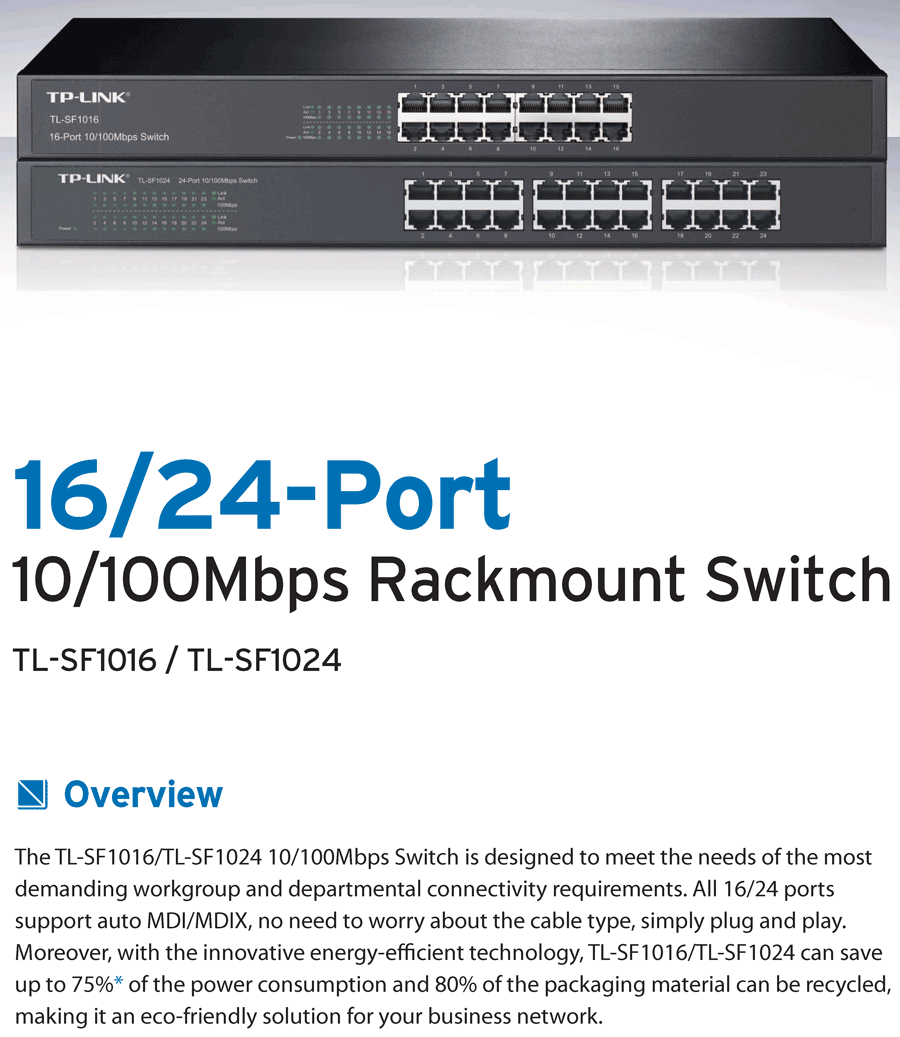

The 16-Port Fast Ethernet Switch TL-SF1016 is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. A reliable, easy-to-use switch without the complexity of management, the TL-SF1016 provides 16 10/100Mbps ports. The TL-SF1016 combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.

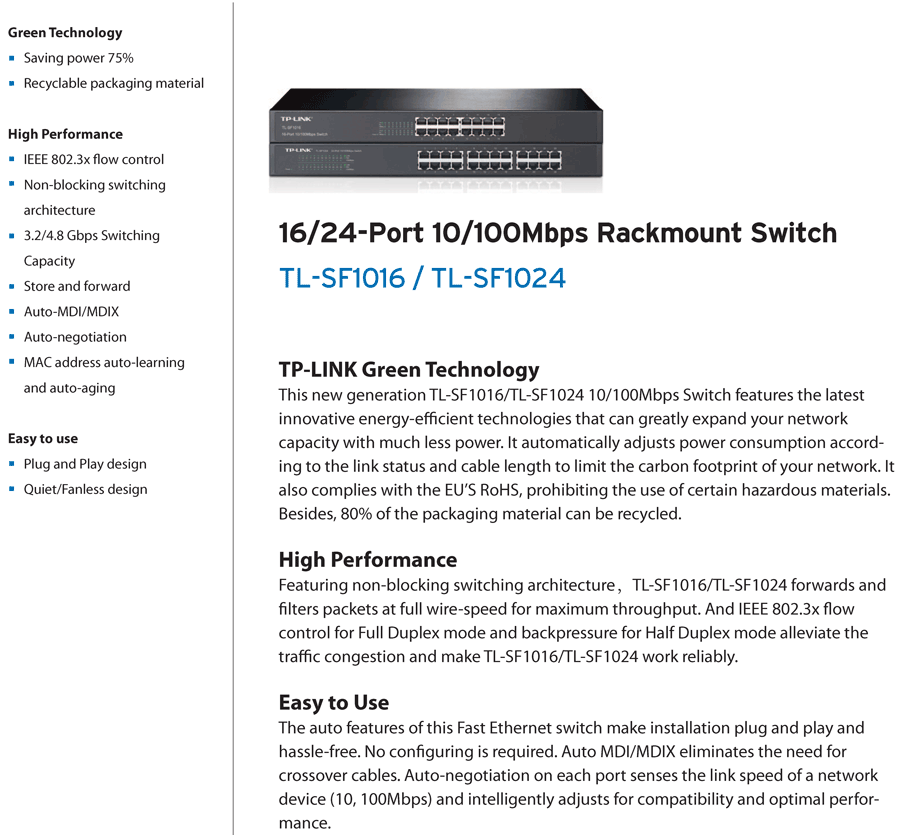

Ease of Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also Rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

Superior Performance

The rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 16 user environment. Featuring non-blocking switching architecture, TL-SF1016 forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly.

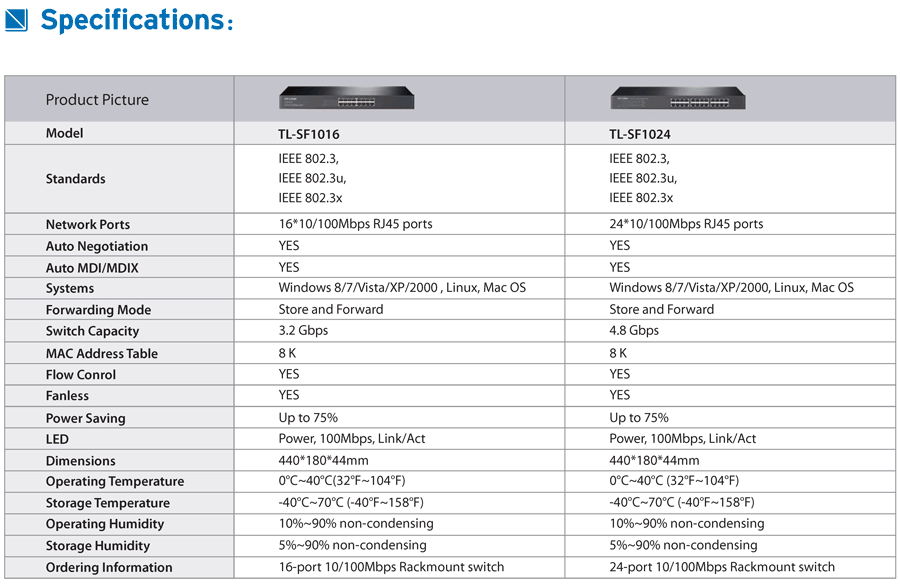

(TL-SF1016)



Device Type Ethernet Switch
Dimensions W x D x H: 440 x 180 x 44 mm
Features Innovative energy-efficient technology saves power up to 70%
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
3.2 Gbps Switching Capacity
Store and forward Switching scheme
Auto-MDI/MDIX eliminates the need for crossover cables
Supports MAC address auto-learning and auto-aging
Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
Plug and Play design simplifies installation
Fanless design to make sure it works quietly
Network Ports 16 x 10/100Mbps RJ45 Ports
OTHERS TP-LINK Green Technology
Package Contents 16-Port 10/100Mbps Rackmount Switch
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Product TP-LINK TL-SF1016 10/100M 16 Port Rack Mount Switch
Standards Compliance IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Weight 2.23 kg
Ports Type 10/100Mbps Ethernet ports
Optional Accessories (Sold Seperately) -
Data Tranfer Rates Switching Capacity: 3.2Gbps
Packet Forwarding Rate: 2.38Mpps
SKU TL-SF1016
Barcode # 6935364021511
Brand TP-Link
Shipping Weight 0.5000kg
Manufacturer Warranty
3 Years Limited Warranty
Manufacturer Contact Info
http://www.tp-link.com.au
1300 875 465
