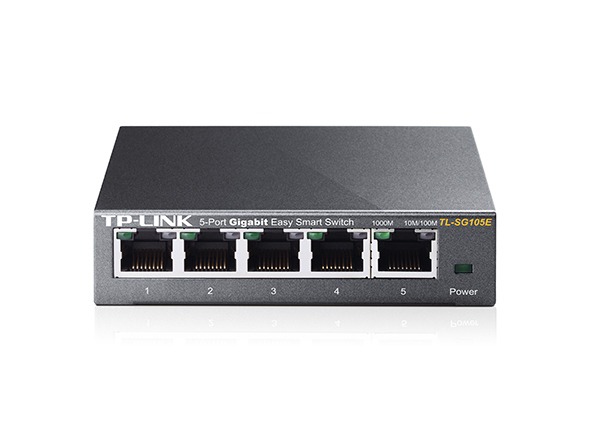

TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch - 5x 10/100/1000Mbps RJ45 Ports - AUTO Negotiation/AUTO MDI/MDIX - Packet Forwarding Rate: 7.4Mpps - 3 Year Warranty



Overview

What This Product Does

The TL-SG105E 5-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG105E offers both port and tag based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG105E can save up to 75% of power consumption, making it an eco-friendly solution for your business network.

Simple & Effective Management

TP-LINK’s Gigabit Easy Smart switch, TL-SG105E offers network monitoring for users to observe traffic behavior. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG105E can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port Priority and 802.1P Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG105E supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG105E is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.

Go Green with Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation of TL-SG105E 5-Port Gigabit Easy Smart Switch features the latest energy-efficient technologies that can greatly expand your network’s capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports

When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG105E can automatically detect the link status of each port and reduce the power consumption of ports that are idle.

Power Budget According to Cable Length

Ideally, shorter cables would use less power with less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG105E analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.

Ease of Use

TL-SG105E is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space while also being Rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

Features

  • 5x 10/100/1000Mbps ports provide instant large file transfers
  • Innovative energy-efficient technology reduces power consumption by up to 75%
  • IEEE 802.3x flow control provides reliable data transfers
  • 16K Jumbo frame improves performance of large data transfers
  • Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics
  • Port and tag-based QoS enable smooth latency-sensitive traffic
  • Abundant VLAN features improve network security via traffic segmentation
  • IGMP Snooping optimizes multicast applications
  • Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility

Specifications

(TL-SG105E)

Device Type Smart Switch
Dimensions 100 x 98 x 25 mm
Features Features
Network Ports 5x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
OTHERS Quality of Service

Support Port Based/802.1p Based priority
Support 4 priority queues
Rate Limit
Storm Control
Package Contents TL-SG105E
Power Cord
Installation Guide
Resource CD
Rubber Feet
Product TP-Link TL-SG105E 5-Port Gigabit Easy Smart Switch
Standards Compliance FCC, CE, RoHS
Weight
Ports Type RJ-45
Optional Accessories (Sold Seperately)
Data Tranfer Rates Gigabit
SKU TL-SG105E
Brand TP-Link
Shipping Weight 1.0000kg
Shipping Width 0.170m
Shipping Height 0.100m
Shipping Length 0.110m
Shipping Cubic 0.001870000m3
Manufacturer Warranty
3 Years Limited Warranty
Manufacturer Contact Info
http://www.tp-link.com.au
1300 875 465
