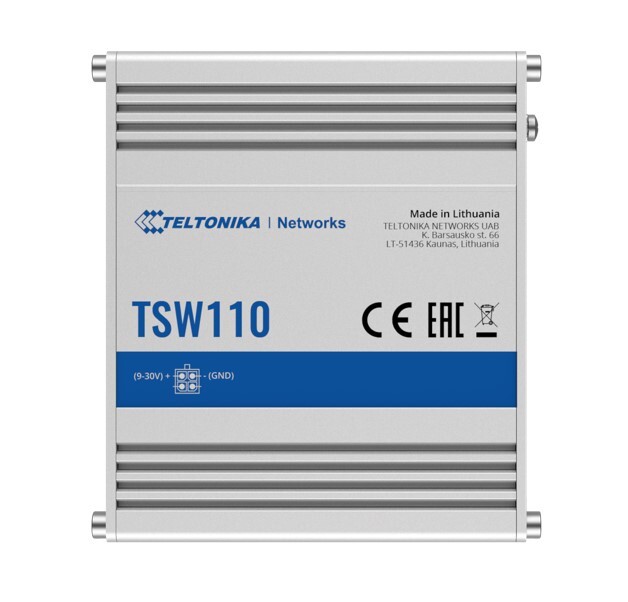

Teltonika L2 Unmanaged Ethernet Switch, 5 x Gigabit Ethernet with speeds up to 1000 Mbps, Operating Temperature from -40 °C to 75 °C, PSU included
Model # TSW110000020
-
SKU: TSW110000020
- Pick Up Available
- Australian Warranty
- Checkout Securely
TSW110
L2 UNMANAGED ETHERNET SWITCH
TSW110 is an unmanaged layer 2 Ethernet switch. This tiny but rugged professional device enables industrial high-bandwidth applications with a reliable data connection. It has five Gigabit Ethernet ports to connect equipment to the network and supports wide power supply voltages (9-30 V).
| GIGABIT ETHERNET 5 x Gigabit Ethernet with speeds up to 1000 Mbps | DURABILITY Rugged aluminium housing | MOUNTING DIN rail and surface mounting options | TEMPERATURE Operating temperature from -40 °C to 75 °C |
For More Case Studies Click Here ...
(TSW110000020)
| Category | Feature | Description |
|---|---|---|
| Ethernet | ETH | 5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az | |
| INDUSTRIAL PROTOCOLS | Profinet | Profinet Class A conformance (available with optional order code) |
| Performance Specifications | Bandwidth (Non-blocking) | 10 Gbps |
| Packer buffer | 128 KB | |
| MAC address table size | 2K entries | |
| Jumbo frame support | 9216 bytes | |
| Power | Connector | 4-pin industrial DC power socket |
| Input voltage range | 9 – 30 VDC | |
| PoE (passive) | Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC | |
| Power consumption | < 0.4 W/ < 1.8 W | |
| Physical Interfaces | Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| Status LEDs | 1 x Power LED, 10 x ETH status LEDs | |
| Power | 1 x 4-pin power connector | |
| Other | 1 x Grounding screw | |
| Physical Specification | Casing material | Full aluminum housing |
| Dimensions (W x H x D) | 100 x 30 x 85 mm | |
| Weight | 227 g | |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) | |
| Operating Environment | Operating temperature | -40 °C to 75 °C |
| Operating humidity | 5% to 95% non-condensing | |
| Ingress Protection Rating | IP30 | |
| Regulatory & Type Approvals | Regulatory | CE, UKCA, EAC, UCRF, ANRT, CITC, Kenya, FCC, IC, NOM, RCM, BSMI, CB |
| EMC Emissions & Immunity | Standards | EN 55032:2015 + A11:2020EN 61000-3-3:2013 + A1:2019EN IEC 61000-3-2:2019EN 55035:2017 |
| ESD | EN 61000-4-2:2009 | |
| Radiated Immunity | EN IEC 61000-4-3:2006 + A1:2008 + A2:2010 | |
| EFT | EN 61000-4-4:2012 | |
| Surge Immunity (AC Mains Power Port) | EN 61000-4-5:2014 + A1:2017 | |
| CS | EN 61000-4-6:2014 | |
| DIP | EN 61000-4-11:2004 + A1:2017 | |
| Safety | Standards | IEC 62368-1:2018EN IEC 62368-1:2020+A11:2020 |
| SKU | TSW110000020 |
| Barcode # | 4779027312958 |
| Brand | TELTONIKA |
| Shipping Weight | 0.4200kg |
Manufacturer Warranty: 2 Years Manufacturer Warranty
