TSW030

Name: Teltonika TSW030 8-PORT ETHERNET SWITCH - TSW030000000
Brand: TELTONIKA
SKU: TSW030000000
Price: 80 AUD
Availability: InStock

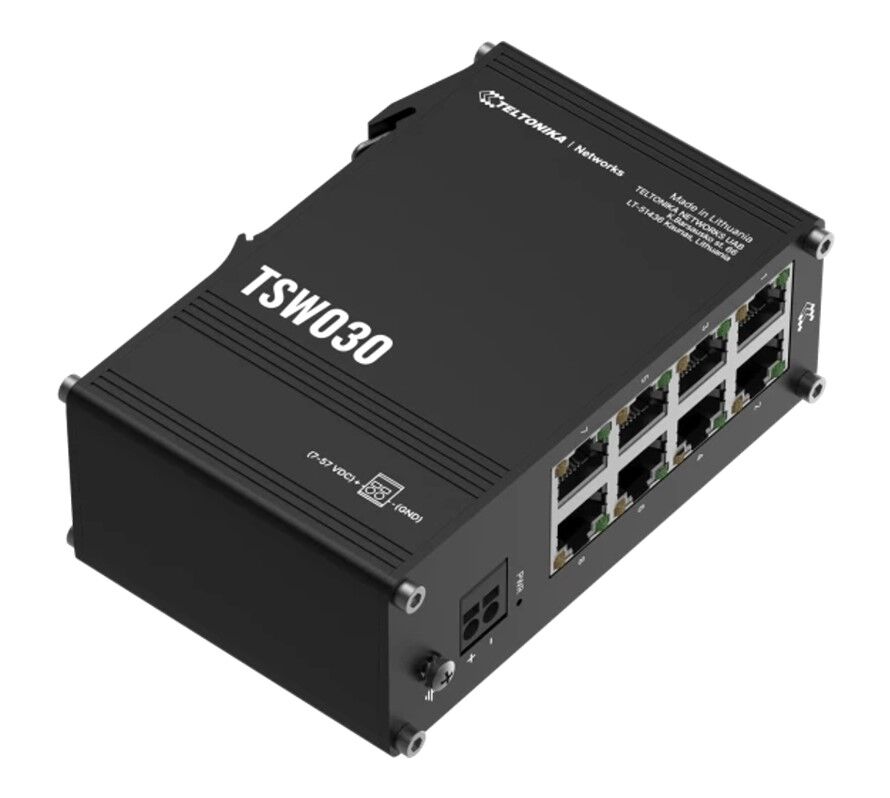

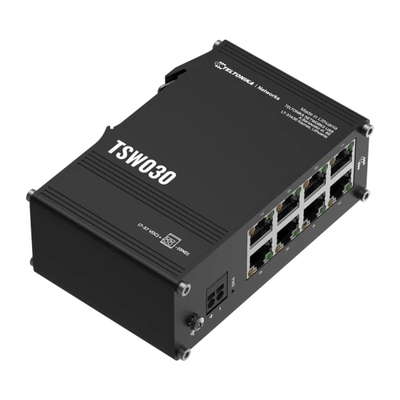

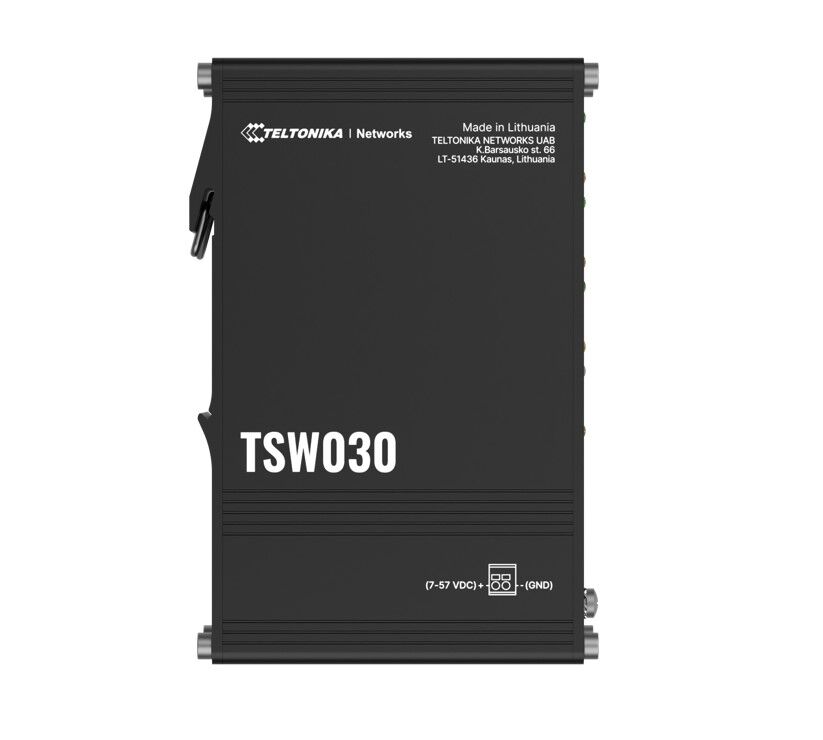

8-port Ethernet Switch

The TSW030 is a cost-efficient unmanaged Ethernet switch, featuring eight 10/100 RJ45 ports and integrated DIN rail mounting. This compact and rugged 8-port switch includes a 2-pin power input and low power consumption of up to 0.5 W when idle and a maximum of up to 1.5 W. These make this plug-and-play switch perfect for industrial applications requiring to connect up to eight devices.

2-pin Power Input

Simple and suitable for industrial applications

Low Power Consumption

Up to 0.5 W when idle, up to 1.5 W maximum

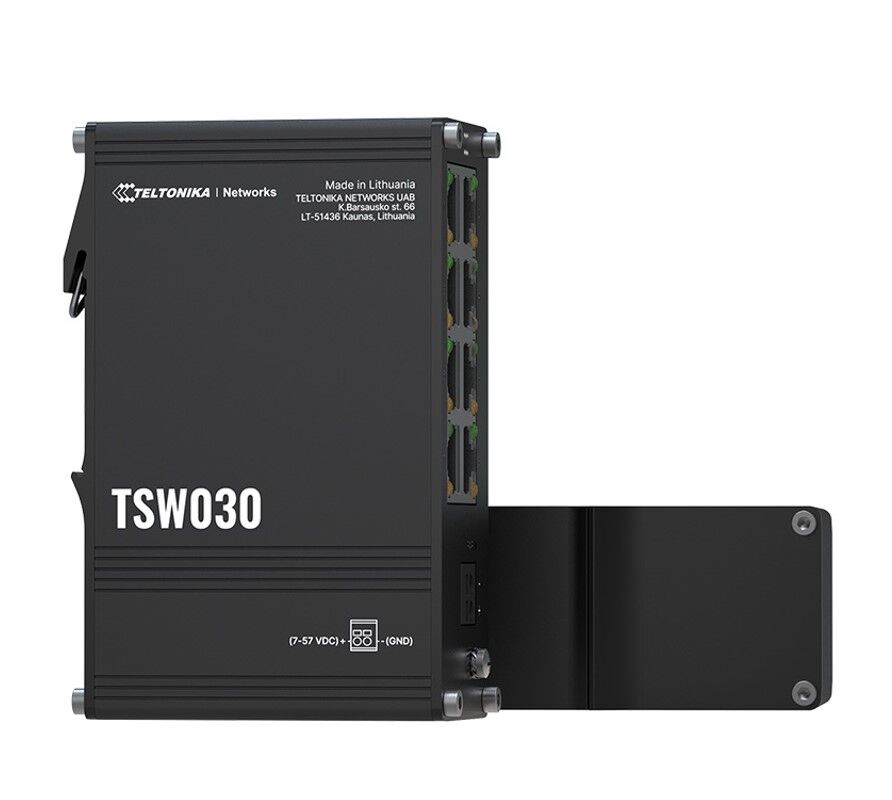

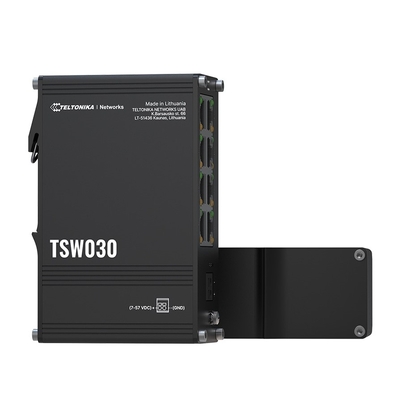

Integrated DIN Rail

Easy mounting for plug-and-play deployment

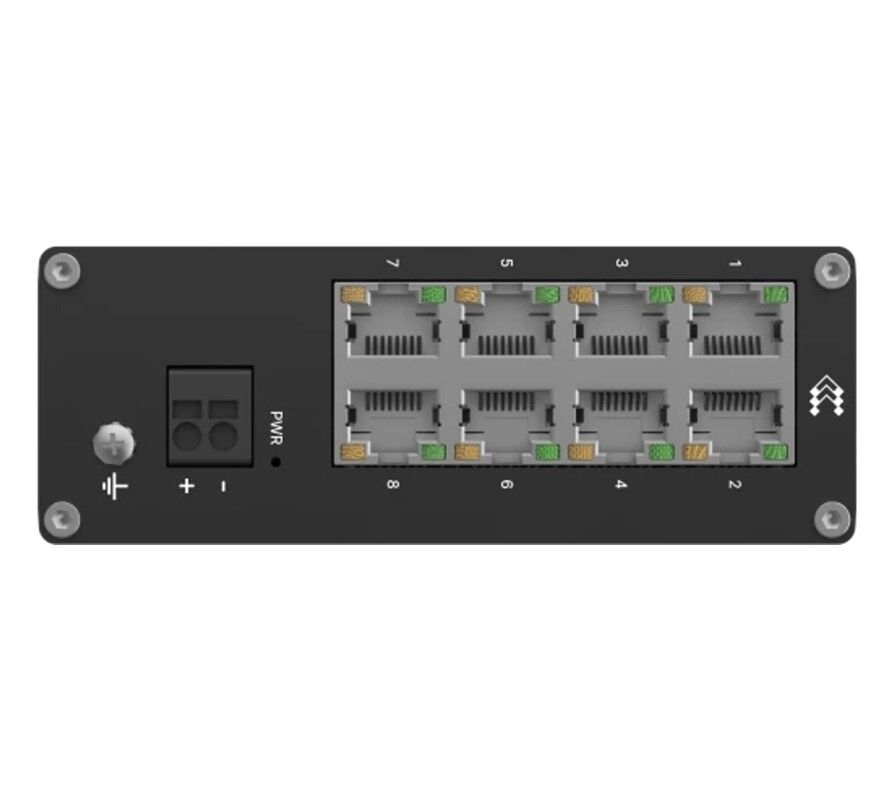

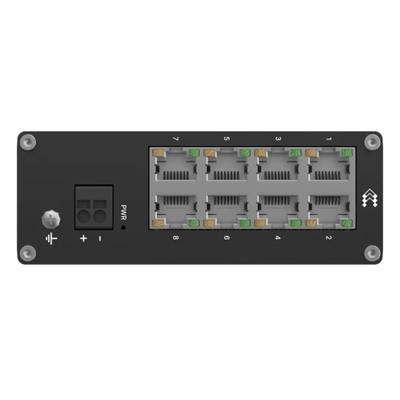

8 X RJ45 Ports

Eight 10/100 Mbps Ethernet ports

10-Port Ethernet Switch & Mobile Router for BMS System

Enterprise

For More Case Studies Click Here ...

(TSW030000000)

Category	Feature	Description
Ethernet	Ethernet	8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
Ethernet	IEEE 802.3 series standards	802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
INDUSTRIAL PROTOCOLS	Profinet	Profinet Class A conformance (available with optional order code)
Performance Specifications	Bandwidth (Non-blocking)	20 Gbps
	Packer buffer	128 KB
	MAC address table size	2K entries
	Jumbo frame support	9216 bytes
Power	Connector	2-pin industrial DC power socket
	Input voltage range	7 – 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND
	Power consumption	Idle: 0.5 W / Max: 1.5 W
Physical Interfaces	Ethernet	8 x RJ45 ports, 10/100 Mbps
	Status LEDs	1 x Power LED, 16 x ETH status LEDs
	Power	1 x 2-pin industrial DC power socket
	Other	1 x Grounding screw
Physical Specification	Casing material	Anodized aluminum housing and panels
	Dimensions (W x H x D)	113.1 x 41.2 x 74.6 mm
	Weight	256 g
	Mounting options	Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
Operating Environment	Operating temperature	-40 °C to 75 °C
	Operating humidity	5% to 95% non-condensing
	Ingress Protection Rating	IP30
Regulatory & Type Approvals	Regulatory	UL Safety
Safety (Ordinary Locations)	Standards	UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)
