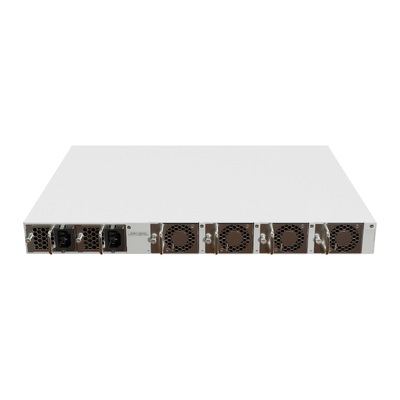

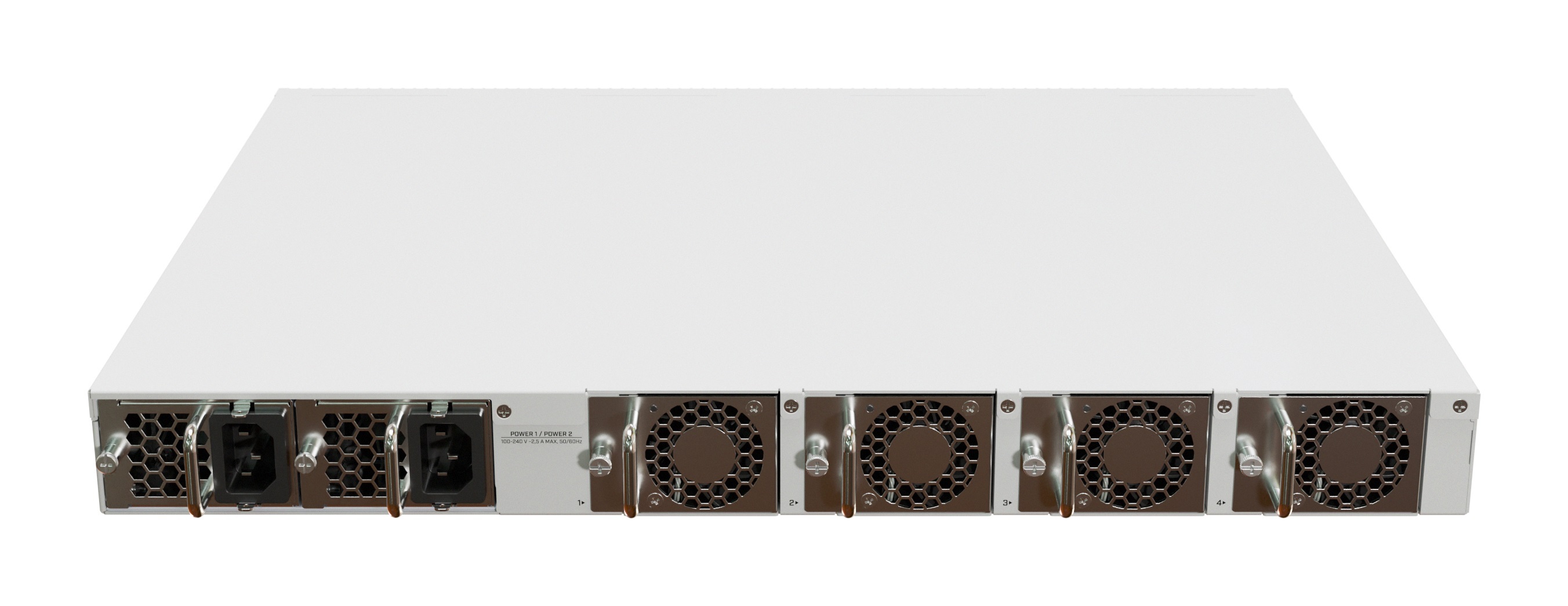

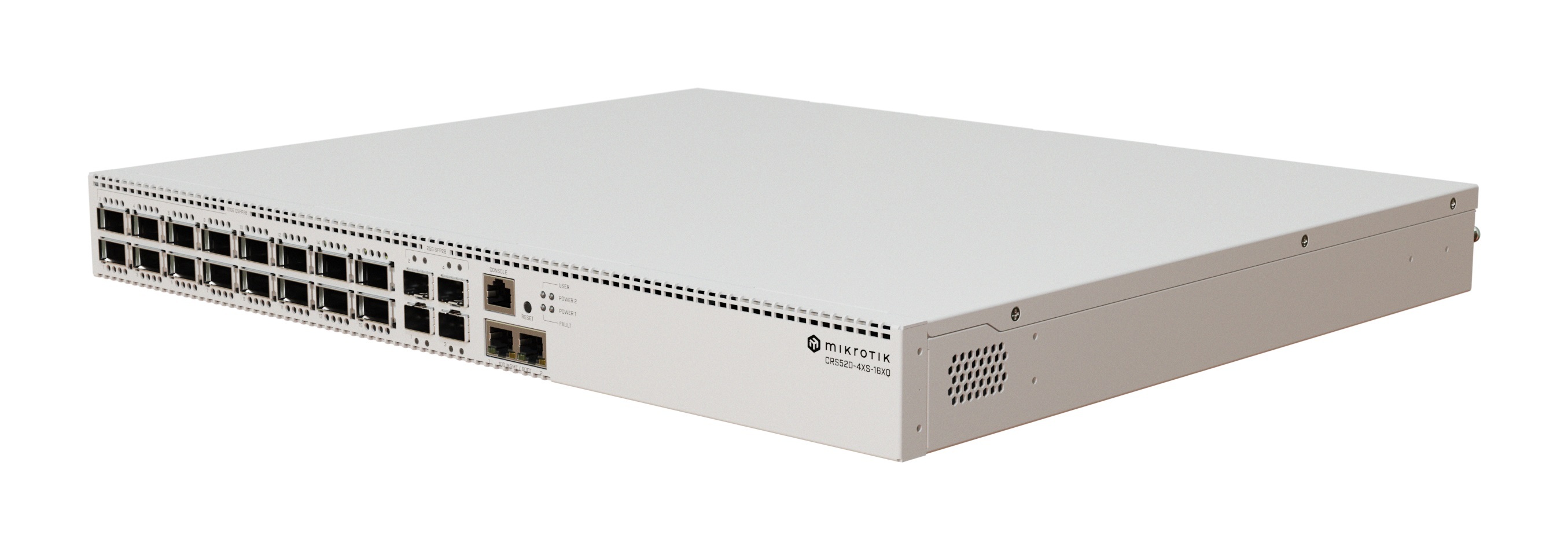

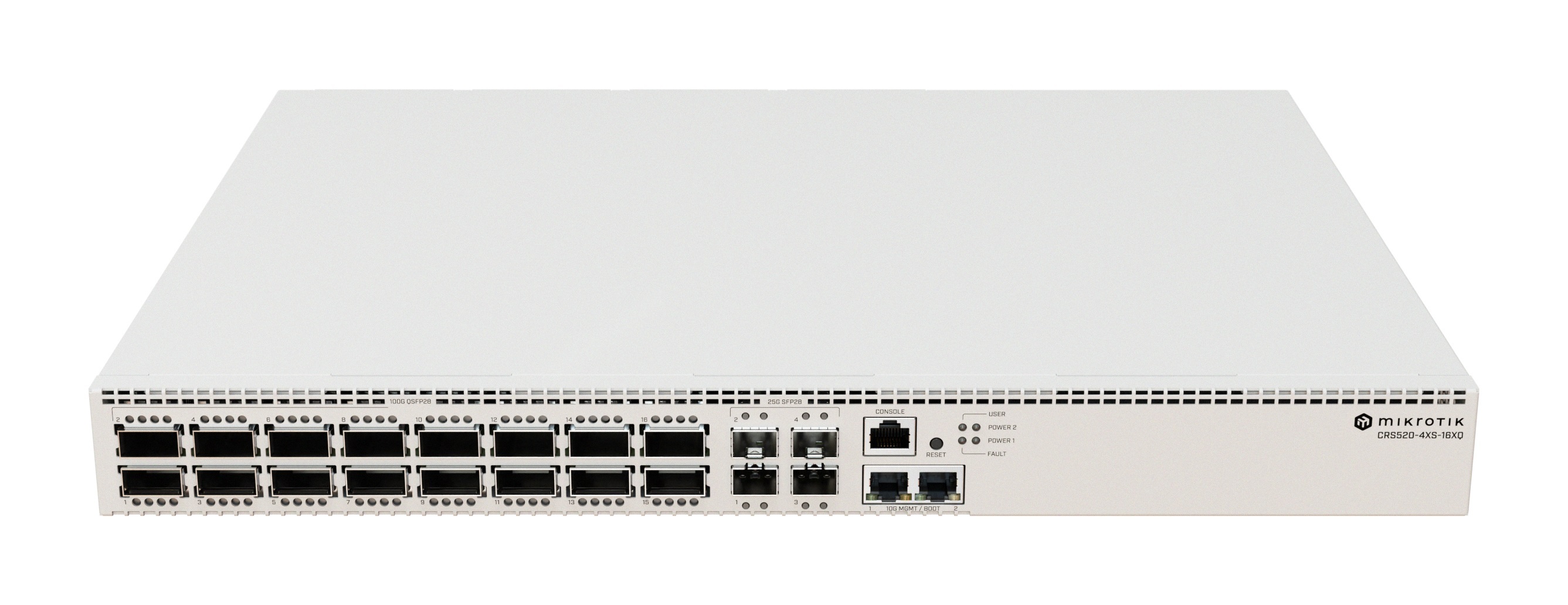

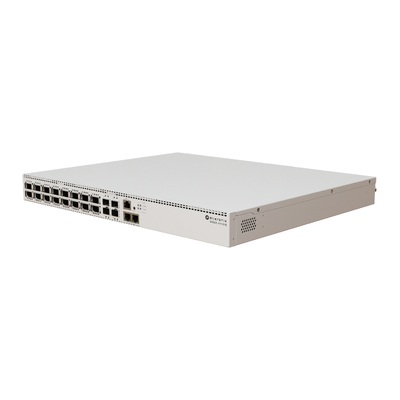

Mikrotik CRS520-4XS-16XQ-RM 16x 100G QSFP28 ports, 4x 25G SFP28 ports

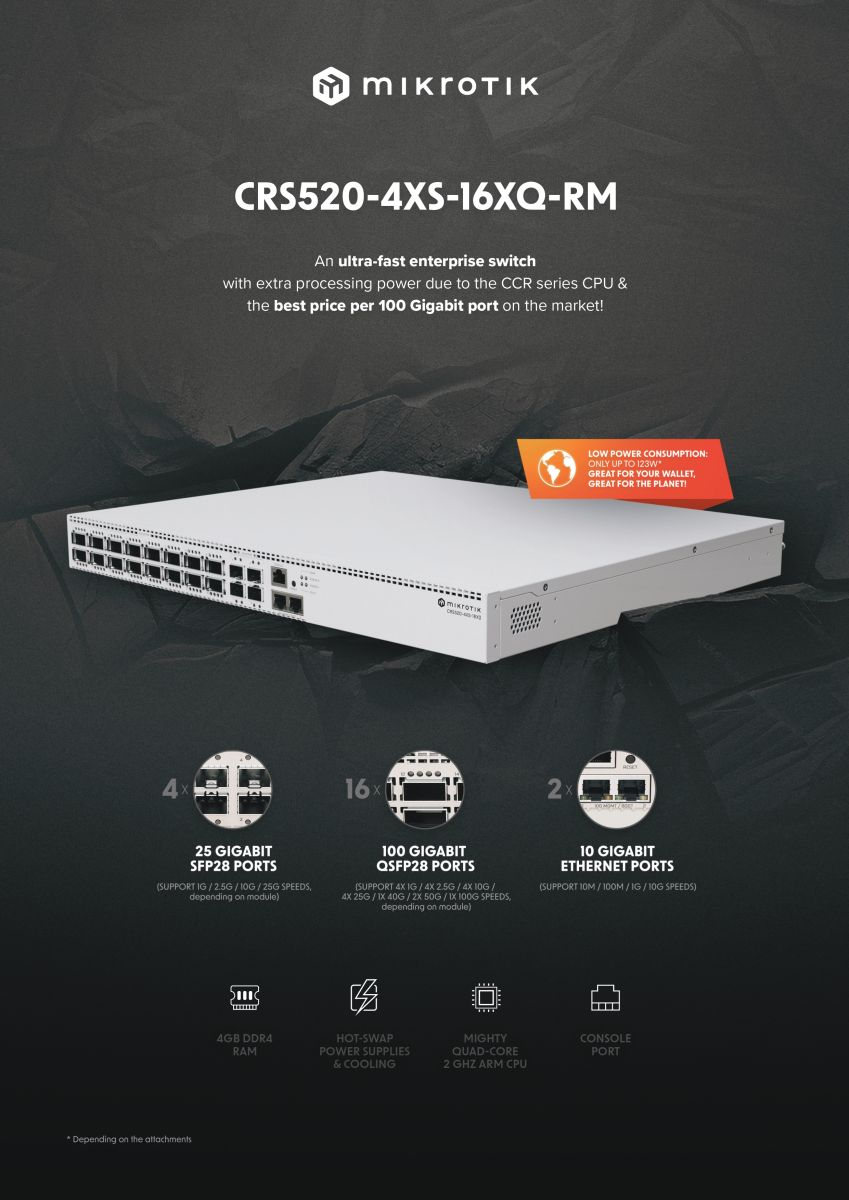

An ultra-fast enterprise switch with extra processing power due to the CCR series CPU & the best price per 100 Gigabit port on the market!

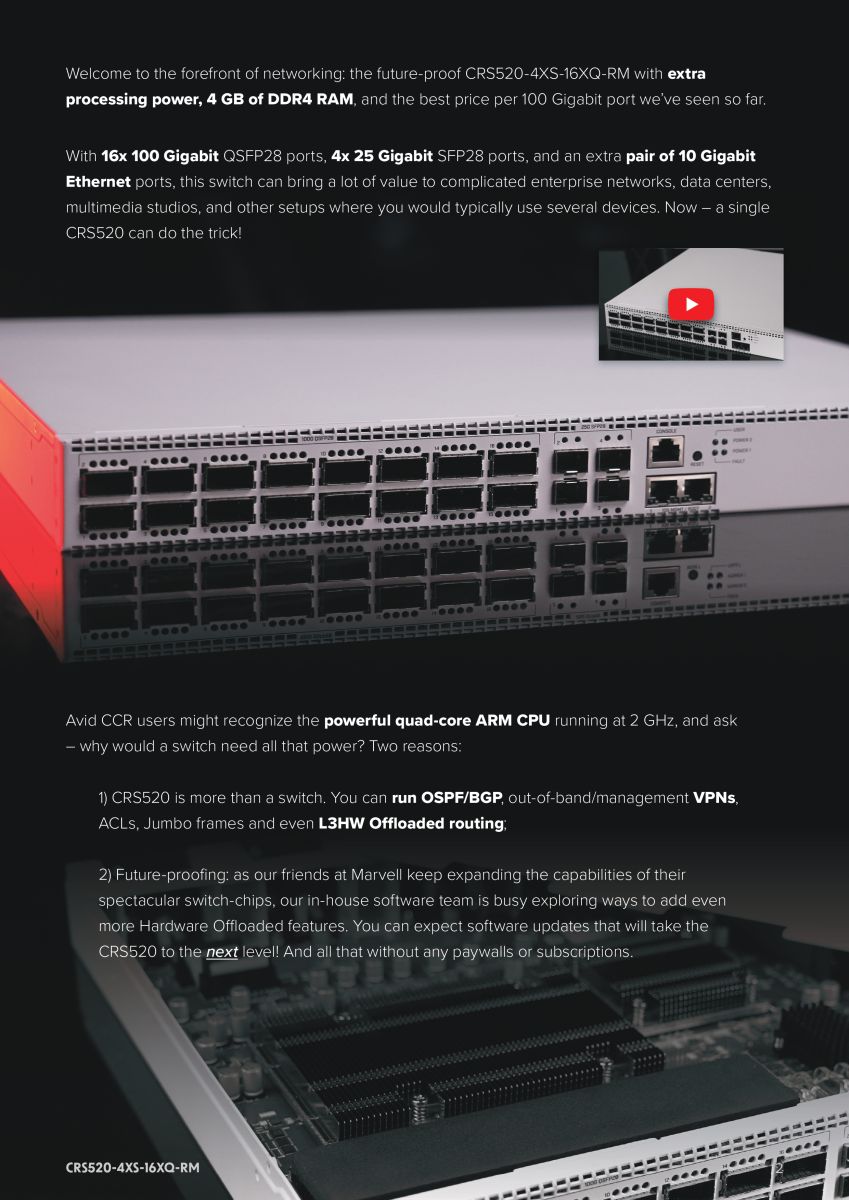

Welcome to the forefront of networking: the future-proof CRS520-4XS-16XQ-RM with extra processing power, 4 GB of DDR4 RAM, and the best price per 100 Gigabit port we’ve seen so far.

With 16x 100 Gigabit QSFP28 ports, 4x 25 Gigabit SFP28 ports, and an extra pair of 10 Gigabit Ethernet ports, this switch can bring a lot of value to complicated enterprise networks, data centers, multimedia studios, and other setups where you would typically use several devices. Now – a single CRS520 can do the trick!

Avid CCR users might recognize the powerful quad-core ARM CPU running at 2 GHz, and ask – why would a switch need all that power? Two reasons:

1) CRS520 is more than a switch. You can run OSPF/BGP, out-of-band/management VPNs, ACLs, Jumbo frames and even L3HW Offloaded routing;

2) Future-proofing: as our friends at Marvell keep expanding the capabilities of their spectacular switch-chips, our in-house software team is busy exploring ways to add even more Hardware Offloaded features. You can expect software updates that will take the CRS520 to the next level! And all that without any paywalls or subscriptions.

(CRS520-4XS-16XQ-RM)

Details
Product code CRS520-4XS-16XQ-RM
Architecture ARM 64bit
CPU AL52400
CPU core count 4
CPU nominal frequency 2 GHz
Switch chip model 98CX8410
RouterOS license 5
Operating System RouterOS v7
Size of RAM 4 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature

-20°C to 50°C

Powering

Details
Number of AC inputs 2
AC input range 100-240
Frequency (Hz) 47-63
Max power consumption 183 W
Max power consumption without attachments 123 W
Cooling type 4 fans

Ethernet

Details
Number of 1G/2.5G/5G/10G Ethernet ports 2

Fiber

Details
Number of 25G SFP28 ports 4
Number of 100G QSFP28 ports 16

Peripherals

Details
Serial console port RJ45

Other

Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 20
SKU CRS520-4XS-16XQ-RM
Brand MIKROTIK
Shipping Weight 6.0000kg

Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

Mikrotik CRS520-4XS-16XQ-RM 16x 100G QSFP28 ports, 4x 25G SFP28 ports

Model # CRS520-4XS-16XQ-RM

  • SKU: CRS520-4XS-16XQ-RM

$3,250.00
$3,899.00
SAVE $649.00 (17%)
Only 2 left!
