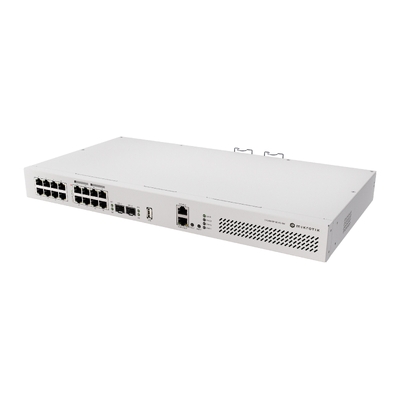

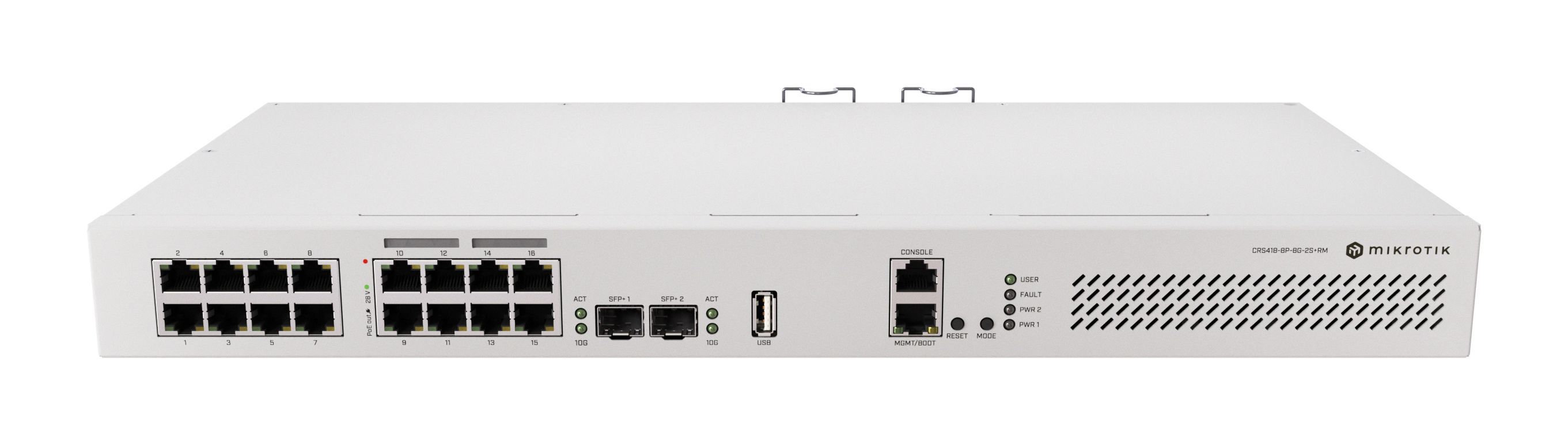

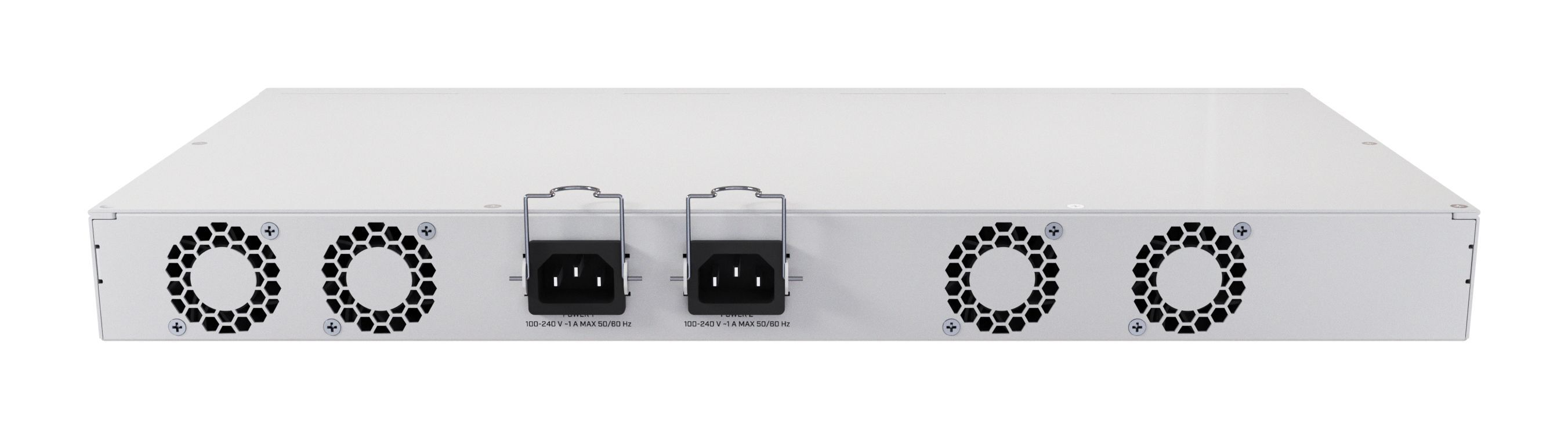

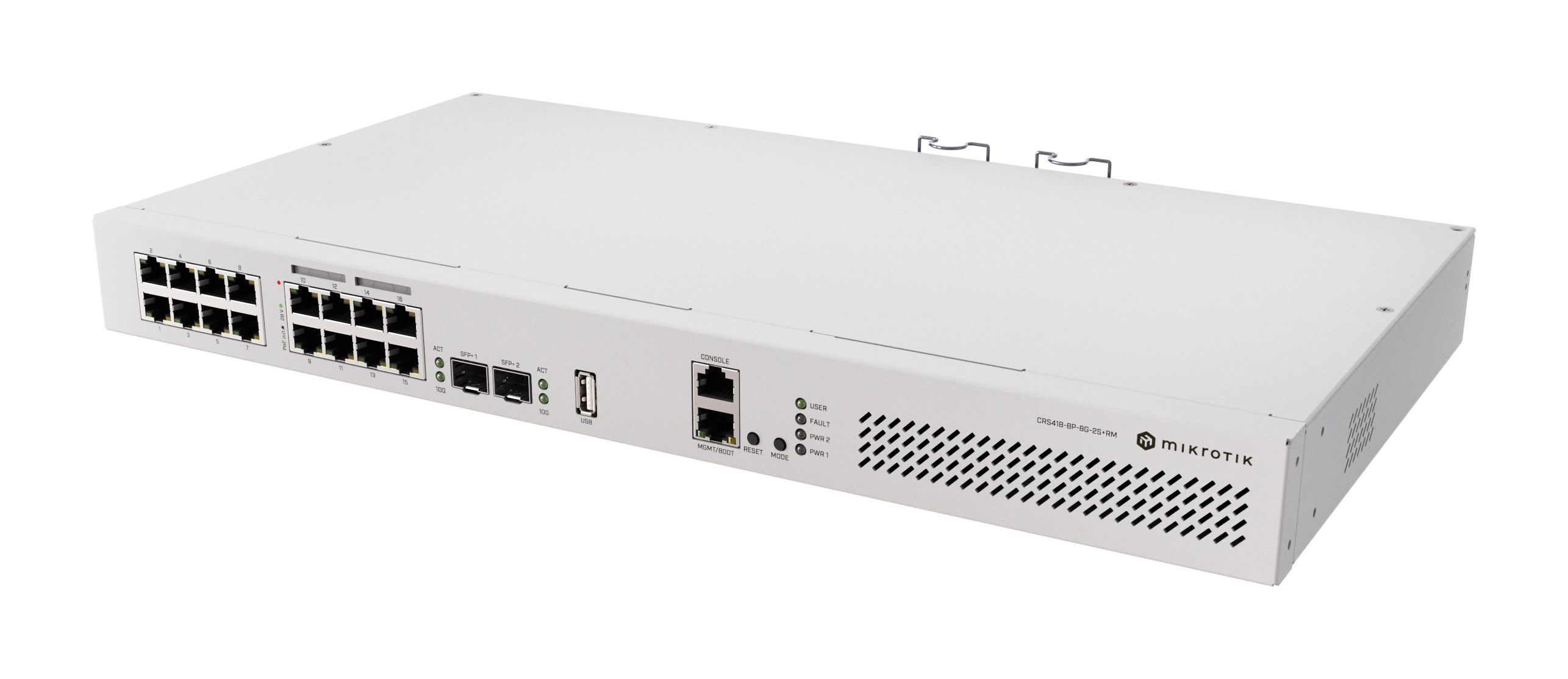

MikroTik CRS418-8P-8G-2S+RM - 8 x POE, 8 x GbE, 2 x SFP+ Quad-core 2.2 GHz ARM CPU

CRS418-8P-8G-2S+RM

You wanted a switch that couuld do more. So we built one that does everything! 16x (+1) Gigabit Ethernet ports (8x with PoE-out), dual 10G uplinks, and a powerful quad-core 2.2 GHz ARM CPU. Powerful enough to replace most small/medium office routers, ~3x faster than a CRS320 or a CRS328… and for a better price!

Why settle for just a simple switch when you can have PoE-out, high-speed fiber uplinks, USB storage compatibility, advanced network control/monitoring, and enough processing power even for some routing or L3 HW offloading… in a single 1U device and for the best price on the market?



The CRS418-8P-8G-2S+RM combines 16 Gigabit Ethernet ports (eight of them with PoE-out!), two 10G SFP+ cages, USB 3 connectivity, and a powerful quad-core 2.2 GHz CPU in a clean, durable rackmount enclosure. Also, there’s a Gigabit management port with a direct CPU line.

This is a serious upgrade for anyone looking to replace a jungle of devices with one smart multitasker – built for real routing workloads, high-bandwidth uplinks, and clean cable management. Whether you’re powering up access points and CCTV cameras, running a fast NAS with a bunch of modern workstations, or managing the routing in your mid-sized office, CRS418 handles it all with ease – and on a budget!

CRS418-8P-8G-2S+RM is more than a switch. It’s a real multi-tasking champion that keeps your network lean and your server room clean.

(CRS418-8P-8G-2SplusRM)

Details
Product code CRS418-8P-8G-2S+RM
Architecture ARM 64bit
CPU IPQ-8072
CPU core count 4
CPU nominal frequency 2208 MHz
Switch chip model 98DX226S
RouterOS license 5
Operating System
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 70°C
IPsec hardware acceleration Yes


Powering

Details
Number of AC inputs 2
AC input range 100-240
Number of PSU slots 2
Frequency (Hz) 50-60
Max power consumption 215 W
Max power consumption without attachments 28 W
Cooling type 4 fans

PoE-out

Details
PoE-out ports Ether9 - Ether16
PoE out 802.3af/at
Max out per port output (input 18-30 V) 1.1 A
Max out per port output (input 30-57 V) 0.56 A
Max total out (A) 5.4 A
Total output current 5.4
Total output power 150

Ethernet

Details
10/100/1000 Ethernet ports 17
Number of 1G Ethernet ports with PoE-out 8

Fiber

Details
SFP+ ports 2

Peripherals

Details
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB 3.0 type A
Max USB current (A) 1

Other

Details
CPU temperature monitor Yes
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Mode button Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 20
SKU CRS418-8P-8G-2SplusRM
Brand MIKROTIK
Shipping Weight 3.0000kg

Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

MikroTik CRS418-8P-8G-2S+RM - 8 x POE, 8 x GbE, 2 x SFP+ Quad-core 2.2 GHz ARM CPU

Model # CRS418-8P-8G-2S+RM

  • SKU: CRS418-8P-8G-2SplusRM

$689.00
In Stock
