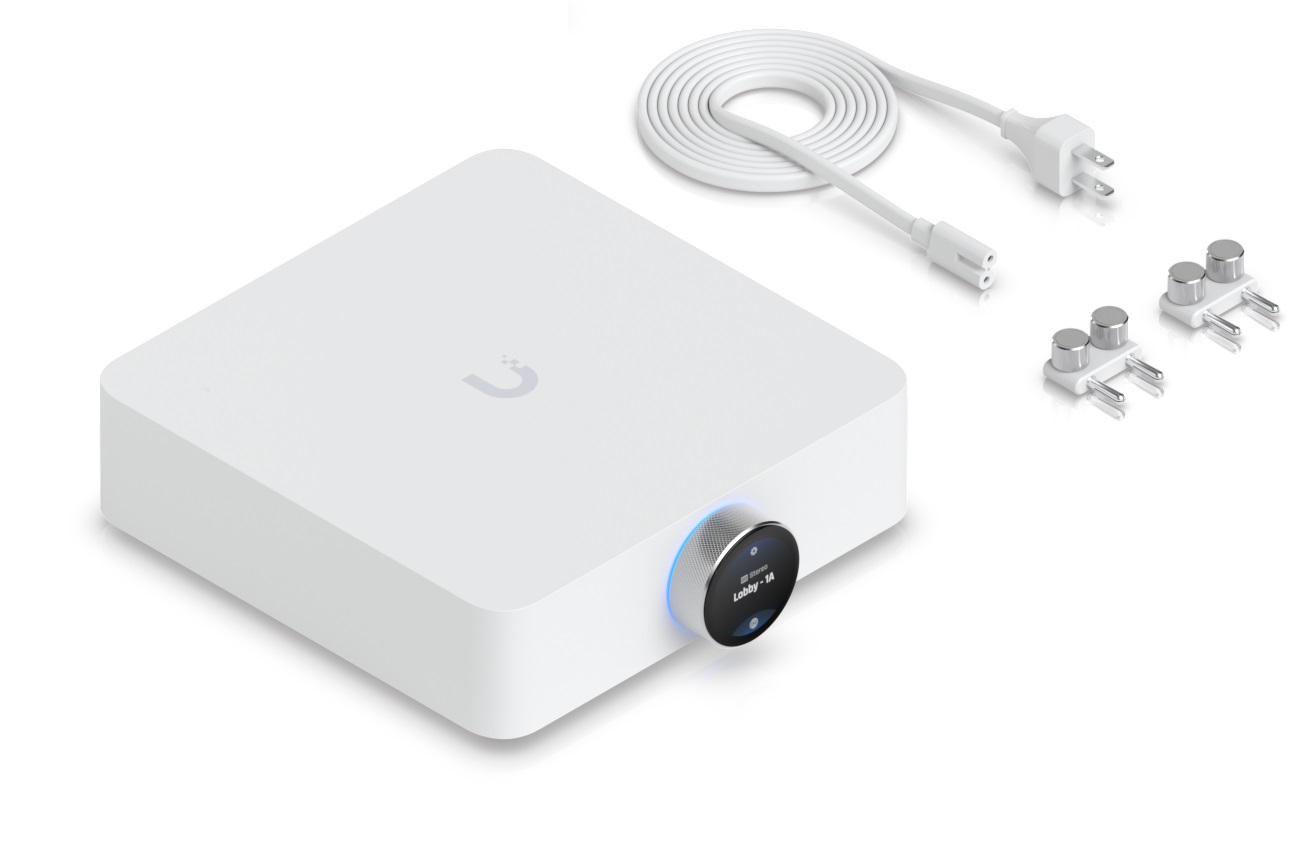

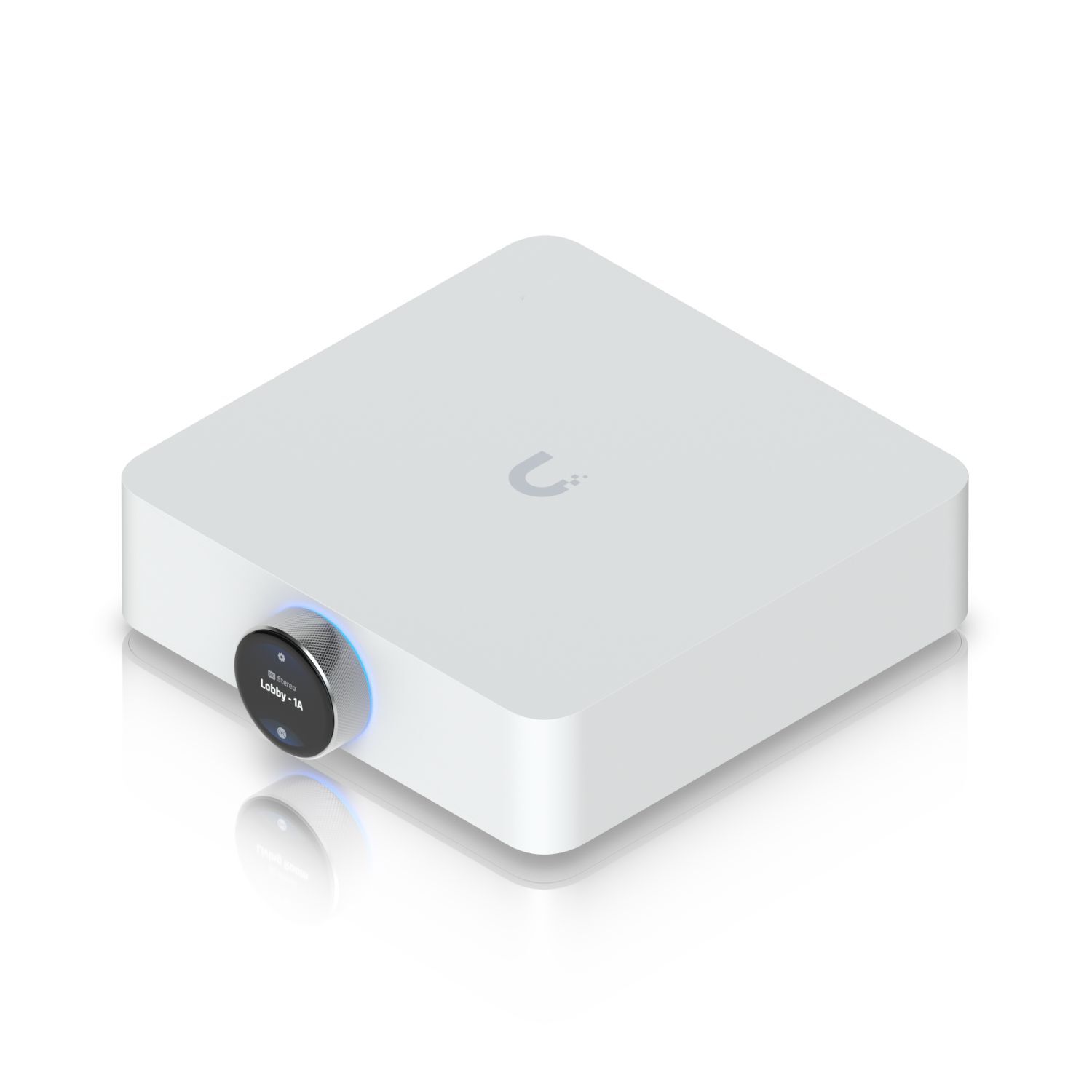

Name: Ubiquiti UPL-Amp-W Premium Speaker Amplifier For High-Fidelity Multi-Zone Audio Streaming - White
Brand: UBIQUITI
SKU: UPL-Amp-W
Price: 1399 AUD
Availability: LimitedAvailability

Ubiquiti UPL-Amp-B Premium Speaker Amplifier For High-Fidelity Multi-Zone Audio Streaming - Black

Premium speaker amplifier designed for high-fidelity multi-zone audio streaming and immersive spatial sound experiences.

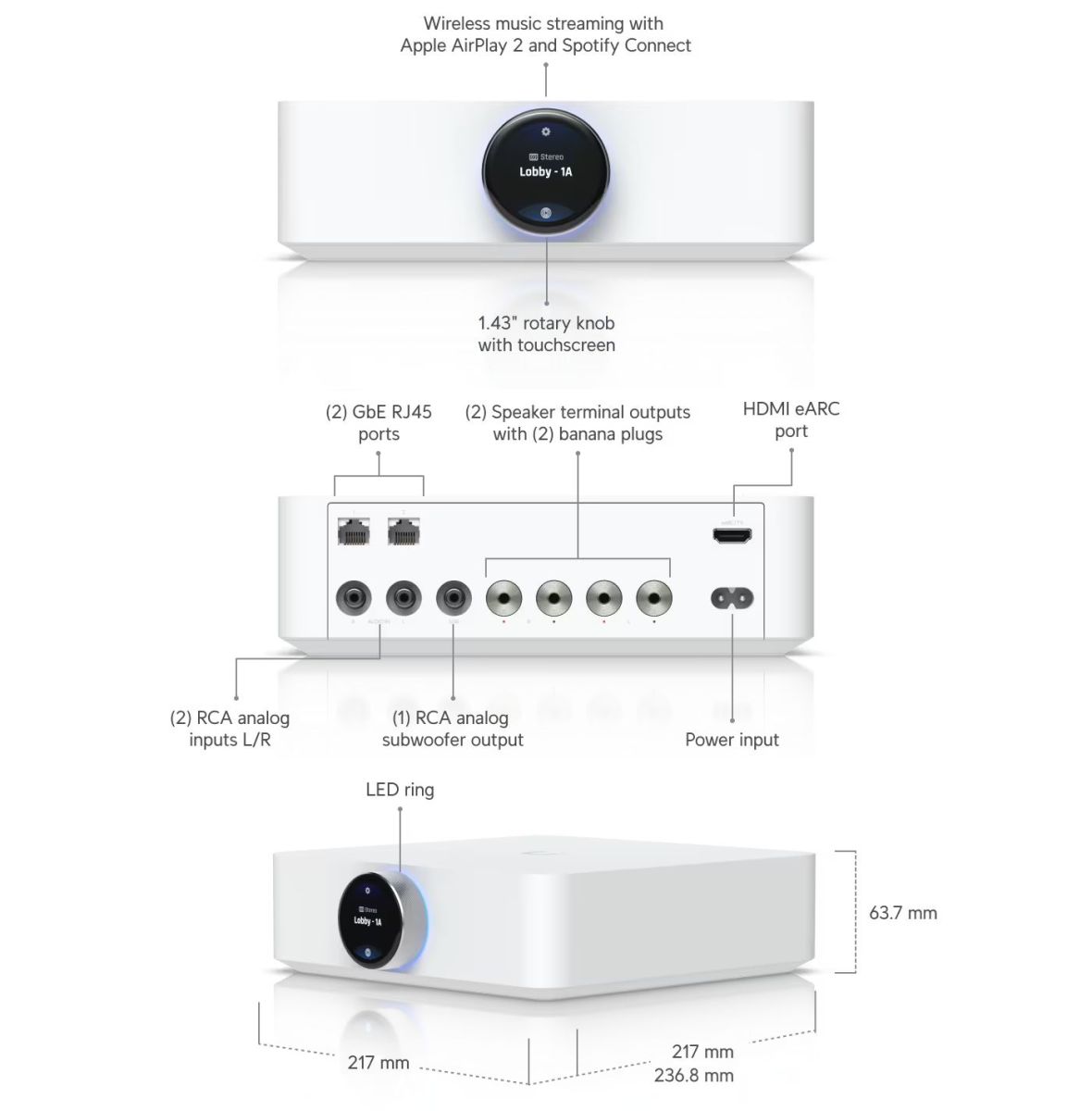

Low-latency wireless audio streaming with Apple AirPlay 2 and Spotify Connect

130 watts per channel at 8 ohms

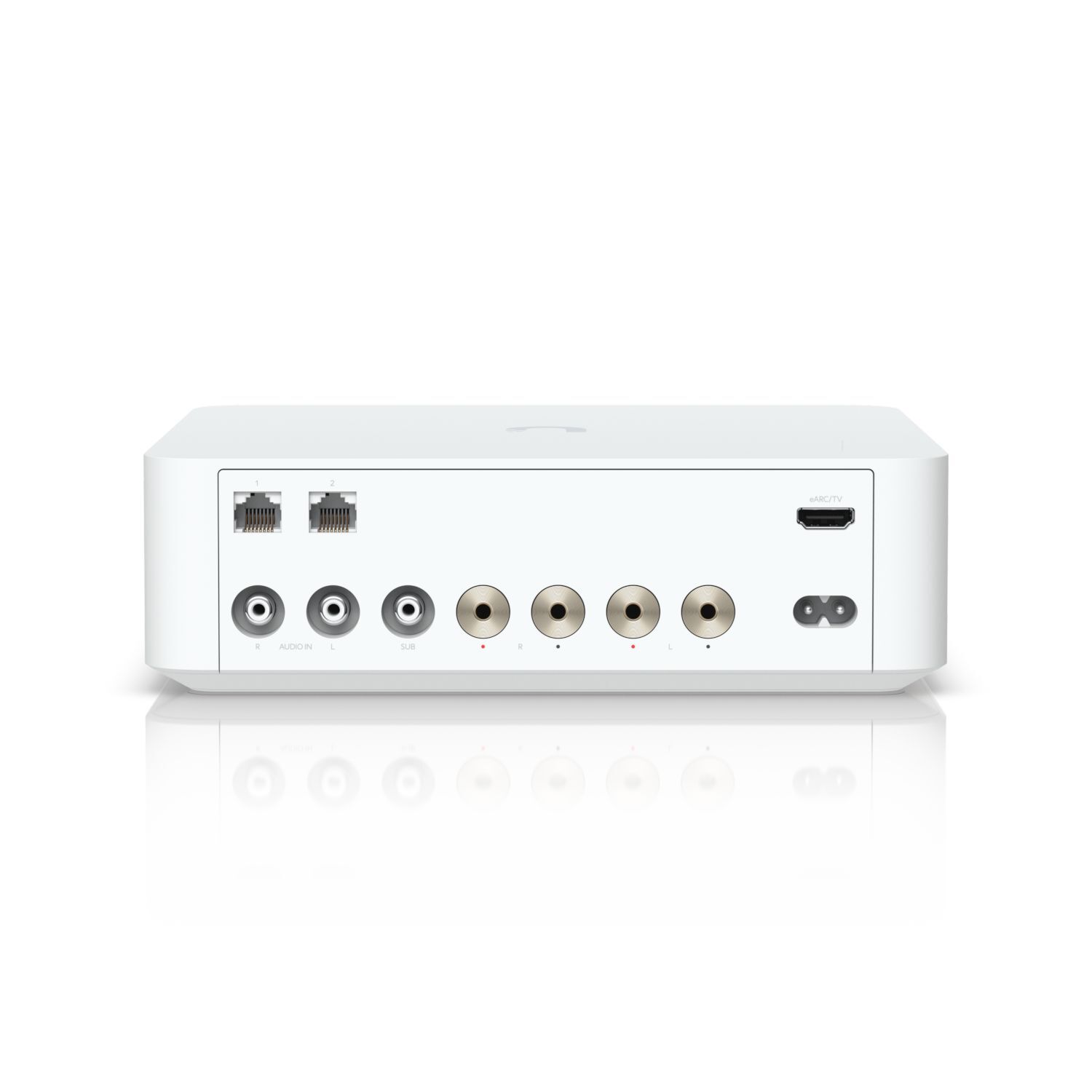

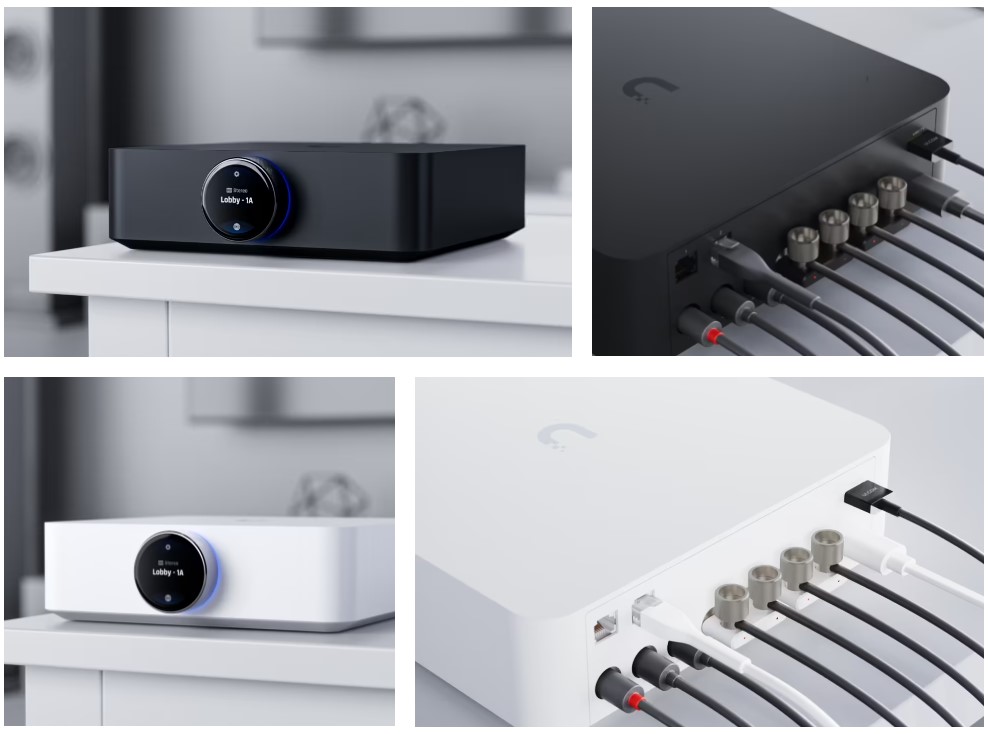

(2) speaker terminal outputs with (2) custom-designed banana plugs included

(1) RCA analog subwoofer output

(2) RCA analog inputs for left and right channels

(1) HDMI eARC input with immersive spatial sound powered by Dolby Atmos

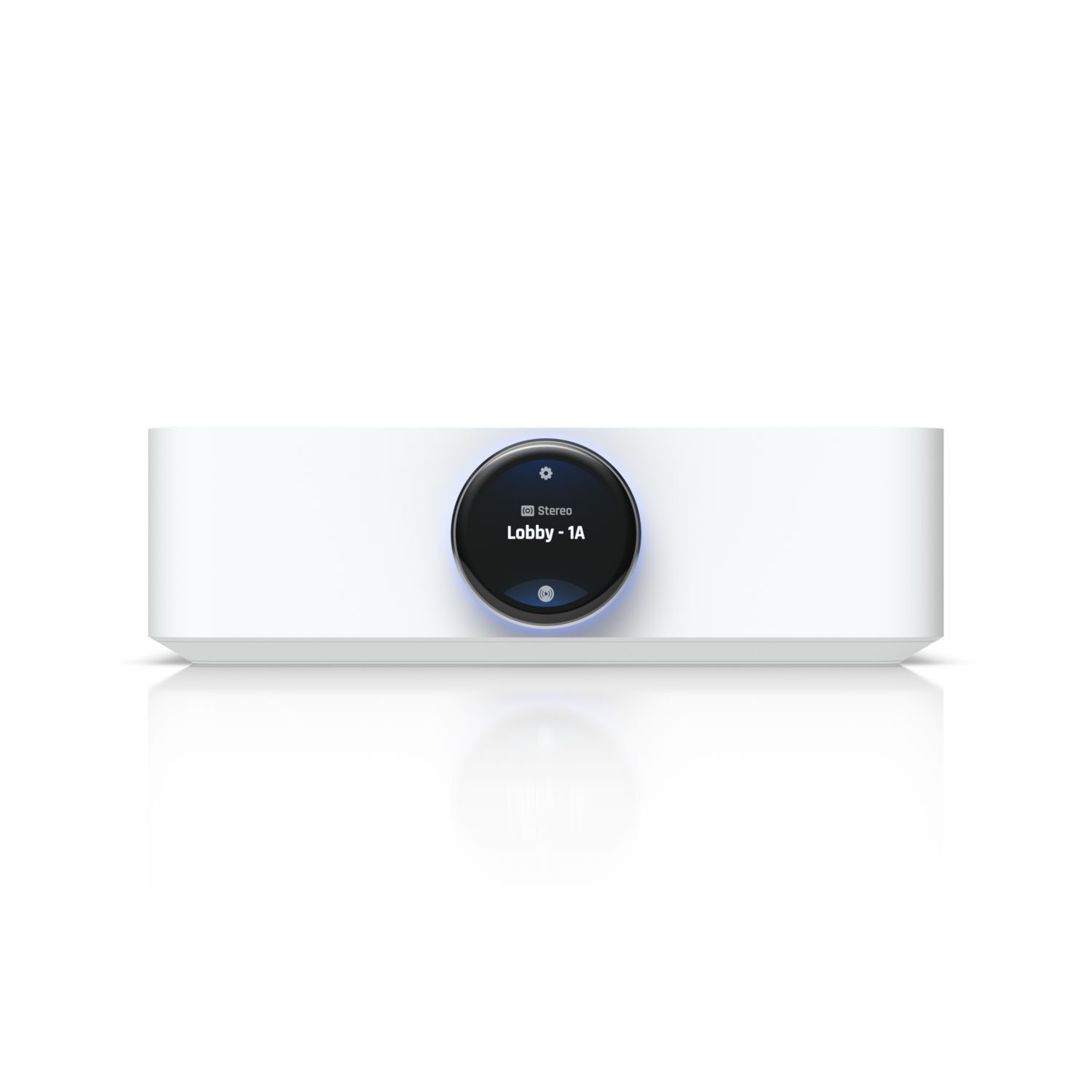

1.43" rotary knob with touchscreen

Effortless setup, management, and group control with the UniFi Play mobile app

What is UniFi PowerAmp?

UniFi PowerAmp is a meticulously crafted, insanely powerful amplifier designed to delight even the most discerning audiophiles. Management through the UniFi Play application and seamless integration with UniFi Pro A/V Switching offers a truly converged networking and premium audio experience.

Which UniFi Applications support UniFi PowerAmp?

UniFi PowerAmp operates independently with management through the UniFi Play mobile app. No UniFi Console is required.

Where can I install UniFi PowerAmp?

UniFi PowerAmp is designed to be flexibly placed on any flat surface. Additionally, with 2U of vertical space, a rack shelf can fit two UniFi PowerAmps side-by-side.

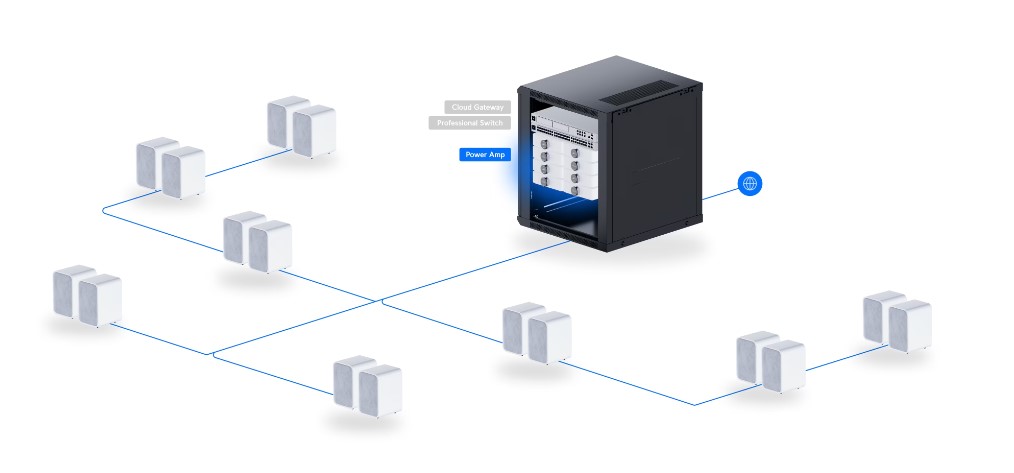

How can I deploy UniFi PowerAmp?

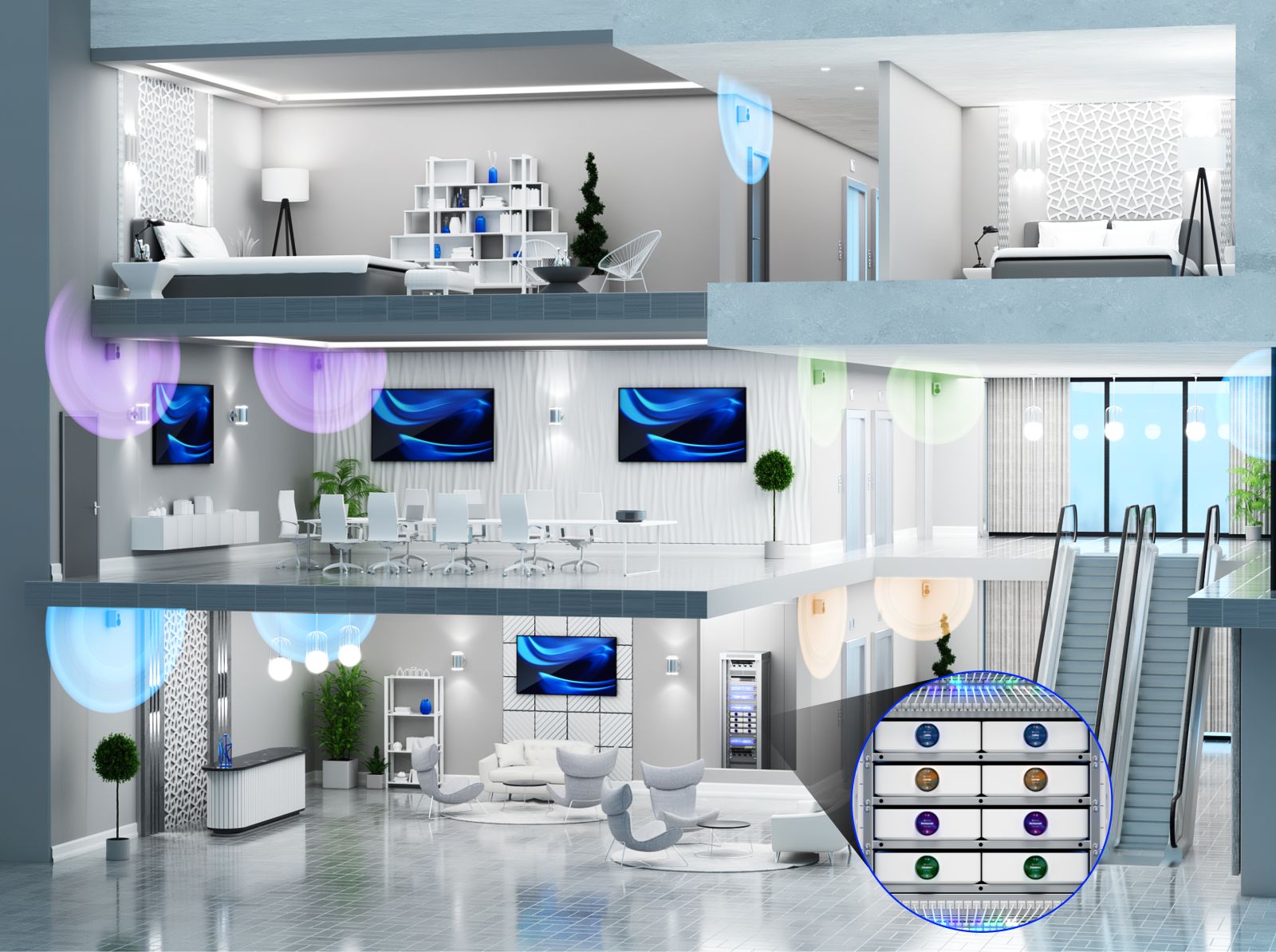

UniFi PowerAmp functions as an integrated amplifier without the need for a preamplifier and is designed with a plug-and-play experience. Control your audio effortlessly through the analog inputs or network streaming with Apple AirPlay 2 and Spotify Connect. Need to expand audio coverage? No problem - simply add more UniFi PowerAmps and create groups for multi-zone audio control.

How many UniFi PowerAmps can be grouped?

Up to 32 UniFi PowerAmps can be grouped for simultaneous control, with an unlimited number of groups available per audio space.

How many passive speakers can be added to a single UniFi PowerAmp channel?

UniFi PowerAmp provides 130 W per channel at 8 ohms, or 260 W per channel at 4 ohms.

By wiring passive speakers in parallel, UniFi PowerAmp can support two 8 ohm passive speakers wired in parallel to a single channel (4 ohm load).

(UPL-Amp-W)

Mechanical
Dimensions	With knob: 217 x 236.8 x 63.7 mm (8.5 x 9.3 x 2.5") Without knob: 217 x 217 x 63.7 mm (8.5 x 8.5 x 2.5")
Weight	2.4 kg (5.3 lb)
Enclosure material	Plastic
Mounting	Desktop
Color	Black White
Hardware
Networking interface	(2) GbE RJ45 ports
WiFi standards	802.11 a/b/g/n/ac
Connectivity	WiFi 2.4G, BW 20/40 MHz WiFi 5G, BW 20/40/80 MHz
Power method	(1) Universal AC input, 100–240V AC, 2.5A Max., 50/60 Hz
Power consumption	17W
LEDs	LED ring
LCM display	1.43" rotary knob with touchscreen
Button	Factory reset
Ambient operating temperature	-5 to 40° C (23 to 104° F)
Ambient operating humidity	5 to 90% noncondensing
Certifications	FCC, IC, CE
Audio
Per channel power	130W per channel at 8 ohms 260W per channel at 4 ohms
Output	Stereo and dual mono sound
Surround format	Dolby Atmos, Dolby TrueHD, Dolby Atmos (True HD), Dolby Atmos (Dolby Digital Plus), Dolby Digital, Dolby Digital Plus, Stereo PCM, Multichannel PCM, Dolby Multichannel PCM
Grouping	Up to 32 PowerAmps
Audio input	(1) HDMI eARC input (2) RCA analog inputs L/R
Audio output	(1) RCA analog subwoofer output (2) Speaker terminal outputs with (2) banana plugs
Streaming	AirPlay2, Spotify Connect, Soundtrack Your Brand* ^{*Available November 8th.}
Application Requirements
UniFi Play	UniFi Play iOS™ and Android™: Version 1.0.0 and later
