Ten lockable USB-A ports
Provides ten USB 3.2 Gen 1 downstream ports with screw-lock support for secure peripheral connections.
StarTech 10 Port USB Hub w/ Power Adapter - HB30A10AME
Model # HB30A10AME
-
SKU: HB30A10AME
$373.00
Stock Availability
🟢Live
In Stock · 10+ available
Pickup from Vermont, VIC
Allow 1–2 business days for stock transfer
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · HB30A10AME
10-Port Industrial USB-A Hub
Connect up to ten USB-A devices through a rugged 5Gbps industrial hub with steel housing, flexible mounting and terminal-block power.
10 × USB-AUSB 5GbpsIndustrial steelDIN / wall / desk
Built for dependable USB expansion
Industrial protection
Steel housing, ±15kV air and ±8kV contact ESD protection, plus 350W surge protection for demanding installations.
Flexible mounting
Built-in mounting ears and included DIN-rail brackets support desk, wall, under-desk and DIN-rail installation.
Flexible power input
Accepts 724V DC through a two-wire terminal block and includes a 65W universal power adapter for powered operation.
What to know before you connect
- Requires a computer with an available USB-A port; performance is limited when connected to USB 2.0.
- Power enters through the terminal-block connection, including when the supplied adapter is used.
- The 5Gbps upstream link and available charging power are shared across connected devices.
- Installation and terminal-block wiring should follow the supplied guide and applicable safety requirements.
?
Australian version with official warranty
Supplied by DeviceDeal and covered by the official StarTech.com 2 years manufacturer warranty in Australia. Keep your DeviceDeal tax invoice as proof of purchase; coverage is subject to StarTech.com terms, eligibility and product assessment.
Frequently asked questions
What is the StarTech HB30A10AME designed for?
It is a rugged 10-port USB-A hub for industrial, lab, conference-room and workstation installations that need many securely connected peripherals.
What USB speed does it support?
It supports USB 3.2 Gen 1 data rates up to 5Gbps, shared through the host connection, and is backward compatible with earlier USB devices.
How can the hub be mounted?
It can be installed on a desk, under a desk, on a wall or on DIN rail using its mounting ears and included DIN-rail brackets.
What protection does the industrial hub provide?
It provides ±15kV air and ±8kV contact ESD protection plus 350W surge protection on the USB interfaces.
How is the HB30A10AME powered?
It accepts 724V DC through a two-wire terminal block and includes a 65W universal power adapter that connects through the terminal-block input.
Can it charge USB devices?
Yes. It supports USB Battery Charging 1.2 with up to 2.4A on supported ports and up to 50W total, depending on the available power and connected devices.
What is included in the package?
The package includes the hub, a 6ft (1.8m) USB host cable, universal power adapter, two DIN-rail brackets, four screws and a quick-start guide.
What warranty applies in Australia?
The Australian-version HB30A10AME supplied by DeviceDeal is covered by a 2-year official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
(HB30A10AME)
Features and highlights
Ten lockable USB-A ports
Provides ten USB 3.2 Gen 1 downstream ports with screw-lock support for secure peripheral connections.
Industrial protection
Steel housing, ±15kV air and ±8kV contact ESD protection, plus 350W surge protection for demanding installations.
Flexible mounting
Built-in mounting ears and included DIN-rail brackets support desk, wall, under-desk and DIN-rail installation.
Flexible power input
Accepts 724V DC through a two-wire terminal block and includes a 65W universal power adapter for powered operation.
Data and charging
Supports 5Gbps USB data and USB Battery Charging 1.2, with up to 2.4A on supported ports and up to 50W total available.
Key highlights
- Wide 0°C to 70°C operating range for industrial environments
- Backward compatible with earlier USB standards
- OS-independent, driverless operation
- Includes a 6ft (1.8m) USB host cable and installation hardware
Official StarTech.com 2 years manufacturer warranty in Australia.
Technical specifications
StarTech HB30A10AME · 10-Port Industrial USB-A Hub
Warranty Information
Warranty
2 Years
Mounting Options
Surface, wall, under-desk or DIN rail
Hardware
Ports
10
Interface
USB 3.2 Gen 1 (5Gbps)
Bus Type
USB 3.2 Gen 1 (5Gbps)
Chipset ID
Genesys Logic - GL3523
Fast-Charge Port(s)
Yes
Material
Steel
Form Factor
Industrial
Performance
Maximum Data Transfer Rate
5 Gbps (USB 3.2 Gen 1)
UASP Support
Yes
ESD Protection
±15kV air; ±8kV contact
Surge Protection
350W on downstream and upstream-facing ports
MTBF
126,106 hours
Charging
USB Battery Charging 1.2; up to 2.4A (12W) on supported ports, up to 50W total
Connectors
Downstream Ports
10 × USB 3.2 Type-A (9 pin, Gen 1, 5Gbps)
Host Connector
1 × USB 3.2 Type-B (9 pin, Gen 1, 5Gbps)
Power Connector
1 × two-wire terminal block
Software
OS Compatibility
OS Independent; no additional drivers or software required
System Requirements and Notes
Host Requirement
Computer with an available USB 3.0 / 5Gbps USB-A port
Performance Note
Performance may be limited when connected to a USB 2.0 host port
Power Input
724V DC through terminal block; supplied AC adapter also connects through the terminal-block input
Indicators
LED
1 × power indicator (green)
Power
Power Source
AC adapter included or suitable 724V DC terminal-block source
Adapter Input
100240V AC, 1.4A
Adapter Output
20V DC, 3.25A
Power Rating
65W
Plug Type
Two-wire terminal block
Environmental
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-20°C to 85°C (-4°F to 185°F)
Humidity
5%95% RH, non-condensing
Physical Characteristics
Colour
Black
Product Length
7.8 in [19.8 cm]
Product Width
2.2 in [5.5 cm]
Product Height
1.2 in [3 cm]
Weight of Product
12.4 oz [352 g]
Packaging Information
Package Height
2.8 in [7.1 cm]
Package Length
11.5 in [29.2 cm]
Package Width
7.5 in [19 cm]
Shipping Weight
3.0 lb [1.4 kg]
Package Quantity
1

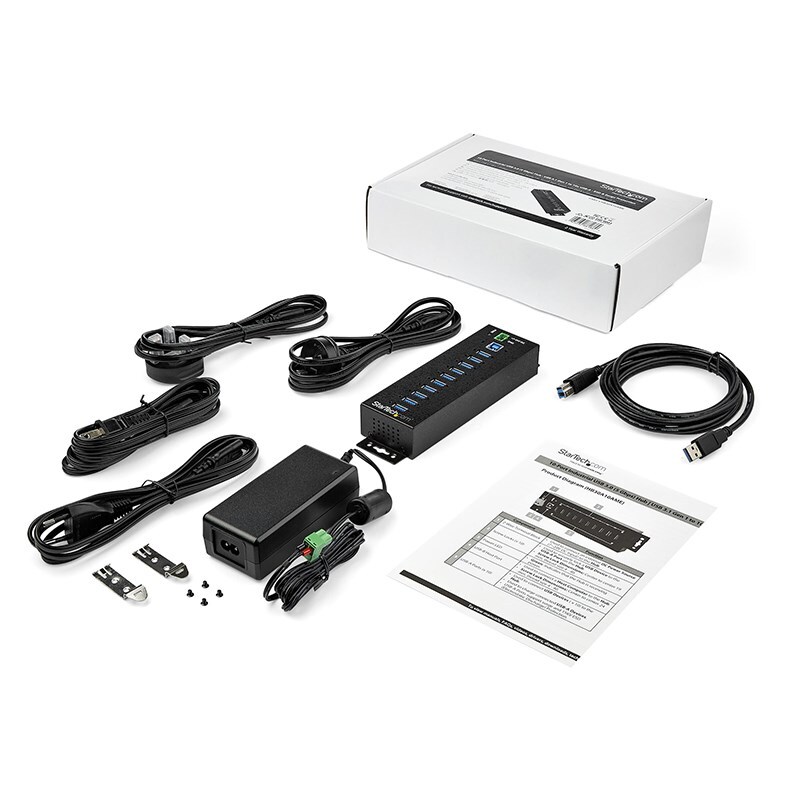

What's in the Box
Included
1 × USB hub
Included
1 × 6ft (1.8m) USB 3.0 host cable
Included
1 × universal power adapter (NA/JP, ANZ, UK, EU)
Included
2 × DIN-rail brackets
Included
4 × mounting screws
Included
1 × quick-start guide
| SKU | HB30A10AME |
| Barcode # | 65030881869 |
| Brand | Startech |
| Shipping Weight | 1.4000kg |
| Shipping Width | 0.190m |
| Shipping Height | 0.070m |
| Shipping Length | 0.290m |
