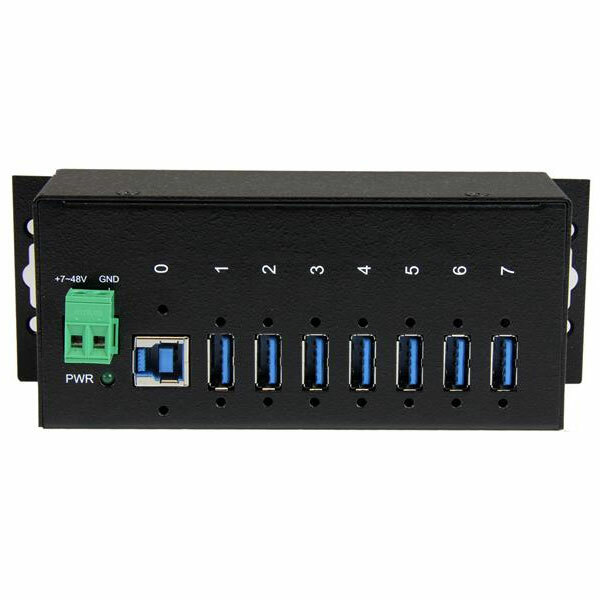

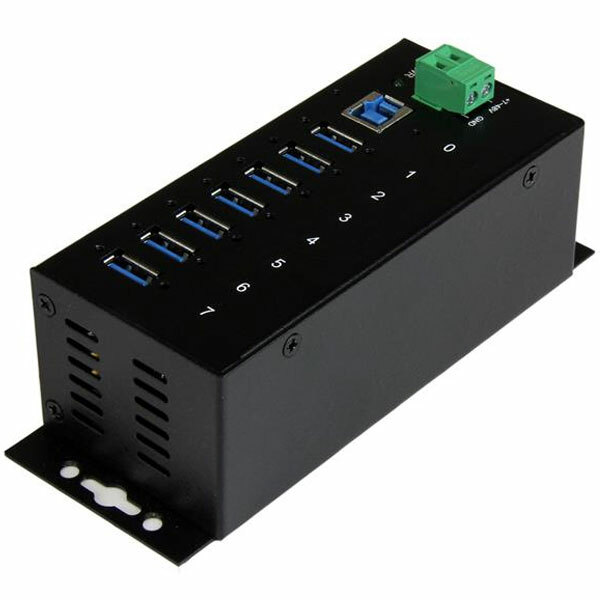

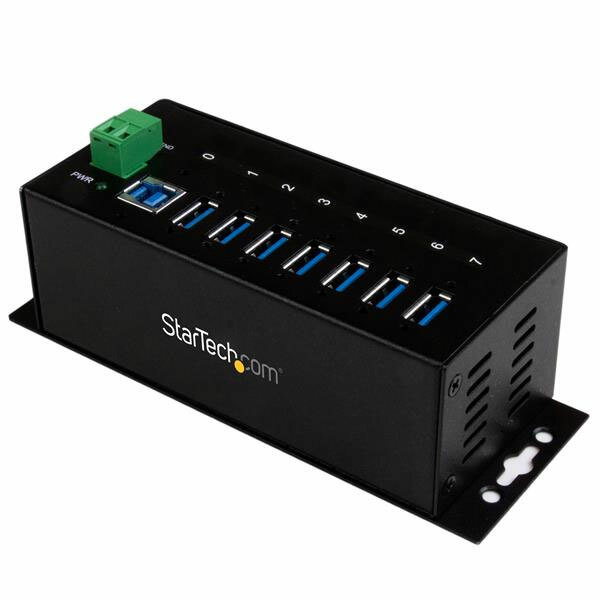

StarTech 7 Port Industrial USB 3.0 Hub, Metal - ST7300USBME
Model # ST7300USBME
-
SKU: ST7300USBME
- Pick Up Available
- Australian Warranty
- Checkout Securely
Industrial 7-port USB-A 5Gbps hub with BC 1.2 charging
A TAA-compliant steel industrial hub with seven USB-A 5Gbps ports, 748V terminal-block power, BC 1.2 charging up to 2.4A per port/35W total, ESD and surge protection.
Key capabilities
Seven 5Gbps industrial ports
Connect seven USB 3.2 Gen 1 devices in industrial or fixed installations.
BC 1.2 charging
Supports up to 2.4A on a port with a maximum 35W total charging budget.
Industrial protection
Lists ±15kV air / ±8kV contact ESD and 350W surge protection.
748V terminal-block input
Wide-range DC power integrates with industrial power systems; DIN rails are included.
What to know before buying
This product is intended for terminal-block power. The source notes that a standard AC adapter is not included; compatible industrial power solutions must meet the specified DC requirements.
Australian version and manufacturer warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
How many USB ports does ST7300USBME provide?
Which chipset does it use?
What DC input range is supported?
What charging capability is listed?
What ESD protection is listed?
What surge protection is listed?
What operating temperature range is supported?
What warranty applies in Australia?
(ST7300USBME)
Features and highlights
Seven 5Gbps industrial ports
Connect seven USB 3.2 Gen 1 devices in industrial or fixed installations.
BC 1.2 charging
Supports up to 2.4A on a port with a maximum 35W total charging budget.
Industrial protection
Lists ±15kV air / ±8kV contact ESD and 350W surge protection.
748V terminal-block input
Wide-range DC power integrates with industrial power systems; DIN rails are included.
- 7 × USB-A 5Gbps
- 2.4A / 35W charging
- 15kV/8kV ESD
- 2-year warranty
Specifications
Verified specifications for StarTech ST7300USBME.
Warranty Information
| Warranty | 2 Years |
|---|
Hardware
| Bus Type | USB 3.0 |
|---|---|
| Chipset ID | Genesys Logic - GL3520 |
| Fast-Charge Port(s) | Yes |
| Industry Standards | USB Battery Charging Specification Rev. 1.2 USB 3.0 - Backward compatible with USB 2.0 and 1.1 |
| Interface | USB 3.0 |
| Ports | 7 |
| USB-C Device Port(s) | No |
| USB-C Host Connection | No |
Performance
| ESD Protection | +/-15kV (Air) |
|---|---|
| ESD Protection | +/-8kV (Contact) |
| Maximum Data Transfer Rate | 5 Gbps |
| MTBF | 126,106 Hours |
| Surge Protection | 350W on the DFP and UFP |
| Type and Rate | USB 3.0 - 5 Gbit/s |
Connector(s)
| Connector Type(s) | 7 - USB Type-A (9 pin) USB 3.0 Female |
|---|---|
| Connector Type(s) | 1 - USB Type-B (9 pin) USB 3.0 Female |
| Connector Type(s) | 1 - Terminal Block (2 Wire) |
Software
| OS Compatibility | OS Independent; No additional drivers or software required |
|---|
Special Notes / Requirements
| Note | If connected to a USB 2.0 host port, performance may be limited |
|---|---|
| Note | This product is intended for use with terminal block power only Standard AC adapter not available |
| System and Cable Requirements | Host computer with an available USB 3.0 port |
Indicators
| LED Indicators | 1 - Power (Green) |
|---|
Power
| Input Voltage | 7 ~ 48 DC |
|---|---|
| Power Source | Terminal Block |
Environmental
| Humidity | 5%~95% RH (Non-condensing) |
|---|---|
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -20°C to 85°C (-4°F to 185°F) |
Physical Characteristics
| Color | Black |
|---|---|
| Enclosure Type | Steel |
| Form Factor | Industrial |
| Product Height | 1.8 in [4.5 cm] |
| Product Length | 5.7 in [14.5 cm] |
| Product Width | 2.1 in [54 mm] |
| Weight of Product | 11.5 oz [325 g] |
Packaging Information
| Package Height | 2.7 in [69 mm] |
|---|---|
| Package Length | 7.5 in [19 cm] |
| Package Width | 11.6 in [29.5 cm] |
| Shipping (Package) Weight | 22.2 oz [629 g] |

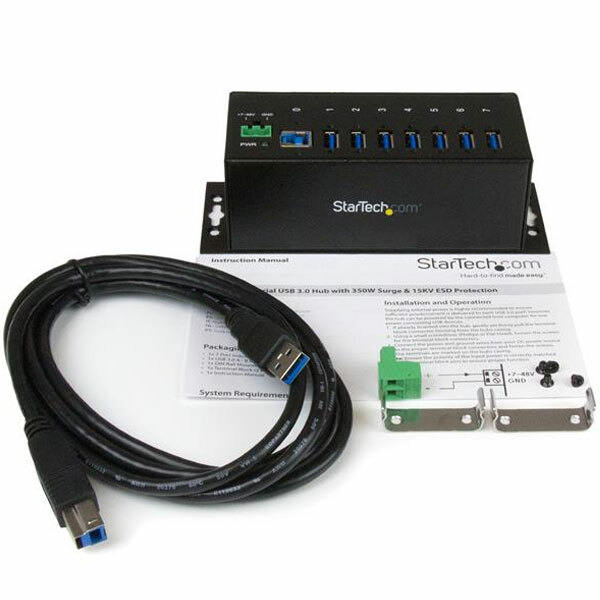

What's in the Box
| Included in Package | 1 - 7 Port Industrial USB 3.0 Hub |
|---|---|
| Included in Package | 1 - USB 3.0 A - B Cable |
| Included in Package | 1 - DIN Rail Mounting Kit |
| Included in Package | 1 - Terminal Block (2 Wire) |
| Included in Package | 1 - Instruction Manual |
| SKU | ST7300USBME |
| Barcode # | 65030860352 |
| Brand | STARTECH |
| Shipping Weight | 0.6200kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.290m |
| Shipping Cubic | 0.001450000m3 |
