ATEN SKU UCE32100-AT-U

ATEN UCE32100-AT-U 4-Port USB 2.0 Cat5 Extender 100m

The ATEN UCE32100-AT-U extends four USB 2.0 devices up to 100 metres from a host computer over Cat5 UTP cable.

A transmitter-and-receiver design, powered receiver, metal housing and included wall/DIN-rail mounting hardware support reliable industrial USB connectivity.

4 USB portsUp to 100mUSB 2.0 high speedManufacturer warrantyDeviceDeal authorised ATEN reseller

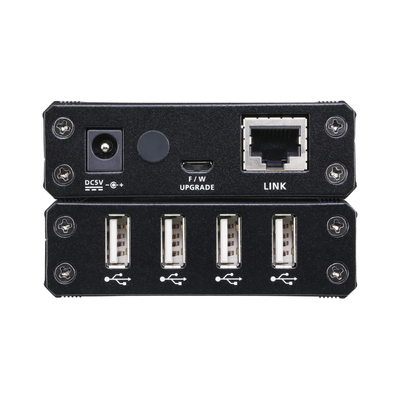

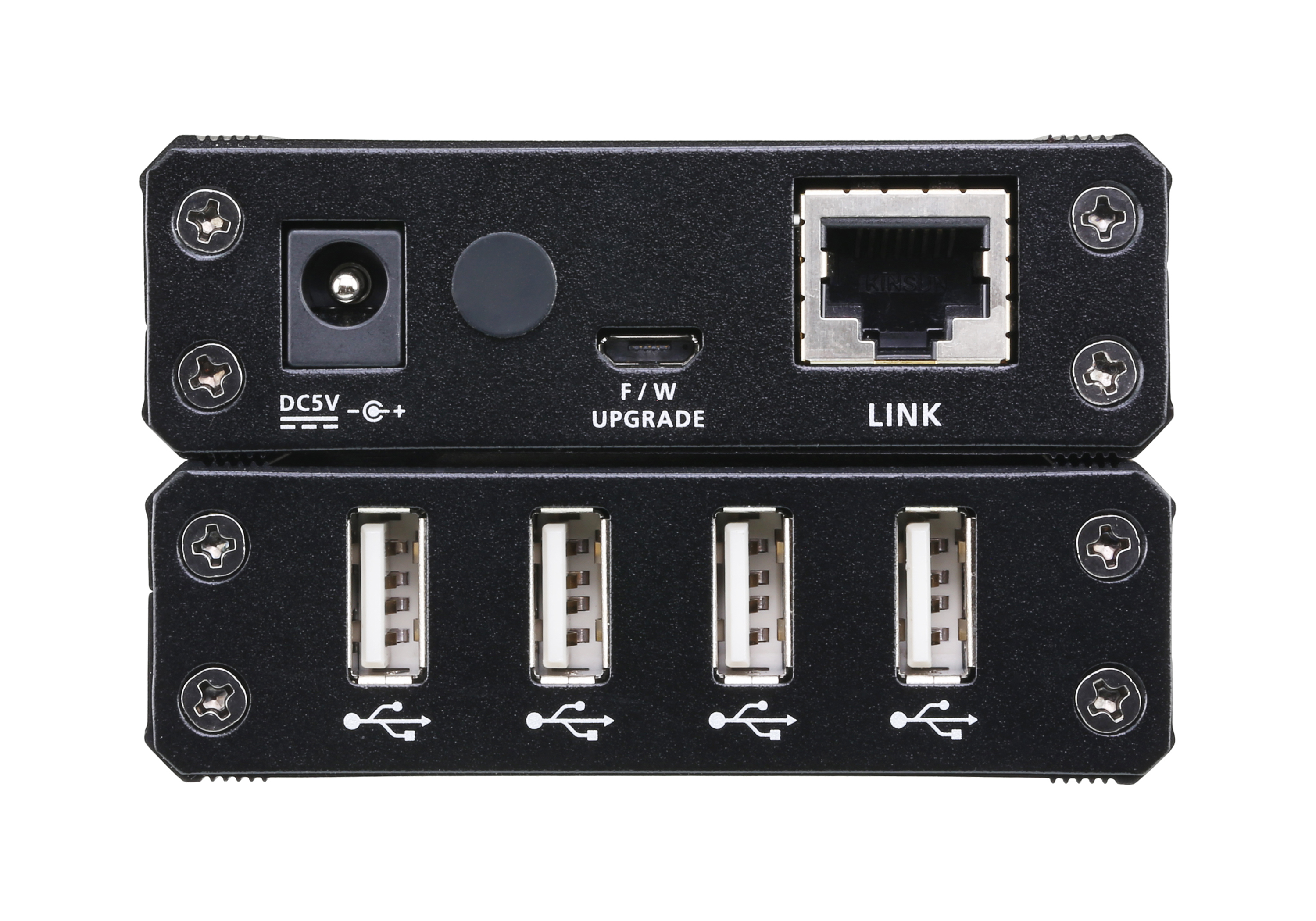

ATEN UCE32100-AT-U 4-Port USB 2.0 Cat5 Extender 100m shown in the supplied second product image

Product overview

Four remote USB ports

The receiver provides four USB Type-A female downstream ports for compatible USB devices.

Up to 100m

The source lists a maximum signal range of 100 metres over Cat5 UTP cable.

Industrial installation

Metal construction and included wall-mount and DIN-rail hardware support space-efficient deployment.

Source review: The supplied record does not provide a warranty duration. Confirm the target operating system, USB-device power requirements and applicable ATEN warranty before purchase.

Frequently asked questions

How far can the UCE32100 extend USB?

The source lists up to 100 metres over Cat5 UTP cable.

How many USB devices can be connected?

The receiver provides four USB Type-A female ports.

Is a power adapter included?

Yes. The package contents list a power adapter and power cord.

Can the units be wall or DIN-rail mounted?

Yes. Mounting kits and DIN rails are included according to the source.

What warranty applies?

The product is supplied under the applicable ATEN manufacturer warranty in Australia through DeviceDeal as an authorised ATEN reseller.

(UCE32100-AT-U)

Features

ATEN UCE32100-AT-U 4-Port USB 2.0 Cat5 Extender 100m

USB extension

4 remote USB Type-A ports
USB 2.0 high speed
Cat5 UTP link
100m signal range

Installation

Transmitter and receiver
Metal housing
Wall-mount hardware
DIN rails
DC jack lock kits

Package

Transmitter
Receiver
USB A-to-B cable
Power adapter and cord
Mounting accessories
User instructions

Confirm the power requirement of all connected USB devices against the receiver power supply.

Technical specifications

ATEN UCE32100-AT-U 4-Port USB 2.0 Cat5 Extender 100m

Product details
Brand	ATEN
Model / SKU	UCE32100-AT-U
Product type	4-port USB 2.0 Cat5 extender
Cable / range	Cat5 UTP; up to 100m

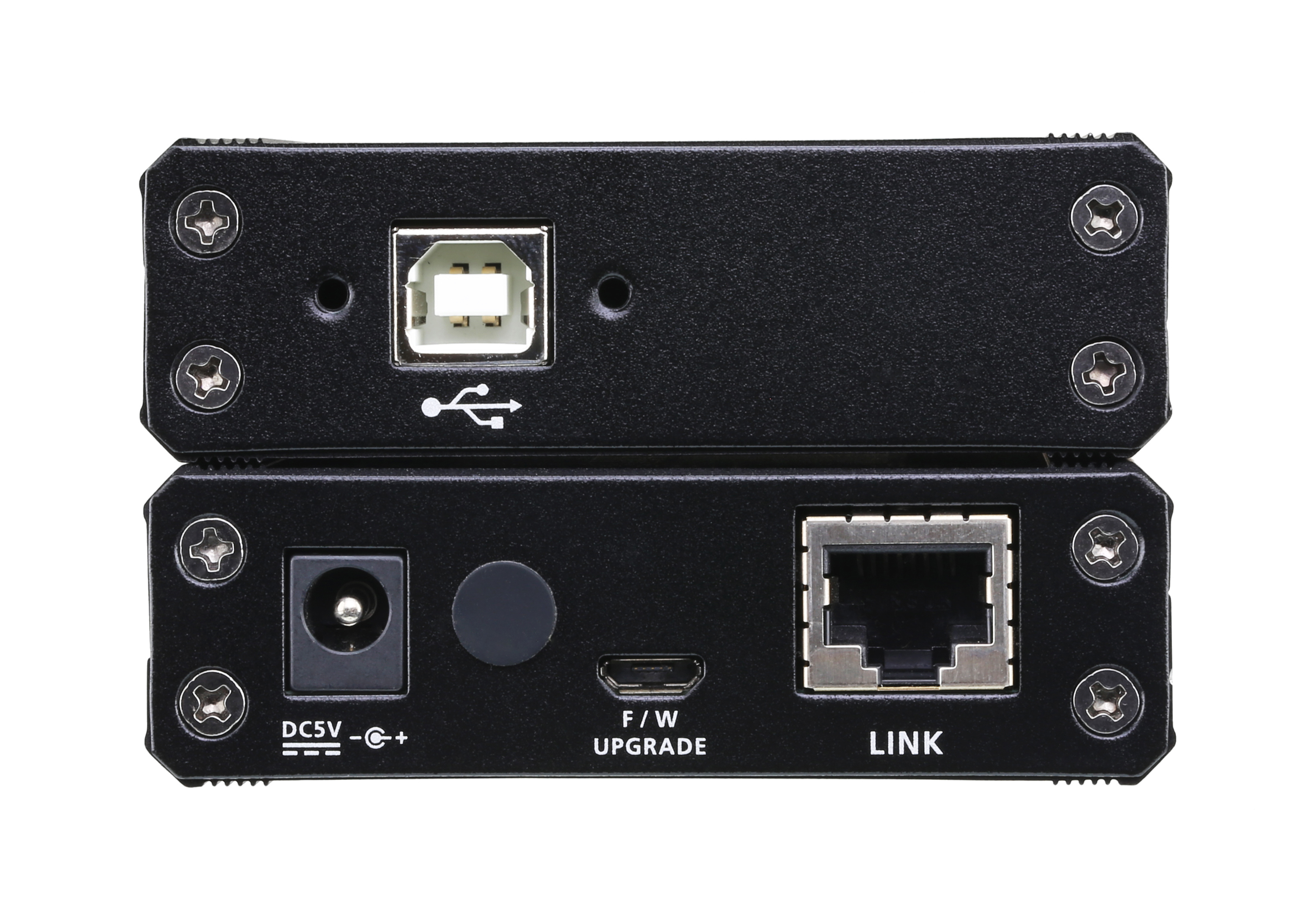

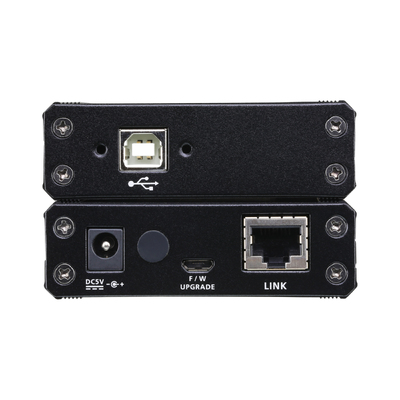

Transmitter / local unit
Upstream	1 x USB Type-B female
Downstream / link	1 x RJ45 female; 1 x Micro USB female for firmware upgrade
Power	1 x DC jack
Receiver / remote unit
Upstream / link	1 x RJ45 female
Downstream	4 x USB Type-A female; 1 x Micro USB female for firmware upgrade
Power	1 x DC jack
Physical and environment
USB specification	USB 2.0 high speed
Status LEDs	2
Power consumption stated	DC5V: 1.708W / 8BTU; DC5V: 1.649W / 50BTU
Operating temperature	050°C
Storage temperature	-2070°C
Humidity	080% RH, non-condensing
Housing	Metal
Weight	0.21kg
Dimensions (L x W x H)	10.15 x 7.90 x 2.44cm

SKU	UCE32100-AT-U
Barcode #	672792010569
Brand	Aten
Shipping Weight	0.2100kg
