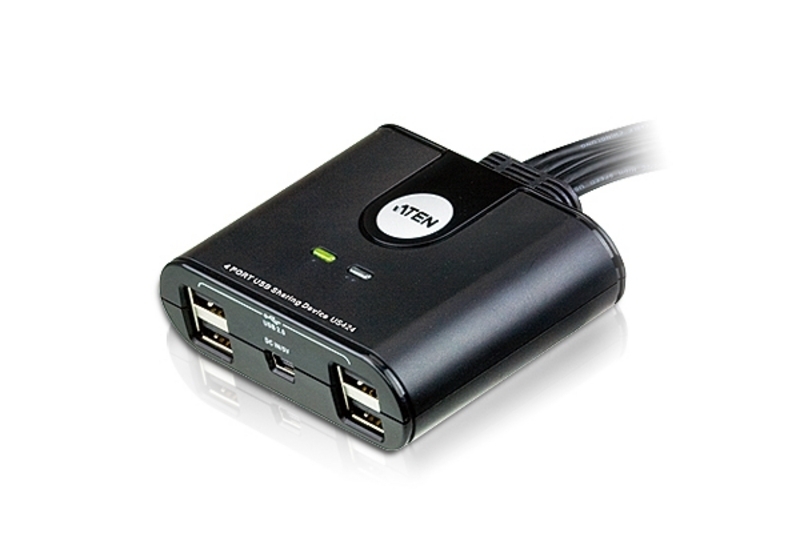

The US424 is a 4-port USB peripheral sharing device that enables 4 computers to share the use of 4 USB devices – a keyboard, mouse and up to two peripheral devices. It eliminates the added expense of having a separate USB keyboard, mouse and peripheral device(s) for each computer. The US424 all-in-one design allows for a neat and tidy installation – no need to connect 4 separate USB cables to the computer, thus eliminating cable clutter.


For extra convenience, it features an external remote port selector that can simplify desktop layout, and select which computer needs to use the USB devices. US424 is the ideal way to share USB peripherals in a multimedia office environment.

Package Contents

  • 1x US424 4 x 4 USB 2.0 Peripheral Sharing Switch
  • 4 built in USB ports – all-in-one design allows for a neat and tidy installation that reduces cable clutter
  • Enables 4 computers to share 4 USB devices – a USB keyboard, mouse and up to two peripheral devices
  • Simple port selection via remote port selector for convenient switch placement
  • USB 2.0 compliant
  • Multiplatform support – Windows, Linux ,Mac and Sun
  • LED indicators display port focus
  • Overcurrent protection
  • Non-powered (supports optional USB power adapter)
  • Hot pluggable

4-Port USB Peripheral Sharing Device


Computer Connections 4
Port Selection Remote port selector
Connectors
Computer 4 x USB Type A Male (Black)
Device 4 x USB Type A Female (Black)
Power (Optional) 1 x USB mini B Female (Black)
Cable Length
USB Cable 2 x 1.2 m / 2 x 1.8 m
Remote Port Selector 1.8 m
LEDs
Selected 2 (Green / Orange)
Environmental
Operating Temperature 0–40°C
Storage Temperature -20–60°C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.22 kg ( 0.48 lb )
Dimensions (L x W x H) 8.24 x 6.65 x 2.53 cm
(3.24 x 2.62 x 1 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

(US424-AT)

Computer Connections 4
Port Selection Remote port selector
Connectors
Computer 4 x USB Type A Male (Black)
Device 4 x USB Type A Female (Black)
Power (Optional) 1 x USB mini B Female (Black)
Cable Length
USB Cable 2 x 1.2 m / 2 x 1.8 m
Remote Port Selector 1.8 m
LEDs
Selected 2 (Green / Orange)
Environmental
Operating Temperature 0–40°C
Storage Temperature -20–60°C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.22 kg ( 0.48 lb )
Dimensions (L x W x H) 8.24 x 6.65 x 2.53 cm
(3.24 x 2.62 x 1 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.


SKU US424-AT
Barcode # 672792003806
Brand Aten
Shipping Weight 0.3300kg
Shipping Width 0.050m
Shipping Height 0.220m
Shipping Length 0.150m
Shipping Cubic 0.001650000m3

Manufacturer Warranty: 12 Months Limited Warranty
