StarTech.com ST7300USB3B

Powered 7-port USB-A 5Gbps hub with overload protection

Add seven USB-A 5Gbps ports with a desktop hub offering plug-and-play/hot-swap operation, current-overload protection and optional bus or included 36W AC power.

7 × USB-A 5GbpsCurrent VL81736W adapter2-year warranty

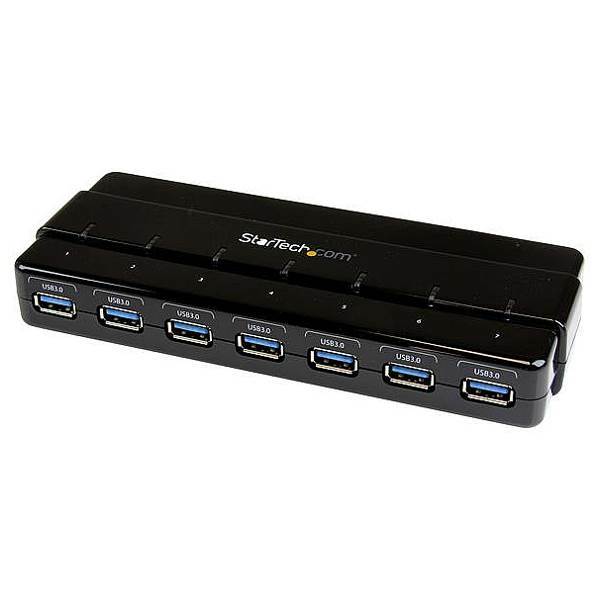

StarTech ST7300USB3B powered seven-port USB-A 5Gbps hub

Key capabilities

Seven 5Gbps ports

Adds seven USB 3.2 Gen 1 Type-A device ports.

Current VL817 controller

The current exact StarTech datasheet lists VIA/VLI VL817, replacing the older DeviceDeal VL813 field.

Bus or AC-powered use

Can operate from USB bus power or the included 12V/3A adapter.

Overload protection

Current overload detection/protection is provided across all seven ports.

What to know before buying

Current StarTech data lists VL817 and 1.5A AC input current; DeviceDeals older table lists VL813 and 1.3A. The current official fields are used.

Product video

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

How many USB ports does ST7300USB3B provide?

Seven USB-A 5Gbps ports.

What is the maximum transfer rate?

5Gbps.

Which chipset does the current model use?

VIA/VLI VL817.

Can it be bus powered?

Yes, with the included adapter recommended for higher-power devices.

What adapter is included?

12V DC / 3A, 36W.

What input current is current?

1.5A AC.

Does it have overload protection?

Yes.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(ST7300USB3B)

Features and highlights

Seven 5Gbps ports

Adds seven USB 3.2 Gen 1 Type-A device ports.

Current VL817 controller

The current exact StarTech datasheet lists VIA/VLI VL817, replacing the older DeviceDeal VL813 field.

Bus or AC-powered use

Can operate from USB bus power or the included 12V/3A adapter.

Overload protection

Current overload detection/protection is provided across all seven ports.

7 × USB-A 5Gbps
Current VL817
36W adapter
2-year warranty

Warranty confidence: Official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech ST7300USB3B.

Warranty Information

Warranty	2 Years

Hardware

Bus Type	USB 3.0
Chipset ID	VIA/VLI - VL817
Fast-Charge Port(s)	No
Ports	7
USB-C Device Port(s)	No
USB-C Host Connection	No

Performance

Maximum Data Transfer Rate	5 Gbps
MTBF	43977.72 hours
Type and Rate	USB 3.0 - 5 Gbit/s

Connector(s)

Connector Type(s)	1 - USB Type-B (9 pin) USB 3.0 Female
Connector Type(s)	7 - USB Type-A (9 pin) USB 3.0 Female

Software

OS Compatibility	OS Independent; No additional drivers or software required

Special Notes / Requirements

Note	If connected to a USB 2.0 host port, performance may be limited
System and Cable Requirements	Available USB 3.0 port

Indicators

LED Indicators	7 - Hub Port Connection LEDs

Power

Center Tip Polarity	Positive
Input Current	1.5 A
Input Voltage	100 - 240 AC
Output Current	3 A
Output Voltage	12 DC
Plug Type	M
Power Consumption (In Watts)	36
Power Source	AC Adapter Included

Environmental

Humidity	5-95% RH
Operating Temperature	-2°C to 52°C (29°F to 125°F)
Storage Temperature	-20°C to 56°C (-4°F to 132°F)

Physical Characteristics

Color	Black
Enclosure Type	Plastic
Form Factor	Desktop
Product Height	0.9 in [2.3 cm]
Product Length	6.8 in [17.2 cm]
Product Width	2.8 in [70 mm]
Weight of Product	5.2 oz [148 g]

Packaging Information

Package Height	2.5 in [63 mm]
Package Length	5.9 in [15.0 cm]
Package Width	8.3 in [21.1 cm]
Shipping (Package) Weight	1.2 lb [0.5 kg]

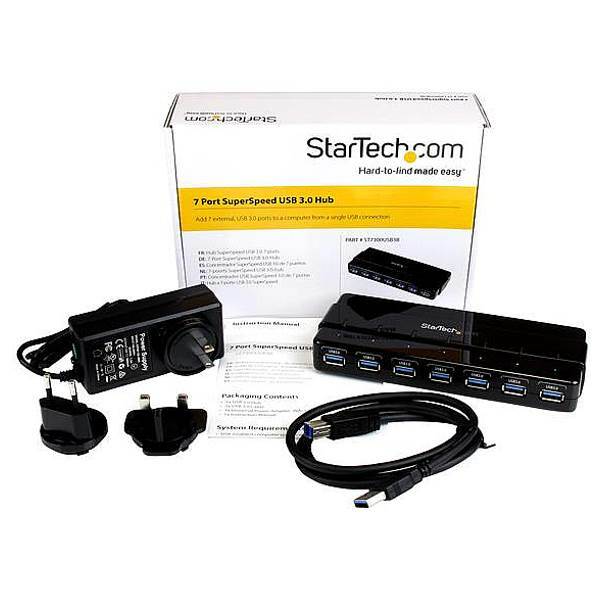

What's in the Box

Included in Package	1 - USB 3.0 Hub
Included in Package	1 - 3.3 ft [1 m] USB 3.0 Cable
Included in Package	1 - Universal Power Adapter (NA/JP, EU, UK, ANZ)
Included in Package	1 - Instruction Manual

SKU	ST7300USB3B
Barcode #	65030855594
Brand	Startech
Shipping Weight	0.5600kg
Shipping Width	0.150m
Shipping Height	0.060m
Shipping Length	0.208m
Shipping Cubic	0.001872000m3
