Seven industrial USB ports
Adds seven USB-A 5Gbps downstream ports through a secure USB-B upstream connection.
StarTech 7 Port USB Hub w/ Power Adapter - HB30A7AME
Model # HB30A7AME
-
SKU: HB30A7AME
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · HB30A7AME

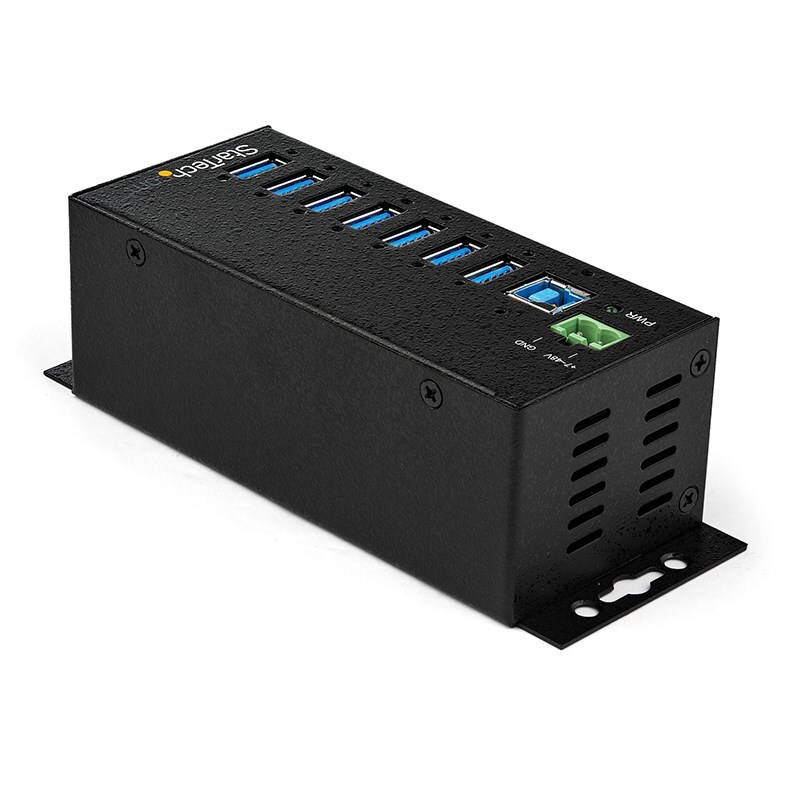

7-Port Industrial USB-A Hub
Connect seven USB-A devices through a rugged 5Gbps industrial hub with steel housing, DIN-rail mounting and flexible terminal-block power.
7 × USB-AUSB 5GbpsIndustrial steelDIN / wall / desk
Built for dependable connectivity
Industrial electrical protection
Provides ±15kV air and ±8kV contact ESD protection plus 350W surge protection across the USB interfaces.
Flexible mounting
Built-in mounting ears and included DIN-rail brackets support desk, wall, under-desk and DIN-rail installation.
Flexible terminal-block power
Accepts 748V DC through a two-wire terminal block and includes a 65W universal adapter.
What to know before you connect
- Requires an available USB-A host port; USB 2.0 connections limit performance.
- Power is supplied through the terminal-block input, including when using the supplied adapter.
- The 35W output is shared, with up to 12W on any two supported charging ports.
- Terminal-block installation should follow the supplied guide and applicable safety requirements.
?
Australian version with official warranty
Supplied by DeviceDeal and covered by the official StarTech.com 2-year manufacturer warranty in Australia. Keep your DeviceDeal tax invoice as proof of purchase; coverage is subject to StarTech.com terms, eligibility and product assessment.
Frequently asked questions
What does the StarTech HB30A7AME do?
It is a rugged seven-port USB-A hub for industrial, laboratory and fixed workstation installations.
What ports does the HB30A7AME provide?

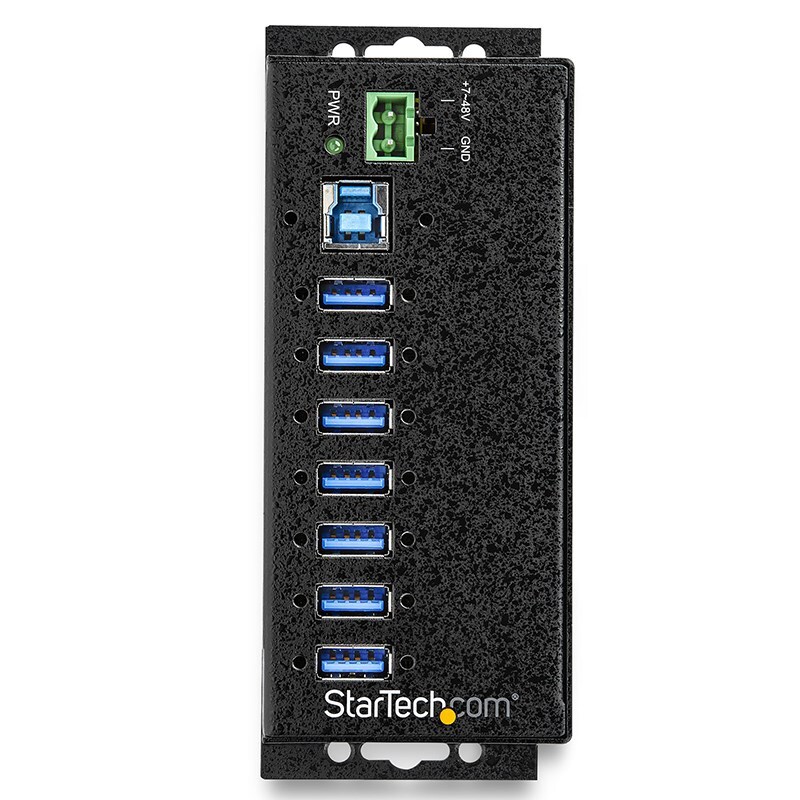

It provides seven USB-A downstream ports, one USB-B host port and a two-wire terminal-block power input.
What is the maximum USB data speed?
It supports USB 3.2 Gen 1 speeds up to 5Gbps, shared across active devices.
How is the HB30A7AME powered?
It accepts 748V DC through the terminal block and includes a 65W universal AC power adapter.
What systems and hosts are supported?
It is OS independent and backward compatible with older USB devices; a USB 3.0 host port is required for full 5Gbps performance.
Can the HB30A7AME charge connected devices?
Yes. It supports USB Battery Charging 1.2, with up to 2.4A on supported ports and up to 35W total depending on available power.
What is included in the package?
The package includes the hub, 2m USB host cable, universal adapter, two DIN-rail brackets, four screws and a quick-start guide.
What warranty applies in Australia?
The Australian-version HB30A7AME supplied by DeviceDeal is covered by a 2-year official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
(HB30A7AME)
Features and highlights
Seven industrial USB ports
Adds seven USB-A 5Gbps downstream ports through a secure USB-B upstream connection.
Industrial electrical protection
Provides ±15kV air and ±8kV contact ESD protection plus 350W surge protection across the USB interfaces.
Flexible mounting
Built-in mounting ears and included DIN-rail brackets support desk, wall, under-desk and DIN-rail installation.
Flexible terminal-block power
Accepts 748V DC through a two-wire terminal block and includes a 65W universal adapter.
Charging support
USB Battery Charging 1.2 can supply up to 2.4A on supported ports, with up to 35W total available.
Key highlights
- Wide 0°C to 70°C operating range
- Up to 5Gbps shared USB bandwidth
- OS-independent driverless operation
- Includes a 2m USB host cable and mounting hardware
Official StarTech.com 2-year manufacturer warranty in Australia.
Technical specifications
StarTech HB30A7AME · 7-Port Industrial USB-A Hub
Warranty Information
Warranty
2 Years
Mounting Options
Surface, wall, under-desk or DIN rail
Hardware
Ports
7
Interface
USB 3.2 Gen 1 (5Gbps)
Bus Type
USB 3.2 Gen 1 (5Gbps)
Chipset ID
Genesys Logic - GL3523
Fast-Charge Port(s)
Yes
Material
Steel
Form Factor
Industrial
Performance
Maximum Data Transfer Rate
5 Gbps
UASP Support
Yes
ESD Protection
±15kV air; ±8kV contact
Surge Protection
350W on downstream and upstream interfaces
MTBF
126,106 hours
Charging
BC 1.2; up to 2.4A on supported ports, 35W total
Connectors
Downstream Ports
7 × USB-A 5Gbps
Host Connector
1 × USB-B 5Gbps
Power Input
1 × two-wire terminal block
Software
OS Compatibility
OS Independent; no additional drivers or software required
System Requirements and Notes
Host Requirement
Computer with available USB 3.0 / 5Gbps USB-A port
Power Input
748V DC terminal block
Performance Note
USB 2.0 host connection limits performance
Indicators
LED
1 × power indicator (green)
Power
Power Source
Included AC adapter or suitable 748V DC terminal-block source
Adapter Input
100240V AC, 1.4A
Adapter Output
20V DC, 3.25A
Power Rating
65W
Environmental
Operating Temperature
0°C to 70°C
Storage Temperature
-20°C to 85°C
Humidity
5%95% RH
Physical Characteristics
Colour
Black
Material
Steel
Cable Length
6.6ft [2m]
Product Length
5.7in [14.5cm]
Product Width
2.2in [5.5cm]
Product Height
1.8in [4.5cm]
Weight
11.5oz [326g]
Packaging Information
Package Length
11.5in [29.3cm]
Package Width
7.2in [18.3cm]
Package Height
2.7in [6.8cm]
Shipping Weight
2.9lb [1.3kg]

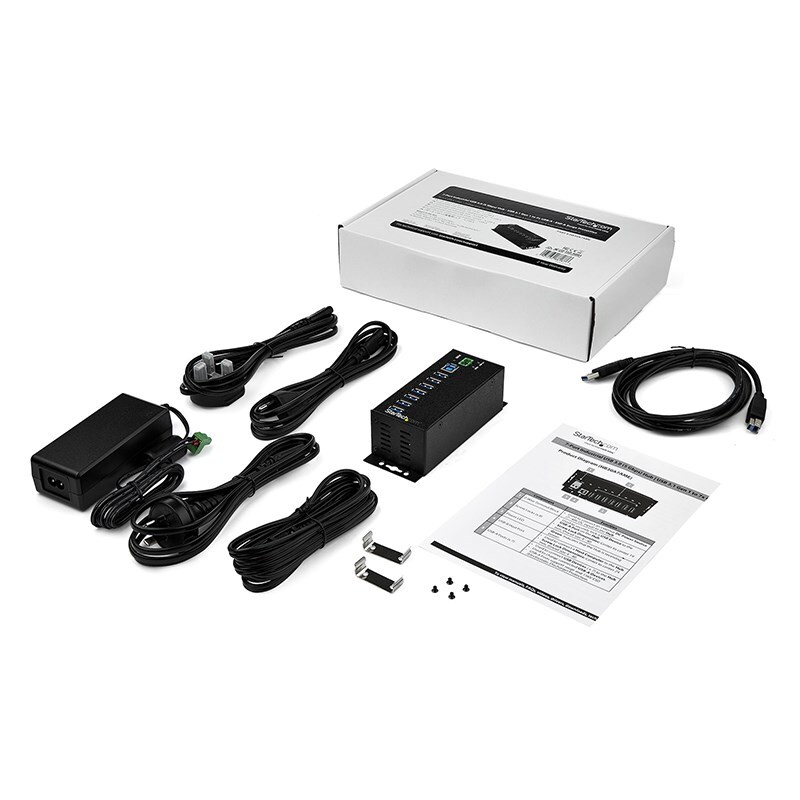

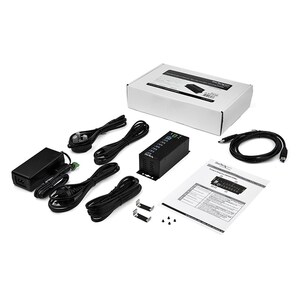

What's in the Box
Included
USB hub
Included
2m USB host cable
Included
Universal power adapter
Included
2 DIN-rail brackets
Included
4 mounting screws
Included
Quick-start guide
| SKU | HB30A7AME |
| Barcode # | 65030881876 |
| Brand | Startech |
| Shipping Weight | 1.3200kg |
| Shipping Width | 0.007m |
| Shipping Height | 0.029m |
| Shipping Length | 0.019m |
Australian warranty confidence
2-year manufacturer warrantyThis is the Australian version of StarTech HB30A7AME supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase.
Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
