USB-C video and data
The downstream USB-C port carries 10Gbps data or DisplayPort 1.4 Alt Mode video up to 4K 60Hz.

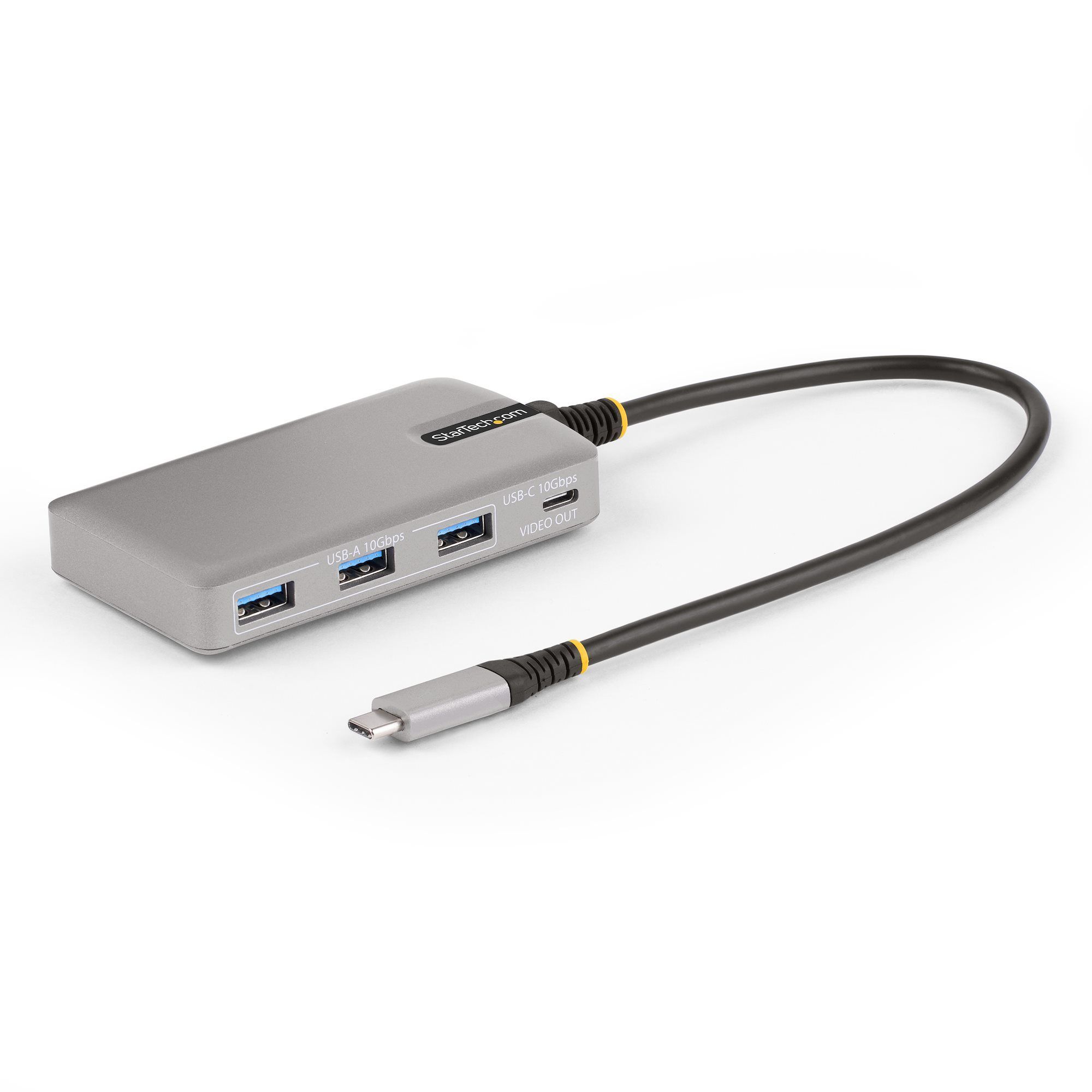

StarTech HB31C3A1CDPPD3 4-Port USB-C Hub with USB-C Video Output
Model # 5960010
-
SKU: HB31C3A1CDPPD3
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · HB31C3A1CDPPD3
4-Port 10Gbps USB-C Hub with 4K Video and 100W PD
Add three USB-A ports, one USB-C data and 4K video port, plus 100W Power Delivery pass-through from a compatible USB-C adapter.
3 × USB-AUSB-C 4K 60HzUSB 10Gbps100W PD input
Built for dependable use
100W PD pass-through
Accepts up to 100W from a compatible USB-C adapter, with up to 82W available for laptop charging.
Three USB-A ports
Connects USB-A storage, capture and peripheral devices at up to 10Gbps.
Power for portable displays
The downstream USB-C port can provide up to 12W when the PD input is connected.
What to know before you connect
- The host USB-C port must support DisplayPort Alt Mode for video output.
- A compatible USB-C power adapter must be connected to power a USB-C monitor.
- The adapter reserves up to 18W, leaving a maximum 82W for laptop charging.
- The USB-C power adapter is optional and not included.
?
Australian version with official warranty
Supplied by DeviceDeal and covered by the official StarTech.com 2 years manufacturer warranty in Australia. Keep your DeviceDeal tax invoice as proof of purchase; coverage is subject to StarTech.com terms, eligibility and product assessment.
Helpful StarTech video
Frequently asked questions
What does the StarTech HB31C3A1CDPPD3 do?
It is a four-port 10Gbps hub with three USB-A ports, a USB-C data/video port and a separate 100W Power Delivery input.
What connections does the HB31C3A1CDPPD3 provide?
It provides three USB-A ports, one USB-C 10Gbps/DP Alt Mode port, one USB-C PD-only input and an attached USB-C host connector.
What is the maximum verified performance?
USB data runs up to 10Gbps and the USB-C video port supports resolutions up to 4K 60Hz with a compatible DP Alt Mode host.
How is the HB31C3A1CDPPD3 powered?
It accepts up to 100W USB PD 3.0 input, reserves up to 18W for the hub and can deliver up to 82W to a compatible laptop.
What compatibility should I check?
It is OS independent; full video and charging functions require a host USB-C port supporting the relevant DP Alt Mode and USB Power Delivery features.
What is required to connect a USB-C monitor?
The host must support USB-C DisplayPort Alt Mode, and a compatible USB-C power adapter must be connected to the PD input to power the monitor.
What is included in the package?
The package includes the HB31C3A1CDPPD3 USB-C hub and a quick-start guide; a USB-C power adapter is not included.
What warranty applies in Australia?
The Australian-version HB31C3A1CDPPD3 supplied by DeviceDeal is covered by a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
(HB31C3A1CDPPD3)
Features and highlights
USB-C video and data
The downstream USB-C port carries 10Gbps data or DisplayPort 1.4 Alt Mode video up to 4K 60Hz.
100W PD pass-through
Accepts up to 100W from a compatible USB-C adapter, with up to 82W available for laptop charging.
Three USB-A ports
Connects USB-A storage, capture and peripheral devices at up to 10Gbps.
Power for portable displays
The downstream USB-C port can provide up to 12W when the PD input is connected.
Protected driverless design
Overcurrent protection, Fast Role Swap, Wake on USB and OS-independent setup support reliable use.
Key highlights
- 30cm attached USB-C cable
- USB PD 3.0
- DisplayPort 1.4 Alt Mode
- StarTech Connectivity Tools support
Official StarTech.com 2 years manufacturer warranty in Australia.
Technical specifications
StarTech HB31C3A1CDPPD3 · 4-Port 10Gbps USB-C Hub with 4K Video and 100W PD
Warranty Information
Warranty
2 Years
Hardware
USB-C Device Ports
Yes
USB-C Host Connection
Yes
Fast-Charge Ports
Yes
Ports
4
Interface
USB 10Gbps
Bus Type
USB 3.2 Gen 2 10Gbps
Industry Standards
USB 3.2 Gen 2; USB PD 3.0; USB-C DisplayPort 1.4 Alt Mode; Wake on USB
Chipset IDs
VIA VL103-Q4; VIA VL822-Q7; Parade PS8802; Parade FL7102-2L0; TMI IM2605; Realtek RTD2186
Performance
Maximum USB Data Rate
10Gbps
Maximum Digital Resolution
4096 × 2160 at 60Hz
USB-C Port Power
12W (5V/2.4A) with suitable PD input
Maximum Laptop Charging
82W
UASP Support
Yes
Connectors
Downstream
3 × USB-A 10Gbps; 1 × USB-C 10Gbps/12W/DP Alt Mode
Power Input
1 × USB-C Power Delivery only
Host
1 × USB-C 10Gbps
Software
OS Compatibility
OS Independent; no additional drivers or software required
Connectivity Tools
Advanced Windows Layout Utility and USB Event Monitoring Utility available
System Requirements and Notes
Host Requirement
USB-C host supporting required USB PD and DisplayPort Alt Mode features
Optional Power
Compatible USB-C power adapter
Video Power
A power adapter must be connected to power a USB-C monitor
Charging Note
18W reserved by the hub; up to 82W available to the laptop
Power
Power Source
Bus Powered and host USB-C power adapter
Power Delivery Input
100W
Hub Power Reservation
18W
Environmental
Operating Temperature
0°C to 40°C
Storage Temperature
-40°C to 70°C
Humidity
0%95% RH at 25°C
Physical Characteristics
Colour
Space Grey
Material
Plastic
Cable Length
1ft [30cm]
Product Length
3.9in [9.8cm]
Product Width
2.1in [5.4cm]
Product Height
0.6in [1.6cm]
Weight
3.2oz [90g]
Packaging Information
Quantity
1
Package Length
5.7in [14.6cm]
Package Width
6.8in [17.3cm]
Package Height
1.3in [3.3cm]
Shipping Weight
5.6oz [158g]
What's in the Box
Included
1 × USB-C hub
Included
1 × Quick-start guide
| SKU | HB31C3A1CDPPD3 |
| Barcode # | 65030893022 |
| Brand | STARTECH |
| Shipping Weight | 0.1500kg |
| Shipping Width | 0.003m |
| Shipping Height | 0.017m |
| Shipping Length | 0.015m |
Australian warranty confidence
2 Years manufacturer warrantyThis is the Australian version of StarTech HB31C3A1CDPPD3 supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase.
Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
