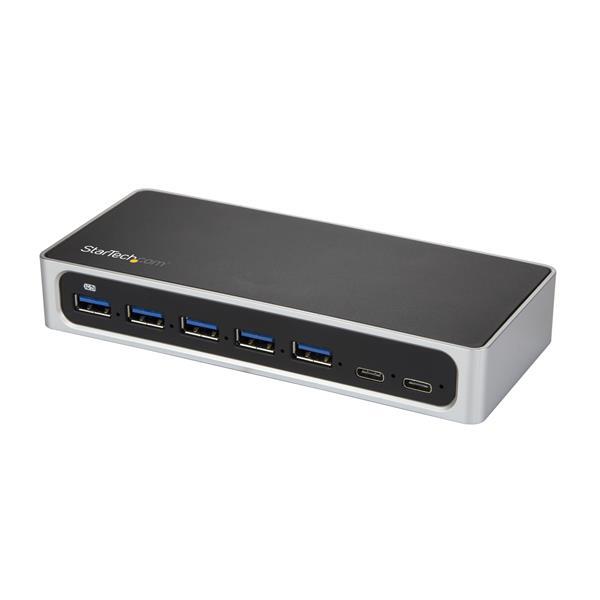

Seven downstream ports
Provides four standard USB-A ports, one fast-charge USB-A port and two USB-C data ports.
StarTech 7-Port USB-C Hub - USB-C to 5x USB-A and 2x USB-C - USB 3.0 HB30C5A2CSC
Model # HB30C5A2CSC
-
SKU: HB30C5A2CSC
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · HB30C5A2CSC
Powered 7-Port USB-C Hub with Fast-Charge Port
Add five USB-A ports and two USB-C data ports with a powered seven-port hub and a dedicated BC 1.2 fast-charge USB-A port.
5 × USB-A2 × USB-C dataUSB 5Gbps48W adapter
Built for dependable connectivity
BC 1.2 charging
The designated USB-A port supplies up to 1.5A (7.5W) in charging downstream or hostless dedicated charging modes.
Powered desktop design

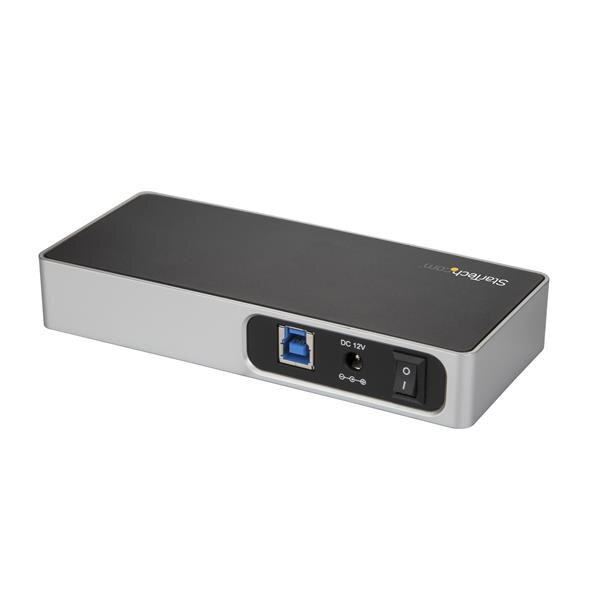

Includes a 12V 4A universal power adapter and a main power switch for all downstream devices.
Flexible host cable
Includes a 1m USB-C to USB-B host cable for convenient desk placement.
What to know before you connect
- Both USB-C downstream ports are data only.
- DisplayPort Alt Mode, USB Power Delivery and PD pass-through are not supported.
- The designated USB-A fast-charge port supports up to 1.5A, not 2.4A.
- USB bandwidth and the 48W power supply are shared by connected devices.
?
Australian version with official warranty
Supplied by DeviceDeal and covered by the official StarTech.com 2-year manufacturer warranty in Australia. Keep your DeviceDeal tax invoice as proof of purchase; coverage is subject to StarTech.com terms, eligibility and product assessment.
Frequently asked questions
What does the StarTech HB30C5A2CSC do?
It is a powered seven-port hub with five USB-A ports, two USB-C data ports and a dedicated charging port.
What ports does the HB30C5A2CSC provide?
It provides four standard USB-A ports, one fast-charge USB-A port and two USB-C data ports, with USB-C host connectivity through the included cable.
What is the maximum USB data speed?
It supports USB 3.2 Gen 1 speeds up to 5Gbps, shared across active devices.
How is the HB30C5A2CSC powered?
It includes a 12V 4A universal adapter rated at 48W and a main hub power switch.
What systems and hosts are supported?
It is OS independent, driverless, Thunderbolt 3 compatible and backward compatible with USB 2.0 and 1.1 devices.
What charging and video limitations apply?
The fast-charge USB-A port supports up to 1.5A; the two USB-C ports are data only and do not support DisplayPort Alt Mode or Power Delivery.
What is included in the package?
The package includes the hub, 1m USB-C to USB-B cable, universal power adapter and quick-start guide.
What warranty applies in Australia?
The Australian-version HB30C5A2CSC supplied by DeviceDeal is covered by a 2-year official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
(HB30C5A2CSC)
Features and highlights
Seven downstream ports
Provides four standard USB-A ports, one fast-charge USB-A port and two USB-C data ports.
BC 1.2 charging
The designated USB-A port supplies up to 1.5A (7.5W) in charging downstream or hostless dedicated charging modes.
Powered desktop design
Includes a 12V 4A universal power adapter and a main power switch for all downstream devices.
Flexible host cable
Includes a 1m USB-C to USB-B host cable for convenient desk placement.
Driverless compatibility
OS-independent operation supports major platforms and USB 2.0/1.1 peripherals.
Key highlights
- Seven active-port LEDs
- UASP support
- Thunderbolt 3 compatible host connection
- Up to 5Gbps shared data
Official StarTech.com 2-year manufacturer warranty in Australia.
Technical specifications
StarTech HB30C5A2CSC · Powered 7-Port USB-C Hub with Fast-Charge Port
Warranty Information
Warranty
2 Years
Hardware
Bus Type
USB 3.0
Chipset ID
VIA/VLI - VL817
Industry Standards
USB Battery Charging Specification Rev. 1.2 | USB-A charging port delivers up to 1.5 amps of power | USB 3.0 - Backward compatible with USB 2.0 and 1.1
Interface
USB 3.0
Ports
7
USB-C Device Port(s)
Yes
USB-C Host Connection
Yes
Performance
Maximum Data Transfer Rate
5 Gbps
Supported Charging Modes
Charging Downstream Port (CDP)
Additional detail
Dedicated Charging Port (DCP)
Supported Charging Outputs
BC 1.2 (1.5A)
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
Yes
Connectors
Connector Type(s)
4 - USB Type-A (9 pin) USB 3.0 Female
Additional connector
2 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female
Additional connector
1 - USB 3.0 A (Fast-Charge, 9 pin) Female
Additional connector
1 - USB Type-B (9 pin) USB 3.0 Male
Software
OS Compatibility
OS Independent; No additional drivers or software required
System Requirements and Notes
Note
The USB Type-C ports are data only. | USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. | The hub does not support DP Alt Mode or USB Power Delivery.
System and Cable Requirements
Available USB Type-C port - USB 3.0 (5Gbps)
Indicators
LED Indicators
7 - Active
Power
Center Tip Polarity
Positive
Input Current
1 A
Input Voltage
100 - 240 AC
Output Current
4 A
Output Voltage
12 DC
Plug Type
M
Power Consumption (In Watts)
48
Power Source
AC Adapter Included
Environmental
Humidity
0~95% RH (Non-condensing) at 25¡C
Operating Temperature
0¡C to 50¡C (32¡F to 122¡F)
Storage Temperature
-20¡C to 70¡C (-4¡F to 158¡F)
Physical Characteristics
Cable Length
3.3 ft [1 m]
Color
Black & Silver
Enclosure Type
Plastic
Form Factor
Desktop
Product Height
0.9 in [2.4 cm]
Product Length
5.9 in [14.9 cm]
Product Width
2.6 in [65 mm]
Weight of Product
5.3 oz [150 g]
Packaging Information
Package Height
2.1 in [5.4 cm]
Package Length
6.0 in [15.2 cm]
Package Width
8.4 in [21.4 cm]
Shipping (Package) Weight
1.1 lb [0.5 kg]
What's in the Box
Included in Package
1 - USB-C hub
Additional item
1 - 1m USB-C to USB-B cable
Additional item
1 - universal power adapter (NA/JP, UK, EU, ANZ)
Additional item
1 - quick-start guide
| SKU | HB30C5A2CSC |
| Barcode # | 65030868273 |
| Brand | Startech |
| Shipping Weight | 0.5300kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.050m |
| Shipping Length | 0.215m |
| Shipping Cubic | 0.001613000m3 |
Australian warranty confidence
2-year manufacturer warrantyThis is the Australian version of StarTech HB30C5A2CSC supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase.
Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
