StarTech.com ST1030USBM

10-port industrial USB 3.0 hub with ESD and surge protection

A rugged steel 10-port USB 3.2 Gen 1 industrial hub with 5Gbps bandwidth, 724V DC terminal-block power, BC 1.2 charging, DIN mounting, ESD and surge protection.

10 × USB-A / 5Gbps724V DC terminal block15kV air / 8kV contact ESD2-year warranty

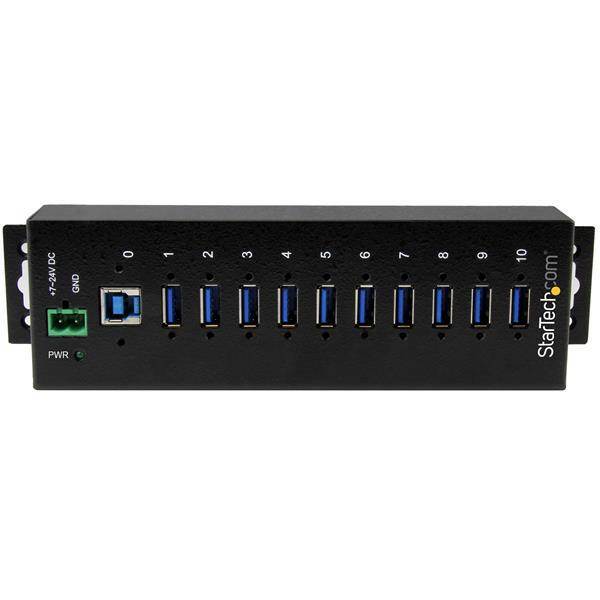

StarTech ST1030USBM industrial 10-port USB 3.0 hub

Key capabilities

Industrial 10-port expansion

Adds ten USB-A device ports through a USB-B 5Gbps host connection.

ESD and surge protection

Exact technical data lists ±15kV air / ±8kV contact ESD protection and 350W surge protection on upstream/downstream ports.

Wide-range terminal-block power

Accepts 724V DC through the included two-wire terminal block.

BC 1.2 charging and flexible mounting

Current StarTech content states up to 2.4A on a port, up to 50W total, with wall/desk/rack and DIN-rail mounting options.

What to know before buying

The included power method is the 724V DC terminal block. Current StarTech marketing also identifies a separately sold external adapter option; it is not included. Confirm available power capacity for high-current multi-device charging.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

How many USB ports does ST1030USBM provide?

Ten USB-A downstream ports.

What USB speed is supported?

Up to 5Gbps.

How is the hub powered?

Through a 724V DC two-wire terminal block.

What charging capability is described?

USB Battery Charging 1.2, up to 2.4A on a port and up to 50W total in current StarTech product content.

What ESD protection is listed?

±15kV air and ±8kV contact.

What surge protection is listed?

350W on upstream and downstream USB ports.

Can it be DIN mounted?

Yes. A DIN-rail mounting kit is included.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(ST1030USBM)

Features and highlights

Industrial 10-port expansion

Adds ten USB-A device ports through a USB-B 5Gbps host connection.

ESD and surge protection

Exact technical data lists ±15kV air / ±8kV contact ESD protection and 350W surge protection on upstream/downstream ports.

Wide-range terminal-block power

Accepts 724V DC through the included two-wire terminal block.

BC 1.2 charging and flexible mounting

Current StarTech content states up to 2.4A on a port, up to 50W total, with wall/desk/rack and DIN-rail mounting options.

10 × USB-A / 5Gbps
724V DC terminal block
15kV air / 8kV contact ESD
2-year warranty

Warranty confidence: Official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech ST1030USBM.

Warranty Information

Warranty	2 Years

Hardware

Bus Type	USB 3.0
Chipset ID	Genesys Logic - GL3522
Fast-Charge Port(s)	Yes
Industry Standards	USB Battery Charging Specification Rev. 1.2
Industry Standards	USB 3.0 - Backward compatible with USB 2.0/1.1
Interface	USB 3.0
Ports	10
USB-C Device Port(s)	No
USB-C Host Connection	No

Performance

ESD Protection	+/-15kV (Air)
ESD Protection	+/-8kV (Contact)
Maximum Data Transfer Rate	5 Gbps
MTBF	119388 hours
Surge Protection	350W on the DFP and UFP
Type and Rate	USB 3.0 - 5 Gbit/s

Connector(s)

Connector Type(s)	10 - USB Type-A (9 pin) USB 3.0 Female
Connector Type(s)	1 - USB Type-B (9 pin) USB 3.0 Female
Connector Type(s)	1 - Terminal Block (2 Wire)

Software

OS Compatibility	OS Independent; No additional drivers or software required

Special Notes / Requirements

Note	If connected to a USB 2.0 host port, performance may be limited
Note	This product is intended for use with terminal block power only Standard AC adapter not available
System and Cable Requirements	Host computer with an available USB 3.0 port

Indicators

LED Indicators	1 - Power (Green)

Power

Input Voltage	7 ~ 24 DC
Power Source	Terminal Block

Environmental

Humidity	5%~95% RH (Non-condensing)
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-20°C to 85°C (-4°F to 185°F)

Physical Characteristics

Cable Length	80 in [2032 mm]
Color	Black
Enclosure Type	Steel
Form Factor	Industrial
Product Height	1.2 in [3.1 cm]
Product Length	7.8 in [19.8 cm]
Product Width	2.2 in [56 mm]
Weight of Product	12.6 oz [357 g]

Packaging Information

Package Height	2.2 in [57 mm]
Package Length	9.7 in [24.6 cm]
Package Width	6.7 in [16.9 cm]
Shipping (Package) Weight	20.7 oz [587 g]

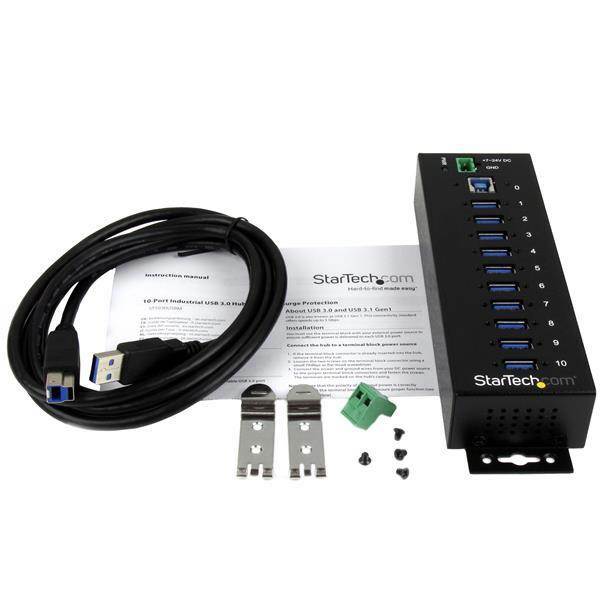

What's in the Box

Included in Package	1 - 10-port industrial USB 3.0 hub
Included in Package	1 - USB 3.0 host cable
Included in Package	1 - DIN rail mounting kit
Included in Package	1 - terminal block (2 wire)
Included in Package	1 - instruction manual

Current Charging / Mounting Notes

USB Battery Charging	Up to 2.4A on a port, up to 50W total per current StarTech product narrative
Mounting	Integrated mounting brackets plus included DIN-rail kit
Optional Power	Current StarTech product narrative identifies a separate optional external 65W adapter; terminal-block hardware is included

SKU	ST1030USBM
Barcode #	65030863001
Brand	Startech
Shipping Weight	0.5800kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.240m
Shipping Cubic	0.001200000m3
