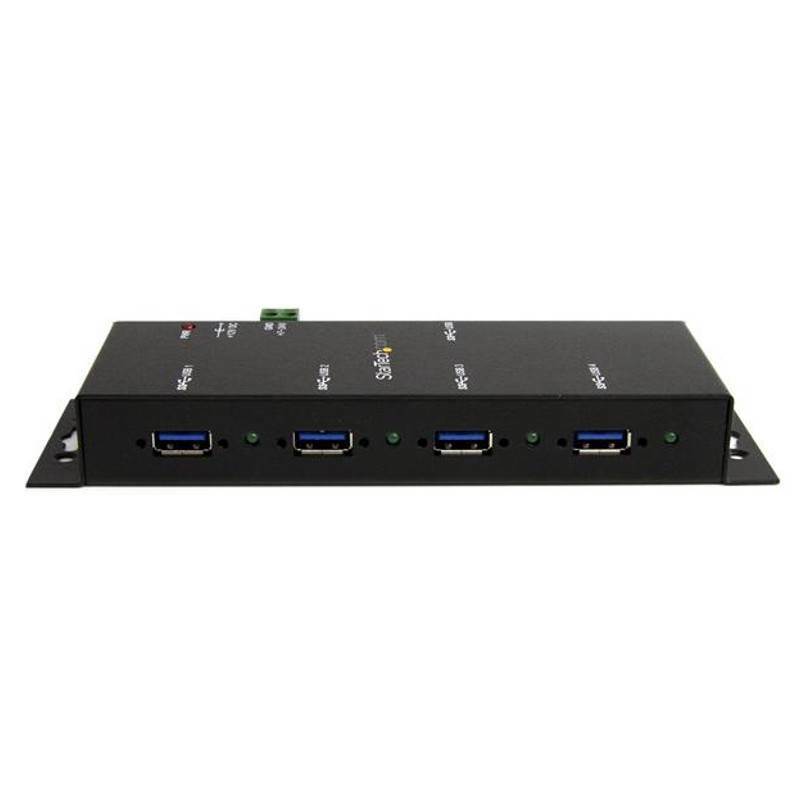

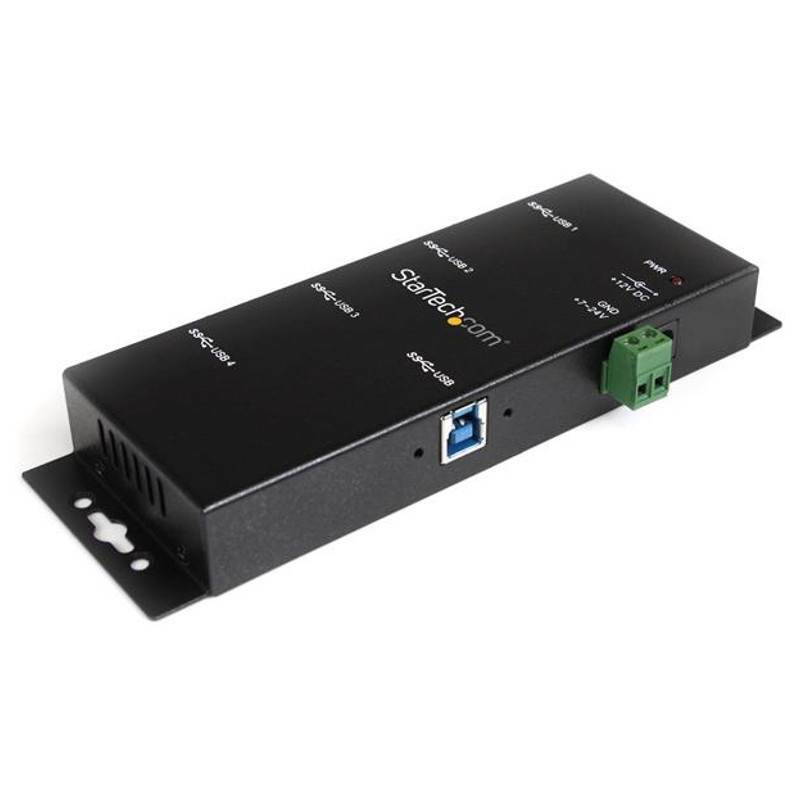

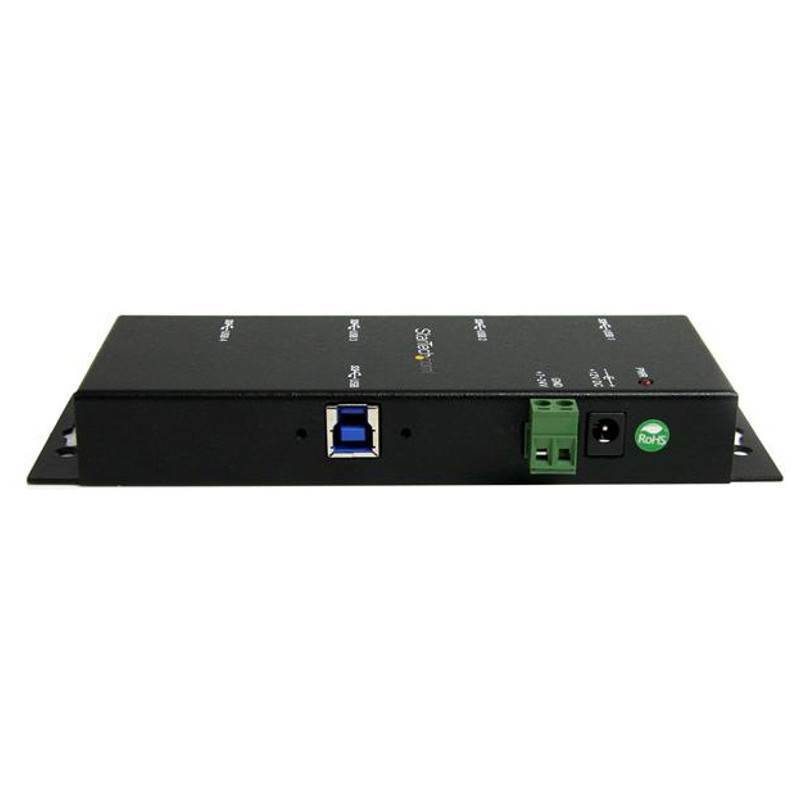

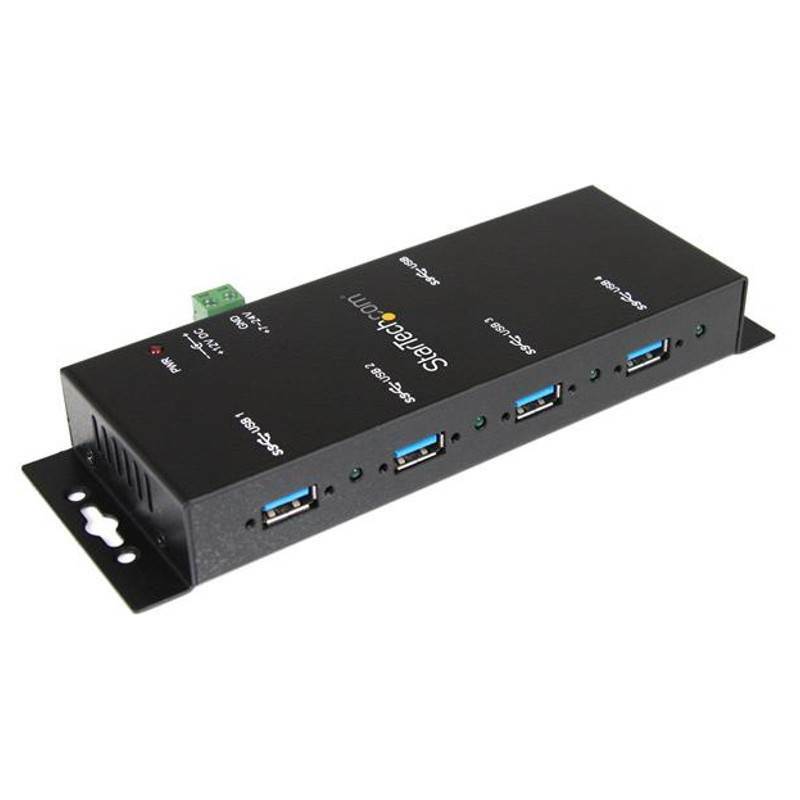

This TAA compliant 4-port industrial USB 3.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Diagram of the hub mounted to a surface underneath a desk

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect & Charge More USB Devices

Designed for a high volume of connections, this robust USB 3.0 hub offers four connection ports, for connecting more USB devices and peripherals.

The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 20W total, so you can charge your mobile devices faster than traditional USB ports allow.

Locate the Hub Where You Need It Most

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets, included DIN mount rails, and an included 1.8-meter USB host cable, you can securely mount the USB 3.0 hub to most surfaces such as a wall, under a desk or rack.

Works with Older USB Devices

The rugged USB hub supports the full 5 Gbps bandwidth of USB 3.0 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.0 devices without any disruptions.

The ST4300USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Applications

  • Ideal for tough conditions that are subject to large temperature variances, or where there’s a risk of physical damage
  • Great for industrial and manufacturing environments where only terminal block connection is preferred
  • Connect a variety of USB devices such as industrial printers or cameras, plus fast-charge your smartphone and tablet
+ More- Less

The StarTech.com Advantage

  • Four USB 3.0 compliant ports with support for speeds up to 5 Gbps, while still compatible with USB 2.0/1.x devices at the same time
  • An all metal chassis, built-in surface mounting brackets and choice of power input method makes this versatile enough for almost any environment
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support

(ST4300USBM)

Warranty Information
Warranty 2 Years
Hardware
Chipset ID VIA/VLI - VL811+
Fast-Charge Port(s) No
Interface USB 3.0
Ports 4
USB-C Device Port(s) No
USB-C Host Connection No
Performance
Maximum Data Transfer Rate 5 Gbps
MTBF 245,881 Hours
Connector(s)
External Ports 1 - Terminal Block (2 Wire)
1 - USB Type-B (9 pin) USB 3.0 Female
4 - USB Type-A (9 pin) USB 3.0 Female
Software
OS Compatibility OS Independent; No additional drivers or software required
Special Notes / Requirements
System and Cable Requirements Available USB 3.0 port
Indicators
LED Indicators 1 - Power (Red)
4 - USB Device Connection (Green)
Power
Center Tip Polarity Positive
Output Current 3A
Output Voltage 12 DC
Plug Type M
Power Consumption (In Watts) 36
Power Source AC Adapter Included
Environmental
Humidity 5~95% RH
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Physical Characteristics
Color Black
Enclosure Type Steel
Form Factor Industrial
Product Height 0.9 in [2.4 cm]
Product Length 6 in [15.2 cm]
Product Width 2.3 in [59.6 mm]
Weight of Product 10.6 oz [301 g]
Packaging Information
Package Height 2.7 in [69 mm]
Package Length 7.5 in [19.1 cm]
Package Width 11.6 in [29.5 cm]
Shipping (Package) Weight 2.6 lb [1.2 kg]
What's in the Box
Included in Package 1 - Industrial USB 3.0 Hub
1 - 6 ft [1.8 m] USB 3.0 cable (non-locking)
1 - Universal Power Adapter (NA/JP, EU, UK, ANZ)
1 - Instruction Manual
SKU ST4300USBM
Barcode # 65030841603
Brand Startech
Shipping Weight 1.1700kg
Manufacturer Warranty: 2 Years Limited Warranty
