Seven-port mixed expansion
Provides four standard USB-A ports, one fast-charge USB-A port and two USB-C data ports.
StarTech 7 Port USB-C Hub, Metal, USB-C to 5x A and 2x C, USB 3.0 - HB30C5A2CST
Model # HB30C5A2CST
-
SKU: HB30C5A2CST
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · HB30C5A2CST

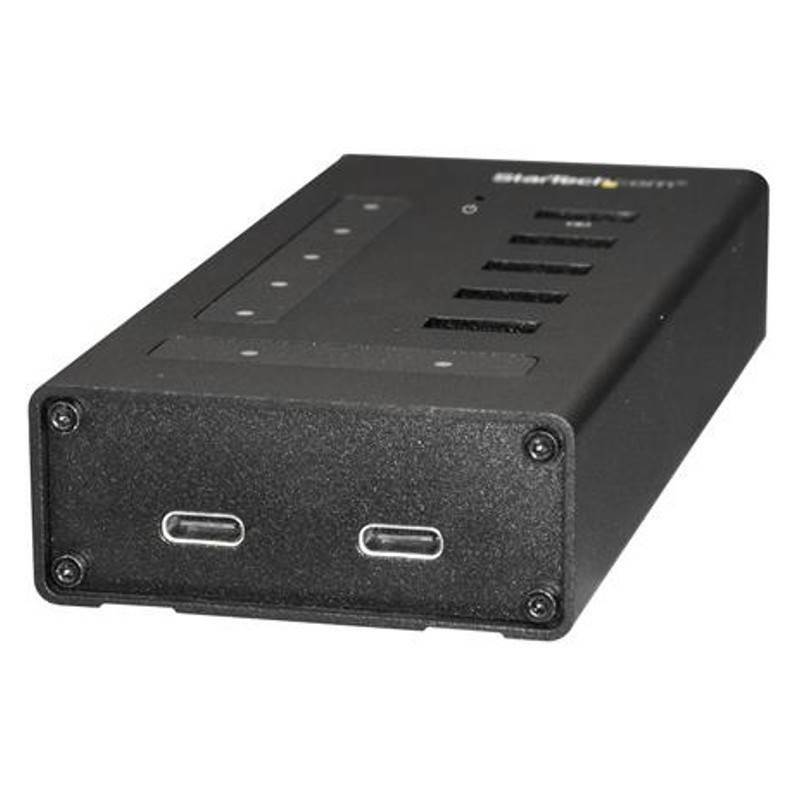

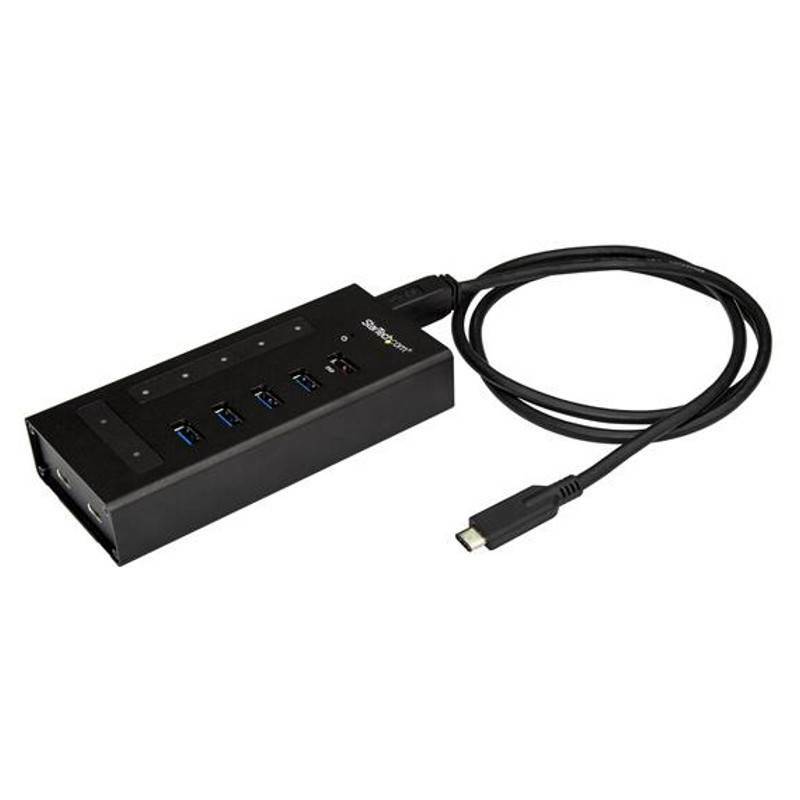

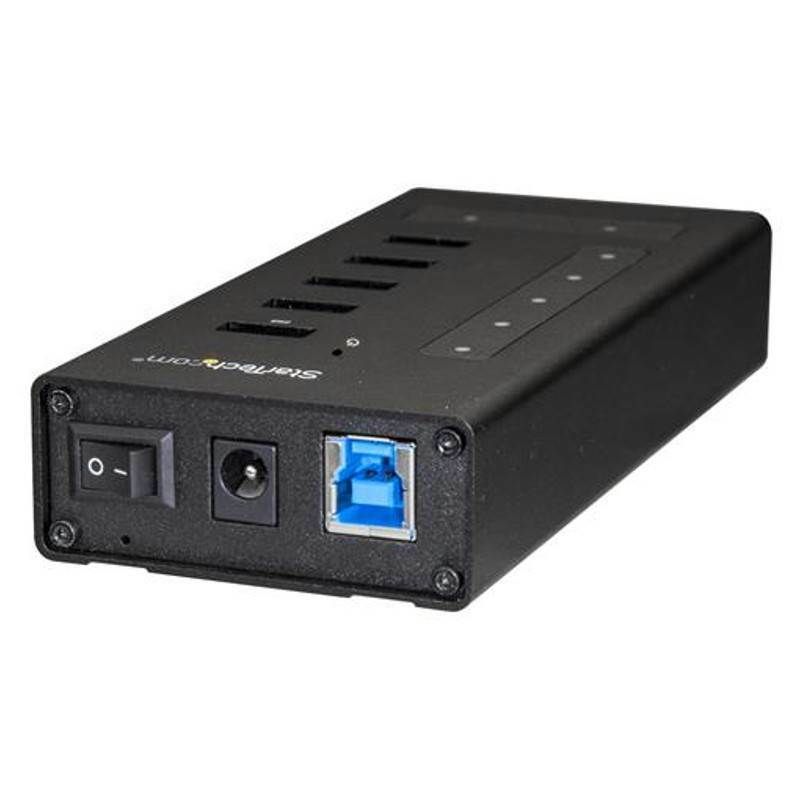

Mountable Metal 7-Port USB-C Hub
Add five USB-A ports and two USB-C data ports with a rugged aluminium hub, 36W power supply, mounting kit and BC 1.2 charging.
5 × USB-A2 × USB-C dataMountable metal36W adapter
Built for dependable connectivity
BC 1.2 charge and sync
The designated USB-A charging port supplies up to 2.4A (12W) and supports charging with or without a host connected.
Rugged mountable design
Aluminium housing, rubber feet and included brackets support desktop, wall or under-desk mounting.
Powered operation
Includes a 12V 3A universal power adapter rated at 36W, shared across the hub ports.
What to know before you connect
- The two USB-C downstream ports are data only.
- DisplayPort Alt Mode and USB Power Delivery pass-through are not supported.
- Only the designated USB-A port supports BC 1.2 fast charging.
- The 5Gbps data link and 36W supply are shared across connected devices.
?
Australian version with official warranty
Supplied by DeviceDeal and covered by the official StarTech.com 2-year manufacturer warranty in Australia. Keep your DeviceDeal tax invoice as proof of purchase; coverage is subject to StarTech.com terms, eligibility and product assessment.
Frequently asked questions
What does the StarTech HB30C5A2CST do?
It is a rugged, mountable seven-port hub with five USB-A ports, two USB-C data ports and BC 1.2 charging.
What ports does the HB30C5A2CST provide?
It provides four standard USB-A ports, one fast-charge USB-A port and two USB-C data ports, using an included USB-C to USB-B host cable.
What is the maximum USB data speed?
It supports USB 3.2 Gen 1 speeds up to 5Gbps, shared across active devices.
How is the HB30C5A2CST powered?
It includes a 12V 3A universal adapter rated at 36W, shared across connected devices.
What systems and hosts are supported?
It is OS independent, requires no additional drivers and supports USB-C host computers and older USB devices.
Do the USB-C ports support displays or laptop charging?
No. The two USB-C downstream ports are data only and do not support DisplayPort Alt Mode or USB Power Delivery.
What is included in the package?
The package includes the hub, universal adapter, USB-C to USB-B cable, rubber feet, mounting brackets, screws and quick-start guide.
What warranty applies in Australia?
The Australian-version HB30C5A2CST supplied by DeviceDeal is covered by a 2-year official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
(HB30C5A2CST)
Features and highlights
Seven-port mixed expansion
Provides four standard USB-A ports, one fast-charge USB-A port and two USB-C data ports.
BC 1.2 charge and sync
The designated USB-A charging port supplies up to 2.4A (12W) and supports charging with or without a host connected.
Rugged mountable design
Aluminium housing, rubber feet and included brackets support desktop, wall or under-desk mounting.
Powered operation
Includes a 12V 3A universal power adapter rated at 36W, shared across the hub ports.
Practical controls and indicators
A main power switch, power LED and seven connection LEDs simplify device management.
Key highlights
- 1m USB-C to USB-B host cable
- Top-facing USB-A and side USB-C ports
- OS-independent driverless operation
- Backward compatible with older USB devices
Official StarTech.com 2-year manufacturer warranty in Australia.
Technical specifications
StarTech HB30C5A2CST · Mountable Metal 7-Port USB-C Hub
Warranty Information
Warranty
2 Years
Hardware
Bus Type
USB 3.0
Chipset ID
VIA Labs - VL817-Q7
Fast-Charge Port(s)
Yes
Industry Standards
USB Battery Charging Specification Rev. 1.2 | USB-A charging port delivers up to 2.4 amps of power | USB 3.0 - Backward compatible with USB 2.0 and 1.1
Interface
USB 3.0
Ports
7
USB-C Device Port(s)
Yes
USB-C Host Connection
Yes
Performance
Maximum Data Transfer Rate
5 Gbps
Type and Rate
USB 3.0 - 5 Gbit/s
Connectors
Connector A
1 - USB Type-B (9 pin) USB 3.0 Female
Connector B
4 - USB Type-A (9 pin) USB 3.0 Female
Additional connector
2 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female
Additional connector
1 - USB 3.0 A (Fast-Charge, 9 pin) Female
Software
OS Compatibility
OS Independent; No additional drivers or software required
System Requirements and Notes
Note
The USB Type-C port is data only. | USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. | The hub does not support DP Alt Mode or USB Power Delivery.
System and Cable Requirements
Available USB Type-C port - USB 3.0 (5Gbps)
Indicators
LED Indicators
1 - Power
Additional indicator
7 - Hub Port Connection
Power
Center Tip Polarity
Positive
Input Current
1.5 A
Input Voltage
100 - 240 AC
Output Current
3 A
Output Voltage
12 DC
Plug Type
M
Power Consumption (In Watts)
36
Power Source
AC Adapter Included
Environmental
Humidity
20~80% RH
Operating Temperature
5°C to 35°C (41°F to 95°F)
Storage Temperature
-20°C to 50°C (-4°F to 122°F)
Physical Characteristics
Cable Length
40.2 in [1022.4 mm]
Color
Black
Enclosure Type
Aluminum
Form Factor
Desktop
Product Height
1 in [2.6 cm]
Product Length
5.1 in [13 cm]
Product Width
2.4 in [60 mm]
Weight of Product
6 oz [170 g]
Packaging Information
Package Height
3.8 in [9.6 cm]
Package Length
7.7 in [19.5 cm]
Package Width
4.1 in [10.5 cm]
Shipping (Package) Weight
1.3 lb [0.6 kg]
What's in the Box
Included in Package
1 - USB-C hub
Additional item
1 - universal power adapter (NA/JP, UK, EU, ANZ)
Additional item
1 - USB-C to USB-B cable
Additional item
2 - rubber feet
Additional item
2 - mounting brackets
Additional item
4 - mounting screws
Additional item
1 - quick-start guide
| SKU | HB30C5A2CST |
| Barcode # | 65030867894 |
| Brand | Startech |
| Shipping Weight | 0.6600kg |
| Shipping Width | 0.110m |
| Shipping Height | 0.100m |
| Shipping Length | 0.194m |
| Shipping Cubic | 0.002134000m3 |
