StarTech.com · HB30A3A1CSFS

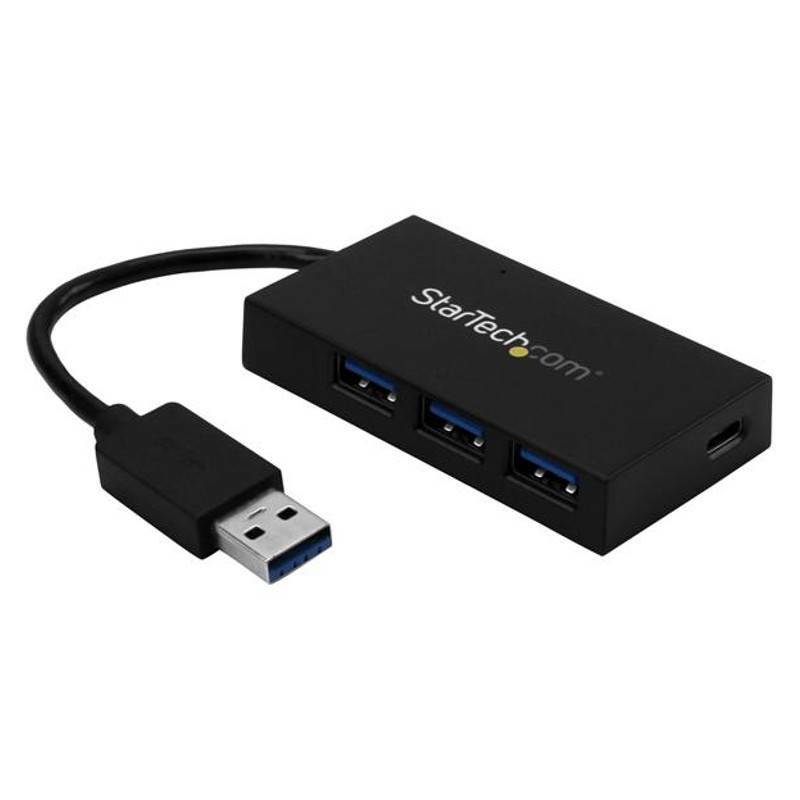

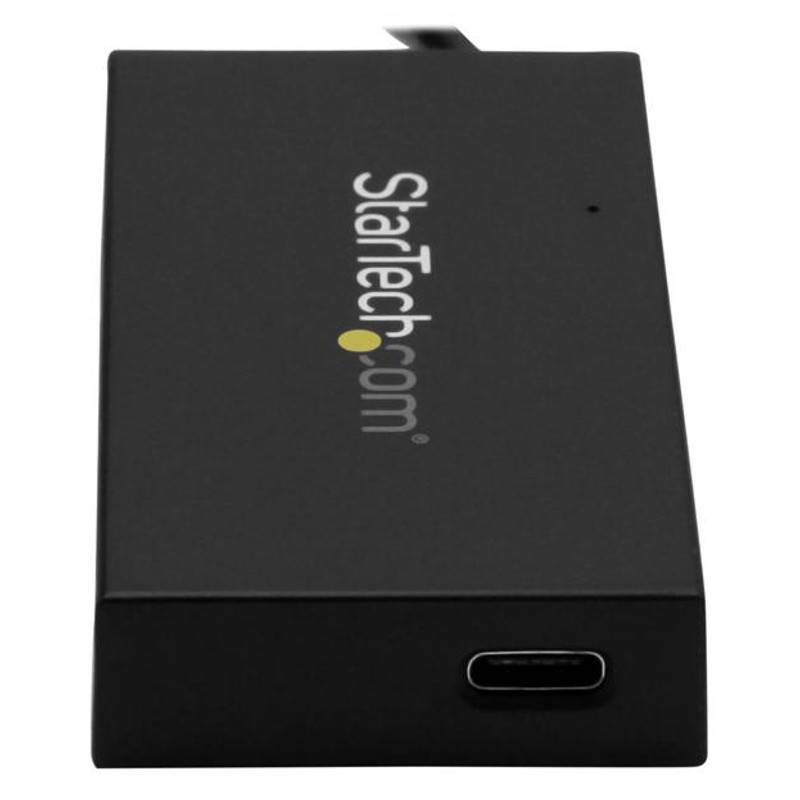

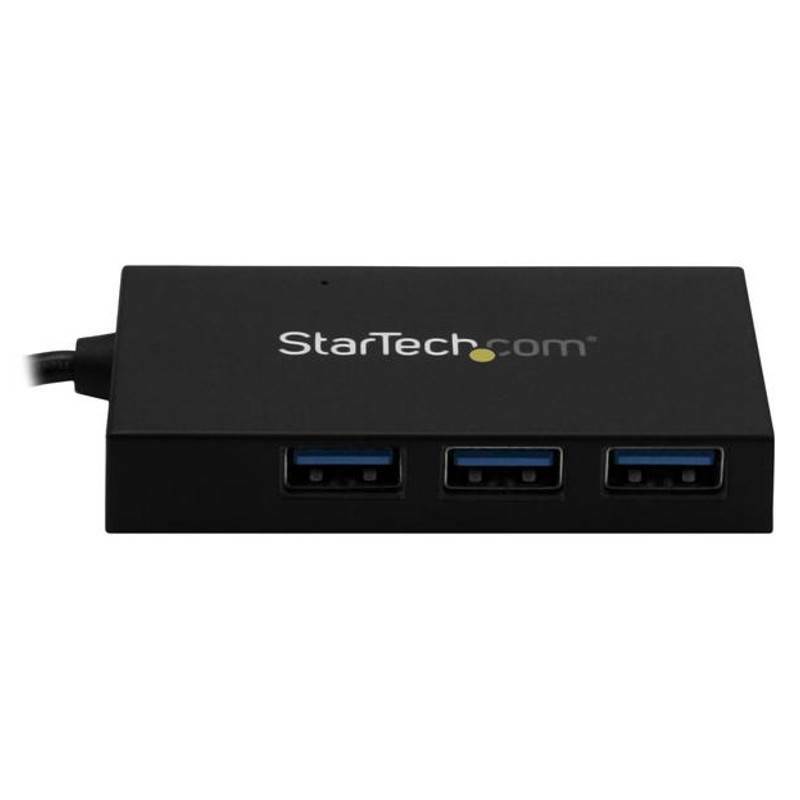

Powered 4-Port USB-A and USB-C Hub

Add three USB-A charge-and-sync ports and one USB-C data port to a USB-A computer, with an included 20W power adapter.

3 × USB-A charge/sync1 × USB-C dataUSB 5Gbps20W adapter

StarTech HB30A3A1CSFS Powered 4-Port USB-A and USB-C Hub

Built for dependable USB expansion

Four-port mixed expansion

Adds three USB-A charge-and-sync ports and one USB-C downstream data port to a USB-A host computer.

USB Battery Charging 1.2

Each USB-A port can provide up to 2.4A (12W), with up to 20W shared across connected devices when externally powered.

Bus or self powered

Can operate from USB bus power or use the included 5V 4A universal power adapter for higher-power peripherals and charging.

Up to 5Gbps data

USB 3.2 Gen 1 bandwidth is shared across connected devices and remains backward compatible with USB 2.0 and 1.1.

What to know before you connect

Requires an available USB-A 5Gbps host port for full performance.
The USB-C port is data only and does not support charging, DisplayPort Alt Mode or USB Power Delivery.
Charging output depends on the number and power requirements of connected devices.
The 5Gbps upstream bandwidth is shared by all active devices.

Australian version with official warranty

Supplied by DeviceDeal and covered by the official StarTech.com 2 years manufacturer warranty in Australia. Keep your DeviceDeal tax invoice as proof of purchase; coverage is subject to StarTech.com terms, eligibility and product assessment.

Frequently asked questions

What ports does the StarTech HB30A3A1CSFS provide?

It provides three USB-A charge-and-sync ports and one USB-C data port from a USB-A host connection.

What is the maximum USB data speed?

The hub supports USB 3.2 Gen 1 speeds up to 5Gbps, shared across connected devices.

Can the USB-A ports charge mobile devices?

Yes. Each USB-A port supports USB Battery Charging 1.2 with up to 2.4A (12W), subject to a 20W shared maximum and the connected load.

Does the USB-C port support charging or video?

No. The USB-C port is for USB data and does not support charging, DisplayPort Alt Mode or USB Power Delivery.

Can the hub work without the power adapter?

Yes. It supports bus-powered operation, while the included 5V 4A adapter provides more power for charging and higher-power peripherals.

Does the hub require drivers?

No. It is OS independent and requires no additional drivers or software.

What is included in the package?

The package includes the four-port hub and a universal power adapter with NA/JP, UK, EU and AU plug support.

What warranty applies in Australia?

The Australian-version HB30A3A1CSFS supplied by DeviceDeal is covered by a 2-year official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(HB30A3A1CSFS)

Features and highlights

Four-port mixed expansion

Adds three USB-A charge-and-sync ports and one USB-C downstream data port to a USB-A host computer.

USB Battery Charging 1.2

Each USB-A port can provide up to 2.4A (12W), with up to 20W shared across connected devices when externally powered.

Bus or self powered

Can operate from USB bus power or use the included 5V 4A universal power adapter for higher-power peripherals and charging.

Up to 5Gbps data

USB 3.2 Gen 1 bandwidth is shared across connected devices and remains backward compatible with USB 2.0 and 1.1.

Compact and driverless

Attached 5.7in (14.6cm) USB-A cable, compact housing and OS-independent setup support desk and travel use.

Key highlights

Three USB-A ports support data and BC 1.2 charging
USB-C downstream port supports data but not charging
Included universal power adapter has AU plug support
No additional drivers or software required

Official StarTech.com 2 years manufacturer warranty in Australia.

Technical specifications

StarTech HB30A3A1CSFS · Powered 4-Port USB-A and USB-C Hub

Warranty Information

Warranty

2 Years

Hardware

Ports

Interface

USB 3.2 Gen 1 (5Gbps)

Bus Type

USB 3.2 Gen 1 (5Gbps)

Chipset ID

Genesys Logic - GL3522

USB-C Device Port(s)

Yes

USB-C Host Connection

Fast-Charge Port(s)

Yes

Industry Standards

USB Battery Charging Specification Rev. 1.2; backward compatible with USB 2.0 and 1.1

Performance

Maximum Data Transfer Rate

5 Gbps (USB 3.2 Gen 1)

Type and Rate

USB 3.2 Gen 1 - 5 Gbit/s

USB-A Charging

Up to 2.4A (12W) on a USB-A port; up to 20W shared

Connectors

Downstream Ports

3 × USB Type-A (9 pin, fast-charge, 5Gbps)

Downstream Port

1 × USB Type-C (24 pin, 5Gbps)

Host Connector

1 × USB Type-A (9 pin, 5Gbps)

Software

OS Compatibility

OS Independent; no additional drivers or software required

System Requirements and Notes

Host Requirement

Available USB Type-A 5Gbps port

USB-C Port

Data only; charging is not supported

Video Note

USB-based video adapters are supported; native DisplayPort Alt Mode is not supported

Power Delivery

USB Power Delivery is not supported

Charging Note

Output depends on the number and power draw of connected devices

Power

Power Source

USB bus power or included AC adapter

Adapter Input

100240V AC, 1A

Adapter Output

5V DC, 4A

Power Rating

20W

Centre Tip Polarity

Positive

Plug Type

Environmental

Operating Temperature

0°C to 60°C (32°F to 140°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Humidity

0%90% RH, non-condensing

Physical Characteristics

Colour

Black

Material

Plastic

Form Factor

Compact

Cable Length

5.7 in [146 mm]

Product Length

1.5 in [38 mm]

Product Width

2.9 in [7.4 cm]

Product Height

0.5 in [1.3 cm]

Weight of Product

1.4 oz [39 g]

Packaging Information

Package Quantity

Package Length

6.5 in [16.5 cm]

Package Width

5.2 in [13.2 cm]

Package Height

2.1 in [5.4 cm]

Shipping Weight

12.8 oz [362 g]

What's in the Box

Included

1 × 4-port USB 3.0 hub

Included

1 × universal power adapter (NA/JP, UK, EU, AU)

SKU	HB30A3A1CSFS
Barcode #	65030866118
Brand	Startech
Shipping Weight	0.3700kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.160m
Shipping Cubic	0.000800000m3

Australian warranty confidence

2 years manufacturer warranty

This is the Australian version of StarTech HB30A3A1CSFS supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase.

Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
