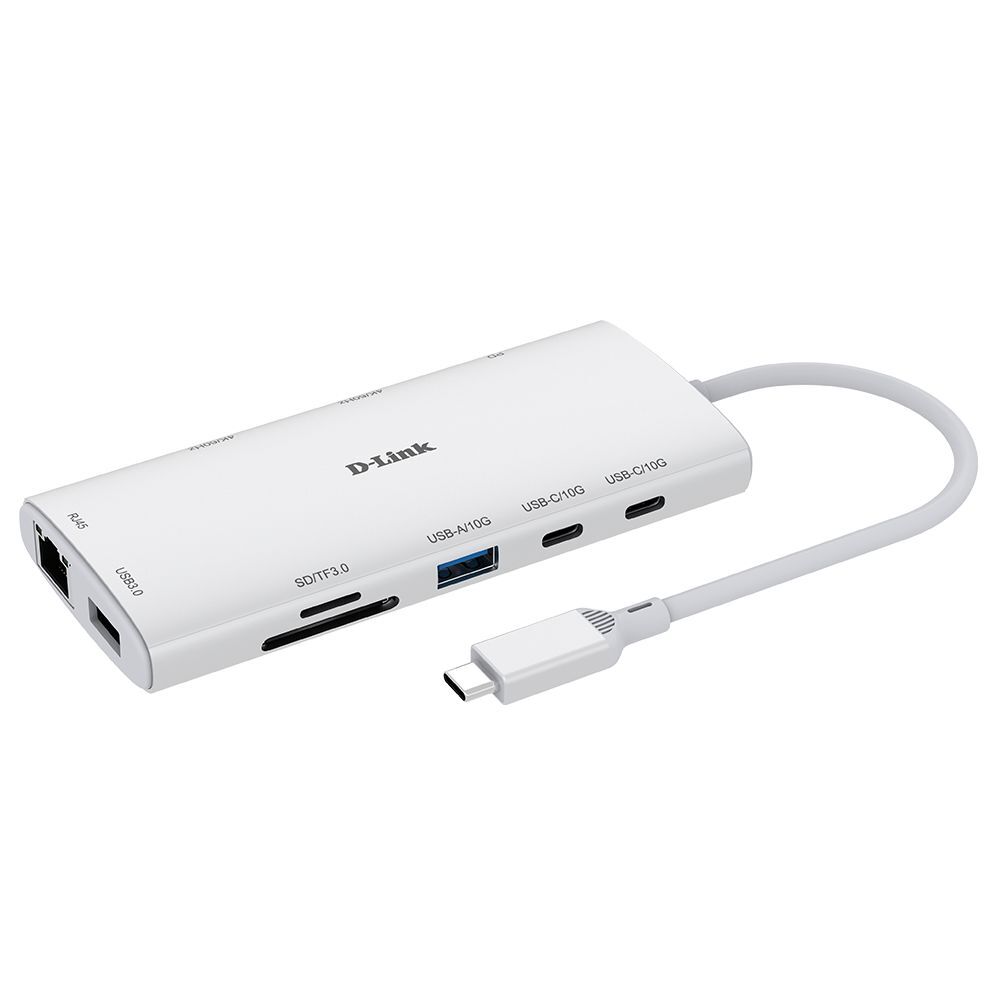

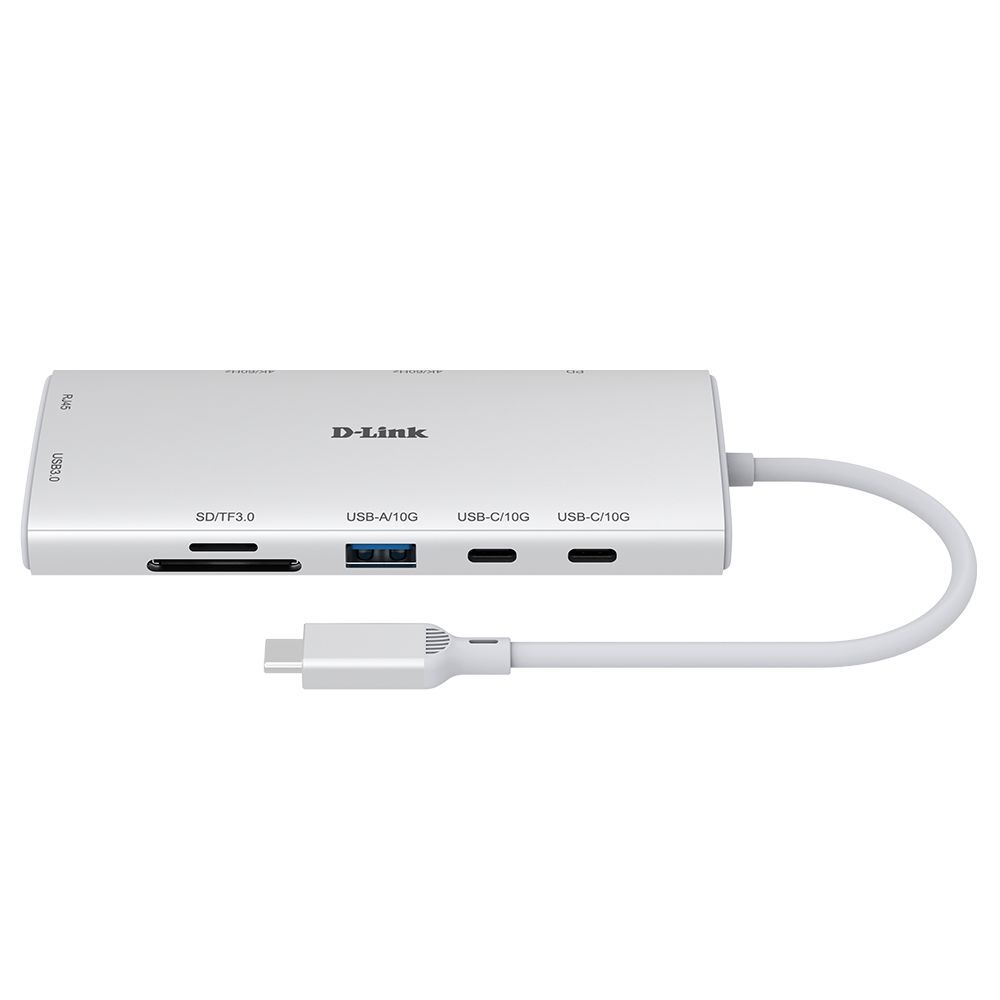

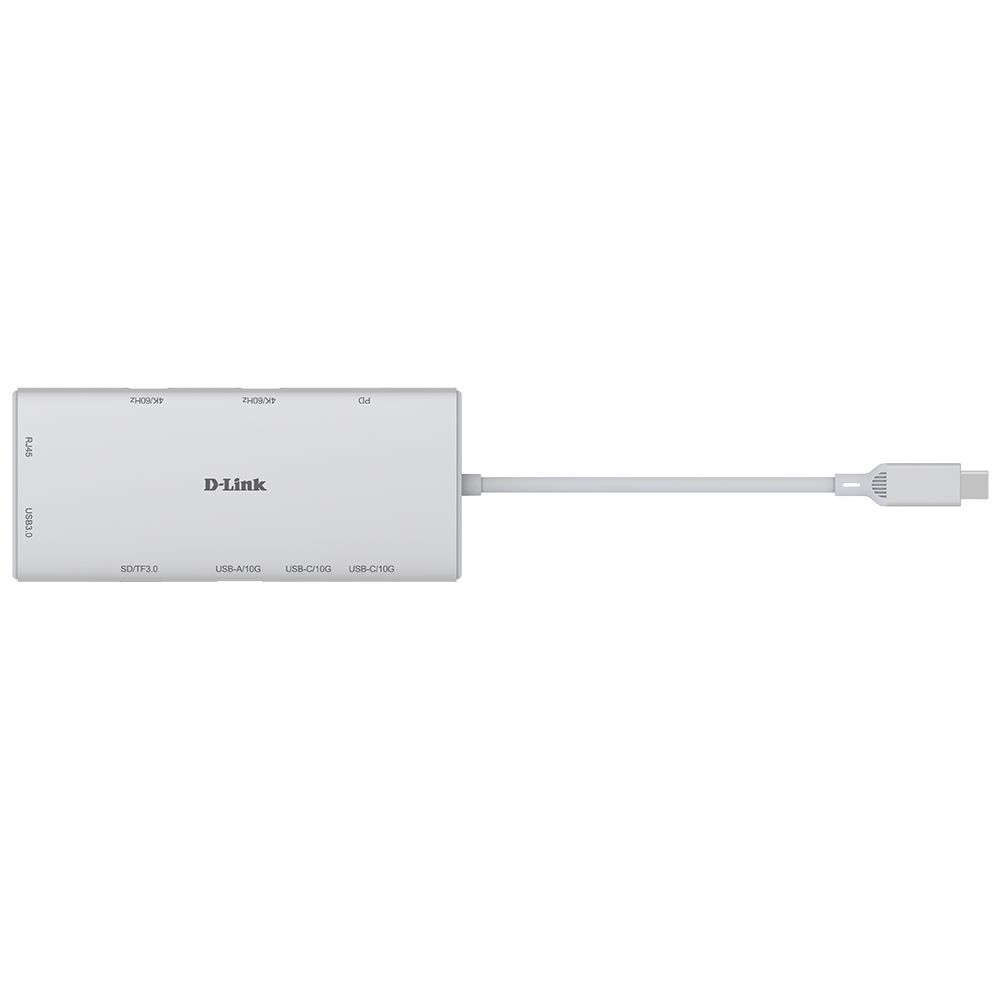

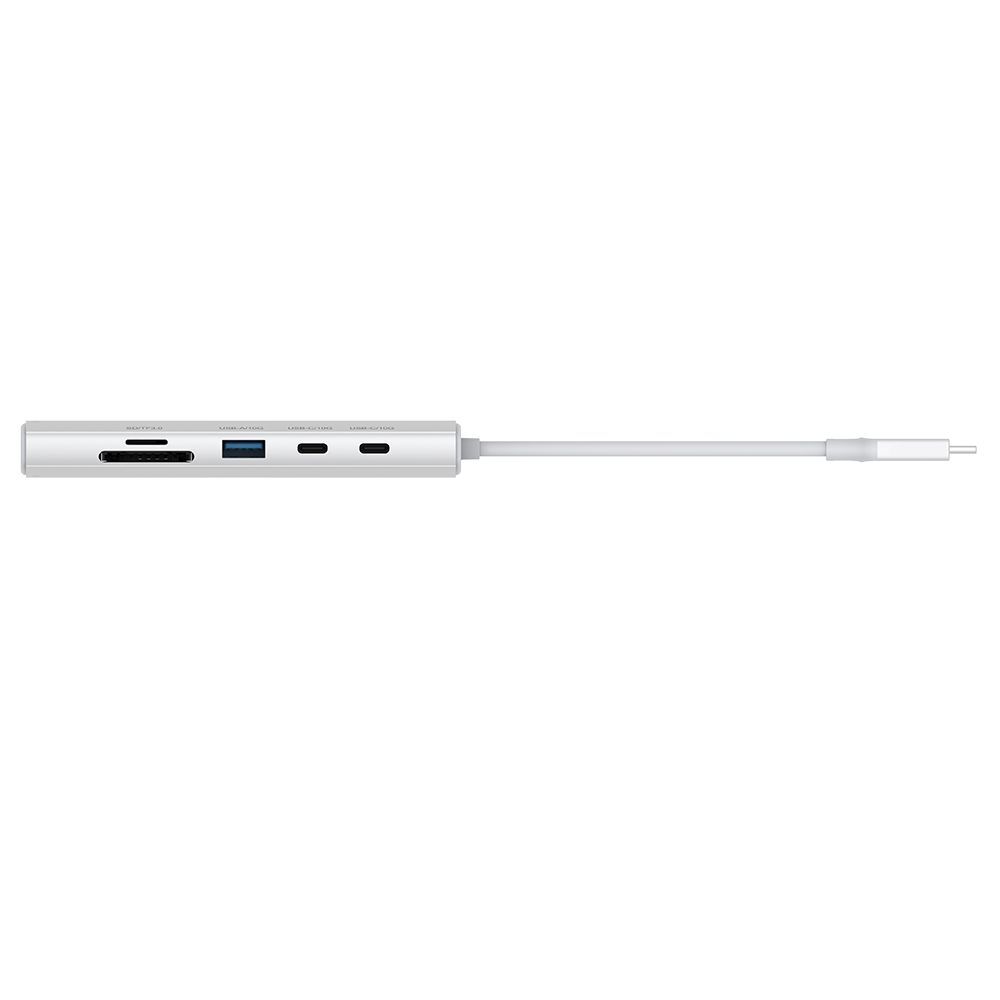

D-Link DUP-A01 10-Port Multi-Function USB-C Hub with Dual 4K HDMI

A compact 10-port USB-C hub with dual 4K HDMI, four USB data ports, Gigabit Ethernet, SD and microSD slots and pass-through charging up to 85W.

Dual 4K HDMI 2.0

Supports one or two compatible displays up to 3840 x 2160 at 60Hz each.

USB data up to 10Gbps

Includes two USB-C and one USB-A Gen 2 connection rated at 10Gbps.

Up to 85W pass-through charging

The 100W USB-C PD input supports up to 85W for a connected compatible device.

Ten-port mobile expansion

The DUP-A01 combines USB-C, USB-A, HDMI, Gigabit Ethernet, memory-card and Power Delivery connections in a compact metal housing.

Dual-display output

Two HDMI 2.0 ports support single or dual compatible displays up to 3840 x 2160 at 60Hz each.

High-speed storage and peripherals

USB 3.2 Gen 2 ports provide stated rates up to 10Gbps, while one USB-A Gen 1 port provides up to 5Gbps.

Network, cards and charging

Gigabit Ethernet, SD and microSD 3.0 slots for cards up to 2TB, and USB-PD 3.0 pass-through charging are included.

Buy with confidence from DeviceDeal

DeviceDeal is an authorised D-Link reseller. This product is supplied with the stated one-year D-Link manufacturer warranty.

Frequently asked questions

How many connections does the DUP-A01 provide?

It is described as a 10-port USB-C hub.

How many USB data ports are included?

Four USB data ports are listed: two USB-C and two USB-A.

What are the maximum USB data rates?

Three ports support up to 10Gbps and one USB-A port supports up to 5Gbps.

How many HDMI ports are provided?

Two HDMI 2.0 ports are included.

What display resolution is stated?

Single or dual displays up to 3840 x 2160 at 60Hz each are stated.

Does it include wired networking?

Yes. One 10/100/1000Mbps Gigabit Ethernet port is listed.

Which card readers are provided?

One SD 3.0 and one microSD 3.0 card slot are included.

What memory-card capacity is supported?

Cards up to 2TB are stated.

What charging power is available?

The 100W Power Delivery port supports pass-through charging up to 85W for connected devices.

Which operating systems are listed?

macOS, Windows 10/11 and Android are stated.

(DUP-A01)

D-Link DUP-A01 10-Port Multi-Function USB-C Hub with Dual 4K HDMI features

Dual 4K display output

Drives one or two compatible HDMI displays at the stated resolution.

10Gbps USB connections

Supports compatible high-speed storage and peripherals.

Gigabit Ethernet and card access

Adds wired networking plus SD and microSD slots.

USB-PD pass-through

Provides up to 85W charging from the stated 100W input.

Confirm host USB-C capability, display support, Power Delivery source, connected-device power needs and operating-system compatibility before use.

D-Link DUP-A01 10-Port Multi-Function USB-C Hub with Dual 4K HDMI specifications

Product details

Model	DUP-A01
Product type	10-port multi-function USB-C hub
USB interfaces	USB 3.2 Gen 1 / USB 3.2 Gen 2
USB data ports	4
USB-C data ports	2 x USB 3.2 Gen 2 at up to 10Gbps
USB-A data ports	1 x USB 3.2 Gen 2 at up to 10Gbps / 1 x USB 3.2 Gen 1 at up to 5Gbps
Display outputs	2 x HDMI 2.0
Maximum stated display output	3840 x 2160 at 60Hz each
Wired networking	1 x Gigabit Ethernet (10/100/1000Mbps)
Card readers	SD 3.0 / microSD 3.0
Maximum stated card capacity	Up to 2TB
Power Delivery input	1 x USB-C, up to 100W, PD 3.0
Maximum stated pass-through charging	Up to 85W
Operating-system compatibility	macOS / Windows 10/11 / Android
Dimensions	125 x 55 x 17mm
Housing	Metal
