StarTech.com ST53004U1C

4-port USB 5Gbps hub with dedicated 2.4A charge port

Add four USB-A 5Gbps data ports plus one dedicated 2.4A charging port, with USB Battery Charging 1.2 and bus or self-powered operation.

4 × USB-A 5Gbps1 × 2.4A DCPUSB BC 1.22-year warranty

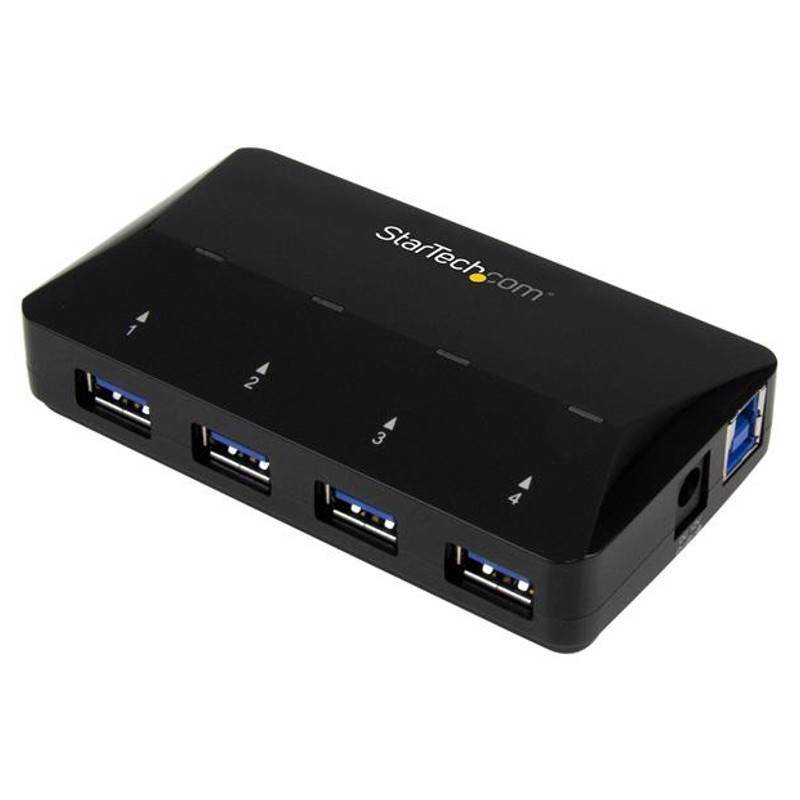

StarTech ST53004U1C USB hub with 2.4A dedicated charging port

Key capabilities

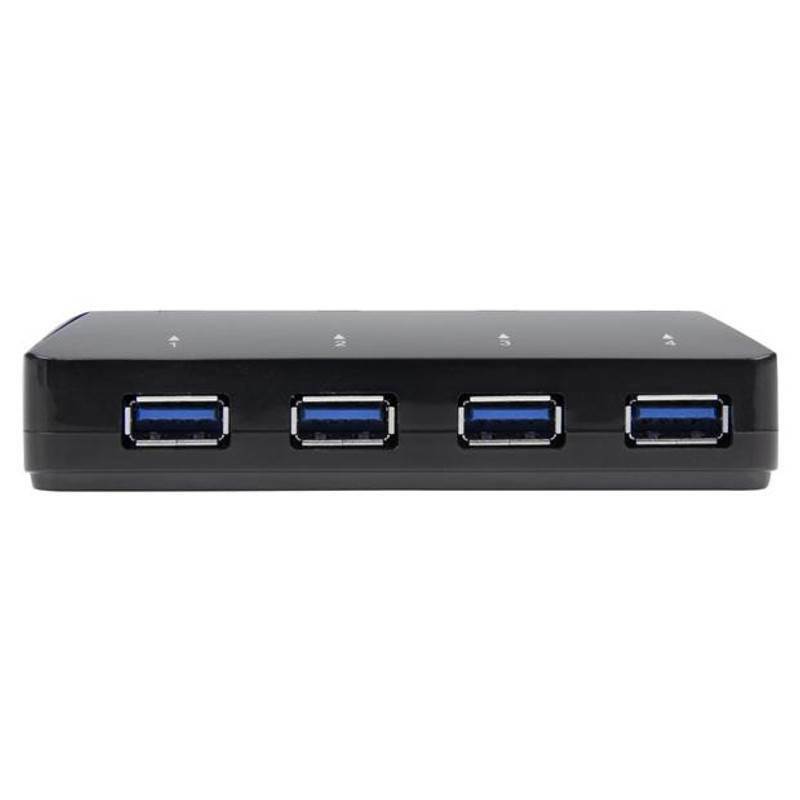

Four 5Gbps data ports

Connect four USB 3.2 Gen 1 devices through one host connection.

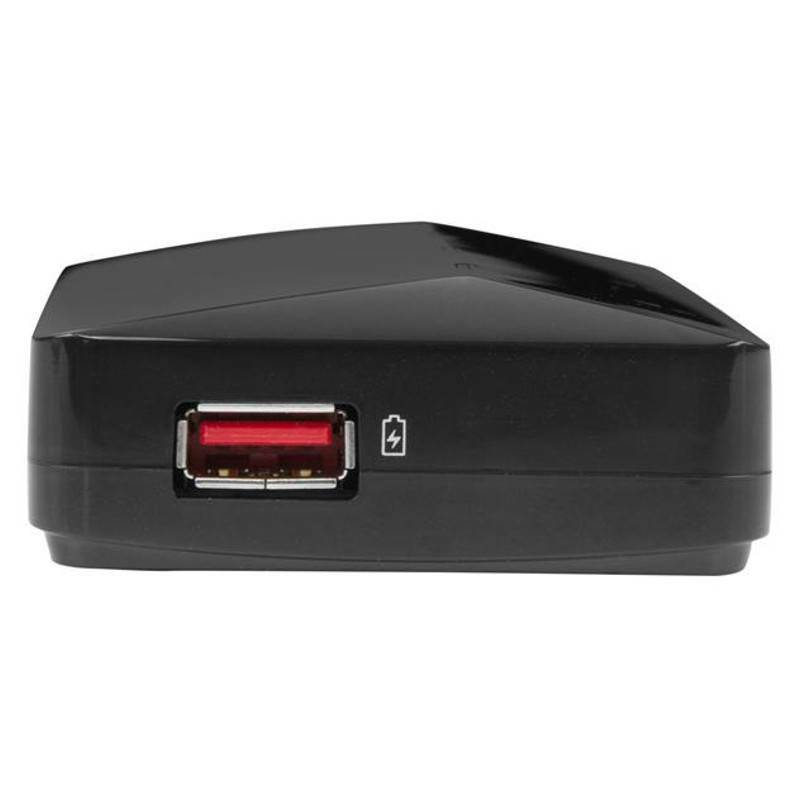

Dedicated 2.4A charging

A separate DCP fast-charges compatible USB devices and remains available when the host is asleep, off or disconnected.

VL812 controller

The exact current StarTech datasheet identifies VIA/VLI VL812.

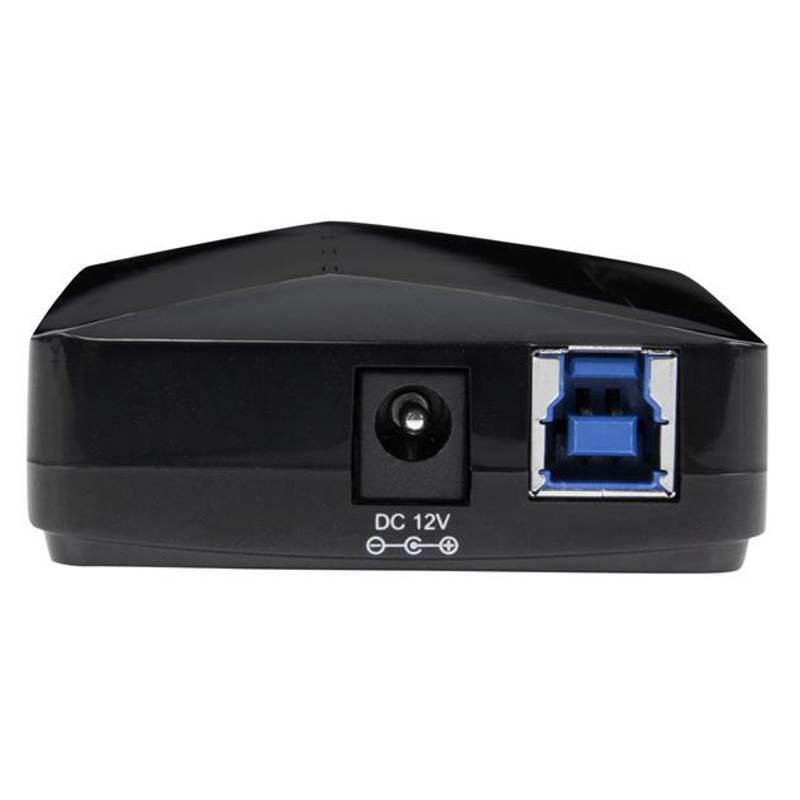

Bus or self powered

Data-hub operation can use USB power; the included 12V/2A adapter is required for the dedicated charging port.

What to know before buying

The dedicated charging port is separate from the four data ports. The included AC adapter must be connected for the 2.4A DCP to function.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

How many data ports does ST53004U1C provide?

Four USB-A 5Gbps data ports.

Is there a separate charging port?

Yes, one dedicated 2.4A USB charging port.

What charging standard is supported?

USB Battery Charging Specification 1.2.

What is the maximum data rate?

5Gbps.

Which chipset is used?

VIA/VLI VL812.

Can the charging port work when the computer is off?

Yes, when the included power adapter is connected.

What power adapter is included?

A universal 12V DC / 2A adapter.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(ST53004U1C)

Features and highlights

Four 5Gbps data ports

Connect four USB 3.2 Gen 1 devices through one host connection.

Dedicated 2.4A charging

A separate DCP fast-charges compatible USB devices and remains available when the host is asleep, off or disconnected.

VL812 controller

The exact current StarTech datasheet identifies VIA/VLI VL812.

Bus or self powered

Data-hub operation can use USB power; the included 12V/2A adapter is required for the dedicated charging port.

4 × USB-A 5Gbps
1 × 2.4A DCP
USB BC 1.2
2-year warranty

Warranty confidence: Official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech ST53004U1C.

Warranty Information

Warranty	2 Years

Hardware

Bus Type	USB 3.0
Chipset ID	VIA/VLI - VL812
Fast-Charge Port(s)	Yes
Industry Standards	USB Battery Charging Specification Rev. 1.2
Industry Standards	USB 3.0 - Backward compatible with USB 2.0/1.1
Interface	USB 3.0
Ports	4
USB-C Device Port(s)	No
USB-C Host Connection	No

Performance

Maximum Data Transfer Rate	5 Gbps
Type and Rate	USB 3.0 - 5 Gbit/s

Connector(s)

Connector Type(s)	4 - USB Type-A (9 pin) USB 3.0 Female
Connector Type(s)	1 - USB 3.0 A (Fast-Charge, 9 pin) Female

Software

OS Compatibility	OS Independent; No additional drivers or software required

Special Notes / Requirements

Note	If connected to a USB 2.0 host port, performance may be limited
System and Cable Requirements	Host computer with an available USB 3.0 port
System and Cable Requirements	The included power adapter must be connected to the hub in order for the dedicated charge port (DCP) to function

Indicators

LED Indicators	4 - Port status (Blue)

Power

Center Tip Polarity	Positive
Input Current	0.6 A
Input Voltage	100 - 240 AC
Output Current	2A
Output Voltage	12 DC
Plug Type	N
Power Consumption (In Watts)	24
Power Source	AC Adapter Included

Environmental

Humidity	10% ~ 90% RH (Non-condensing)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-10°C to 70°C (14°F to 158°F)

Physical Characteristics

Color	Black
Enclosure Type	Plastic
Form Factor	Desktop
Product Height	0.9 in [2.2 cm]
Product Length	4.1 in [10.3 cm]
Product Width	2.4 in [60 mm]
Weight of Product	2.6 oz [75 g]

Packaging Information

Package Height	2.1 in [53 mm]
Package Length	5.9 in [15.1 cm]
Package Width	8.5 in [21.6 cm]
Shipping (Package) Weight	14.5 oz [411 g]

What's in the Box

Included in Package	1 - 4-port USB 3.0 hub + 2.4A dedicated charging port
Included in Package	1 - USB 3.0 host cable
Included in Package	1 - universal power adapter (NA/EU/UK/AU)

SKU	ST53004U1C
Barcode #	65030861700
Brand	STARTECH
Shipping Weight	0.4000kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.210m
Shipping Cubic	0.001050000m3
