Four remote USB ports
Two top-mounted and two front-facing Type-A ports provide convenient access for temporary and fixed peripherals.
StarTech 4 Port USB 2.0-Over-Cat5-or-Cat6 Extender, Up to 165ft (50m) - USB2004EXTV
Model # USB2004EXTV
-
SKU: USB2004EXTV
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com | USB2004EXTV

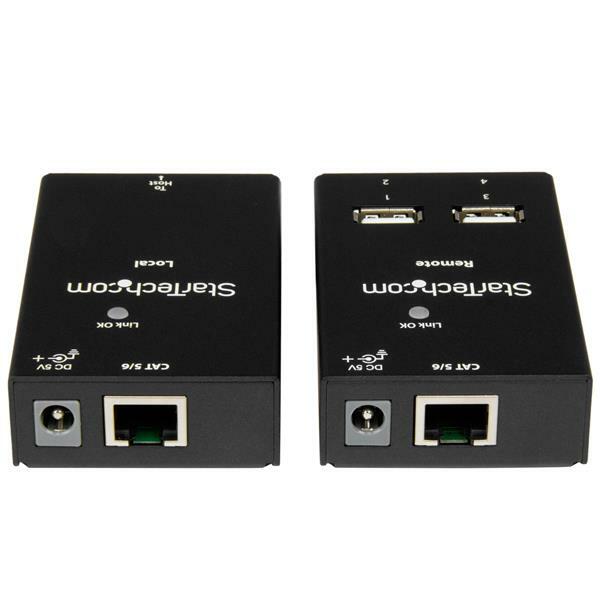

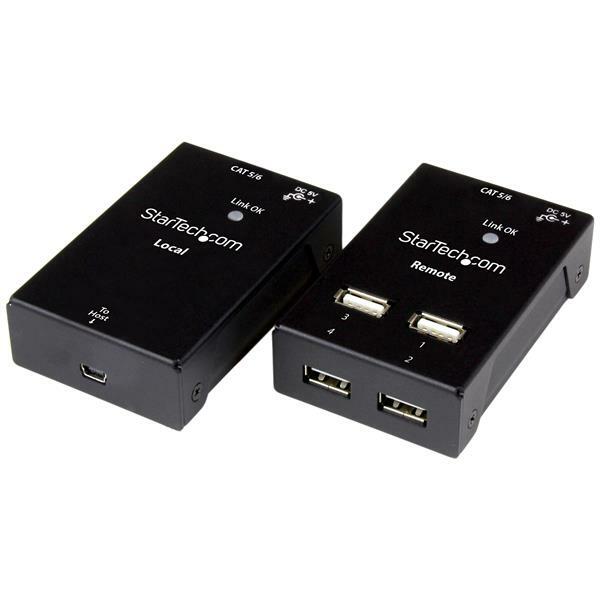

StarTech 4-Port USB 2.0 over Cat5/Cat6 Extender
Extend four USB 2.0 devices up to the verified 40 m (131 ft) maximum over one direct Cat5e-or-better cable with a powered four-port receiver.
4 remote USB ports40m verified reach480Mbps USB 2.0
Key features at a glance
Direct, product-specific information to help confirm whether this model fits the intended setup.
40m extension
The official exact-SKU specification confirms a maximum distance of 40m (131ft) over direct Cat5e-or-better cabling.
Powered receiver
The included 10W universal adapter powers the remote four-port hub receiver.
Driverless setup
The extender is OS independent, plug-and-play and backward compatible with USB 1.1 and 1.0 devices.
Australian version with official 2 Years warranty
Supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice; coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
Quick answers based on the supplied product information and specifications.
What does the StarTech USB2004EXTV do?
It extends up to four USB 2.0 devices over one direct Cat5e-or-better cable.
What is the verified maximum distance?
The official exact-SKU datasheet states 40m (131ft).
Why does some supplied wording say 50m?
The supplied title conflicts with the exact-SKU datasheet; this description uses the verified 40m maximum.
What is the maximum data rate?
The extender supports USB 2.0 transfer rates up to 480Mbps.
Can it run through a network switch?
No. The RJ45 cable forms a direct point-to-point extender link.
Does it require a driver?
No. It is OS independent and requires no additional software.
What is included?
The kit includes local and remote units, Mini-USB and RJ45 cables, rubber feet, a universal power adapter and a manual.
What warranty applies in Australia?
The Australian-version product supplied by DeviceDeal is covered by a two-year official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(USB2004EXTV)
Features and highlights
StarTech USB2004EXTV
Four remote USB ports
Two top-mounted and two front-facing Type-A ports provide convenient access for temporary and fixed peripherals.
40m extension
The official exact-SKU specification confirms a maximum distance of 40m (131ft) over direct Cat5e-or-better cabling.
Powered receiver
The included 10W universal adapter powers the remote four-port hub receiver.
Driverless setup
The extender is OS independent, plug-and-play and backward compatible with USB 1.1 and 1.0 devices.
- Transmitter and four-port hub receiver
- Hot-swap compatible
- Power/link LED
- TAA compliant
Warranty confidence: Australian-version product with a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
Technical specifications
StarTech USB2004EXTV specifications organised from the supplied product data.
Warranty Information
| Warranty | 2 Years |
|---|
Hardware
| Ports | 4 |
|---|---|
| Cabling | Cat5 UTP or better |
| Enclosure | Steel |
Performance
| Maximum Data Transfer Rate | 480Mbps |
|---|---|
| Maximum Distance | 40m [131ft] |
Connector(s)
| Local Unit | 1 × USB Mini-B; 1 × RJ45 |
|---|---|
| Remote Unit | 4 × USB 2.0 Type-A; 1 × RJ45 |
Software
| OS Compatibility | OS independent; no additional drivers or software required |
|---|
Special Notes / Requirements
| Requirements | USB-enabled host; direct terminated Cat5e-or-better cable |
|---|
Power
| Power Source | AC adapter included |
|---|---|
| Input | 100240V AC, 0.4A |
| Output | 5V DC, 2A |
| Power Consumption | 10W |
Environmental
| Operating Temperature | 0°C to 50°C |
|---|---|
| Storage Temperature | -20°C to 70°C |
| Humidity | 080% RH |
Physical Characteristics
| Color | Black |
|---|---|
| Dimensions | 80 × 52 × 22mm |
| Weight | 319g |
What's in the Box
| Included in Package | Local extender; four-port remote extender; 0.5m Mini-USB to USB-A cable; 1.5m RJ45 cable; 8 rubber feet; universal power adapter with ANZ plug; manual |
|---|
| SKU | USB2004EXTV |
| Barcode # | 65030860031 |
| Brand | STARTECH |
| Shipping Weight | 0.7500kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.230m |
| Shipping Cubic | 0.001150000m3 |
Australian version and official StarTech.com warranty
This is the Australian-version product supplied by DeviceDeal and is covered by the official StarTech.com manufacturer warranty in Australia for 2 years.
Please retain the DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
