All-weather PoE++ 32MP multi-sensor camera featuring a Multi-TOPS AI engine, 2.33× optical zoom, 360° IR coverage, and four independently adjustable lenses for seamless wide-area and close-up monitoring.

(UVC-AI-MS-4-W)

Overview

Item	Specification
Dimensions	Ø255 × 105 mm (Ø10.04 × 4.13")
IR Night Vision	20 m (65 ft)
Zoom Mode	2.33x Optical
Face Recognition	✓
License Plate Recognition	✓
Smart Detections (People, Vehicles, Animals)	✓
Resolution	32MP
Field of View (Wide)	H: 108.8°, V: 57.6°, D: 130.8°
Field of View (Tele)	H: 42.8°, V: 24.1°, D: 49.1°
Weatherproofing	IP66
Tamper Resistance	IK10

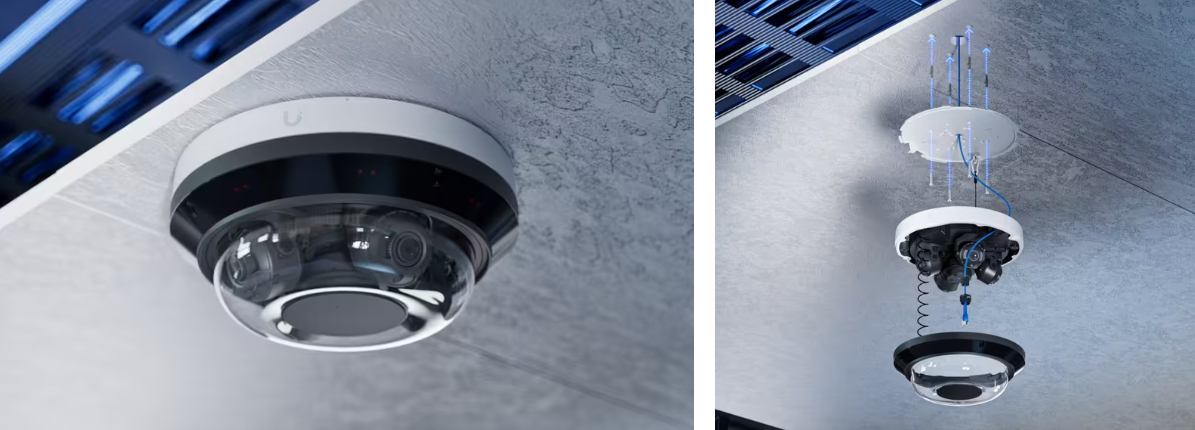

Mounting	Ceiling mount (Included); Pole, Corner, Arm, Pendant mount (Optional)
UniFi Application Suite	Protect — ✓

Performance

Item	Specification
Networking Interface	GbE RJ45 port
Image Settings	Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
Max. Frame Rate	30 FPS
Resolution	(4) 8MP 3840 × 2160 (16:9)

Optics

Item	Specification
Sensor	1/2.8" 8MP
Lens	(4) F 3.18–7.42 mm; ƒ/1.8–ƒ/2.8
Night Mode	Built-in (16) IR LEDs with adaptive control

Hardware

Item	Specification
Max. Power Consumption	34.6W
Supported Voltage Range	42.5—57V DC
Power Method	PoE++
Processor	Dual-core Arm® Cortex®-A76 based chip
Weight	2.4 kg (5.3 lb)
Enclosure Material	Aluminum alloy, polycarbonate
Mount Material	Powder-coated aluminum alloy
Expansion Slot	(2) MicroSD card; (1) M.2 2280 SATA SSD
Button	(1) Factory-reset
Ambient Operating Temperature	-20 to 50°C (-4 to 122°F)
Ambient Operating Humidity	0 to 90% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC
