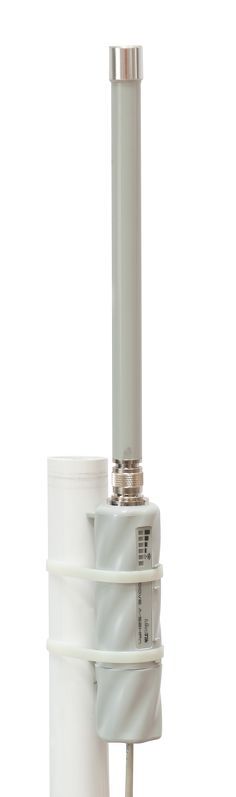

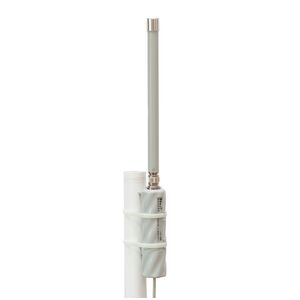

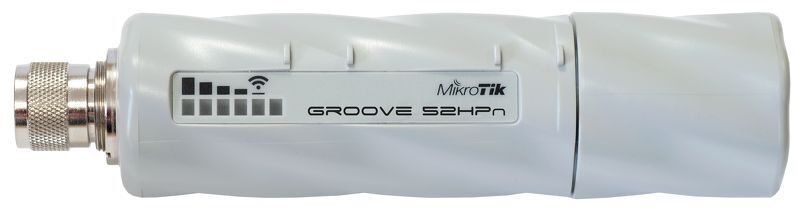

Our smallest outdoor series model - a fully featured wireless RouterBOARD powered by RouterOS. Weatherproof, durable and ready to use. It has one 10/100 Ethernet port with PoE support and a built in wireless radio. It has software selectable 2 or 5GHz wireless mode, and high output power! GrooveA has also supports AP mode.With the Nv2 TDMA technology, up to 125Mbit aggregate throughput is possible! It has a built-in N-male connector, and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align.NEW- now comes packaged with a Omni directional antenna (6dBi 2.4GHz, 8dBi 5GHz)!Box contains: Groove unit, mounting loops, PoE injector, power adapter, Omni directional antenna (6dBi 2.4GHz, 8dBi 5GHz).We have two versions available.- RBGrooveA-52HPn-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.- RBGrooveA-52HPn (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
SpecificationsDetailsProduct codeRBGrooveA-52HPnArchitectureMIPSBECPUAR9342CPU core count1CPU nominal frequency600 MHzDimensions177x44x44mm, 193gLicense level4Operating SystemRouterOSSize of RAM64 MBStorage size16 MBStorage typeFLASHTested ambient temperature-40°C to 70°C
PoweringDetailsPoE inPassive PoEPoE in input Voltage9-30 VNumber of DC inputs1 (PoE-IN)Max power consumption6 W
WirelessDetailsWireless 2.4 GHz/5 GHz Max data rate150 Mbit/sWireless 2.4 GHz/5 GHz number of chains1Wireless 2.4 GHz/5 GHz standards802.11b/g/n, 802.11a/nAntenna gain dBi for 2.4 GHz/5 GHz6Wireless 2.4 GHz/5 GHz chip modelAR9342Wireless 2.4 GHz/5 GHz generationWi-Fi 4
EthernetDetails10/100 Ethernet ports1
OtherDetailsPCB temperature monitorYesVoltage MonitorYes
Certification & ApprovalsDetailsCertificationCE/RED, FCC, IC, EAC, ROHS
Wireless specifications2.4 GHzTransmit (dBm)Receive Sensitivity1MBit/s27-9711MBit/s27-916MBit/s27-9354MBit/s24-75MCS027-93MCS723-705 GHzTransmit (dBm)Receive Sensitivity6MBit/s27-9354MBit/s23-75MCS026-93MCS722-70
(RBGrooveA-52HPn)
| SKU |
RBGrooveA-52HPn |
| Barcode # |
733115906980 |
| Brand |
MIKROTIK |
| Shipping Weight |
0.8000kg |
