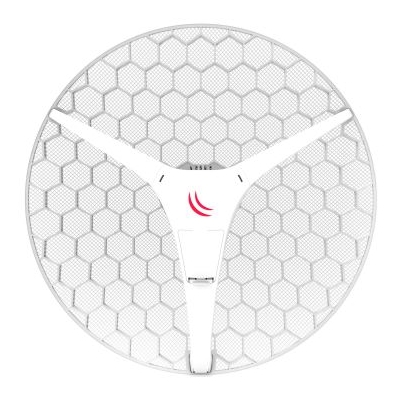

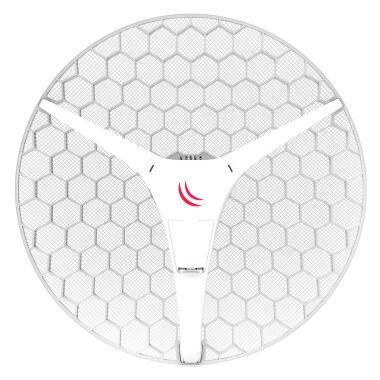

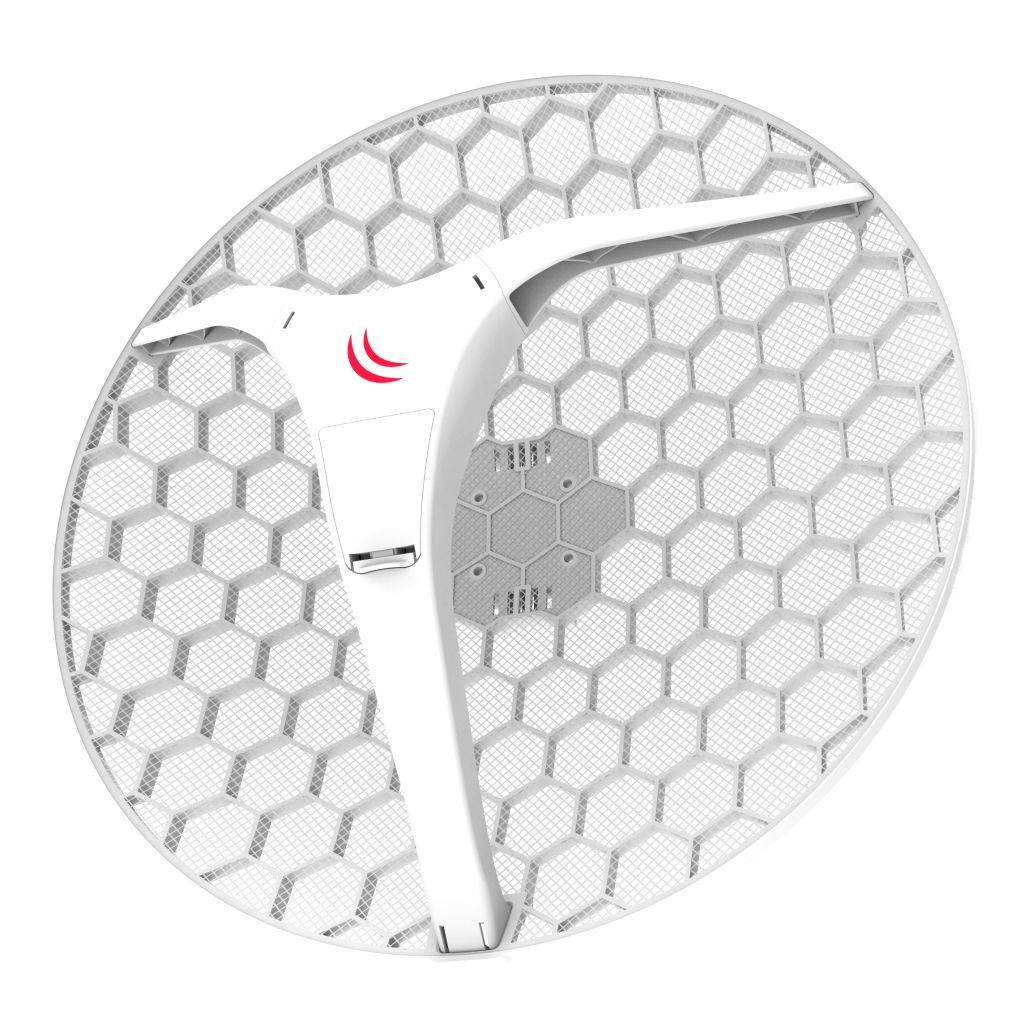

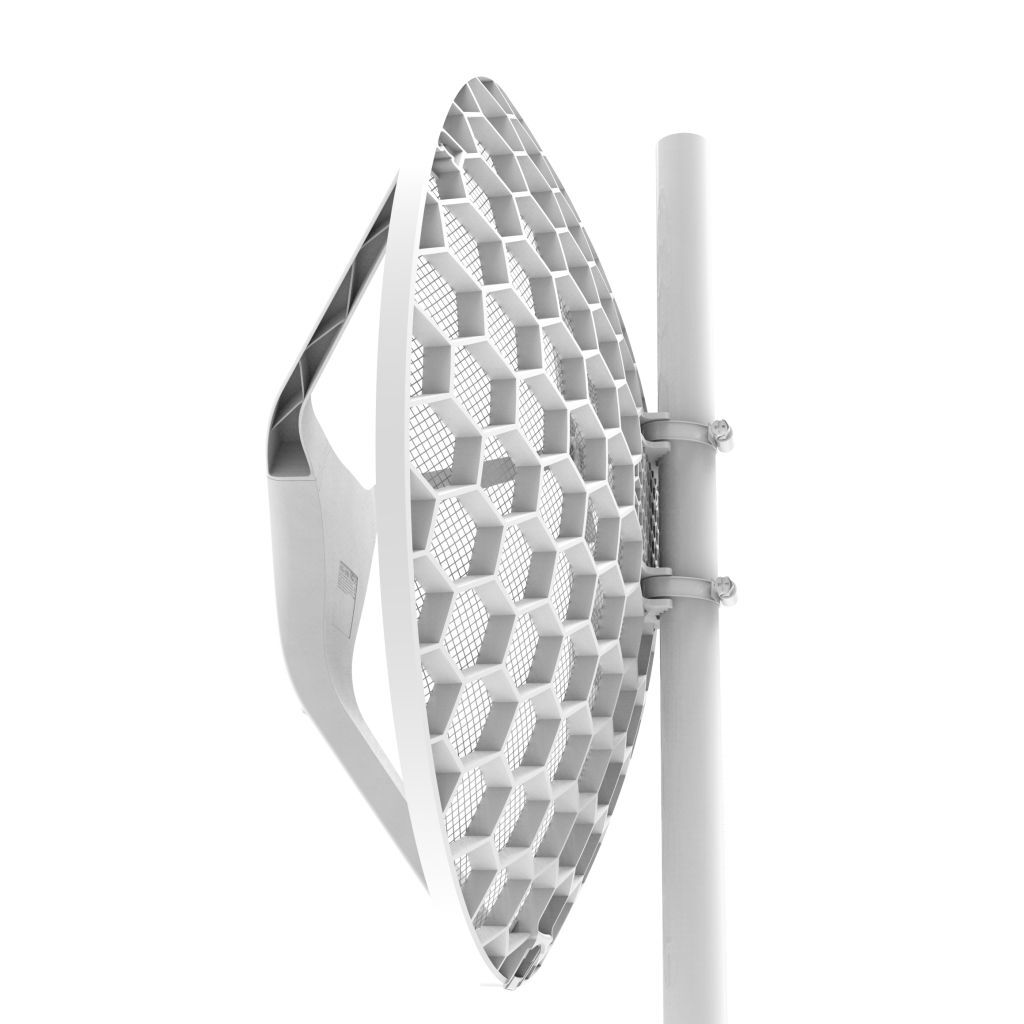

The LHG XL 5 ac is Long Range 5GHz 802.11ac wireless device with an integrated dual polarization 27 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol. The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides. - LHG XL 5 ac-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed. - LHG XL 5 ac (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations). Shipped as a kit of 4 units (RBLHGG-5acD-XL4pack) - 4 antennas in a single box. The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.. BrochureFCC Grant of Certification (5GHz)
(RBLHGG-5acD-XL4pack)
| Specifications |
| Product code | RBLHGG-5acD-XL |
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| CPU core count | 4 |
| CPU nominal frequency | 716 MHz |
| Dimensions | Ø 550 x 245 mm; |
| RouterOS license | 3 |
| Operating System | RouterOS |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| IPsec hardware acceleration | Yes |
| Tested ambient temperature | -40°C to 70°C |
| Powering |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 8 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
| Ethernet |
| 10/100/1000 Ethernet ports | 1 |
| Certification & Approvals |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
| Wireless specifications |
| 5 GHz TX/RX | | 5 GHz | Transmit (dBm) | Receive Sensitivity | | 6MBit/s | 25 | -96 | | 54MBit/s | 21 | -80 | | MCS0 | 25 | -96 | | MCS7 | 20 | -75 | | MCS9 | 18 | -70 | |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 27 |
| Wireless 5 GHz chip model | IPQ-4018 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| SKU |
RBLHGG-5acD-XL4pack |
| Brand |
MIKROTIK |
| Shipping Weight |
3.3000kg |
