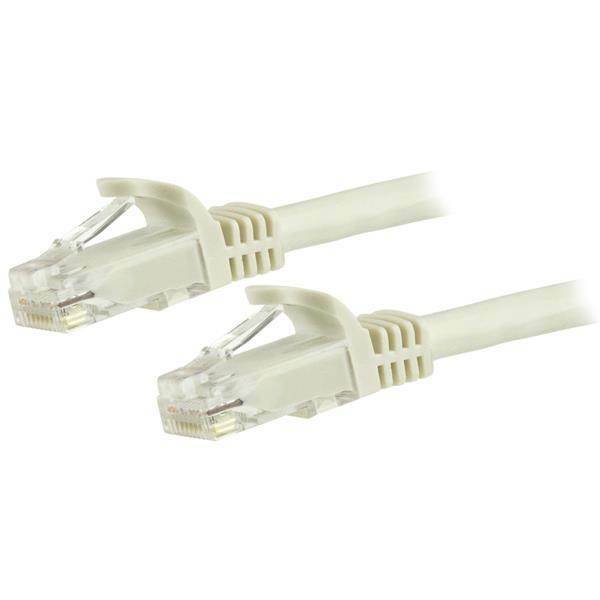

StarTech N6PATC7MWH 7 m white CAT6 Ethernet cable

Standard CAT6 patch connectivity for reliable wired networking.

7 mCAT6 250 MHz24 AWG CopperUp to 100W PoESnagless RJ45

StarTech N6PATC7MWH 7 m white CAT6 Ethernet cable

CAT6 network performance

Current exact-SKU StarTech information specifies CAT6 250 MHz performance with Multi-Gigabit Ethernet support.

24 AWG copper

Stranded copper conductors support dependable data transmission and Power over Ethernet applications.

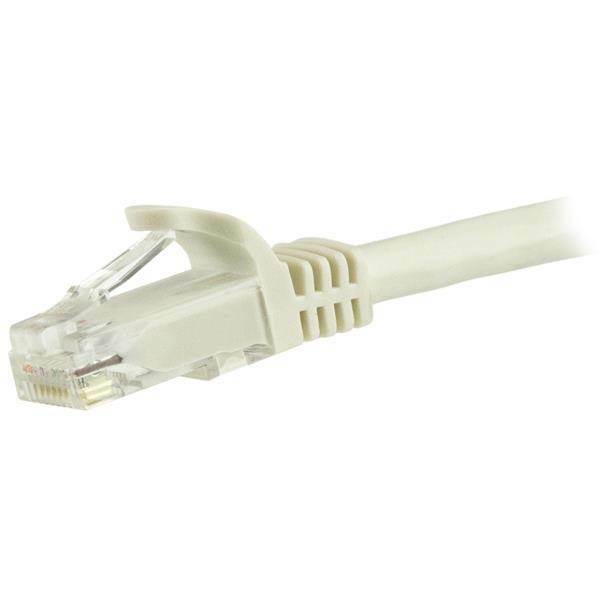

Snagless RJ45 design

Connector clip protection and molded strain relief help reduce snagging and sharp bends during installation.

Up to 100W PoE

Supports compatible IEEE 802.3bt Power over Ethernet applications up to 100W.

What to know

RJ45 male to RJ45 male.
4-pair UTP, 24 AWG stranded copper construction.
PVC jacket with CMG general-purpose fire rating.
Current exact-SKU StarTech information rates the cable at CAT6 250 MHz.

Product video

Australian warranty confidence

This Australian version supplied by DeviceDeal is covered by a lifetime official StarTech.com manufacturer warranty in Australia. Retain the DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech N6PATC7MWH?

The N6PATC7MWH is a 7 m white CAT6 Ethernet patch cable with RJ45 connectors for wired network connections.

What connectors does the N6PATC7MWH use?

It has one RJ45 male connector at each end.

What cable rating does the N6PATC7MWH use?

Current exact-SKU StarTech technical information rates this cable as CAT6, 250 MHz.

What network speeds does the N6PATC7MWH support?

It supports 1Gbps, 2.5Gbps and 5Gbps Multi-Gigabit Ethernet, and up to 10Gbps over supported CAT6 channel distances with compatible equipment.

Does the N6PATC7MWH support Power over Ethernet?

Yes. Its 24 AWG stranded copper construction supports Power over Ethernet applications, including up to 100W with compatible IEEE 802.3bt equipment.

How is the N6PATC7MWH constructed?

It uses 24 AWG stranded copper, 4-pair UTP construction, a PVC CMG-rated jacket, snagless molded strain relief and gold-plated RJ45 contacts.

What is included with the N6PATC7MWH?

The package contains 1 x 7 m White Snagless Cat6 UTP Patch Cable - ETL Verified.

What warranty applies to the N6PATC7MWH in Australia?

The Australian version supplied by DeviceDeal is covered by a lifetime official StarTech.com manufacturer warranty in Australia, subject to StarTech.com warranty terms, eligibility requirements and product assessment. Retain the DeviceDeal tax invoice as proof of purchase.

(N6PATC7MWH)

Features and highlights

CAT6 250 MHz

Current exact-SKU StarTech technical information specifies CAT6 performance rated to 250 MHz.

Multi-Gigabit ready

Supports 1Gbps, 2.5Gbps, 5Gbps and up to 10Gbps over supported CAT6 channel distances with compatible equipment.

24 AWG copper

Uses stranded copper conductors for reliable data and Power over Ethernet delivery.

Snagless RJ45 connectors

Protected clips and molded strain relief help reduce connector damage during cable runs.

Up to 100W PoE

Supports compatible IEEE 802.3bt Power over Ethernet applications up to 100W.

7 m white cable

Colour-coded PVC patch cable for organized network installations.

Key highlights

RJ45 male to RJ45 male
4-pair UTP
50-micron gold-plated contacts
24 AWG stranded copper
T568B wiring
Lifetime StarTech.com manufacturer warranty

Warranty confidence

Lifetime official StarTech.com manufacturer warranty in Australia. Retain the DeviceDeal tax invoice as proof of purchase.

Specifications

StarTech N6PATC7MWH 7 m white CAT6 Ethernet patch cable.

Source note: The exact DeviceDeal page supplies the current 280 g shipping weight and verifies the product-video link. Current exact-SKU StarTech information supplies the CAT6 250 MHz, 24 AWG copper and 100W PoE technical baseline.

General

Product

StarTech N6PATC7MWH CAT6 Ethernet patch cable

Warranty

Lifetime official StarTech.com manufacturer warranty

Cable category

CAT6, 250 MHz

Ethernet capability

1Gbps, 2.5Gbps, 5Gbps and up to 10Gbps over supported CAT6 channel distances with compatible equipment

Power over Ethernet

Supports PoE applications, including up to 100W with compatible IEEE 802.3bt equipment

Hardware and connectors

Connector A

1 x RJ45 male

Connector B

1 x RJ45 male

Conductors

4-pair UTP, 24 AWG stranded copper

Connector contacts

50-micron gold-plated

Cable jacket

PVC - Polyvinyl Chloride

Fire rating

CMG Rated (General Purpose)

Cable type

Snagless with molded strain relief

Wiring standard

TIA/EIA-568-B.1-2001 T568B

Physical characteristics

Colour

White

Cable length

7 m

Product length

7 m

Packaging and in the box

Shipping width

100 mm

Shipping height

50 mm

Shipping length

180 mm

Shipping weight

280 g

Included in package

1 x 7 m White Snagless Cat6 UTP Patch Cable - ETL Verified

SKU	N6PATC7MWH
Barcode #	65030866682
Brand	Startech
Shipping Weight	0.2800kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.180m
Shipping Cubic	0.000900000m3
