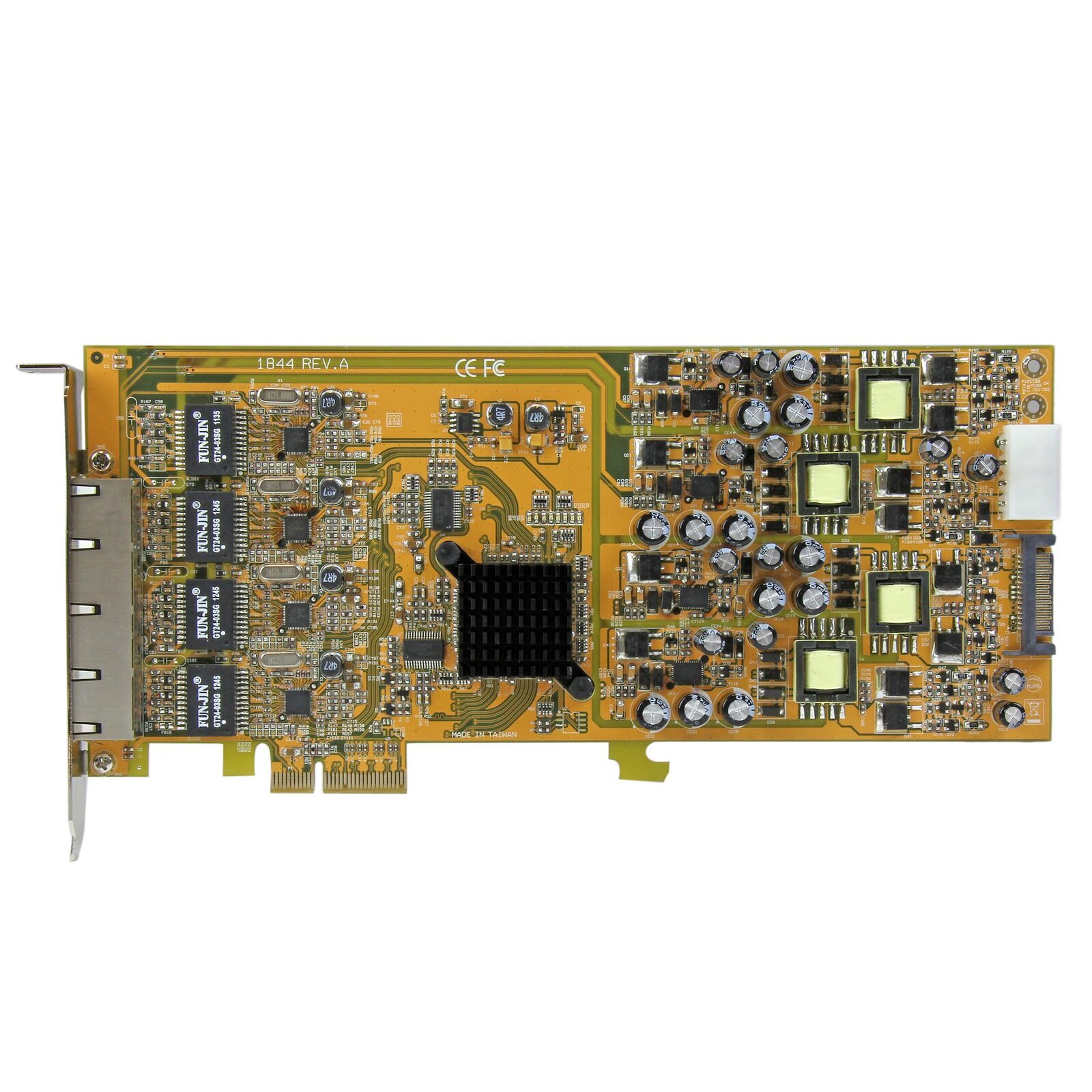

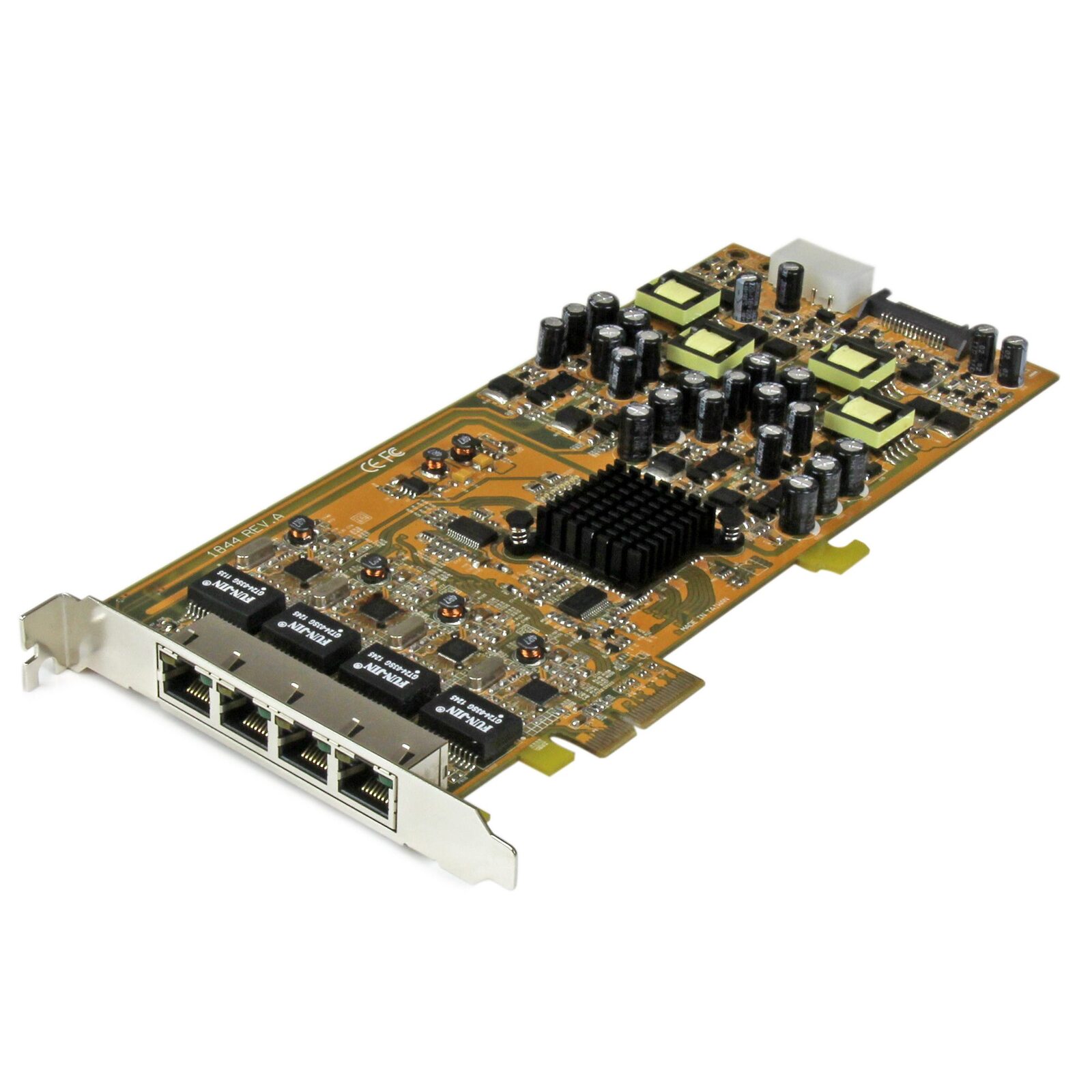

STARTECH 4 Port Gigabit PoE PCIe Network Card - ST4000PEXPSE
Model # ST4000PEXPSE
-
SKU: ST4000PEXPSE
- Pick Up Available
- Australian Warranty
- Checkout Securely
4-port Gigabit PoE PCIe network card with 25.5W per port
Add four 10/100/1000Mbps Power-over-Ethernet RJ45 ports through one PCIe x4 slot, with up to 25.5W output per port for compatible PoE devices.
Key capabilities
Four Gigabit PoE ports
Provides four independent RJ45 network connections with Power Sourcing Equipment capability.
25.5W per port
Power compatible cameras, access points and other supported PoE devices over Ethernet cabling.
Current RTL8111H chipset
Current exact StarTech technical data identifies the Realtek RTL8111H controller.
9K jumbo frames and VLAN
Supports 9K jumbo frames, Wake-on-LAN, Auto-MDIX and IEEE 802.1Q VLAN tagging.
What to know before buying
This full-height card requires a PCI Express expansion slot plus an available LP4 or SATA power connector. Current StarTech technical data lists 50V DC output; the older supplied DeviceDeal description says 48V.
Australian version and manufacturer warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
How many PoE ports does ST4000PEXPSE provide?
How much power can each port provide?
Which chipset does the current exact model use?
What Ethernet speeds are supported?
What host slot is required?
Does it require an auxiliary power connector?
What output voltage does the current exact StarTech specification list?
What warranty applies in Australia?
(ST4000PEXPSE)
Features and highlights
Four Gigabit PoE ports
Provides four independent RJ45 network connections with Power Sourcing Equipment capability.
25.5W per port
Power compatible cameras, access points and other supported PoE devices over Ethernet cabling.
Current RTL8111H chipset
Current exact StarTech technical data identifies the Realtek RTL8111H controller.
9K jumbo frames and VLAN
Supports 9K jumbo frames, Wake-on-LAN, Auto-MDIX and IEEE 802.1Q VLAN tagging.
- 4 × Gigabit PoE
- 25.5W per port
- RTL8111H
- 2-year warranty
Specifications
Verified specifications for StarTech ST4000PEXPSE.
Warranty Information
| Warranty | 2 Years |
|---|
Hardware
| Ports | 4 |
|---|---|
| Bus Type | PCI Express |
| Host Interface | PCI Express x4 |
| Card Type | Standard Profile |
| Chipset ID | Realtek RTL8111H |
| Interface | RJ45 Gigabit Ethernet |
Performance
| Maximum Data Transfer Rate | 2000Mbps full-duplex |
|---|---|
| Compatible Networks | 10/100/1000Mbps |
| Jumbo Frames | 9K max. |
| Wake On LAN | Yes |
| Auto MDIX | Yes |
| VLAN Tagging | IEEE 802.1Q |
PoE
| Power per Port | Up to 25.5W |
|---|---|
| Output Voltage | 50V DC |
| Standards | IEEE 802.3at / 802.3af as listed by current StarTech technical data |
Power Requirements
| Host Power | Available LP4 or SATA power connector required |
|---|
| SKU | ST4000PEXPSE |
| Barcode # | 65030855150 |
| Brand | Startech |
| Shipping Weight | 0.4200kg |
| Shipping Width | 0.007m |
| Shipping Height | 0.029m |
| Shipping Length | 0.019m |
StarTech.com warranty in Australia
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase.
Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment. This wording does not promise automatic replacement or guaranteed claim approval.
