StarTech.com ST2GPEX

Single-port 2.5GbE PCIe network card with Realtek RTL8125B

Upgrade a desktop or server to 2.5GbE over standard copper cabling with 2.5G/1G/100M/10M auto-negotiation, 16K jumbo frames, Wake-on-LAN and PXE support.

2.5GbE RJ45RTL8125B16K jumbo frames2-year warranty

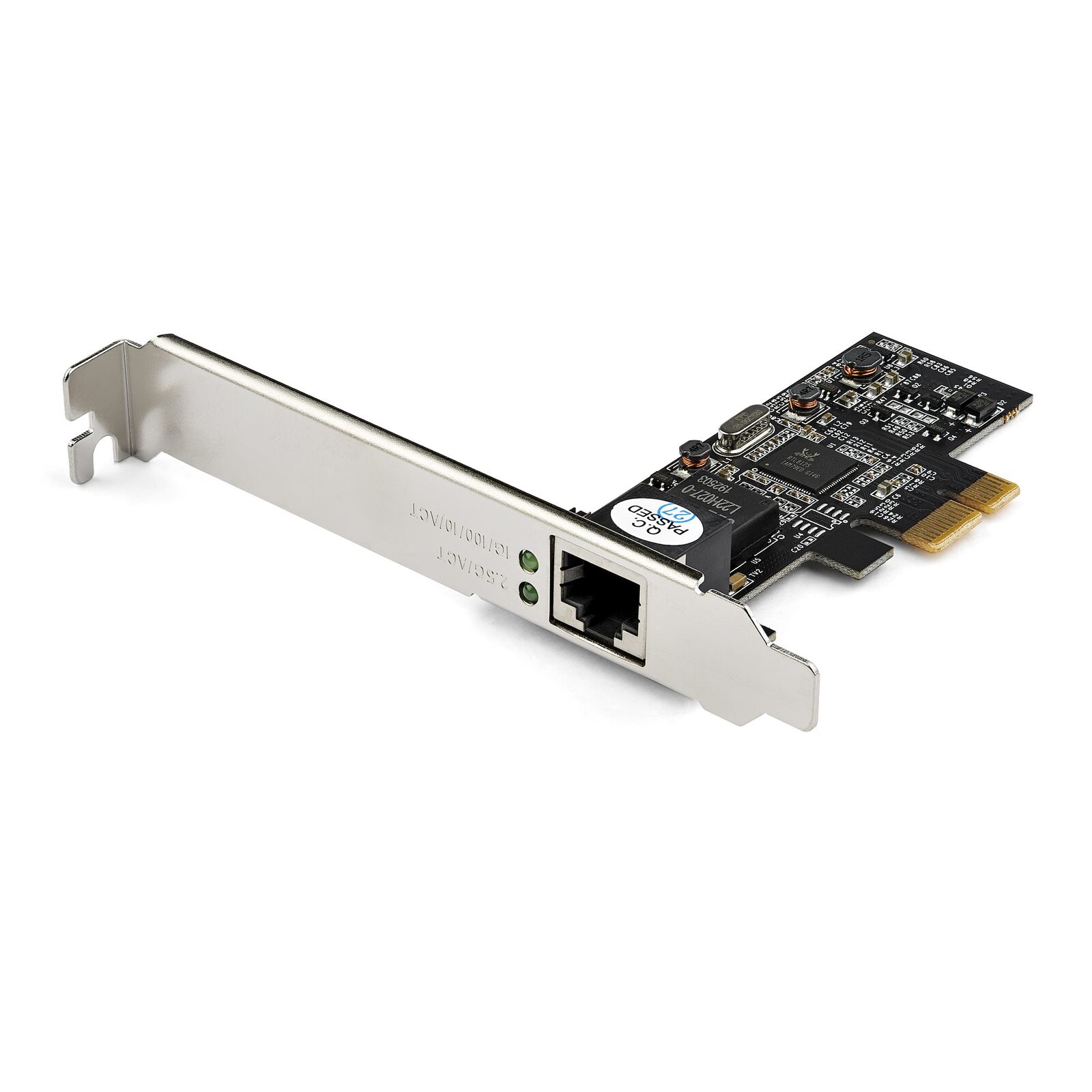

StarTech ST2GPEX single-port 2.5GbE PCIe network card

Key capabilities

Four Ethernet speeds

Supports 2.5Gbps, 1Gbps, 100Mbps and 10Mbps network operation.

Realtek RTL8125B

The current exact StarTech technical specification identifies the controller as RTL8125B.

CAT5e-friendly 2.5GbE

Supports 2.5Gbps networking over suitable CAT5e cabling up to 100m depending on the network configuration.

Advanced NIC features

Supports 16K jumbo frames, Auto-MDIX, Wake-on-LAN, PXE and IEEE 802.1Q VLAN tagging.

What to know before buying

The host requires a PCIe x1 slot. To reach 2.5Gbps, the connected switch/router and cabling must also support 2.5GBASE-T or compatible NBASE-T operation.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the fastest network speed supported by ST2GPEX?

2.5Gbps.

What other speeds are supported?

1Gbps, 100Mbps and 10Mbps.

Which chipset does the current exact model use?

Realtek RTL8125B.

What host interface is required?

PCI Express x1.

Does it support jumbo frames?

Yes, up to 16K.

Does it support Wake-on-LAN and PXE?

Yes.

Can 2.5GbE run over CAT5e?

Yes, up to 100m depending on the network configuration and compatible equipment.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(ST2GPEX)

Features and highlights

Four Ethernet speeds

Supports 2.5Gbps, 1Gbps, 100Mbps and 10Mbps network operation.

Realtek RTL8125B

The current exact StarTech technical specification identifies the controller as RTL8125B.

CAT5e-friendly 2.5GbE

Supports 2.5Gbps networking over suitable CAT5e cabling up to 100m depending on the network configuration.

Advanced NIC features

Supports 16K jumbo frames, Auto-MDIX, Wake-on-LAN, PXE and IEEE 802.1Q VLAN tagging.

2.5GbE RJ45
RTL8125B
16K jumbo frames
2-year warranty

Warranty confidence: Official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech ST2GPEX.

Warranty Information

Warranty	2 Years

Hardware

Ports	1
Bus Type	PCI Express
Host Interface	PCI Express x1
Card Type	Standard profile; low-profile bracket included
Chipset ID	Realtek RTL8125B

Performance

Compatible Networks	2.5G / 1G / 100Mbps / 10Mbps
Jumbo Frame Support	16K max.
Auto MDIX	Yes
Wake On LAN	Yes
PXE	Yes
VLAN Tagging	IEEE 802.1Q

Connector(s)

External Port	1 × RJ45

In the Box

Included	Network card; low-profile bracket; quick-start guide

SKU	ST2GPEX
Barcode #	65030882040
Brand	Startech
Shipping Weight	0.1000kg
Shipping Width	0.003m
Shipping Height	0.017m
Shipping Length	0.014m

2-year official manufacturer warranty

StarTech.com warranty in Australia

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase.

Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment. This wording does not promise automatic replacement or guaranteed claim approval.
