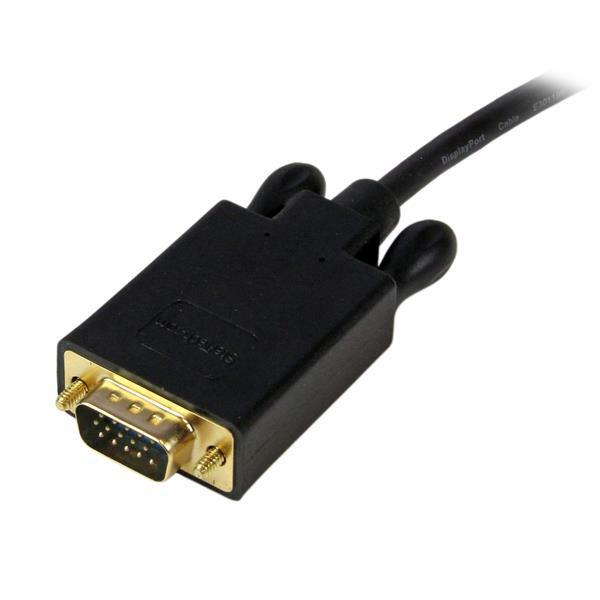

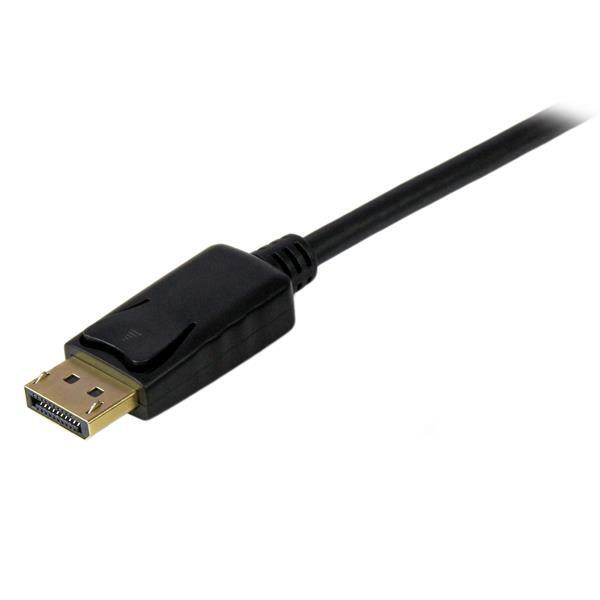

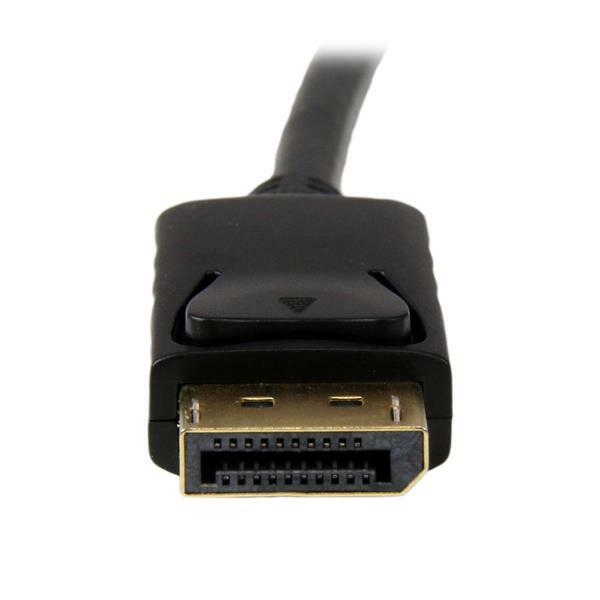

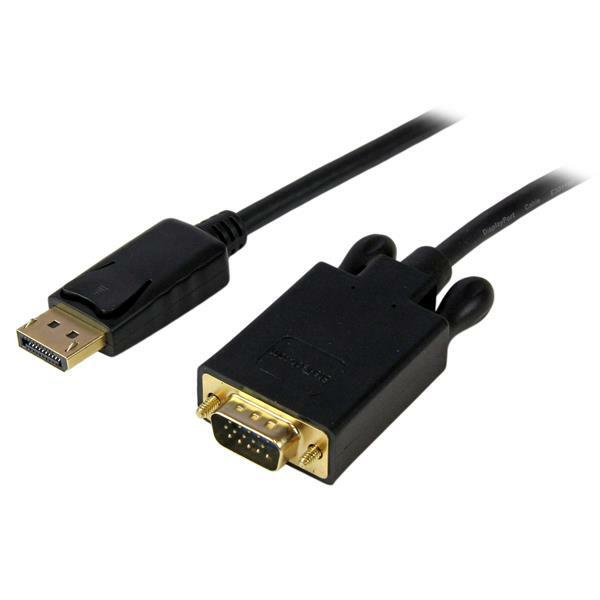

View PDF BrochureStarTech 10ft DisplayPort to VGA Adapter Cable DP to VGA, Black - DP2VGAMM10B
Model # DP2VGAMM10B
-
SKU: DP2VGAMM10B
- Pick Up Available
- Australian Warranty
- Checkout Securely
3m Active DisplayPort to VGA Converter Cable
Connect a DisplayPort computer directly to a VGA monitor or projector with a 3m active converter cable supporting up to 1920 × 1200.
Integrated 3m cable
Male DisplayPort and VGA connectors provide a direct connection without a separate adapter or VGA cable.
Active digital-to-analogue conversion
Works with DisplayPort and DP++ sources and converts the digital host signal for a legacy VGA display.
Up to 1920 × 1200
Supports one VGA display at up to 1920 × 1200, including 1080p.
What to know
This cable works in one direction from a DisplayPort source to a VGA display. VGA carries video only, so audio requires a separate path. The integrated male VGA connector plugs directly into the display.
Frequently asked questions
What does the DP2VGAMM10B connect?
It connects a full-size DisplayPort output on a computer directly to a VGA input on a monitor or projector.
What maximum resolution does the DP2VGAMM10B support?
It supports up to 1920 × 1200, including 1920 × 1080, with compatible equipment.
How long is the DP2VGAMM10B?
The current official specification lists 3m, or 10ft; the supplied catalogue lists 3.05m.
Is the DP2VGAMM10B an active cable?
Yes. It actively converts the digital DisplayPort signal to analogue VGA.
Does the DP2VGAMM10B require a separate VGA cable?
No. It includes an integrated male VGA connector for direct connection to the display.
Can the DP2VGAMM10B carry audio?
No. VGA carries video only, so audio requires a separate connection.
Does the DP2VGAMM10B require drivers or external power?
No. It is bus-powered and does not require driver installation or a separate power adapter.
What warranty applies to the DP2VGAMM10B?
It is supplied by DeviceDeal as an Australian-market product and is backed by a 3-year StarTech.com manufacturer warranty in Australia.
Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.
(DP2VGAMM10B)
Features and highlights
- 3m (10ft) active DisplayPort 1.2 male to VGA male converter cable
- Supports up to 1920 × 1200, including 1080p
- Works with DisplayPort and DP++ sources
- EDID and DDC pass-through support
- Latching DisplayPort connector helps secure the host connection
- VGA screw-lock connector helps secure the display connection
- No separate VGA cable, software or driver installation required
- One display supported; VGA carries video only
- Black cable; approximately 148.5g in the current official specification
- 3-year StarTech.com manufacturer warranty
Specifications
| Product type | Active DisplayPort to VGA converter cable |
|---|---|
| Source connector | 1 × DisplayPort 1.2 male, 20-pin, latching |
| Display connector | 1 × VGA male, 15-pin high-density D-Sub, screw locking |
| Cable length | 3m (10ft); supplied catalogue lists 3.05m |
| Maximum analogue resolution | 1920 × 1200; supports 1080p |
| Source compatibility | DisplayPort and DP++ sources |
| Displays supported | 1 |
| Display data | EDID and DDC pass-through |
| Audio | No audio over VGA |
| Direction | DisplayPort source to VGA display only |
| Power and software | Bus-powered; no external power adapter or drivers required |
| Operating environment | 0°C to 60°C; 40% to 85% relative humidity |
| Storage temperature | -10°C to 70°C |
| Colour and weight | Black; approximately 148.5g in the current official specification; supplied catalogue lists approximately 147.4g |
| In the box | 1 × DisplayPort to VGA adapter cable |
| Warranty | 3-year StarTech.com manufacturer warranty |
| SKU | DP2VGAMM10B |
| Barcode # | 65030852470 |
| Brand | STARTECH |
| Shipping Weight | 0.1600kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.180m |
| Shipping Cubic | 0.000900000m3 |
