4K DisplayPort 1.2 performance
Supports resolutions up to 4096 x 2160 at 60Hz with HBR2 bandwidth up to 21.6Gbps.
StarTech 1.8m Certified DisplayPort 1.2 Cable - DISPLPORT6L
Model # DISPLPORT6L
-
SKU: DISPLPORT6L
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · DISPLPORT6L

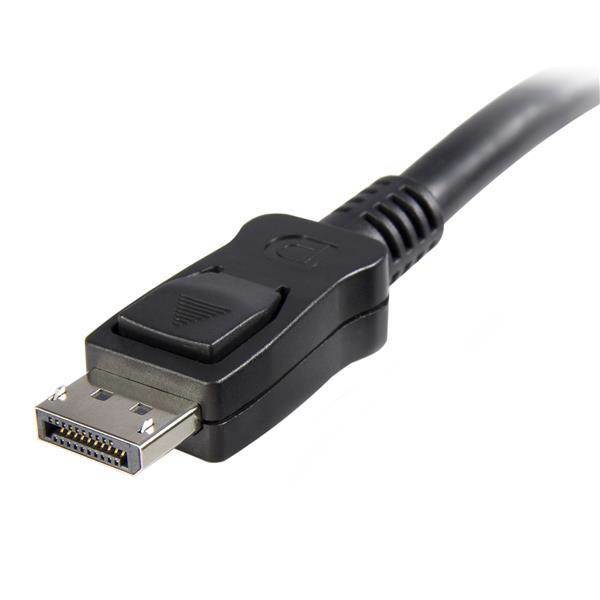

StarTech 6ft (1.8m) DisplayPort 1.2 Cable with Latches
Connect a DisplayPort source to a compatible monitor or projector using a 6ft (1.8m) VESA-certified DisplayPort 1.2 cable supporting 4K video at 60Hz and HBR2 bandwidth.
6ft (1.8m)4K 60Hz21.6Gbps HBR2Lifetime warranty
Product overview
DISPLPORT6L uses latching 20-pin DisplayPort male connectors for a secure passive connection. It supports MST, optional audio, HDCP and DPCP, subject to the capabilities of the complete source-to-display signal chain.
Features that matter
VESA-certified passive cable
Designed and certified for DisplayPort 1.2 operation and backward compatible with DisplayPort 1.1 equipment.
Audio and multi-display protocols
Supports up to eight-channel DisplayPort audio, Multi-Stream Transport and GTC audio timing on compatible systems.
Secure shielded construction
Latching connectors resist accidental disconnection, while 28 AWG conductors and aluminium-Mylar foil with braid provide signal shielding.
What to know before ordering
Check the required length
This exact model is 1828mm (6ft); choose a different SKU when another installed length is required.
Confirm 4K 60Hz support
The source, graphics hardware, display, selected DisplayPort mode and every component in the signal path must support the target resolution and refresh rate.
MST depends on the host
Daisy-chained displays require compatible DisplayPort MST hardware and operating-system support; the cable alone does not add MST capability.
Warranty confidence in Australia
Australian version · Official StarTech.com warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official lifetime StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What is StarTech DISPLPORT6L?
DISPLPORT6L is a 6ft (1.8m) VESA-certified DisplayPort 1.2 male-to-male cable with latching connectors.
What resolution and refresh rate does it support?
The official specification supports up to 4096 x 2160 at 60Hz, subject to the complete DisplayPort signal chain.
What is the maximum bandwidth?
The maximum listed HBR2 bandwidth is 21.6Gbps.
Does it support audio?
Yes. The official feature specification lists up to eight-channel DisplayPort audio on compatible equipment.
Can it be used for MST daisy chaining?
Yes, the cable supports MST, but the source, displays, operating system and topology must also support MST.
Are the connectors latching?
Yes. Both full-size DisplayPort connectors use latches to reduce accidental disconnection.
What is included in the package?
The package contains one 6ft DisplayPort 1.2 cable with latches.
What warranty applies in Australia?
DISPLPORT6L is the Australian version supplied by DeviceDeal and is covered by the official lifetime StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(DISPLPORT6L)
Features and highlights
DISPLPORT6L key capabilities
Product-specific highlights verified for this exact StarTech.com model.
4K DisplayPort 1.2 performance
Supports resolutions up to 4096 x 2160 at 60Hz with HBR2 bandwidth up to 21.6Gbps.
VESA-certified passive cable
Designed and certified for DisplayPort 1.2 operation and backward compatible with DisplayPort 1.1 equipment.
Audio and multi-display protocols
Supports up to eight-channel DisplayPort audio, Multi-Stream Transport and GTC audio timing on compatible systems.
Secure shielded construction
Latching connectors resist accidental disconnection, while 28 AWG conductors and aluminium-Mylar foil with braid provide signal shielding.
Key highlights
- 6ft (1.8m) passive DP cable
- DP male to DP male
- 4K 60Hz · HBR2 · MST
- 28 AWG · latching connectors
- Official lifetime StarTech.com manufacturer warranty in Australia
Technical specifications
StarTech DISPLPORT6L
Verified specifications and package details for the exact model.
General and Performance
Product type
Passive DisplayPort male-to-male cable
DisplayPort revision
DisplayPort 1.2; backward compatible with 1.1
VESA certified
Yes
Maximum resolution
4096 x 2160 at 60Hz
Maximum bandwidth
21.6Gbps HBR2
Audio
Up to 8 channels
Protocols
MST; GTC; HDCP; DPCP
Warranty
Lifetime
Connectors and Construction
Connector A
1 x DisplayPort (20-pin) male, latching
Connector B
1 x DisplayPort (20-pin) male, latching
Conductors
19
Wire gauge
28 AWG
Connector plating
Nickel
Cable jacket
PVC
Cable shielding
Aluminium-Mylar foil with braid
Fire rating
CMG
Cable OD
6.5mm
Physical
Colour
Black
Cable length
1828mm (6ft)
Product dimensions (L x W x H)
1828 x 20.9 x 12.8mm
Product weight
134g
Packaging
Package dimensions (L x W x H)
198 x 148 x 29mm
Shipping weight
130g
Package quantity
1
Package contents
1 x 6ft DisplayPort 1.2 cable with latches
Source Note
Verification
Exact model verified against the current official StarTech datasheet
Model distinction
Imperial 6ft model, approximately 1.8m, with 6.5mm cable OD.
| SKU | DISPLPORT6L |
| Barcode # | 65030827812 |
| Brand | STARTECH |
| Shipping Weight | 0.1500kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.020m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000544000m3 |
Official StarTech.com manufacturer warranty
Lifetime
This item is the Australian version supplied by DeviceDeal and is covered by the official lifetime StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
This warranty statement applies to StarTech DISPLPORT6L.
