StarTech MDISP2M 2m Mini DisplayPort 1.2 Cable

2m Mini DisplayPort 1.2 Cable designed for professional IT, electronics, security or workstation use.

Quick answer: MDISP2M connects a Mini DisplayPort source to a Mini DisplayPort display with support for 4K at 60Hz.

Best forMini DisplayPort monitors, projectors and compatible Thunderbolt-enabled systems requiring a 2m direct cable.

Check before orderingBoth ends are Mini DisplayPort male; the source and display must support the requested resolution, refresh rate, MST and audio features.

Answers before you buy

Frequently asked questions

What is StarTech MDISP2M?

It is a male-to-male Mini DisplayPort cable for 4K displays that connects a Mini DisplayPort source to a Mini DisplayPort display with support for 4K at 60Hz.

Which connections or mounting method are provided?

Mini DisplayPort 20-pin male connector at each end

What performance is specified?

Up to 3840 × 2160 at 60Hz; HBR2 21.6Gbps; MST; optional audio; HDCP and DPCP

How is the product constructed?

Black 2m 32AWG PVC cable with nickel-plated straight connectors and foil/braid shielding

What maximum resolution is supported?

The cable supports up to 3840 × 2160 at 60Hz with compatible equipment.

Are both connectors Mini DisplayPort?

Yes. It has one Mini DisplayPort male connector at each end.

What should be checked before ordering?

Both ends are Mini DisplayPort male; the source and display must support the requested resolution, refresh rate, MST and audio features.

What warranty applies?

MDISP2M carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(MDISP2M)

Features & highlights

Why choose MDISP2M?

?Purpose-built designMini DisplayPort 20-pin male connector at each end

?Specified performanceUp to 3840 × 2160 at 60Hz; HBR2 21.6Gbps; MST; optional audio; HDCP and DPCP

?Professional constructionBlack 2m 32AWG PVC cable with nickel-plated straight connectors and foil/braid shielding

?Key capabilityDisplayPort 1.2 bandwidth supports high-resolution direct display connections and MST daisy chains.

?Deployment advantageCompatible Mini DisplayPort cables can connect through Thunderbolt ports that carry Mini DisplayPort video.

?Order with confidenceBoth ends are Mini DisplayPort male; the source and display must support the requested resolution, refresh rate, MST and audio features.

Compatibility reminder: Both ends are Mini DisplayPort male; the source and display must support the requested resolution, refresh rate, MST and audio features.

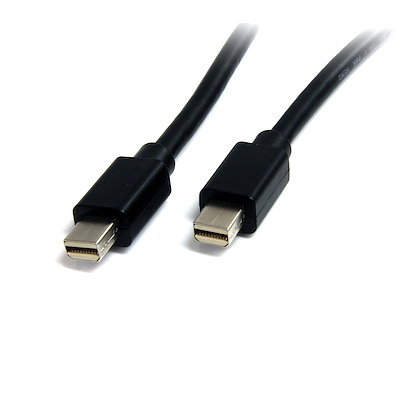

StarTech MDISP2M 2m Mini DisplayPort 1.2 Cable product image

Technical specifications

MDISP2M specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	Lifetime
Connectors
Connector A	1 × Mini DisplayPort 20-pin male
Connector B	1 × Mini DisplayPort 20-pin male
Hardware
Conductors	19
Connector Plating	Nickel
Jacket / Shield	PVC; aluminium-Mylar foil with braid
Fire Rating	CMG
Performance
Maximum Resolution	3840 × 2160 at 60Hz
Bandwidth	HBR2, up to 21.6Gbps
Features	MST, optional audio, HDCP and DPCP
Physical Characteristics
Colour	Black
Cable Length	2m
Wire Gauge	32AWG
Product Weight	64g
What's in the Box
Included	2m Mini DisplayPort 1.2 cable
