StarTech.com · CDP2DP141MBD

StarTech 1m Bidirectional USB-C to DisplayPort 1.4 Cable

Connect USB-C to DisplayPort or DisplayPort to a powered USB-C display with a 1m active bidirectional cable supporting up to 8K 60Hz.

DisplayPort 1.4Up to 8K 60HzHBR3 · 32.4GbpsBidirectional

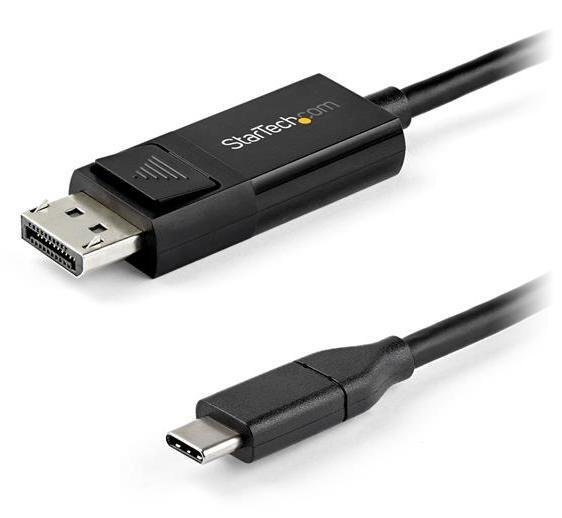

StarTech CDP2DP141MBD bidirectional usb-c and displayport 1.4 cable

Product overview

CDP2DP141MBD provides HBR3, HDR, DSC and a built-in signal booster for high-resolution bidirectional video. Direction-specific host and display power requirements must be checked before purchase.

Features that matter

Up to 8K 60Hz

DisplayPort 1.4 video supports 8K 60Hz, plus 4K 120Hz support with compatible source and display hardware.

Bidirectional video connection

Connect a USB-C DP Alt Mode host to a DisplayPort display, or a DisplayPort host to a separately powered USB-C display.

Active signal booster

An integrated video signal booster supports reliable high-resolution output across the complete cable or adapter connection.

Driverless multi-platform use

Plug-and-play operation supports compatible Windows and macOS plus other driverless DP Alt Mode systems systems without additional drivers.

What to know before ordering

Host and display requirements

For USB-C to DP, the host must support DP Alt Mode. For DP to USB-C, the USB-C display must have its own power supply.

Check direction-specific power

When using a DisplayPort host with a USB-C display, the display must have its own power supply. Portable USB-C displays that rely on bus power are not supported.

Important compatibility

Not compatible with Surface Dock 2. Connect the USB-C connector first. It does not support unpowered portable USB-C displays.

Warranty confidence in Australia

Australian version · Official StarTech.com warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is StarTech CDP2DP141MBD?

CDP2DP141MBD is a bidirectional usb-c and displayport 1.4 cable for bidirectional video between compatible USB-C and DisplayPort equipment.

What is the maximum resolution?

The verified maximum is 8K 60Hz, with 4K 120Hz support. Actual output depends on the source, display and connection mode.

What must the USB-C port support?

The USB-C host must support DisplayPort Alt Mode. Both source and display must support DisplayPort 1.4 for the highest 8K mode.

Is the connection bidirectional?

Yes. It can connect a USB-C DP Alt Mode host to a DisplayPort display or a DisplayPort host to a compatible, separately powered USB-C display.

Does it require drivers?

No. It is designed for plug-and-play use with compatible Windows and macOS plus other driverless DP Alt Mode systems systems.

Does it support Power Delivery?

No. It does not provide USB-C Power Delivery pass-through.

What is included in the package?

The package contains one 1m bidirectional USB-C to DisplayPort 1.4 cable.

What warranty applies in Australia?

CDP2DP141MBD is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.

(CDP2DP141MBD)

Features and highlights

CDP2DP141MBD key capabilities

Product-specific highlights verified for this exact StarTech.com model.

Up to 8K 60Hz

DisplayPort 1.4 video supports 8K 60Hz, plus 4K 120Hz support with compatible source and display hardware.

Bidirectional video connection

Connect a USB-C DP Alt Mode host to a DisplayPort display, or a DisplayPort host to a separately powered USB-C display.

Active signal booster

An integrated video signal booster supports reliable high-resolution output across the complete cable or adapter connection.

Driverless multi-platform use

Plug-and-play operation supports compatible Windows and macOS plus other driverless DP Alt Mode systems systems without additional drivers.

Key highlights

1m (3.3ft) integrated video connection
DisplayPort 1.4 with HBR3 · 32.4Gbps
Up to 8K 60Hz
USB-C to DP or DP to USB-C
Official 3 years StarTech.com manufacturer warranty in Australia

Technical specifications

StarTech CDP2DP141MBD

Verified specifications and package details for the exact model.

General and Connectivity

Product type

Active bidirectional USB-C and DisplayPort cable

Direction

USB-C to DisplayPort or DisplayPort to USB-C

Cable length

1m (3.3ft)

Connectors

USB-C male to DisplayPort male

Number of displays

Warranty

3 Years

UPC

065030887939

Video and Audio

Maximum resolution

7680 x 4320 at 60Hz in either direction

Additional verified mode

4K 120Hz

Bandwidth

HBR3, up to 32.4Gbps

Video features

HDR; DisplayHDR; Display Stream Compression; HDCP 2.2/1.4

Audio

Yes

Video revision

DisplayPort 1.4

Power Delivery

No PD pass-through

Hardware and Requirements

Active or passive

Active

Chipsets

Chrontel CH7213C-BF; Texas Instruments TUSB544; VIA Labs VL170

USB-C host requirement

DisplayPort Alt Mode

DP host to USB-C display

USB-C display requires its own power supply

Unsupported display type

Portable USB-C display without independent power

Known incompatibility

Surface Dock 2

Installation note

Connect the USB-C connector first

Physical and Environmental

Colour

Black

Material

Plastic

Product dimensions (L x W x H)

970 x 22 x 10mm

Product weight

46g

Operating temperature

045°C

Storage temperature

-1070°C

Humidity

1085% RH

Packaging and In the Box

Package dimensions (W x D x H)

109 x 125 x 23mm

Shipping weight

52g

Package contents

1 x 1m bidirectional adapter cable

SKU	CDP2DP141MBD
Barcode #	65030887939
Brand	STARTECH
Shipping Weight	0.0500kg
Shipping Width	0.001m
Shipping Height	0.010m
Shipping Length	0.010m
