StarTech 90cm DisplayPort DP to VGA Adapter - DP2VGAMM3B
Model # DP2VGAMM3B
-
SKU: DP2VGAMM3B
- Pick Up Available
- Australian Warranty
- Checkout Securely

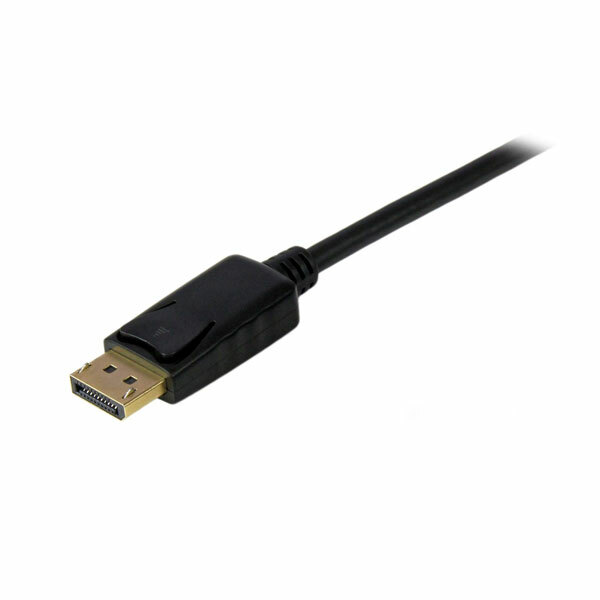

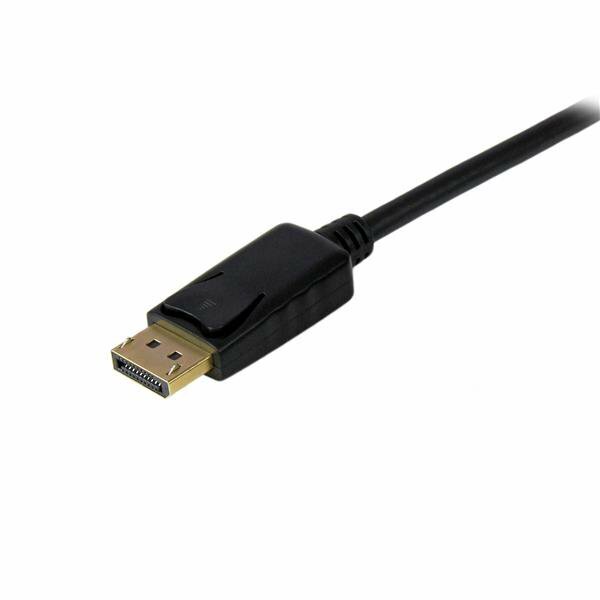

91cm (3ft) Active DisplayPort to VGA Converter Cable
Connect a DisplayPort computer directly to a VGA monitor or projector with a 91cm (3ft) active converter cable and no separate VGA lead.
Direct active conversion
Integrated DisplayPort and VGA male connectors convert digital DisplayPort video to analogue VGA.
High-resolution VGA
Supports 2048 × 1280 at 60Hz, including the widely used 1920 × 1200 and 1080p modes.
Secure connections

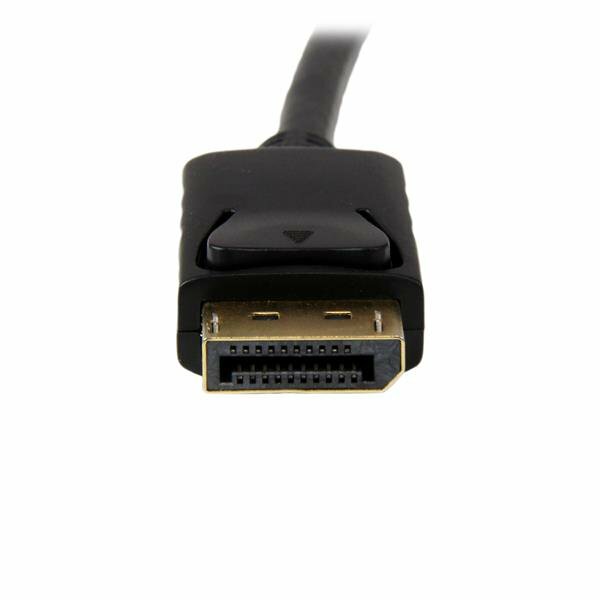

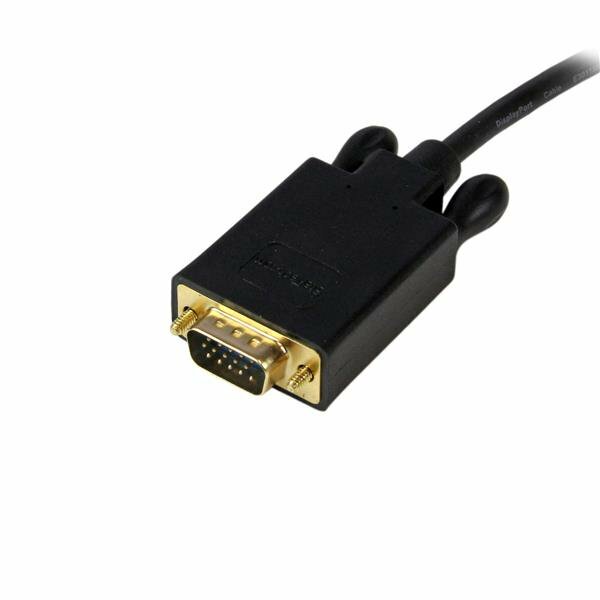

A latching DisplayPort plug and screw-lock VGA plug help keep the cable connected during use.
What to know
This directional cable works from a DisplayPort or DP++ source to a VGA display. VGA carries video only, so audio requires a separate path. Actual resolution depends on the source and display.
Frequently asked questions
What does the DP2VGAMM3B connect?
It connects a full-size DisplayPort output on a computer directly to a VGA input on a monitor or projector.
What maximum resolution does the DP2VGAMM3B support?
The current official specification supports up to 2048 × 1280 at 60Hz, including 1920 × 1200 and 1080p.
How long is the DP2VGAMM3B?
It is sold as a 91cm (3ft) cable; the supplied catalogue technical length is 91.44cm.
Is the DP2VGAMM3B an active cable?
Yes. It actively converts digital DisplayPort video to an analogue VGA signal.
Does the DP2VGAMM3B require a separate VGA cable?
No. It includes an integrated male VGA connector for direct connection to the display.
Does the DP2VGAMM3B carry audio?
No. VGA carries video only, so audio requires a separate connection.
Does the DP2VGAMM3B require drivers or external power?
No. It is bus-powered and does not require a driver or separate power adapter.
What warranty applies to the DP2VGAMM3B?
It is supplied by DeviceDeal as an Australian-market product and is backed by a 3-year StarTech.com manufacturer warranty in Australia.
Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.
(DP2VGAMM3B)
Features and highlights
- 91cm (3ft) active DisplayPort 1.2 male to VGA male converter cable
- Supports up to 2048 × 1280 at 60Hz
- Supports 1920 × 1200 and 1920 × 1080 at 60Hz
- Compatible with DisplayPort and DP++ video sources
- EDID and DDC support for compatible display detection
- Latching DisplayPort and screw-lock VGA connectors
- Integrated cable needs no separate VGA lead
- Plug-and-play operation with no drivers or external power adapter
- Directional DisplayPort-source to VGA-display conversion; video only
- 3-year StarTech.com manufacturer warranty
Specifications
| Product type | Active DisplayPort to VGA converter cable |
|---|---|
| Source connector | 1 × DisplayPort 1.2 male, 20-pin, latching |
| Display connector | 1 × VGA male, 15-pin high-density D-Sub, screw-lock |
| Cable length | 91cm (3ft); supplied catalogue technical length 91.44cm |
| Maximum analogue resolution | 2048 × 1280 at 60Hz |
| Common supported modes | 1920 × 1200 and 1920 × 1080 at 60Hz |
| Source compatibility | DisplayPort and DP++ sources |
| Displays supported | 1 |
| Display data | EDID and DDC support |
| Audio | No audio over VGA |
| Direction | DisplayPort source to VGA display only |
| Power and software | Bus-powered; no external power adapter or drivers required |
| Conductor and colour | Copper; black |
| Supplied catalogue weight | approximately 79.4g |
| Warranty | 3-year StarTech.com manufacturer warranty |
| SKU | DP2VGAMM3B |
| Barcode # | 65030852456 |
| Brand | STARTECH |
| Shipping Weight | 0.0900kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.180m |
| Shipping Cubic | 0.000900000m3 |
