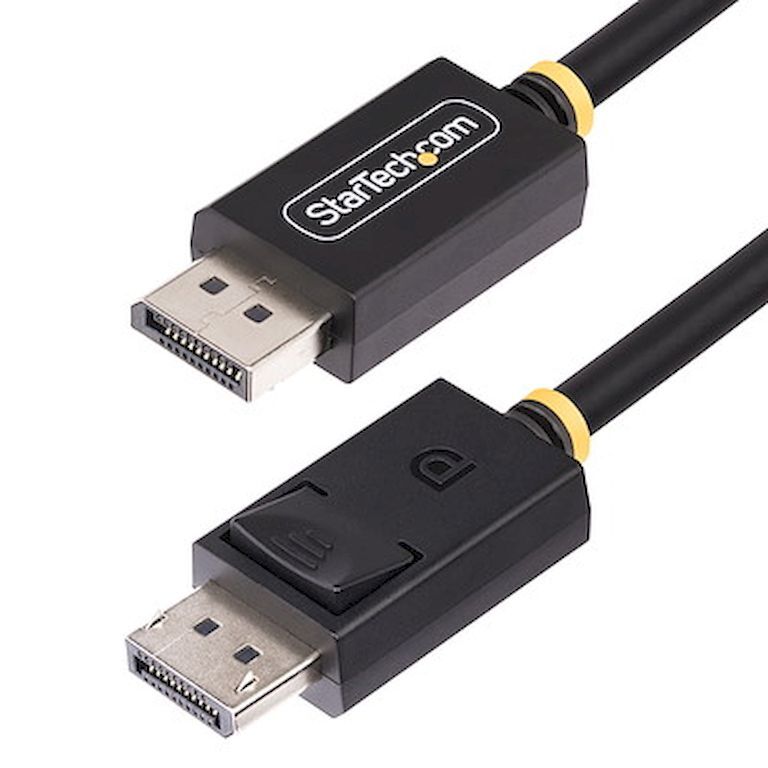

STARTECH.COM | DP21-6F-DP40-CABLE

1.8m VESA-Certified DisplayPort 2.1 DP40 Cable

Connect DisplayPort equipment with a 1.8m VESA-certified DP40 cable delivering UHBR10 bandwidth up to 40Gbps for 8K and high-refresh-rate displays.

DisplayPort 2.1 DP40

Four UHBR10 lanes provide an aggregate link bandwidth of up to 40Gbps.

8K and high refresh

Supports up to 8K 60Hz with DSC, 4K 144Hz and 1440p 240Hz with compatible equipment.

Durability tested

TPE cable construction is tested for 600 bend cycles, while connectors are tested for more than 10,000 insertions.

What to know

Both endpoints require full-size DisplayPort. Maximum resolution and refresh rate depend on the source, display, graphics hardware and the use of DSC. The cable is backward compatible with DisplayPort 2.0, 1.4 and 1.2, but operates only at the capabilities of the connected equipment.

Australian supply and warranty: Supplied by DeviceDeal as an Australian-market product with the official Lifetime StarTech.com manufacturer warranty in Australia. Keep your DeviceDeal tax invoice; terms, eligibility and product assessment apply.

Frequently asked questions

What does the DP21-6F-DP40-CABLE connect?

It connects a full-size DisplayPort source such as a computer, dock or workstation to a full-size DisplayPort monitor or other compatible display.

What bandwidth does the DP21-6F-DP40-CABLE support?

It is a DP40 cable supporting UHBR10 on four lanes for aggregate DisplayPort link bandwidth up to 40Gbps.

What display modes can the DP21-6F-DP40-CABLE support?

It supports up to 8K 60Hz with DSC, 4K 144Hz and 1440p 240Hz when the source, display and graphics hardware support those modes.

How long is the DP21-6F-DP40-CABLE?

It is 1.8m (6ft) long.

Is the DP21-6F-DP40-CABLE backward compatible?

Yes. It is backward compatible with DisplayPort 2.0, 1.4 and 1.2 and operates at the capabilities of the connected equipment.

Does the DP21-6F-DP40-CABLE support adaptive refresh?

It supports G-Sync, FreeSync and variable refresh rate workflows when the source and display provide the corresponding feature.

Does the DP21-6F-DP40-CABLE require external power?

No. It is a passive cable and does not use a separate power adapter.

What warranty applies to the DP21-6F-DP40-CABLE?

It is backed by a lifetime StarTech.com manufacturer warranty.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DP21-6F-DP40-CABLE)

Features and highlights

1.8m (6ft) VESA-certified DisplayPort 2.1 DP40 male-to-male cable
UHBR10 across four lanes for aggregate bandwidth up to 40Gbps
Supports up to 8K 60Hz with DSC, 4K 144Hz and 1440p 240Hz with compatible equipment
Supports Display Stream Compression 1.2a, HDR10 and Forward Error Correction
Supports MST, HDCP 2.2, G-Sync, FreeSync and variable refresh rate workflows
Carries up to 32 digital audio channels
30AWG cable with a 6.5mm outer diameter and flexible black TPE jacket
Nickel-plated latching DisplayPort connectors
Tested for 600 bend cycles at ±60 degrees and more than 10,000 connector insertions
Backward compatible with DisplayPort 2.0, 1.4 and 1.2
Lifetime StarTech.com manufacturer warranty

Compatibility check: The complete signal path must support the selected resolution, refresh rate, colour depth and DSC mode. G-Sync, FreeSync, VRR, HDR and MST also require compatible source and display equipment.

Specifications

Product type	Passive VESA-certified DisplayPort 2.1 DP40 cable
Connectors	2 × DisplayPort male, 20-pin, nickel plated and latching
Cable length	1.8m (6ft)
Maximum video modes	Up to 8K 60Hz with DSC, 4K 144Hz and 1440p 240Hz with compatible equipment
Bandwidth	DP40; four UHBR10 lanes; up to 40Gbps aggregate link bandwidth
Display features	DSC 1.2a, HDR10, MST, FEC, HDCP 2.2, G-Sync, FreeSync and VRR
Audio	Up to 32 digital audio channels
Construction	30AWG; 6.5mm cable outer diameter
Jacket and colour	Black TPE; VW-1 rated
Shielding	Aluminum-mylar foil with braid
Durability testing	600 bend cycles at ±60 degrees; more than 10,000 connector insertions
Backward compatibility	DisplayPort 2.0, 1.4 and 1.2
Operating environment	0°C to 45°C; 10% to 85% relative humidity
Storage temperature	-20°C to 70°C
Power	Passive cable; no external power adapter required
In the box	1 × 6ft DisplayPort 2.1 DP40 cable
Warranty	Lifetime StarTech.com manufacturer warranty

SKU	DP21-6F-DP40-CABLE
Barcode #	65030900836
Brand	Startech
Shipping Weight	0.1100kg
Shipping Width	0.190m
Shipping Height	0.010m
Shipping Length	0.200m

Warranty and Australian supply

DP21-6F-DP40-CABLE is supplied by DeviceDeal as an Australian-market product and carries the official Lifetime StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
