Up to 4K 60Hz
DisplayPort 1.2 HBR2 supports 3840 x 2160 at 60Hz plus common lower resolutions on one compatible display.

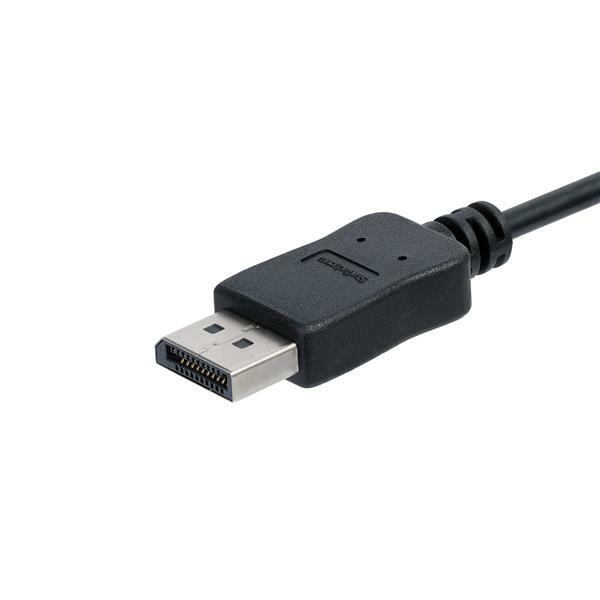

StarTech 6ft USB C to DisplayPort Adapter Cable, USB Type-C, 4K 60Hz - CDP2DPMM6B
Model # CDP2DPMM6B
-
SKU: CDP2DPMM6B
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · CDP2DPMM6B
StarTech 1.8m USB-C to DisplayPort 1.2 Cable - Black
Connect a USB-C or Thunderbolt host directly to one DisplayPort monitor with a black 1.8m cable supporting 4K 60Hz.
DisplayPort 1.2Up to 4K 60HzHBR2 · 21.6Gbps3-year warranty
Product overview
CDP2DPMM6B provides a direct USB-C DP Alt Mode to DisplayPort 1.2 connection with HBR2, HDCP and 5.1-channel audio in a driverless design.
Features that matter
Adapter and cable in one
One integrated cable reduces adapters, connection points and desk clutter.
Direct, driverless connection
The integrated design supports plug-and-play use without a separate converter or software driver.
Verified compatibility and limits
The USB-C host must support DisplayPort Alt Mode. This is a one-way USB-C host to DisplayPort display connection.
What to know before ordering
Host requirement
The USB-C or Thunderbolt host must support DisplayPort Alt Mode video output.
Connection direction
Connect the USB-C end to the host and the DisplayPort end to one display; the cable is not bidirectional.
Power Delivery
This product does not provide USB-C Power Delivery pass-through.
Warranty confidence in Australia
Australian version · Official StarTech.com warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What is StarTech CDP2DPMM6B?
CDP2DPMM6B is a usb-c to displayport 1.2 adapter cable for connecting a USB-C DP Alt Mode host directly to one DisplayPort display.
What is the maximum resolution?
undefined
What must the USB-C port support?
The USB-C or Thunderbolt host must support DisplayPort Alt Mode video output.
Is this cable bidirectional?
No. It carries video from a USB-C DP Alt Mode host to a DisplayPort display.
Does it carry audio?
Yes. The verified specification lists up to 5.1-channel audio over DisplayPort.
Does it support Power Delivery?
No. It does not provide USB-C Power Delivery pass-through.
What is included in the package?
The package contains one 1.8m (6ft) USB-C to DisplayPort cable.
What warranty applies in Australia?
CDP2DPMM6B is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(CDP2DPMM6B)
Features and highlights
CDP2DPMM6B key capabilities
Product-specific highlights verified for this exact StarTech.com model.
Up to 4K 60Hz
DisplayPort 1.2 HBR2 supports 3840 x 2160 at 60Hz plus common lower resolutions on one compatible display.
Adapter and cable in one
One integrated cable reduces adapters, connection points and desk clutter.
Direct, driverless connection
The integrated design supports plug-and-play use without a separate converter or software driver.
Verified compatibility and limits
The USB-C host must support DisplayPort Alt Mode. This is a one-way USB-C host to DisplayPort display connection.
Key highlights
- 1.8m (6ft)
- HBR2 · 21.6Gbps
- Up to 4K 60Hz
- 5.1-channel DP audio
- Official 3 years StarTech.com manufacturer warranty in Australia
Technical specifications
StarTech CDP2DPMM6B
Verified specifications and package details for the exact model.
General and Connectivity
Product type
USB-C to DisplayPort 1.2 adapter cable
Cable length
1.8m (6ft)
Connectors
USB-C male to DisplayPort male
Displays supported
1
Warranty
3 Years
Video and Audio
Maximum resolution
3840 x 2160 at 60Hz
Bandwidth
HBR2, 21.6Gbps
Content protection
HDCP 2.2/1.4
Audio
DisplayPort 5.1-channel audio
Power Delivery
No PD pass-through
Hardware and Requirements
AV input
USB-C
AV output
DisplayPort 1.2
Chipset
STM32F072CBU6 or VL103
Host requirement
USB-C DisplayPort Alt Mode
Driver requirement
No additional driver or software
Physical and Environmental
Colour
Black
Dimensions (L x W x H)
1800 x 20 x 10mm
Product weight
68g
Operating temperature
040°C
Storage temperature
-4080°C
Humidity
2070% RH
Packaging and In the Box
Package dimensions (L x W x H)
162 x 200 x 22mm
Shipping weight
68g
Package contents
1 x USB-C to DisplayPort cable
