STARTECH.COM | DP2DVIMM3BS

0.9m (3ft) Active DisplayPort to Single-Link DVI-D Cable

Connect a DisplayPort computer directly to a DVI monitor or projector with an active 0.9m (3ft) cable supporting up to 1920 × 1200.

Active conversion

Works with standard DisplayPort and DP++ sources, including graphics hardware that cannot output a native DVI signal.

Direct cable connection

The integrated 0.9m (3ft) cable connects directly from DisplayPort to single-link DVI-D without a separate adapter or DVI cable.

Up to 1920 × 1200

Supports one DVI display at up to 1920 × 1200, including 1080p, with compatible equipment.

What to know

This one-way cable connects a DisplayPort source to a DVI display. DVI carries video only, so audio requires a separate path. It is not compatible with Apple Cinema Display models, and it does not convert DVI output to DisplayPort input.

Australian supply and warranty: Supplied by DeviceDeal as an Australian-market product with the official 3-year StarTech.com manufacturer warranty in Australia. Keep your DeviceDeal tax invoice; terms, eligibility and product assessment apply.

Frequently asked questions

What does the DP2DVIMM3BS connect?

It connects a full-size DisplayPort output on a computer directly to a single-link DVI-D input on a monitor or projector.

What maximum resolution does the DP2DVIMM3BS support?

It supports up to 1920 × 1200, including 1920 × 1080, with compatible source and display equipment.

Does the DP2DVIMM3BS require DP++?

No. Its active conversion works with standard DisplayPort and DP++ dual-mode DisplayPort sources.

How long is the DP2DVIMM3BS?

It is marketed as 0.9m (3ft); the supplied technical length is 91.44cm.

Can the DP2DVIMM3BS carry audio?

No. The DVI connection carries video only, so audio needs a separate path.

Is the DP2DVIMM3BS compatible with Apple Cinema Display?

No. StarTech specifies that this converter cable is not compatible with Apple Cinema Display models.

Does the DP2DVIMM3BS require drivers or external power?

No. It operates without drivers or a separate power adapter.

What warranty applies to the DP2DVIMM3BS?

It is supplied by DeviceDeal as an Australian-market product and is backed by a 3-year StarTech.com manufacturer warranty in Australia.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DP2DVIMM3BS)

Features and highlights

0.9m (3ft) active DisplayPort 1.2 to single-link DVI-D male-to-male converter cable
Works with standard DisplayPort and DP++ dual-mode DisplayPort sources
Supports up to 1920 × 1200, including 1920 × 1080
Active conversion supports graphics cards without DP++ output capability
Latching DisplayPort connector and screw-lock DVI connector
EDID support for compatible display identification
One display supported; video only with no DVI audio
No external power adapter or drivers required
Not compatible with Apple Cinema Display models
3-year StarTech.com manufacturer warranty

Compatibility check: Connect from DisplayPort source to DVI display only. The DVI display must accept a single-link digital signal, audio requires a separate path, and Apple Cinema Display models are not supported.

Specifications

Product type	Active DisplayPort to single-link DVI-D converter cable

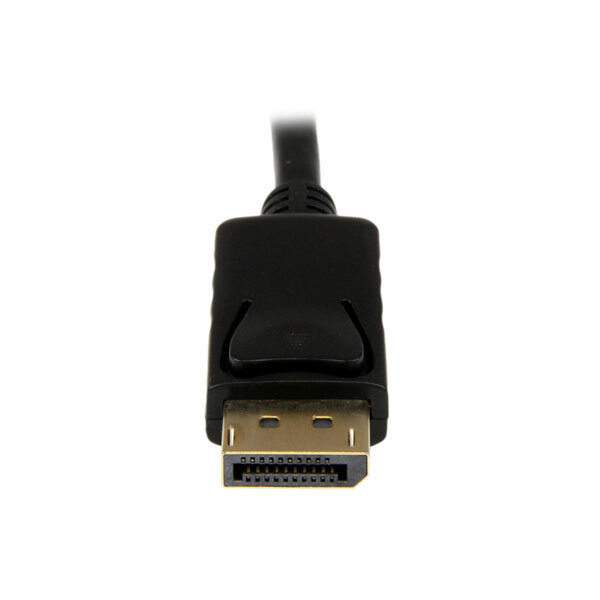

Source connector	1 × DisplayPort 1.2 male, 20-pin, latching

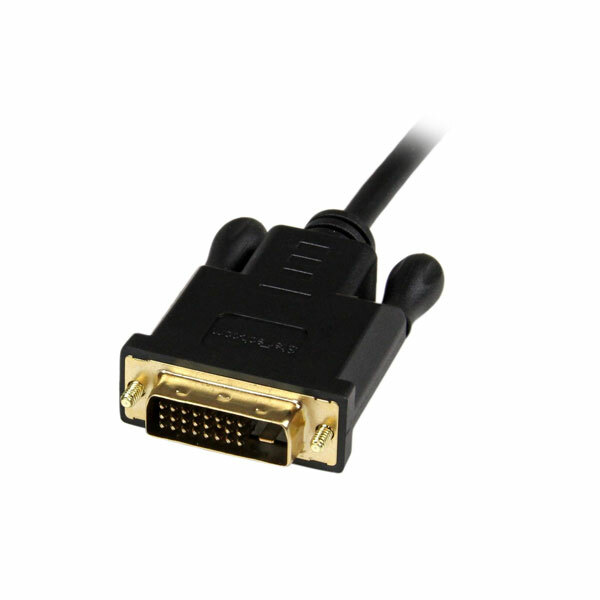

Display connector	1 × single-link DVI-D male, 25-pin, screw locking
Cable length	0.9m (3ft); supplied technical length 91.44cm
Maximum resolution	1920 × 1200; supports 1920 × 1080
Source compatibility	Standard DisplayPort and DP++ dual-mode DisplayPort
Displays supported	1
Audio	Video only; DVI does not carry audio
Display data	EDID support
Direction	DisplayPort source to DVI display only
Power and software	No external power adapter or drivers required
Compatibility note	Not compatible with Apple Cinema Display models
Conductor and colour	Copper conductor; black cable
Product weight	Approximately 73.7g
Operating environment	0°C to 60°C; 40% to 85% relative humidity
Storage temperature	-10°C to 70°C
In the box	1 × active DisplayPort to DVI-D converter cable
Warranty	3-year StarTech.com manufacturer warranty

SKU	DP2DVIMM3BS
Barcode #	65030854900
Brand	Startech
Shipping Weight	0.0900kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.160m
Shipping Cubic	0.000800000m3

Warranty and Australian supply

DP2DVIMM3BS is supplied by DeviceDeal as an Australian-market product and carries the official 3-year StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
