StarTech MDP2DVIMM6B 1.8m Mini DisplayPort to DVI Adapter Cable
1.8m Mini DisplayPort to DVI Adapter Cable designed for professional IT, electronics, security or workstation use.
Frequently asked questions
What is StarTech MDP2DVIMM6B?
It is a 1.8m passive Mini DisplayPort-to-DVI adapter cable that connects a DP++ Mini DisplayPort source directly to a DVI display at up to 1920 × 1200 or 1080p.
Which connections or mounting method are provided?

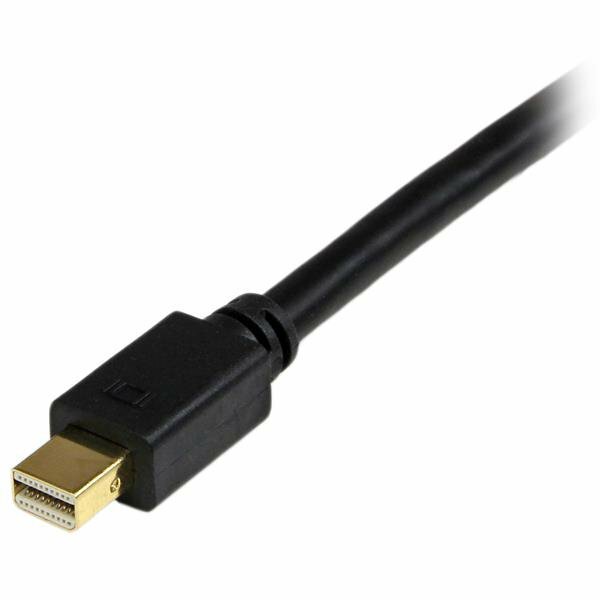

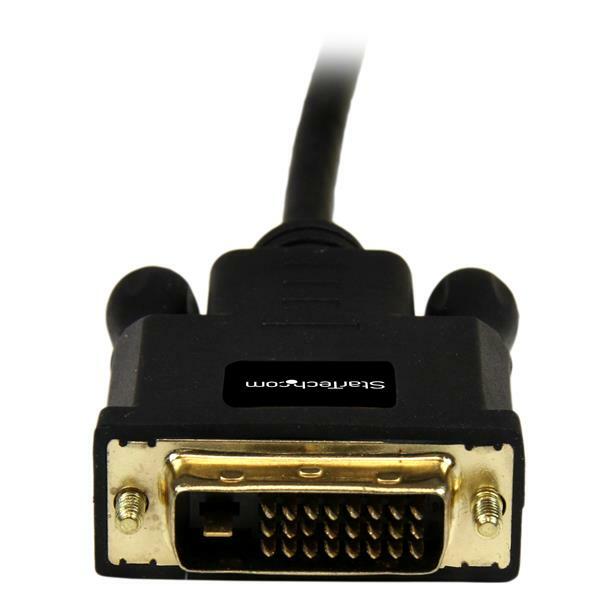

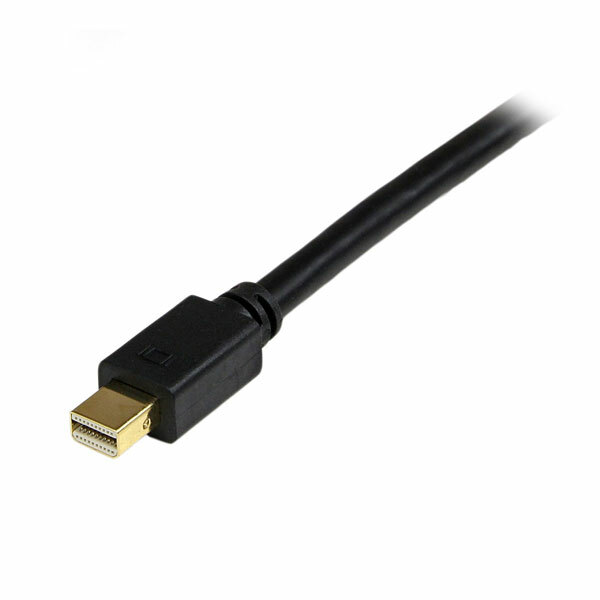

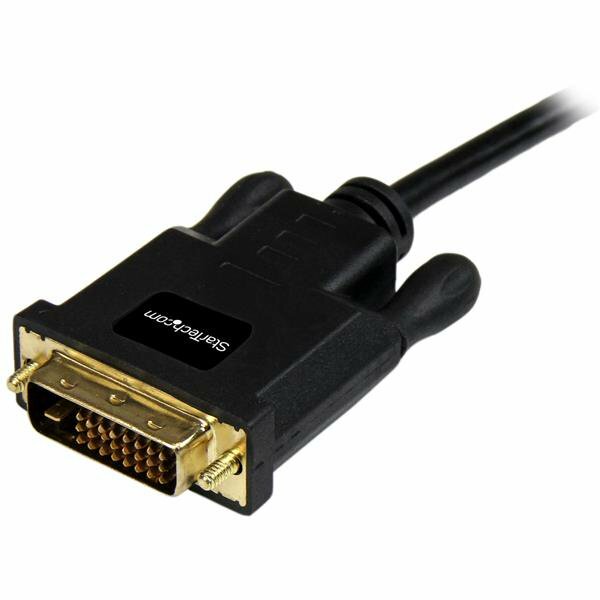

Mini DisplayPort 20-pin male to DVI-D 25-pin male
What performance is specified?
Up to 1920 × 1200 or 1080p; 1.8m maximum cable length; passive conversion; no audio
How is the product constructed?
Black 1.8m male-to-male cable adapter using an NXP 3361 chipset
How long is the cable?
The cable is 1.8m, or 6ft, long.
Does it require DP++?
Yes. Passive DVI conversion requires a DP++ Mini DisplayPort source.
What should be checked before ordering?
A DP++ Mini DisplayPort source is required; the cable has male connectors at both ends and carries video without audio.
What warranty applies?
MDP2DVIMM6B carries a StarTech.com 3 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.
Planning a broader setup? Browse the DeviceDeal buying guides.
(MDP2DVIMM6B)
Why choose MDP2DVIMM6B?
MDP2DVIMM6B specifications
Exact-model specifications for compatibility checking. Measurements may be rounded.
| Warranty Information | |
|---|---|
| Warranty | 3 Years |
| Hardware | |
| Active or Passive Adapter | Passive |
| Adapter Style | Cable Adapters |
| Audio | No |
| AV Input | DisplayPort |
| AV Output | DVI |
| Chipset ID | NXP - 3361 |
| Performance | |
| Maximum Cable Length | 6 ft [1.8 m] |
| Maximum Digital Resolutions | 1920x1200 / 1080p |
| Wide Screen Supported | Yes |
| Connector(s) | |
| Connector A | 1 - Mini-DisplayPort (20 pin) Male |
| Connector B | 1 - DVI-D (25 pin) Male |
| Special Notes / Requirements | |
| System and Cable Requirements | DP++ (DisplayPort++) port required from video card or video source for DVI and HDMI® signal pass-through |
| Environmental | |
| Humidity | 40%-85%RH |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Physical Characteristics | |
| Cable Length | 6 ft [1.8 m] |
| Color | Black |
| Product Height | 0.6 in [1.5 cm] |
| Product Length | 6 ft [1.8 m] |
| Product Width | 1.6 in [40 mm] |
| Weight of Product | 3.6 oz [101.3 g] |
| Packaging Information | |
| Package Height | 0.8 in [20 mm] |
| Package Length | 9.4 in [24 cm] |
| Package Width | 6.3 in [16 cm] |
| Shipping (Package) Weight | 4.4 oz [125 g] |
| What's in the Box | |
| Included in Package | 1 - Mini DisplayPort® to DVI Adapter |
