StarTech.com · CDP2DPMM1MB

StarTech 1m USB-C to DisplayPort 1.2 Cable - 4K 60Hz

Connect a USB-C or Thunderbolt host directly to one DisplayPort monitor with a 1m cable supporting 4K 60Hz.

DisplayPort 1.2Up to 4K 60HzHBR2 · 21.6Gbps3-year warranty

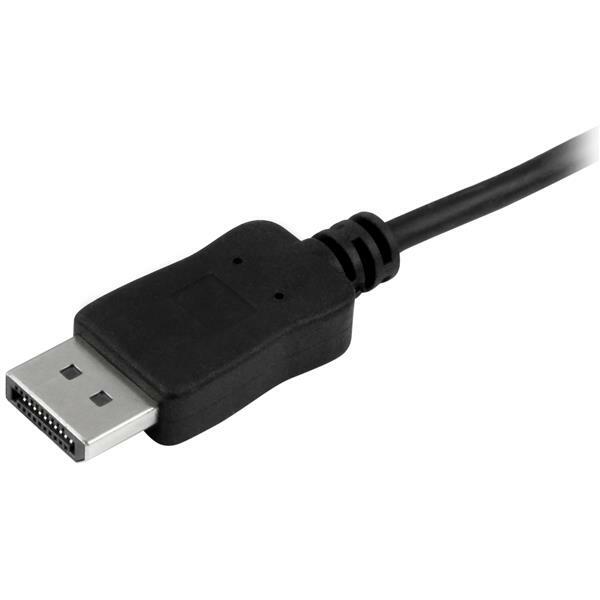

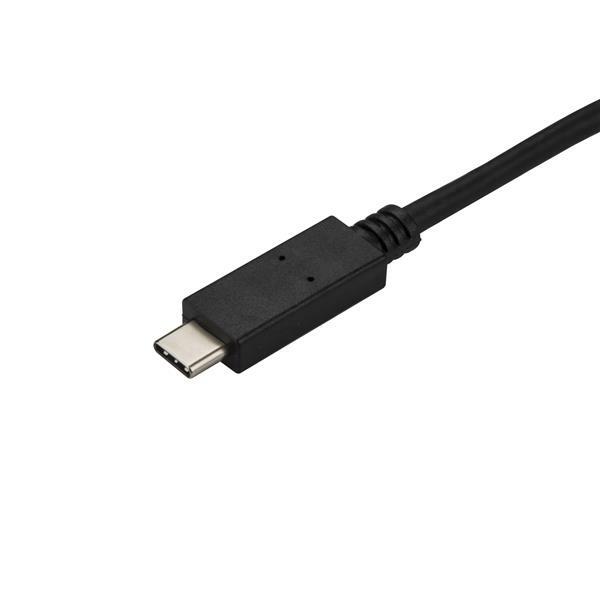

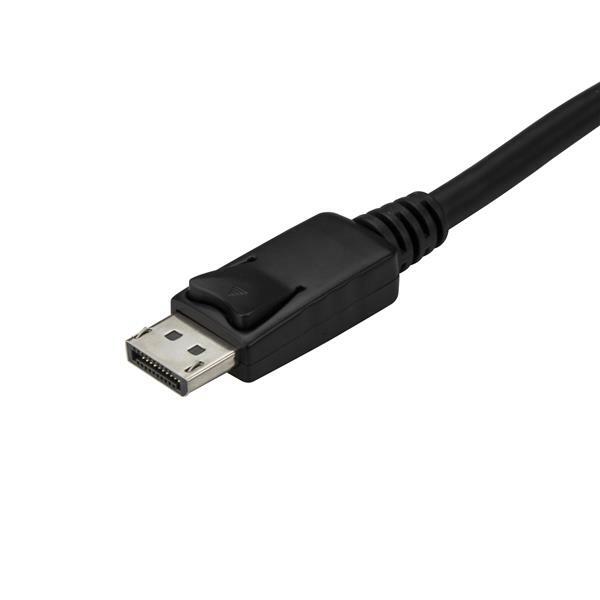

StarTech CDP2DPMM1MB usb-c to displayport 1.2 adapter cable

Product overview

CDP2DPMM1MB combines the adapter and cable in one black connection. It supports HBR2, HDCP and DisplayPort audio without drivers, provided the host supports DP Alt Mode.

Features that matter

Up to 4K 60Hz

DisplayPort 1.2 HBR2 supports 3840 x 2160 at 60Hz plus common lower resolutions on one compatible display.

Adapter and cable in one

One integrated cable reduces adapters, connection points and desk clutter.

Direct, driverless connection

The integrated design supports plug-and-play use without a separate converter or software driver.

Verified compatibility and limits

The USB-C host must support DisplayPort Alt Mode. This is a one-way USB-C host to DisplayPort display connection.

What to know before ordering

Host requirement

The USB-C or Thunderbolt host must support DisplayPort Alt Mode video output.

Connection direction

Connect the USB-C end to the host and the DisplayPort end to one display; the cable is not bidirectional.

Power Delivery

This product does not provide USB-C Power Delivery pass-through.

Warranty confidence in Australia

Australian version · Official StarTech.com warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice as proof of purchase. Coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is StarTech CDP2DPMM1MB?

CDP2DPMM1MB is a usb-c to displayport 1.2 adapter cable for connecting a USB-C DP Alt Mode host directly to one DisplayPort display.

What is the maximum resolution?

undefined

What must the USB-C port support?

The USB-C or Thunderbolt host must support DisplayPort Alt Mode video output.

Is this cable bidirectional?

No. It carries video from a USB-C DP Alt Mode host to a DisplayPort display.

Does it carry audio?

Yes. The verified specification lists up to 5.1-channel audio over DisplayPort.

Does it support Power Delivery?

No. It does not provide USB-C Power Delivery pass-through.

What is included in the package?

The package contains one 1m (3.3ft) USB-C to DisplayPort cable.

What warranty applies in Australia?

CDP2DPMM1MB is the Australian version supplied by DeviceDeal and is covered by the official 3 years StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.

(CDP2DPMM1MB)

Features and highlights

CDP2DPMM1MB key capabilities

Product-specific highlights verified for this exact StarTech.com model.

Up to 4K 60Hz

DisplayPort 1.2 HBR2 supports 3840 x 2160 at 60Hz plus common lower resolutions on one compatible display.

Adapter and cable in one

One integrated cable reduces adapters, connection points and desk clutter.

Direct, driverless connection

The integrated design supports plug-and-play use without a separate converter or software driver.

Verified compatibility and limits

The USB-C host must support DisplayPort Alt Mode. This is a one-way USB-C host to DisplayPort display connection.

Key highlights

1m (3.3ft)
HBR2 · 21.6Gbps
Up to 4K 60Hz
5.1-channel DP audio
Official 3 years StarTech.com manufacturer warranty in Australia

Technical specifications

StarTech CDP2DPMM1MB

Verified specifications and package details for the exact model.

General and Connectivity

Product type

USB-C to DisplayPort 1.2 adapter cable

Cable length

1m (3.3ft)

Connectors

USB-C male to DisplayPort male

Displays supported

Warranty

3 Years

UPC

065030864237

Video and Audio

Maximum resolution

3840 x 2160 at 60Hz

Bandwidth

HBR2, 21.6Gbps

Content protection

HDCP 2.2/1.4

HDR support

Audio

DisplayPort 5.1-channel audio

Power Delivery

No PD pass-through

Hardware and Requirements

AV input

USB-C

AV output

DisplayPort 1.2

Chipset

STM32F072CBU6 or VL103

Host requirement

USB-C DisplayPort Alt Mode

Driver requirement

No additional driver or software

Physical and Environmental

Colour

Black

Dimensions (L x W x H)

1000 x 20 x 10mm

Product weight

34g

Operating temperature

040°C

Storage temperature

-4080°C

Humidity

2070% RH

Packaging and In the Box

Package dimensions (W x D x H)

125 x 199 x 19mm

Shipping weight

48g

Package contents

1 x USB-C to DisplayPort cable
