StarTech.com · PEX1000MMSC2

StarTech PCI Express Gigabit Ethernet Multimode SC Fiber Network Card - PEX1000MMSC2

One-port PCIe Gigabit Ethernet network card with an integrated multimode duplex-SC fibre interface for links up to 550m.

Quick answer: Adds a fixed 1000BASE-SX duplex-SC multimode fibre port to a PCIe x1 or larger slot, with full-duplex throughput up to 2Gbps aggregate.

Best forDirect fibre-to-desktop, server or 1U rackmount connections where electrical interference immunity and longer distance are useful.

Check before orderingThis fixed-SC model is for Gigabit multimode fibre and is not compatible with 10/100Mbps networks. Confirm 50/125µm or 62.5/125µm distance.

Answers before you buy

Frequently asked questions

What does PEX1000MMSC2 do?

Adds a fixed 1000BASE-SX duplex-SC multimode fibre port to a PCIe x1 or larger slot, with full-duplex throughput up to 2Gbps aggregate.

Who is this product best for?

Direct fibre-to-desktop, server or 1U rackmount connections where electrical interference immunity and longer distance are useful.

What should I check before ordering?

This fixed-SC model is for Gigabit multimode fibre and is not compatible with 10/100Mbps networks. Confirm 50/125µm or 62.5/125µm distance.

Does it require drivers or software?

Drivers support listed Windows, Windows Server, older macOS, Linux and Microsoft Hyper-V versions; confirm the target OS.

What is included in the package?

Gigabit fibre network card, low-profile bracket and instruction manual.

What is the key installation requirement?

Requires an available PCIe x1 or larger slot and compatible duplex-SC multimode fibre infrastructure.

Is it suitable for an Australian setup?

Yes. DeviceDeal supplies the Australian-market version; always confirm the available ports, power and system compatibility for your installation.

What warranty applies?

PEX1000MMSC2 carries a StarTech.com 2 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides. View the DeviceDeal product page.

(PEX1000MMSC2)

Features & highlights

Why choose PEX1000MMSC2?

?Integrated duplex-SC portConnect directly to compatible multimode Gigabit fibre without a separate SFP.

?Up to 550m on 50/125µmSupports longer network runs than standard copper Ethernet.

?1Gbps full duplexProvides up to 2Gbps aggregate bidirectional throughput.

?EMI-resistant fibreOptical connectivity is not susceptible to copper-network electromagnetic interference.

?Managed network supportIncludes VLAN, priority encoding, flow control and SNMP-related standards.

?Low-profile bracket includedFits supported full-height and small-form-factor systems.

Compatibility reminder: This fixed-SC model is for Gigabit multimode fibre and is not compatible with 10/100Mbps networks. Confirm 50/125µm or 62.5/125µm distance.

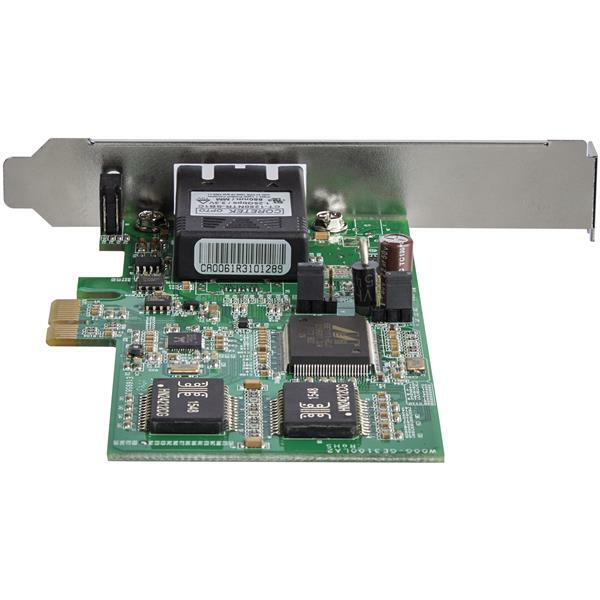

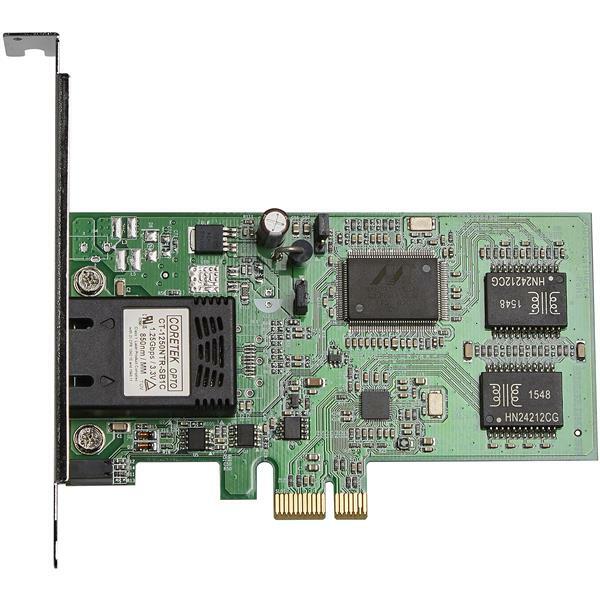

StarTech PCI Express Gigabit Ethernet Multimode SC Fiber Network Card - PEX1000MMSC2 product image

Technical specifications

PEX1000MMSC2 specifications

Exact-model specifications for compatibility checking.

Warranty Information
Warranty	2 Years
Hardware
Bus Type	PCI Express
Card Type	Standard Profile (LP bracket incl.)
Chipset ID	Realtek - RTL8168E ; Marvell - 88E1111B1
Industry Standards	IEEE802.3z 1000BASE-SX, IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control, RFC 1157 SNMP v1
Interface	Fiber Ethernet
Ports	1
Performance
Buffer Size	48 KB
Compatible Networks	1000 Mbps (1 Gbps)
Full Duplex Support	Yes
Maximum Data Transfer Rate	2000 Mbps (2 Gbps) - Full-Duplex
MTBF	361, 978 hours
Maximum Distance	550m on 50/125µm multimode fibre; 220m on 62.5/125µm multimode fibre
Connector(s)
Connector Type(s)	1 - PCI Express x1 Male
External Ports	1 - Fiber Optic SC Duplex Female
Software
OS Compatibility	Windows® XP, Vista, 7, 8, 8.1, 10; Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019; Mac OS X® 10.5 to 10.9; Linux 2.4.x to 4.11.x LTS Versions only ; Microsoft Hyper-V®
Special Notes / Requirements
Note	Not compatible with 10/100 Mbps
Indicators
LED Indicators	1 - Link (Green)
Power
Power Consumption (In Watts)	3.2W Max
Environmental
Humidity	5~95% RH (Non-Condensing)
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Physical Characteristics
Product Height	4.6 in [11.8 cm]
Product Length	4.7 in [12 cm]
Product Width	0.7 in [18 mm]
Weight of Product	2.3 oz [66 g]
Packaging Information
Package Height	1.9 in [49 mm]
Package Length	8.6 in [21.8 cm]
Package Width	6.7 in [17.1 cm]
Shipping (Package) Weight	7.3 oz [208 g]
What's in the Box
Included in Package	1 - 1 Port PCI Express Gigabit Fiber Network Card
Additional Items	1 - low-profile bracket; 1 - instruction manual

Sources: supplied product file, DeviceDeal product page and official StarTech.com specifications. Product appearance and specifications may change; confirm critical deployment requirements before ordering.

SKU	PEX1000MMSC2
Barcode #	65030857703
Brand	Startech
Shipping Weight	0.2100kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.210m
Shipping Cubic	0.001050000m3
