StarTech Mini PCIe Gigabit Network Adapter Card - ST1000SMPEX
Model # ST1000SMPEX
-
SKU: ST1000SMPEX
- Pick Up Available
- Australian Warranty
- Checkout Securely

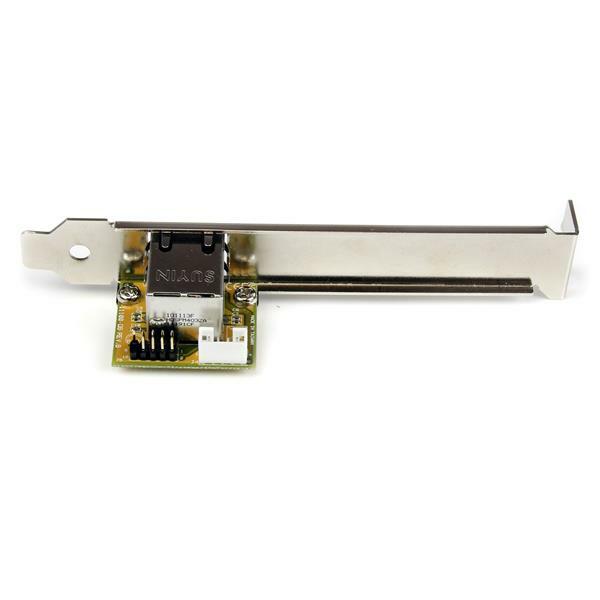

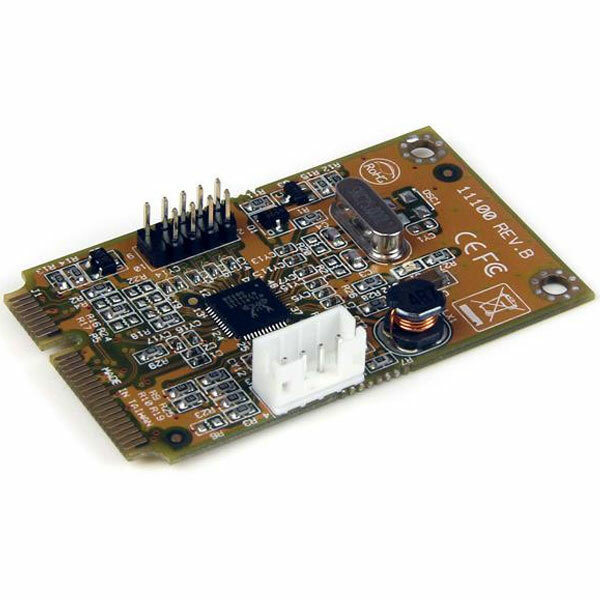

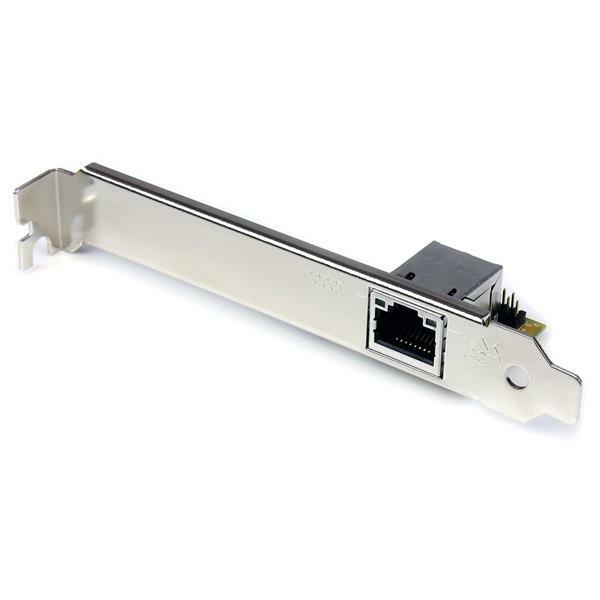

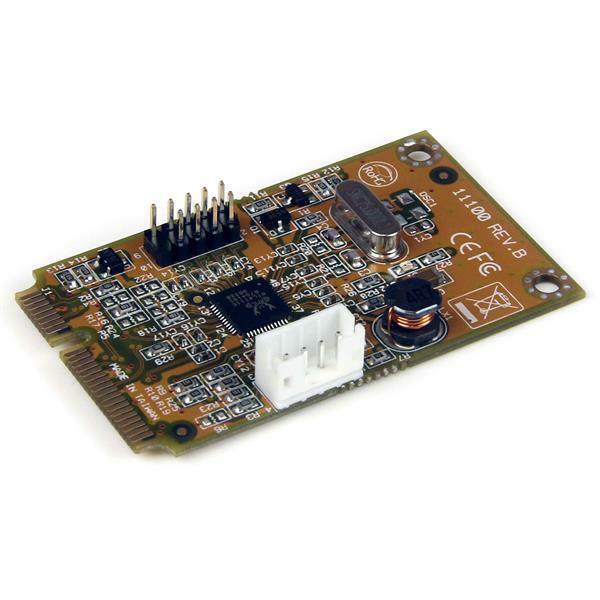

Mini PCI Express Gigabit Ethernet network adapter with RJ45
A Mini PCI Express network adapter that adds one 10/100/1000Mbps RJ45 Ethernet port to compatible small-form-factor or embedded systems.
Key capabilities
One Gigabit RJ45 port
Adds 10/100/1000Mbps Ethernet through Mini PCI Express.
Current RTL8111H chipset
The current exact StarTech datasheet identifies Realtek RTL8111H.
Jumbo frames and VLAN
Supports jumbo frames up to 9K and IEEE 802.1Q VLAN tagging.
Wake-on-LAN and Auto-MDIX
Supports WOL/remote wake-up plus automatic crossover detection and correction.
What to know before buying
Requires an available Mini PCI Express slot and an expansion-card opening for the RJ45 daughter board. The current StarTech datasheet lists RTL8111H; the older DeviceDeal table lists RTL8111E.
Australian version and manufacturer warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What interface does ST1000SMPEX use?
What Ethernet speeds are supported?
What external port is provided?
Does it support jumbo frames?
Does it support VLAN tagging?
Does it support Wake-on-LAN?
Which chipset does the current StarTech datasheet list?
What warranty applies in Australia?
(ST1000SMPEX)
Features and highlights
One Gigabit RJ45 port
Adds 10/100/1000Mbps Ethernet through Mini PCI Express.
Current RTL8111H chipset
The current exact StarTech datasheet identifies Realtek RTL8111H.
Jumbo frames and VLAN
Supports jumbo frames up to 9K and IEEE 802.1Q VLAN tagging.
Wake-on-LAN and Auto-MDIX
Supports WOL/remote wake-up plus automatic crossover detection and correction.
- Mini PCI Express
- 10/100/1000Mbps RJ45
- Jumbo frames up to 9K
- 2-year warranty
Specifications
Verified specifications for StarTech ST1000SMPEX.
Hardware
| Warranty | 2 Years |
|---|---|
| Ports | 1 |
| Interface | RJ45 Gigabit Ethernet |
| Bus Type | Mini PCI Express |
| Card Type | Standard profile; low-profile bracket included |
| Industry Standards | IEEE 802.3, 802.3u, 802.3ab |
| Chipset | Realtek RTL8111H |
Performance
| Compatible Networks | 10/100/1000Mbps |
|---|---|
| Wake On LAN | Yes |
| Auto MDIX | Yes |
| Full Duplex | Yes |
| Jumbo Frames | Up to 9K |
| VLAN Tagging | IEEE 802.1Q |
| Flow Control | IEEE 802.3x full-duplex |
| Promiscuous Mode | Yes |
Connectors
| Internal | Mini PCI Express x1, 52-pin |
|---|---|
| External | RJ45 female |
Software
| Current Official Compatibility | Windows 11/10/8/7; Windows Server 2012/2016/2019; Linux support as listed by StarTech |
|---|
In the Box
| Included | Mini PCIe card; RJ45 daughter board; low-profile bracket; internal LED cable; internal data cable; driver CD; instruction manual |
|---|
| SKU | ST1000SMPEX |
| Barcode # | 65030846554 |
| Brand | Startech |
| Shipping Weight | 0.1500kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
StarTech.com warranty in Australia
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase.
Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
