StarTech.com SFPGLCLHSMST

Cisco GLC-LH-SM compatible 1000BASE-LX/LH SFP

A Cisco GLC-LH-SM compatible 1GbE SFP module supporting single-mode and multimode fibre, with duplex LC at 1310nm and reach up to 10km on single-mode fibre.

1GbE / 1.25GbpsSingle-mode + multimodeLC / 1310nmLifetime warranty

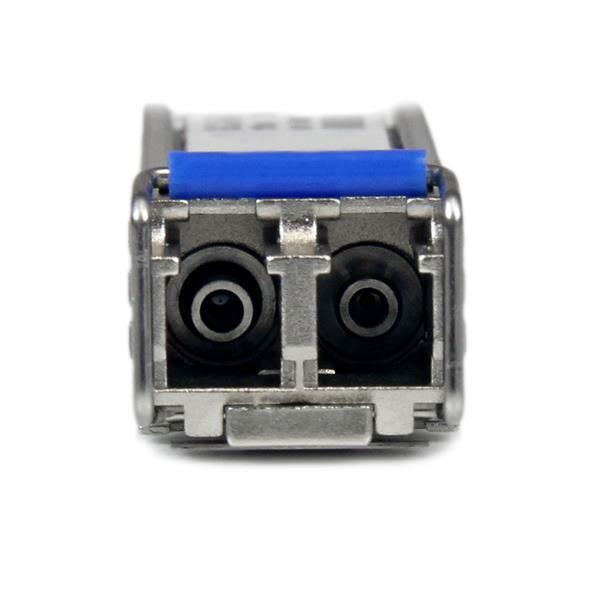

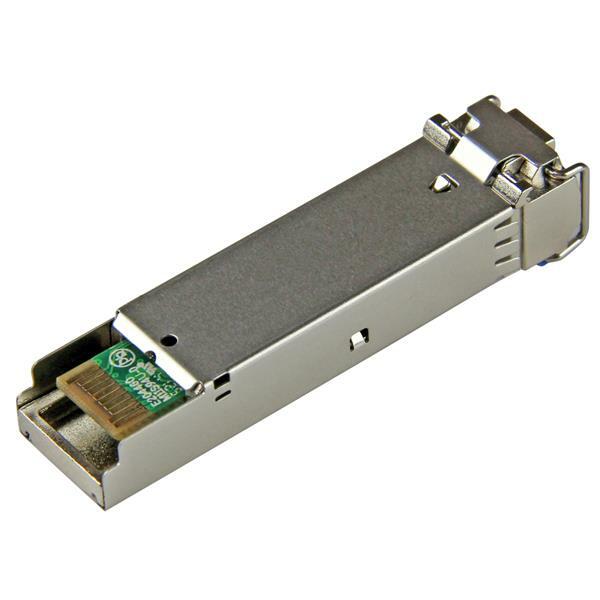

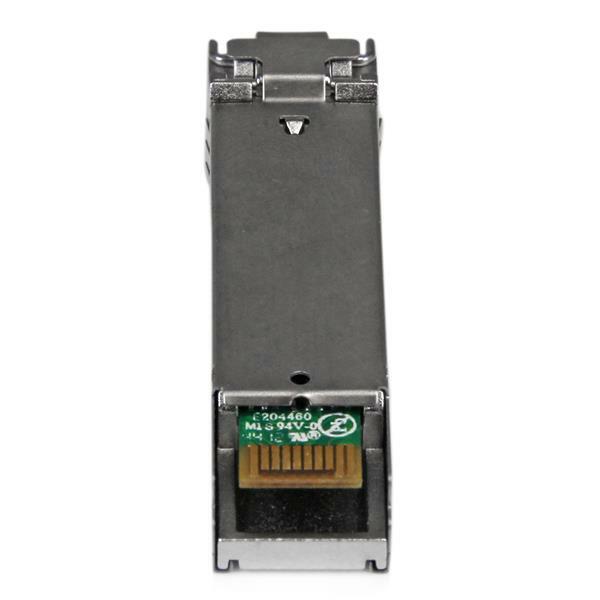

StarTech SFPGLCLHSMST Cisco compatible 1000BASE-LX LH SFP transceiver

Key capabilities

Cisco GLC-LH-SM compatible

Designed and tested for compatible Cisco switches and routers.

Single-mode and multimode support

The exact DeviceDeal page lists up to 10km on single-mode fibre and up to 1km on multimode fibre.

1310nm duplex LC

Uses a duplex LC optical interface at 1310nm.

Hot-swappable SFP

The exact product description identifies the SFP module as hot-swappable.

What to know before buying

The exact page lists different reach by fibre type: up to 10km on single-mode and 1km on multimode. DDM is not supported on this model.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech SFPGLCLHSMST compatible with?

Cisco GLC-LH-SM compatible networking equipment.

What network speed does it support?

1GbE, with a maximum data rate of 1.25Gbps.

What fibre types can it use?

Single-mode and multimode fibre.

What are the listed distances?

Up to 10km on single-mode fibre and 1km on multimode fibre.

What connector and wavelength are used?

Duplex LC at 1310nm.

Does it support DDM?

No.

Is it hot-swappable?

Yes.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(SFPGLCLHSMST)

Features and highlights

Cisco GLC-LH-SM compatible

Designed and tested for compatible Cisco switches and routers.

Single-mode and multimode support

The exact DeviceDeal page lists up to 10km on single-mode fibre and up to 1km on multimode fibre.

1310nm duplex LC

Uses a duplex LC optical interface at 1310nm.

Hot-swappable SFP

The exact product description identifies the SFP module as hot-swappable.

1GbE / 1.25Gbps
Single-mode + multimode
LC / 1310nm
Lifetime warranty

Warranty confidence: Official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech SFPGLCLHSMST.

Warranty Information

Warranty	Lifetime

Hardware

Compatible Brand	Cisco
Industry Standards	IEEE 802.3z 1000BASE-LX/LH
WDM	No

Performance

Compatible Networks	1000 Mbps (1 Gbps)
DDM	No
Fiber Operating Mode	Half/Full-Duplex
Max Transfer Distance	10 km (6.2 mi)
Maximum Data Transfer Rate	1.25 Gbps
MTBF	3,092,408 hours
Type	Single Mode / Multi Mode
Wavelength	1310nm

Connector(s)

Local Unit Connectors	1 - Fiber Optic LC Duplex Female

Special Notes / Requirements

Note	For use in Gigabit fiber networking equipment and media converters
System and Cable Requirements	MSA or Cisco compliant SFP port

Power

Power Consumption (In Watts)	< 1 W

Environmental

Humidity	30~70% RH
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 85°F)

Physical Characteristics

Product Height	0.4 in [1 cm]
Product Length	2.4 in [60 mm]
Product Width	0.5 in [12 mm]
Weight of Product	0.7 oz [20 g]

Packaging Information

Package Height	1.3 in [33 mm]
Package Length	3.7 in [93 mm]
Package Width	4.7 in [11.9 cm]
Shipping (Package) Weight	1.6 oz [46 g]

What's in the Box

Included in Package	1 - 1.25 Gbps Single Mode LC SFP

SKU	SFPGLCLHSMST
Barcode #	65030850643
Brand	Startech
Shipping Weight	0.0400kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.110m
Shipping Cubic	0.000550000m3

Lifetime official manufacturer warranty

StarTech.com warranty in Australia

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase.

Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment. This wording does not promise automatic replacement or guaranteed claim approval.
