StarTech.com SFP-10GBASE-SR-ST

MSA uncoded 10GBASE-SR SFP+ multimode transceiver

An MSA-compliant uncoded 10GBASE-SR SFP+ module for 10GbE multimode fibre links up to 300m, with duplex LC, 850nm optics and DDM.

10GbEMultimode fibreLC / 850nm / 300mLifetime warranty

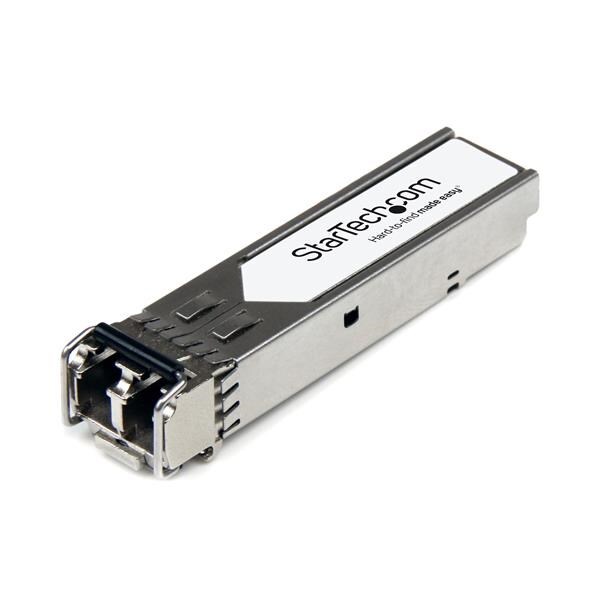

StarTech SFP-10GBASE-SR-ST MSA compliant 10GBASE-SR SFP+ transceiver

Key capabilities

MSA compliant and uncoded

Designed for 10GBASE-SR compatible equipment that accepts MSA-compliant uncoded optics.

300m multimode reach

Supports links up to 300m / 984ft over suitable multimode fibre.

850nm duplex LC

Uses 850nm multimode optics with an LC duplex connection.

DDM and hot-swap support

DDM is supported and the module is hot-swappable.

What to know before buying

Confirm the target networking equipment accepts uncoded MSA SFP+ modules and the installed fibre type supports the required 10GBASE-SR link distance.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What equipment is SFP-10GBASE-SR-ST intended for?

10GBASE-SR compatible switches and routers that accept MSA-compliant uncoded SFP+ modules.

What speed does it support?

10Gbps.

What fibre type does it use?

Multimode fibre.

What connector and wavelength are used?

Duplex LC at 850nm.

What is the maximum transfer distance?

Up to 300m / 984ft.

Does it support DDM?

Yes.

How much power does the current technical table list?

Less than 1.3W.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(SFP-10GBASE-SR-ST)

Features and highlights

MSA compliant and uncoded

Designed for 10GBASE-SR compatible equipment that accepts MSA-compliant uncoded optics.

300m multimode reach

Supports links up to 300m / 984ft over suitable multimode fibre.

850nm duplex LC

Uses 850nm multimode optics with an LC duplex connection.

DDM and hot-swap support

DDM is supported and the module is hot-swappable.

10GbE
Multimode fibre
LC / 850nm / 300m
Lifetime warranty

Warranty confidence: Official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech SFP-10GBASE-SR-ST.

StarTech SFP-10GBASE-SR-ST product image

Warranty and Hardware

Warranty	Lifetime
Material	Steel
Compatible Brand	MSA Compliant
Industry Standards	IEEE 802.3ae 10GBASE-SR

Performance

Power Consumption	< 1.3W
DDM	Yes
Maximum Data Transfer Rate	10.00 Gbps
Max Transfer Distance	300 m [984 ft]
MTBF	646,156,559 hours
Wavelength	850nm
Type	Multi Mode
Compatible Networks	10 Gbps
Fiber Operating Mode	Full-Duplex

Connectors

Optical Connector	LC Duplex

Physical Characteristics

Product Height	0.5 in [13.7 mm]
Product Length	0.5 in [13.9 mm]
Product Width	2.3 in [58.4 mm]
Weight	0.7 oz [20 g]

Packaging

Package Height	1.2 in [31 mm]
Package Length	4.5 in [11.5 cm]
Package Width	3.5 in [90 mm]
Shipping Weight	1.8 oz [50 g]
Included	1 × SFP+ transceiver

SKU	SFP-10GBASE-SR-ST
Barcode #	65030886543
Brand	Startech
Shipping Weight	0.0400kg
Shipping Width	0.003m
Shipping Height	0.011m
Shipping Length	0.009m

Lifetime official manufacturer warranty

StarTech.com warranty in Australia

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase.

Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment. This wording does not promise automatic replacement or guaranteed claim approval.
