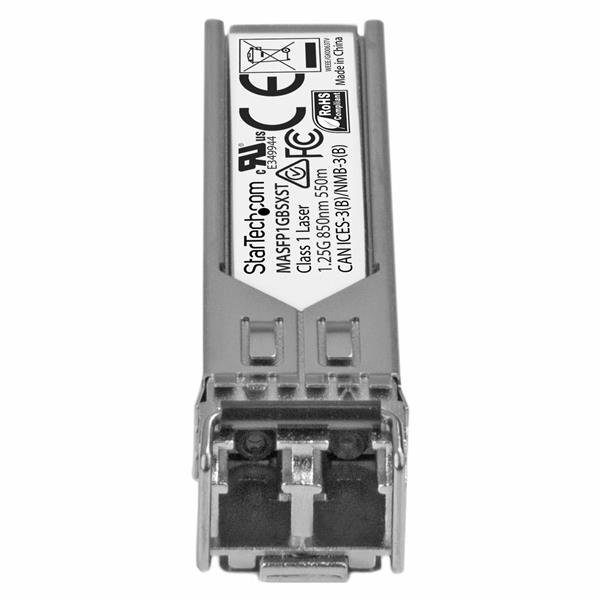

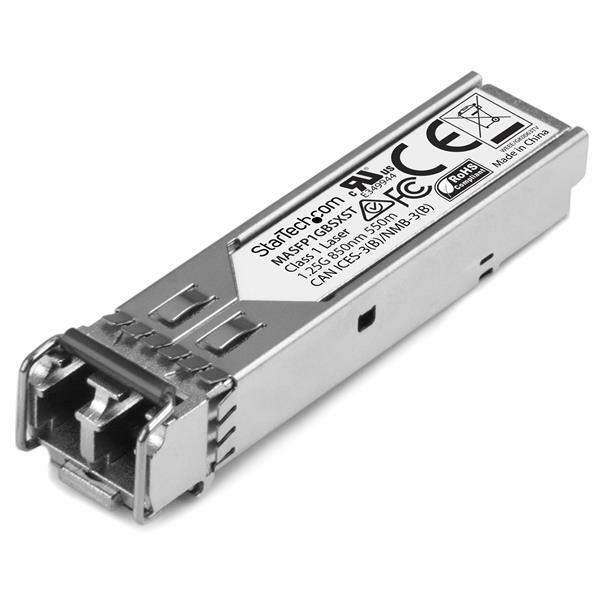

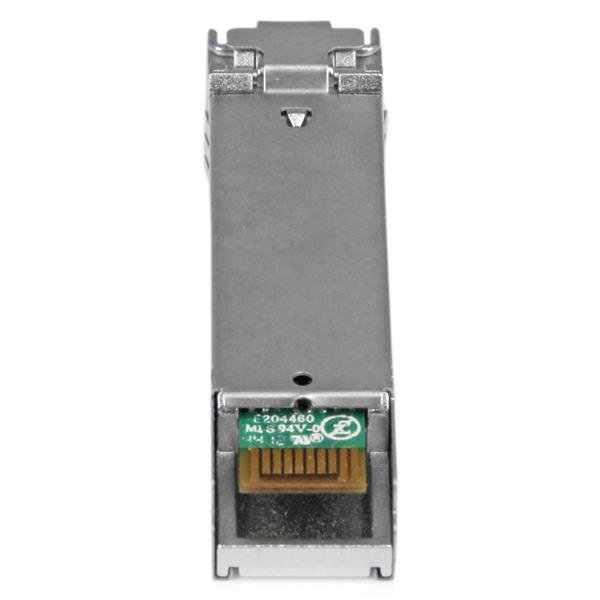

StarTech Cisco Meraki MA-SFP-1GB-SX Compatible SFP Transceiver Module - 1000BASE-SX MASFP1GBSXST
Model # MASFP1GBSXST
-
SKU: MASFP1GBSXST
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech MASFP1GBSXST Cisco Meraki Compatible 1000BASE-SX SFP Module
Cisco Meraki Compatible 1000BASE-SX SFP Module designed for professional IT, electronics, security or workstation use.
Frequently asked questions
What is StarTech MASFP1GBSXST?
It is a Cisco Meraki-compatible 1GbE multimode SFP transceiver that provides 1000BASE-SX connectivity over duplex LC multimode fibre for links up to 550m.
Which connections or mounting method are provided?
One duplex LC fibre interface in a hot-swappable SFP form factor
What performance is specified?
1GbE; 1.25Gbps line rate; 850nm; multimode; 550m; DDM; full duplex
How is the product constructed?
Silver aluminium transceiver programmed and tested for Cisco Meraki compatibility
What is the maximum fibre distance?
The specified maximum distance is 550m over compatible multimode fibre.
Which Meraki optic does it replace?
It is designed as a compatible alternative to Cisco Meraki MA-SFP-1GB-SX.
What should be checked before ordering?
The host must provide an MSA or compatible Cisco Meraki SFP port and the link must use suitable duplex LC multimode fibre.
What warranty applies?
MASFP1GBSXST carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturers terms and eligibility requirements.
Planning a broader setup? Browse the DeviceDeal buying guides.
(MASFP1GBSXST)
Why choose MASFP1GBSXST?
MASFP1GBSXST specifications
Exact-model specifications for compatibility checking. Measurements may be rounded.
| Warranty Information | |
|---|---|
| Warranty | Lifetime |
| Compatibility | |
| Compatible Brand | Cisco Meraki |
| Industry Standard | IEEE 802.3z 1000BASE-SX |
| Host Requirement | MSA or Cisco Meraki-compliant SFP port |
| Performance | |
| Compatible Network | 1GbE |
| Maximum Data Rate | 1.25Gbps |
| Fibre Type | Multimode, full duplex |
| Wavelength | 850nm |
| Maximum Distance | 550m |
| DDM | Yes |
| MTBF | 3,381,761 hours |
| Power Consumption | Less than 1W |
| Connector | |
| Local Connector | 1 × duplex LC female |
| Physical Characteristics | |
| Material / Colour | Aluminium / silver |
| Dimensions | 56.6 × 13.7 × 13mm |
| Product Weight | 14g |
| What's in the Box | |
| Included | SFP transceiver |
Sources: https://www.devicedeal.com.au/startech-cisco-meraki-ma-sfp-1gb-sx-compatible-sfp and https://www.startech.com/
| SKU | MASFP1GBSXST |
| Barcode # | 65030868655 |
| Brand | STARTECH |
| Shipping Weight | 0.0400kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.110m |
| Shipping Cubic | 0.000550000m3 |
