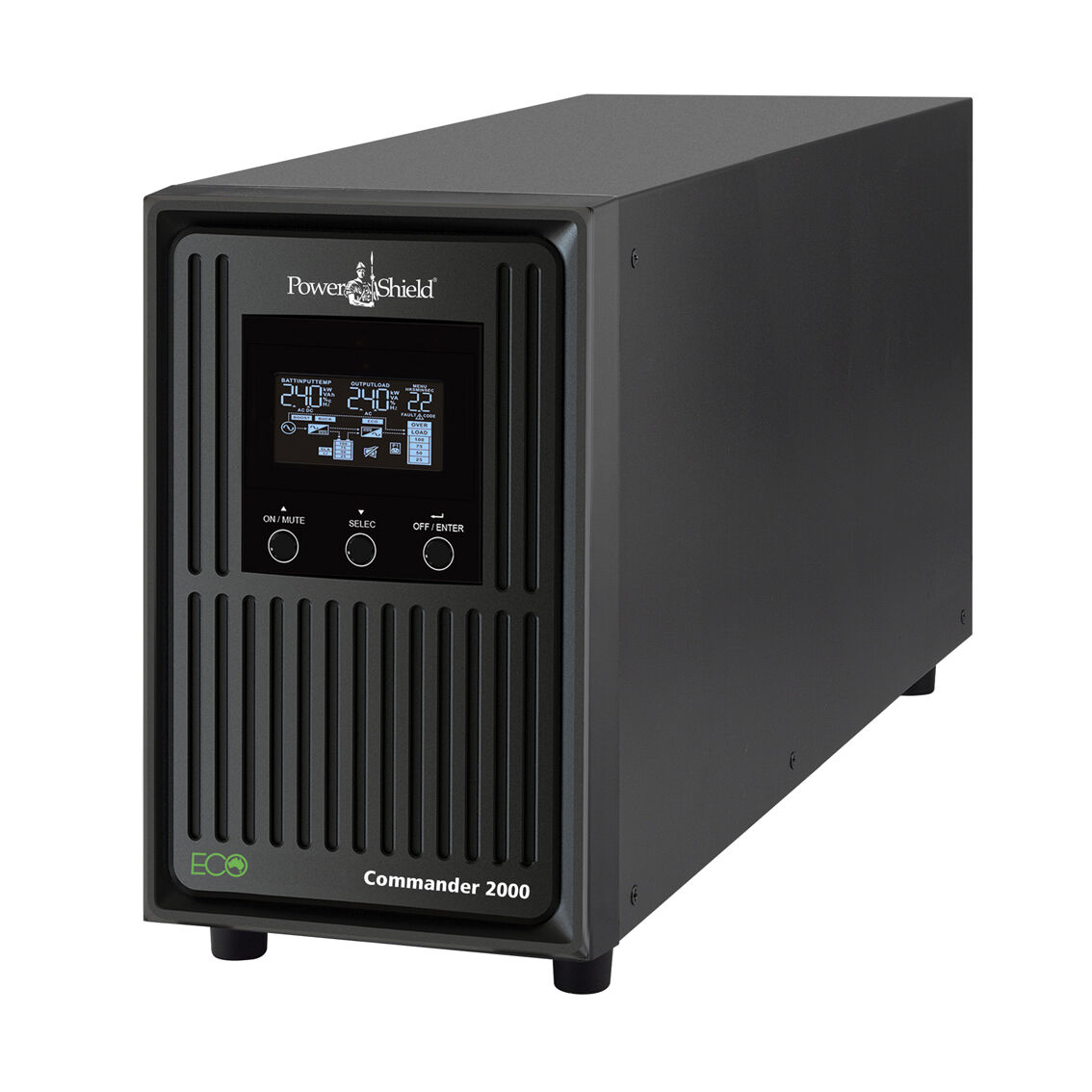

The PowerShield Commander UPS is designed to deliver clean power to and promote reliable electrical operation for all types of IT equipment in a network environment. The Commander protects your devices against power failures, power surges, under and over voltages that can harm your equipment or result in corrupted data. The PowerShield Commander UPS provides cost effective and a high level of protection for sensitive electronic devices while offering options for graceful shutdown of valuable IT equipment. The PowerShield Commander includes the highest surge rating of any standard UPS. 1558 Joules / 40,000 Amp surge protection.


  • Works for gates, camera surveillance, computers, telephone systems, servers, and other sensitive electronic equipment.
  • Best specifications in its class
  • Intelligent real time battery backup display
  • Smart 5% AVR with 2 step buck and boost
  • Intelligent double stage charger control which translates to a faster recharge rate
  • Generator compatible
  • Highest Joule Rating 1558 Joules of surge protection
  • Includes:
  • Software for Win95/98/NT/2000/XP & Linux
  • All PowerShield UPS models will beep when the battery is low or failing.
  • Usage of the Net Guard software -it can email a message to let the user know that the battery is low or failing on the UPS

(PSCM2000)

Technical Details

Model Number PSCM2000
Capacity 2000 VA / 1800 W
Topology True online double- conversion,Pure Sine Wave
Voltage 240Vac
Voltage Range 162-290 VAC
Frequency Range 50/60Hz ?± 5Hz (auto sensing)
Output Voltage 240Vac (Selectable 208/220/230Vac) ?± 10% AVR
Frequency Range (Batt. Mode) 50 Hz or 60 Hz ?± 1 Hz
Transfer Time 6ms (Typical), 10ms max
Waveform (Batt. Mode) Pure Sine Wave
Australian Outlets - UPS & Surge Protection 2
Battery Type & Number 12V / 9AH (x4)
Typical Recharge Time 4 hours recover to 90% capacity
Full Protection Overload, thermal, short circuit, discharge and overcharge protection
Surge Protection 1968 Joules / 39000 Amps

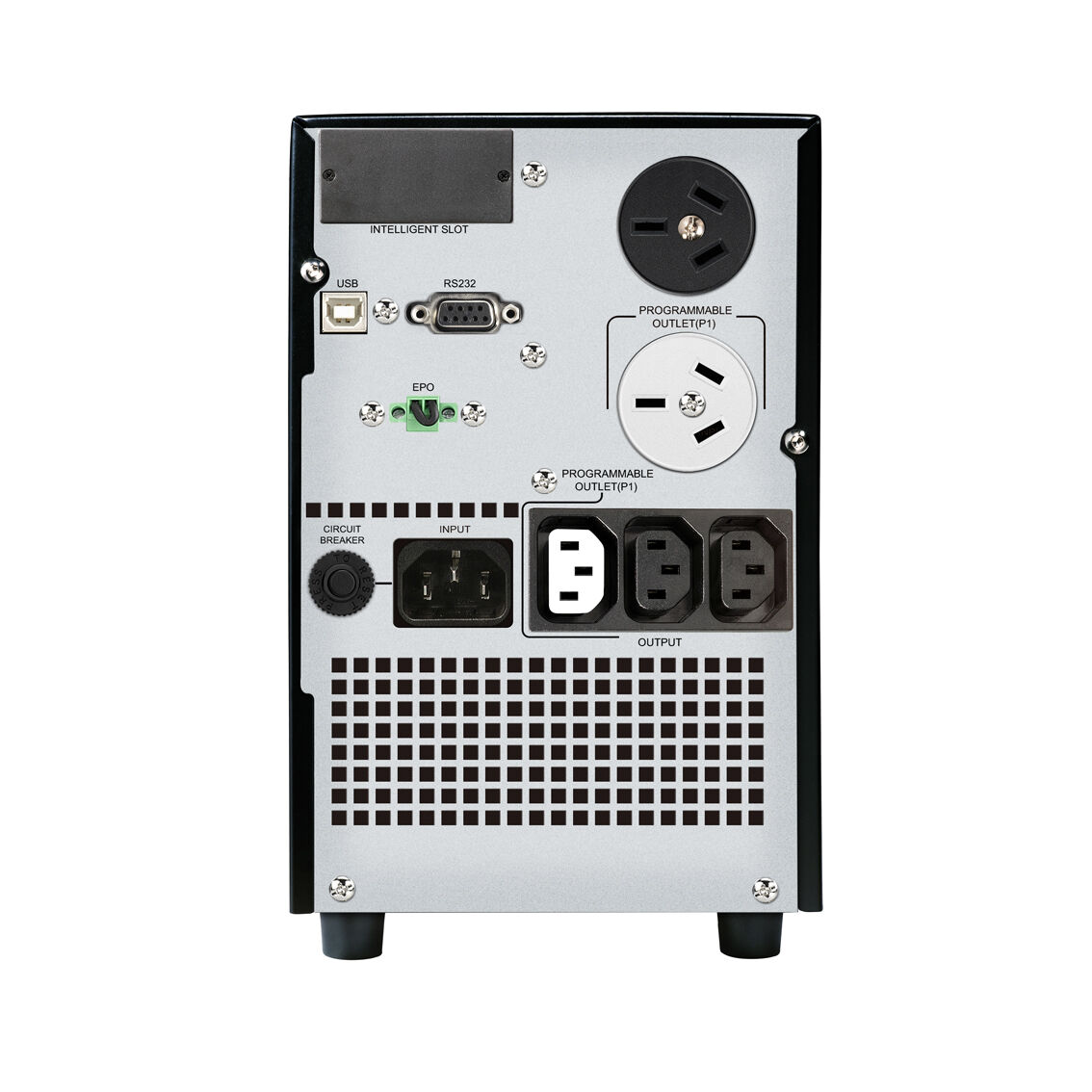

Interface USB and RS-232 as standard, Intelligent slot for PSSNMP, PSModbus or PSAS400 dry contact
Software PowerShield NetGuard?® software - supports Windows based operating system, Linux, Unix and Mac
HID Supports Windows, Apple, Linux, NAS and various industrial controllers
LCD Alarm AC mode, Batt. Mode, Load Level, Input Voltage, Output Voltage, Overload, Fault, Battery Replacemen
Audible Alarm Battery Mode, Low Battery (Batt. Mode), Battery Replacement, Fault, Overload
Dimension L x W x H (mm) 455 x 145 x 220
Net Weight (kgs) 20.5 / 22.5
Temperature 0 - 40?°C
Humidity 0-90% (RH non-condensing)
Noise Level < 45dB
Safety/EMC EN62040-1 -1 2003, IEC 60950-1 -1 /EN62040-2 2006
RoHS Directive 2011/65/EU
Warranty 2 Year ARW
SKU PSCM2000
Barcode # 9346909000637
Brand PowerShield
Shipping Weight 22.0000kg
Shipping Width 0.240m
Shipping Height 0.550m
Shipping Length 0.330m
Shipping Cubic 0.043560000m3

Manufacturer Warranty : 2 Years Manufacturer Warranty
