Eaton SKU 9SX1000I-AU

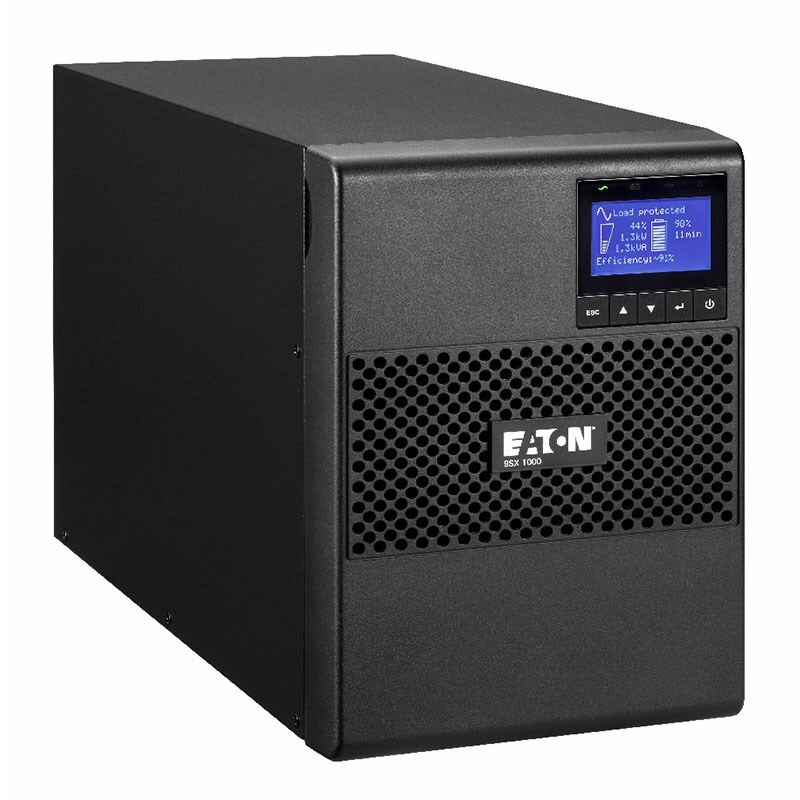

Eaton 9SX1000I-AU 1000VA/900W Online Tower UPS

The Eaton 9SX1000I-AU is a 9SX online double-conversion tower UPS with a structured load capacity of 1.10kVA / 900W.

The supplied record lists 1 x IEC 60320 C14 input, 4 x Australian 10A receptacles, a multilingual graphical LCD, USB HID, serial, EPO and SNMP-manageable operation.

1000VA / 900WOnline double conversionTower UPS2-year warrantyDeviceDeal authorised Eaton reseller

Product overview

1000VA / 900W

The structured specification lists 1.10kVA / 900W. The description separately states 1000VA / 900W in the product name and description.

Online double conversion

The source classifies the 9SX as a double-conversion online UPS for network, storage, IT, industrial, medical and telecommunications applications.

Local and remote management

The source lists a multilingual graphical LCD, LED indicators, USB HID, serial, EPO and SNMP-manageable operation.

Source review: The product name and description state 1000VA / 900W, while the structured load-capacity field states 1.10kVA / 900W. Both source values are preserved and require confirmation.

Frequently asked questions

What capacity is listed for the Eaton 9SX1000I-AU?

The structured specification lists 1.10kVA / 900W, while the product description also states 1000VA / 900W in the product name and description.

Which power connections are listed?

The source lists 1 x IEC 60320 C14 input and 4 x Australian 10A receptacles.

Which monitoring interfaces are listed?

The source lists a multilingual graphical LCD, LED indicators, USB HID, a serial port, EPO and SNMP-manageable operation.

What warranty is supplied?

The source lists a two-year Eaton manufacturer warranty.

(9SX1000I-AU)

Features

Eaton 9SX1000I-AU 1000VA/900W Online Tower UPS

Power protection

9SX online double-conversion topology
Structured rating: 1.10kVA / 900W
Description rating: 1000VA / 900W in the product name and description
230V AC nominal input
Input range: 120276V AC

Connections and management

1 x IEC 60320 C14 input
4 x Australian 10A receptacles
USB HID-compliant port
RS-232 serial port
Emergency power-off port

Installation and environment

Tower form factor
Dimensions (H x W x D): 252mm x 160mm x 387mm
Approximate weight: 14.80kg
Sound emission: 41dB
40°C maximum operating temperature

Review the supplied-source note and confirm the final connected load, input circuit and outlet requirements before purchase.

Technical specifications

Eaton 9SX1000I-AU 1000VA/900W Online Tower UPS

Product details
Brand	Eaton
Model / SKU	9SX1000I-AU
Series	9SX
Product type	Double-conversion online UPS
Form factor	Tower
Structured load capacity	1.10kVA / 900W
Additional description rating	1000VA / 900W in the product name and description
Power
Input voltage	230V AC
Input-voltage range	120276V AC
Input frequency field	70Hz
Output frequency field	60Hz
Connections and management
Input connector	1 x IEC 60320 C14 input
Output receptacles	4 x Australian 10A receptacles
Serial port	Yes
USB HID-compliant port	Yes
Emergency power-off port	Yes
Network management	SNMP manageable
Status display	LED indicators; multilingual graphical LCD
Physical and environmental
Height	252mm
Width	160mm
Depth	387mm
Approximate weight	14.80kg
Sound emission	41dB
Maximum operating temperature	40°C
Applications listed
Application / usage	Network; industry; IT system; telecommunications; storage; medical

SKU	9SX1000I-AU
Barcode #	743172091086
Brand	EATON
Shipping Weight	17.0800kg
Shipping Width	0.370m
Shipping Height	0.290m
Shipping Length	0.570m
Shipping Cubic	0.061161000m3

Warranty information

Eaton 9SX1000I-AU 1000VA/900W Online Tower UPS

2-Year Eaton Manufacturer Warranty

DeviceDeal is an authorised Eaton reseller. This product is covered by a two-year Eaton manufacturer warranty in Australia, as listed in the supplied product information.
