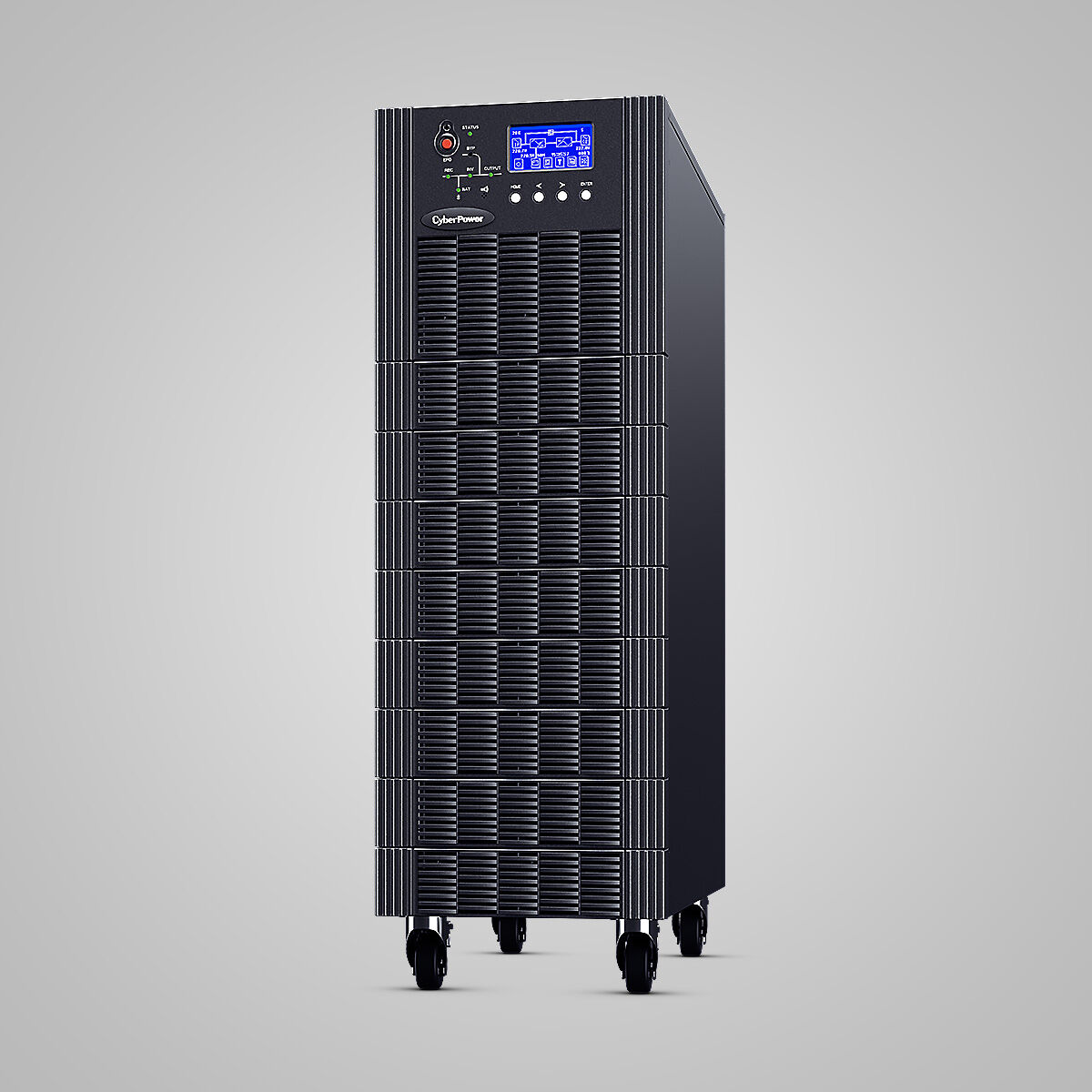

CyberPower Tower UPS HSTP3T20KE BLACK Three phase in / three phase out 20KVA tower UPS 20KVA 400/230VAC 3PHASE SMART TOWER UPS
Model # HSTP3T20KE
-
SKU: HSTP3T20KE
- Pick Up Available
- Australian Warranty
- Checkout Securely
UPS Systems (3-Phase) HSTP3T20KE
Overview
CyberPower HSTP3T20KE 3-Phase online UPS provides long-lasting power backup for data closets, transportation and infrastructure, and emergency systems. With parallel expansion capability, the HSTP3T (3-Phase) Series UPS is ideal for critical applications in server rooms, data centers, industrial factories, and power generation plants that require high capacity, high reliability, and extended runtimes. With integrated IGBT technology and intelligent DSP-based control, the UPS produces less input total harmonic distortion (THDi) and achieves higher power efficiency up to 98% in Economy Mode, making it the most efficient UPS in the industry. Higher operating efficiency equates to lowered BTU heat dissipation and lowered idle power consumption, resulting in an operating expense reduction and a lower carbon footprint. To improve operating efficiency, the UPS system works in bypass mode under normal conditions, during which the inverter is kept on standby. During power failures, the UPS switches to battery mode and supplies backup power to the connected critical load.
Features
- Three-phase Design
- ECO Mode
- Dual Inputs
- Pure Sine Wave Output
- Maintenance Bypass Switch
- Emergency Power Off (EPO) Port
- PowerPanel Management Software
- Online (Double Conversion) UPS Topology
- UPS Parallel Expansion
- Generator Compatible
- Overload Protection
- LCD Status Display
- SNMP/HTTP Remote Management Capability (Optional)
What's in the Box
- HSTP3T20KE
- User's Manual
* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.
(HSTP3T20KE)
Online Double-conversion Topology
The UPS adopts online double-conversion topology to provide the best power quality regardless of the conditions of incoming power. This topology also features a zero transfer time, ensuring optimal system operation.
ECO Mode
When the quality of utility power is good, the UPS switches to ECO mode to increase system efficiency. When the quality is unstable, the UPS switches to line mode to guarantee the best power quality.
Color LCD with Touch Panel
The color LCD with touch panel is designed with friendly, intuitive, and graphical user-interface, allowing users to monitor power system and configure settings by simply touching the screen.
Dual Input Design
By allowing users to connect one input from AC power source and the second input from other power source, the dual power input design ensures high quality power and system continuity for connected equipment.
UPS Parallel Expansion
Multiple UPS units can be connected to flexibly expand system capacity and achieve N+X power redundancy in applicable models, thus protecting the systems against power failures.
Maintenance Bypass Switch
With this product, the operators can seamlessly switch the power to utility source via bypass mode, performing quick and safe maintenance without having to shut down the power system and connected equipment.
Generator Compatible
Power continuity can be achieved with generators during a power outage. When UPS is running on generator's power, it can stabilize unstable voltages from the generator while providing reliable power.
Emergency Power Off
The EPO port is a dry contact which can connect to an external switch, allowing users to immediately shut down UPS systems to ensure safety when disaster strikes.
Extended Battery Module (EBM)
The UPS can connect to extended battery modules (EBM) to prolong system runtime during power interruption. The EBM comes with plug-n-play DC connectors and supports EBM expansion, ensuring system's maximum power availability.
Smart Battery Management
The UPS adopts Smart Battery Management (SBM) technology to manage the battery charging process by using a 3-cycle approach and temperature compensation, which efficiently extends the battery lifespan.
Remote Management Capability
Remote management capability enables monitoring and controlling of devices through Remote Management Card. Users can also perform management tasks, such as scheduled shutdowns and reboots.
PowerPanel Business Software
The PowerPanel Management Software can perform power management and system graceful shutdown. This software has achieved VMware Ready™ status, and is compatible with VMware ESXi. It also supports Citrix XenServer and Microsoft Hyper-V.
General
Input
Line to Line (L-L): 228 ~ 478 Vac
Line to Line (L-L): 380 ~ 435 Vac
60 ± 3
Output
60 ± 0.1
Battery
Surge Protection & Filtering
Management & Communications
Physical
Physical Size - UPS Module
Shipping Dimensions
Environmental
Certifications
WARRANTY
| SKU | HSTP3T20KE |
| Barcode # | 4712856278392 |
| Brand | CYBERPOWER |
| Shipping Weight | 61.0000kg |
Manufacturer Warranty
