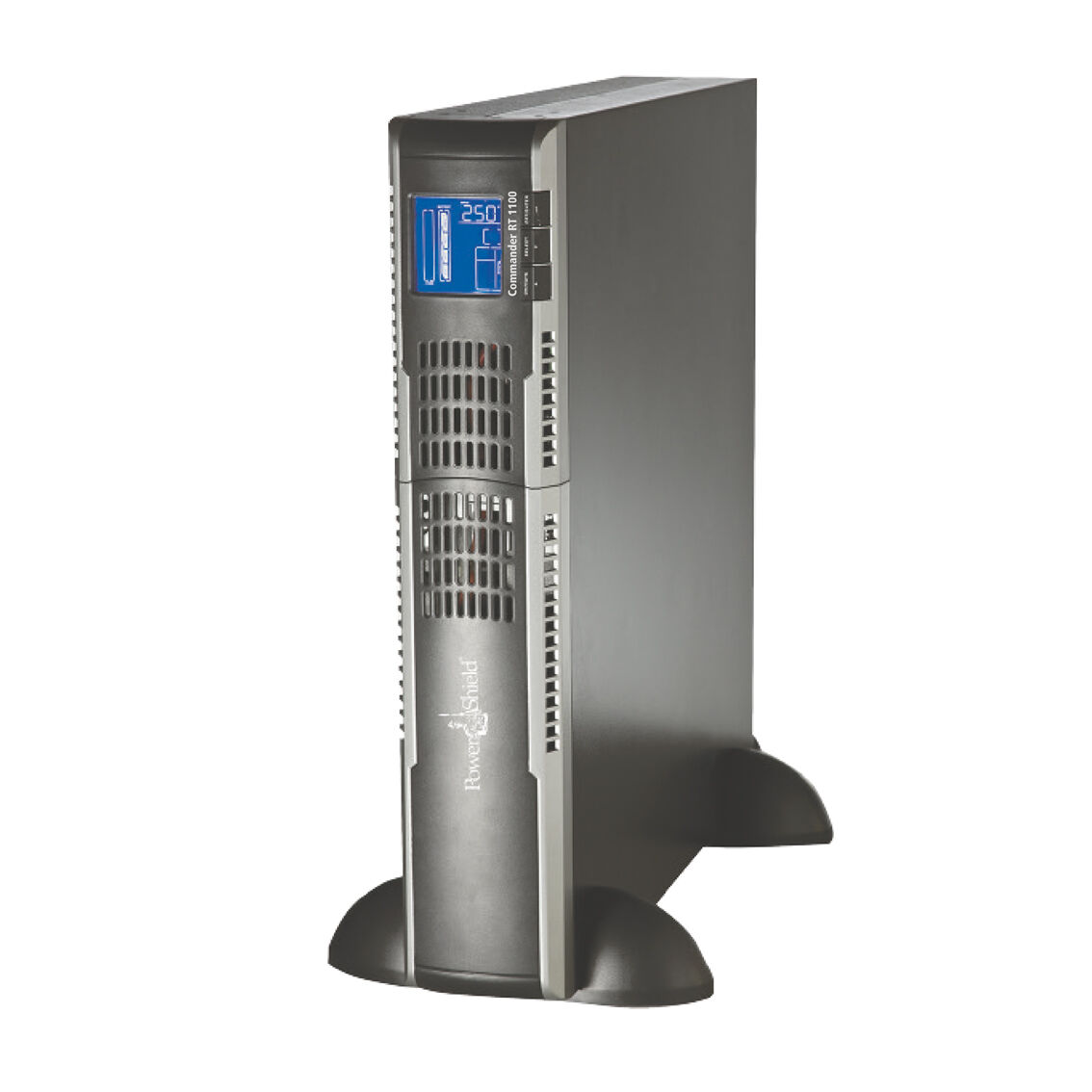

PowerShield Commander RT 1100VA / 880W Line Interactive, Pure Sine Wave Rack / Tower UPS with AVR PSCRT1100
Hot swap batteries, IEC & AUS Plugs
-
SKU: PSCRT1100
- Pick Up Available
- Australian Warranty
- Checkout Securely
COMMANDER RT
1100VA | 990W Line Interactive Pure Sine Wave Rack/Tower UPS
The Microprocessor based, line Interactive, Pure Sine Wave Commander Rack/Tower UPS offers power protection for applications such as networking, telecom, security and servers. The Advanced ECO mode function allows cost effective operation of the UPS with an efficiency at 98%. To provide longer backup time the 2kVA and 3kVA models are expandable to include an additional battery bank.
FEATURES
EXCEPTIONAL SURGE PROTECTION
Offering the best surge protection in its class to protect against damaging surges.
OUTPUT POWER FACTOR 0.9
The Commander RT is a high-density UPS with output power factor 0.9 to provide higher performance and efficiency to critical applications.
INFORMATIVE LCD DISPLAY
The front panel LCD display panel is readily viewable whether the UPS is horizontal or vertical. It displays all critical and non-critical parameters, including estimated battery backup time remaining.
RACK/TOWER DESIGN
The Commander RT can be easily installed as a floor-standing tower or in a 19-inch rack.
PROGRAMMABLE OUTLETS
The UPS comes with programmable power management outlets allowing the user to control the load segments, thereby extending battery backup times to mission critical devices.
ECO & ADVANCED ECO MODE
Advanced ECO mode allows the UPS to operate at a very high efficiency up to 98%, reducing operating costs significantly.
HOT SWAPPABLE BATTERIES
Battery banks are hot swappable keeping the UPS operational during battery replacement and increasing battery backup times.
EMERGENCY POWER OFF (EPO)
This feature can turn off and isolate the UPS in the event of fire or other emergencies.
Applications include:
- Server rooms and data centres
- Network and telecommunications equipment
- Security and surveillance systems
- Medical and laboratory equipment
- Industrial control systems
2 Year Warranty
(PSCRT1100)
COMMANDER RT SPECIFICATIONS
| MODEL | COMMANDER RT 1100 |
|---|---|
| Model Number | PSCRT1100 |
| Capacity | 1100VA / 990W |
| Topology | Line Interactive |
| Form Factor | Rack/Tower (2U) |
| INPUT | |
| Voltage | 240VAC (Nominal) |
| Frequency Range | 50/60Hz Auto |
| OUTPUT | |
| Output Voltage | 230VAC (Nominal) |
| Waveform (Battery Mode) | Pure Sine Wave |

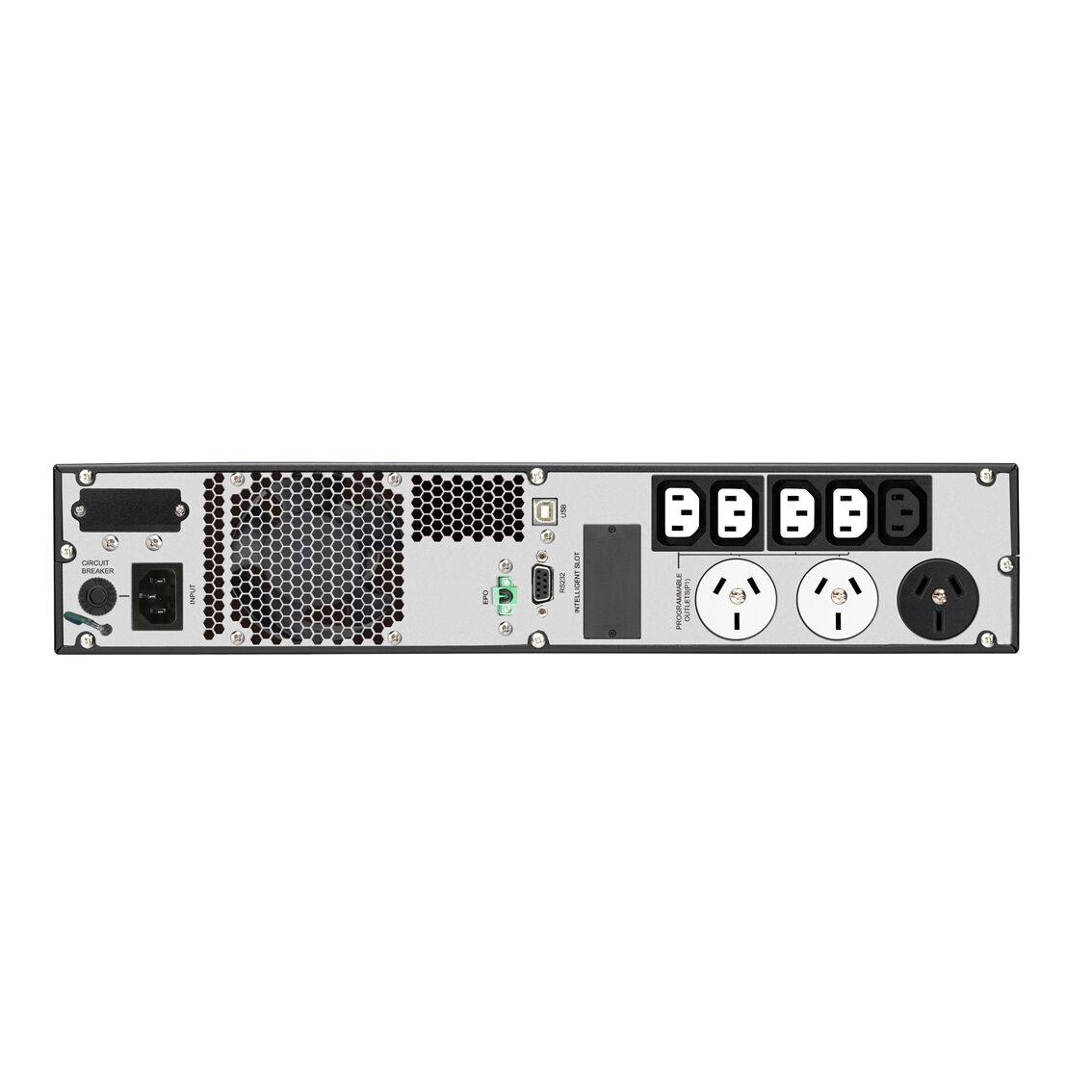

| Outlets | 6x IEC C13 |
| BATTERY | |
| Battery Type & Number | 12V/7Ah x 2 |
| Backup Time 100% Load | 5 min |
| Backup Time 50% Load | 12 min |
| Typical Recharge Time | 4 hours to 90% |
| COMMUNICATIONS | |
| Interface | USB (HID), RS232, AS400 |
| Software | NetGuard® – Windows®, Linux, Unix, Mac |
| PHYSICAL | |
| Dimension D x W x H (mm) | 380 x 438 x 88 |
| Net Weight (kgs) | 12.8 |
| WARRANTY | |
| Standard Warranty | 2 years |
Product specifications are subject to change without prior notice.
| SKU | PSCRT1100 |
| Barcode # | 9346909000163 |
| Brand | PowerShield |
| Shipping Weight | 19.1000kg |
| Shipping Width | 0.510m |
| Shipping Height | 0.600m |
| Shipping Length | 0.250m |
| Shipping Cubic | 0.076500000m3 |
