UPS Systems (3-Phase) OL3T040KERTHD

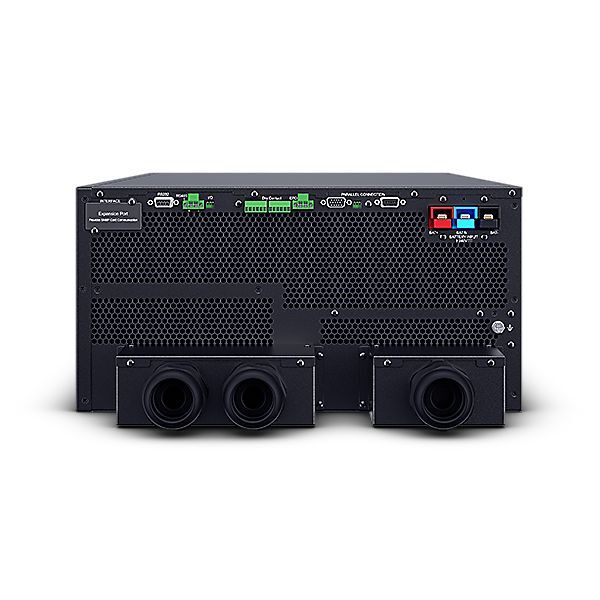

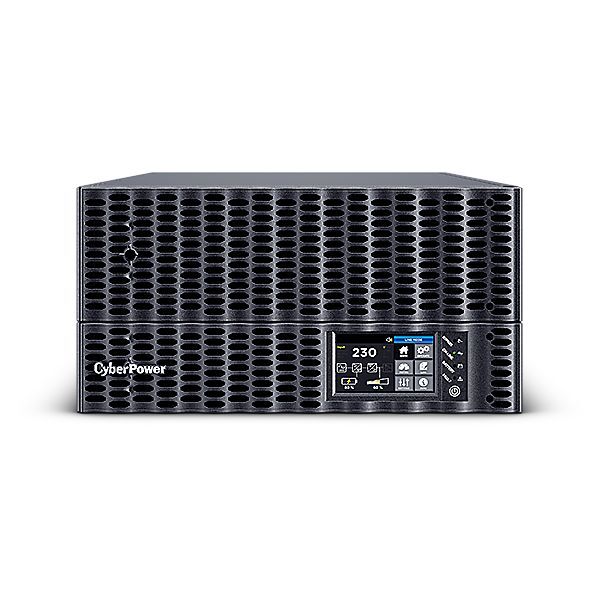

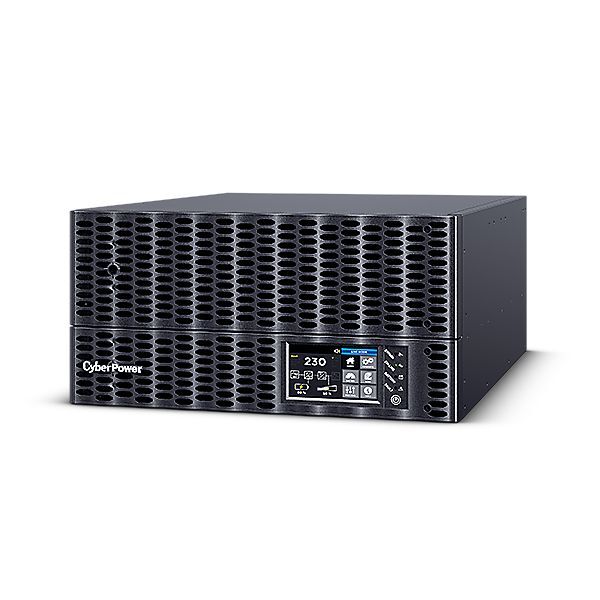

Name: CyberPower OL3T040KERTHD CP 40KVA/40KW Rack UPS
Brand: CYBERPOWER
SKU: OL3T040KERTHD
Price: 6233 AUD
Availability: OutOfStock

40000

Watts

40000

Rated Input Current ( A )

64.5

Rated Output Voltage ( Vac )

Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac

Outlets

Hardwire Terminal Block x 1

Three-phase Design

Color LCD Panel

LCD Touch Panel

Dual Inputs

Overview

CyberPower OL3T040KERTHD guarantees backup power and protection for IT equipment such as FTTx devices, networking devices and NAS/storage devices. It is typically integrated in the back office, server room, and data center environments. With integrated IGBT technology and intelligent DSP-based control, the product produces less input total harmonic distortion (THDi), achieving higher power efficiency. Supporting flexible placement, the selected product can be installed in a rack or tower configuration, and it's compatible with 19” standard rack cabinets. In addition, the product features parallel expansion, allowing the connections of multiple UPS units to reach higher capacity. Its color LCD with touch panel enables easy monitoring and configuration of the system. Furthermore, the LCD panel can also be adjusted to vertical or horizontal display through LCD setting.

Features

Three-phase Design
High Output Power Factor
Color LCD Panel
Dual Inputs
Pure Sine Wave Output
Battery Cold Start
SNMP/HTTP Remote Management Capability (Optional)
Extended Battery Module (EBM)
Online (Double Conversion) UPS Topology
Rack Modular Design
LCD Touch Panel
Generator Compatible
UPS Parallel Expansion
Smart Battery Management (SBM)
PowerPanel Management Software

What's in the Box

OL3T040KERTHD
Rackmount Rail
User's Manual

* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.

(OL3T040KERTHD)

Online Double-conversion Topology

The UPS adopts online double-conversion topology to provide the best power quality regardless of the conditions of incoming power. This topology also features a zero transfer time, ensuring optimal system operation.

ECO Mode

When the quality of utility power is good, the UPS switches to ECO mode to increase system efficiency. When the quality is unstable, the UPS switches to line mode to guarantee the best power quality.

High Output Power Factor

The UPS’s output power factor is 1, which means that more critical devices with higher amount of total watts can be powered by the UPS, utilizing more loads efficiently. For Selected Models Only

Rack Modular Design

The product is compatible with 19” standard rack cabinet, which makes it convenient to be integrated with servers and data centers. For Selected Models Only

Color LCD with Touch Panel

The color LCD with touch panel is designed with friendly, intuitive, and graphical user-interface, allowing users to monitor power system and configure settings by simply touching the screen.

Dual Input Design

By allowing users to connect one input from AC power source and the second input from other power source, the dual power input design ensures high quality power and system continuity for connected equipment. For Selected Models Only

UPS Parallel Expansion

The UPS parallel expansion capability allows users to flexibly expand system capacity by connecting multiple UPS units, thus protecting more equipment.

Generator Compatible

Power continuity can be achieved with generators during a power outage. When UPS is running on generator's power, it can stabilize unstable voltages from the generator while providing reliable power.

Extended Battery Module (EBM)

The UPS can connect to extended battery modules (EBM) to prolong system runtime during power interruption. The EBM features plug-and-play DC connectors, supports expansion for maximum power availability, and comes with hot-swappable batteries for easy installation and hassle-free replacement.

Smart Battery Management

The UPS adopts Smart Battery Management (SBM) technology to manage the battery charging process by using a 3-cycle approach and temperature compensation, which efficiently extends the battery lifespan.

Remote Management Capability

Remote management capability enables monitoring and controlling of devices through Remote Management Card. Users can also perform management tasks, such as scheduled shutdowns and reboots. Optional Feature

PowerPanel Business Software

The PowerPanel Management Software can perform power management and system graceful shutdown. This software has achieved VMware Ready™ status, and is compatible with VMware ESXi. It also supports Citrix XenServer and Microsoft Hyper-V. Recommended Software

General

PhaseThree Phase

Form FactorRackmount, Tower

UPS TopologyOnline Double Conversion

Energy Saving TechnologyECO Mode Efficiency up to 98.9%

Normal Mode Efficiency ( % )95.8%

Battery Mode Efficiency ( % )95.5%

Active PFC CompatibilityYes

Parallel Expansion (Max. Units)4

Input

Dual Power InputsYes

Generator CompatibilityYes

Nominal Input Voltage ( Vac )Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac

Input Voltage Range ( Vac )Line to Neutral (L-N): 132 ~ 276 Vac
Line to Line (L-L): 228 ~ 478 Vac

Default Input Voltage Range (Bypass)10% ~ -15%

Input Frequency Range ( Hz )40 ~ 70

Configurable Frequency Tolerance (Bypass)± 10 %
± 20 %

Rated Input Current ( A )64.5

THDI (%)<2% (Full Linear Load)

Input Power Factor0.99

Overload Protection (Bypass)125% Load for continuous operation, 150% Load for 10 min, 1000% Load for 5 ms

Input ConnectorL1, L2, L3, N, G

Input Connector TypeHardwire Terminal Block

Output

Capacity (VA)40000

Capacity (Watts)40000

On Battery WaveformPure Sine Wave

Output Voltage SettingConfigurable

Output Frequency SettingConfigurable

Rated Output Voltage ( Vac )Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac

Output Voltage Tolerance ( % )Balance Load: 1 %

Output Frequency ( Hz ± % )50 ± 0.2
60 ± 0.166

Power Factor1

ECO Mode Voltage Tolerance± 5 %

Overload ProtectionInternal Current Limiting, Fuse

Overload Protection (Line Mode)102~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, >150% Load for 200 ms

Overload Protection (Battery Mode)102~110% Load for 60 min, 110~125% Load for 10 min, 125~150% Load for 1 min, >150% Load for 200 ms

Crest Factor3 : 1

Harmonic Distortion (Linear Load)THD＜1%

Harmonic Distortion (Non-linear Load)THD＜3%

Internal BypassAutomatic Bypass

Synchronization Window (Nominal) ( Hz )± 4

Output ConnectorL1, L2, L3, N, G

Outlet TypeHardwire Terminal Block x 1

Typical Transfer Time ( ms )0

Battery

Maximum Charging Current ( A )12

Typical Charging Current ( A )3.6

Compatible Battery TypesVRLA

Recharge Power SettingConfigurable

Charger Voltage Tolerance ( % )≤ 1 %

Start On BatteryYes

Smart Battery Management (SBM)Yes

Battery Voltage ( V )±240

Compatible Extended Battery Module (EBM)BME480V55ART5U

External Battery Quantity12V x 40(Default)/32/36pcs

Surge Protection & Filtering

EMI/RFI FiltrationYes

Management & Communications

LCD PanelYes

LCD TypesColor LCD, LCD Touch Panel

LCD OrientationRotatable LCD – Manual

LCD Information DisplayOperation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log

LCD Setting & ControlMode Setting, Input & Output, Battery Setting, Communication, Event & Log, Security Setting, Language

LED IndicatorsYes

Shortcut ButtonAlarm On/Off

Serial PortRS485 x 1 + Dry Contact x 1

Dry Contact (with Relay)Yes

Emergency Power Off (EPO) PortYes

Audible AlarmsBattery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery

Power Management SoftwarePowerPanel Business (Recommended)

SNMP/HTTP Remote MonitoringYes - with optional RMCARD205

Physical

Enclosure ConstructionMetal

ColorBlack

Ingress ProtectionIP20

Rackmount RailYes

Physical Size - UPS Module

Dimensions (WxHxD) (in.)17.05 x 8.62 x 29.92

Dimensions (WxHxD) (mm.)433 x 219 x 760

Weight (lbs.)94.36

Weight (kg.)42.8

Installed Rack Height ( U )5

Shipping Dimensions

Dimensions (WxHxD) (in.)23 x 14 x 39

Dimensions (WxHxD) (mm.)572 x 363 x 980

Weight (lbs.)114.6

Weight (kg.)52

Environmental

Operating Temperature (°F)32 ~ 104

Operating Temperature (°C)0 ~ 40

Operating Temperature NoteDerating to 80% load between 41℃ and 50℃

Operating Relative Humidity (Non-condensing) ( % )0 ~ 95

Operating Elevation ( feet/meters )0-9,843 feet (0-3,000 meters)

Operating Elevation NoteAt ≤1,000m above sea level, de-rate power by 1% per 100m between 1,000m and 3,048m

Storage Temperature (°F)-40 ~ 158

Storage Temperature (°C)-40 ~ 70

Storage Relative Humidity (Non-condensing) ( % )0 ~ 95

Audible Noise at 1.0M from Surface of Unit66dBA(100% load)
56dBA(50% load)

Certifications

CertificationsCE, BSMI, IEC62040-1, IEC62040-2, CNS 14757-2, CNS 14843-1

RoHSYes

WARRANTY

Product Warranty Period ( Year )2

Battery Warranty Period ( Year )2
