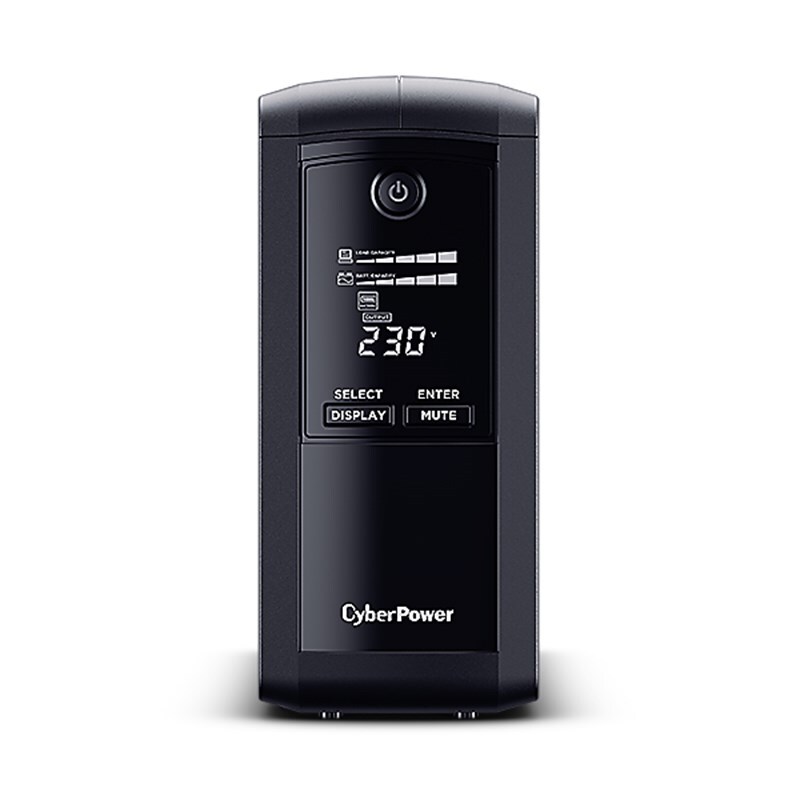

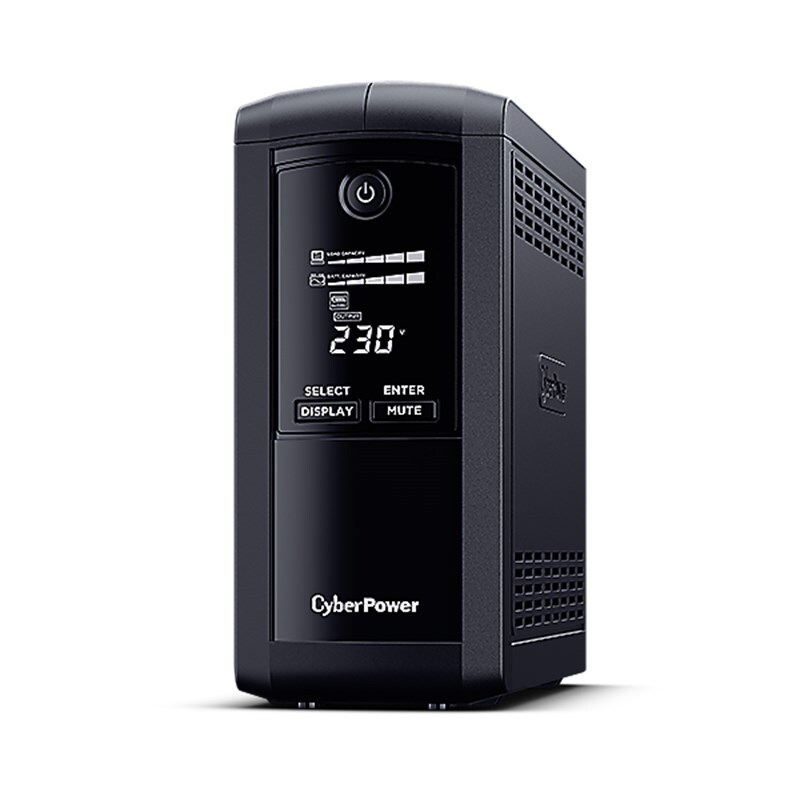

View PDF BrochureCyberPower VP1000ELCD Value Pro 1000VA / 550W Sine Wave UPS
Model # VP1000ELCD
-
SKU: VP1000ELCD
Don't pay: $199.00
$158.00
SAVE $41.00 (21%)
- Pick Up Available
- Australian Warranty
- Checkout Securely
CyberPower VP1000ELCD Value Pro 1000VA / 550W Sine Wave UPS
Nominal Input Voltage (Vac): 230 ± 10%
Input Voltage Range (Vac): 167 ~ 295
Input Frequency (Hz): 50 ± 5, 60 ± 5
Rated Input Current: 4.35A
Capacity (VA): 1000
Capacity (Watts): 550
On Battery Waveform: Simulated Sine Wave
VP1000ELCD - 2 Years Advanced Replacement Warranty
VA 1000 Watts 550 Output Voltage ( Vac ) 230 ± 10% Half Load Runtime ( min ) 9 Outlets AU x 3
Energy Saving Technology
Automatic Voltage Regulation (AVR)
LCD Status Display
High-speed Ethernet Data Transmission
(VP1000ELCD)
General
Phase
| Single Phase |
Form Factor
| Tower |
UPS Topology
| Line-interactive |
Energy Saving Technology
| GreenPower UPS™ Bypass Technology |
Input
Generator Compatibility
| Yes |
Nominal Input Voltage ( Vac )
| 230 ± 10% |
Input Voltage Range ( Vac )
| 167 ~ 295 |
Input Frequency ( Hz )
| 50 ± 5 |
| 60 ± 5 |
Rated Input Current ( A )
| 4.35 |
Input Connector Type
| IEC C14 | |
Detachable Power Cord Plug Type
| AU x 1 | |
Power Cord Length (ft.)
| 5 |
Power Cord Length (m.)
| 1.5 |
Output
Capacity (VA)
| 1000 |
Capacity (Watts)
| 550 |
On Battery Waveform
| Simulated Sine Wave |
On Battery Voltage(s) ( Vac )
| 230 ± 10% |
On Battery Frequency ( Hz )
| 50 ± 1% |
| 60 ± 1% |
Automatic Voltage Regulation (AVR)
| Single Boost, Single Buck |
Overload Protection
| Circuit Breaker |
Outlet(s) - Total
| 3 |

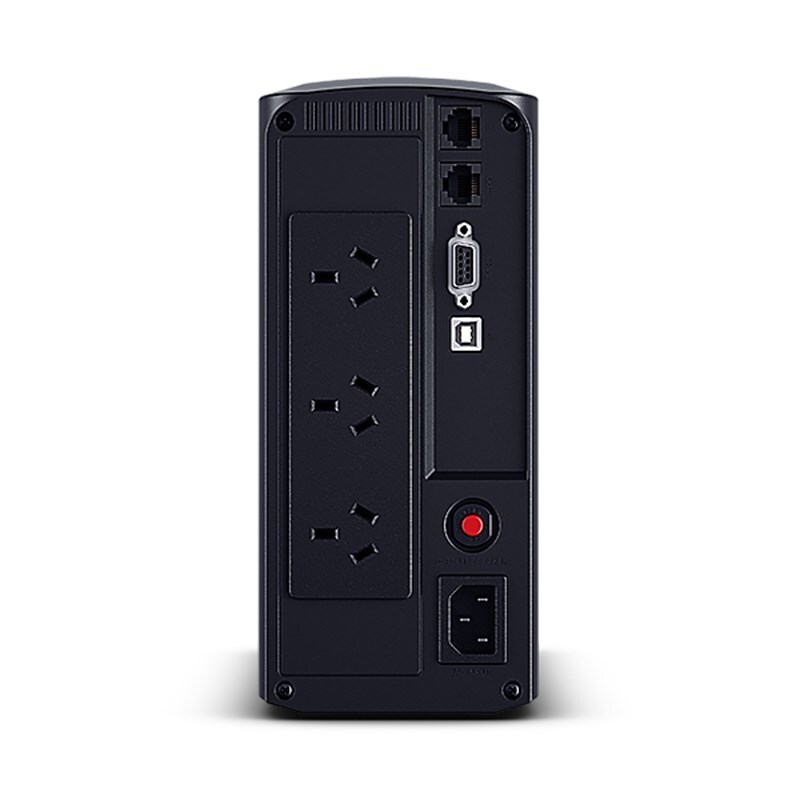

Outlet Type
| AU x 3 | |
Outlet(s) - Battery & Surge Protected
| 3 |
Typical Transfer Time ( ms )
| 4 |
Battery
Runtime at Half Load ( min )
| 9 |
Runtime at Full Load ( min )
| 1 |
Typical Recharge Time ( Hours )
| 8 |
Start On Battery
| Yes |
User-replaceable
| No |
Battery Type
| Sealed Lead-acid |
Surge Protection & Filtering
Surge Suppression ( Joules )
| 450 |
EMI/RFI Filtration
| Yes |
Phone/Network Protection RJ11/RJ45 (Combo)
| 1-in, 1-out |
Management & Communications
LCD Panel
| Yes |
LCD Information Display
| Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information |
LCD Setting & Control
| Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning |
LED Indicators
| Power On |
HID Compliant USB Port(s)
| 1 |
Audible Alarms
| Battery Mode, Low Battery, Overload, UPS Fault |
Management Cable ( pcs )
| USB Cable x1 |
Ethernet Data Transmission Speed
| Up to 1Gbps |
Power Management Software
| PowerPanelPersonal (Recommended) |
Physical
Enclosure Construction
| Plastic |
Color
| Black |
Physical Size - UPS Module
Dimensions (WxHxD) (in.)
| 3.9 x 8.9 x 10.2 |
Dimensions (WxHxD) (mm.)
| 100 x 227 x 260 |
Weight (lbs.)
| 13.73 |
Weight (kg.)
| 6.23 |
Shipping Dimensions
Dimensions (WxHxD) (in.)
| 11.81 x 13.19 x 5.63 |
Dimensions (WxHxD) (mm.)
| 300* x 335 x 143 |
Weight (lbs.)
| 14.95 |
Weight (kg.)
| 6.78 |
Environmental
Operating Temperature (°F)
| 32 ~ 104 |
Operating Temperature (°C)
| 0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % )
| 0 ~ 90 |
Operating Elevation ( feet/meters )
| 0-9,843 feet (0-3,000 meters) |
Storage Temperature (°F)
| -4 ~ 122 |
Storage Temperature (°C)
| -20 ~ 50 |
Storage Relative Humidity (Non-condensing) ( % )
| 0 ~ 90 |
Storage Elevation ( feet/meters )
| 0-9,843 feet (0-3,000 meters) |
Online Thermal Dissipation ( BTU/hr )
| 23.9 |
Audible Noise at 1.0M from Surface of Unit ( dBA )
| 40 |
Certifications
Certifications
| CE, RCM |
RoHS
| Yes |
WARRANTY
| 2 |
| 2 |
| SKU | VP1000ELCD |
| Barcode # | 4712856274660 |
| Brand | CYBERPOWER |
| Shipping Weight | 6.8000kg |
| Shipping Width | 0.170m |
| Shipping Height | 0.150m |
| Shipping Length | 0.180m |
Manufacturer Warranty: 2 Years Limited Warranty
