Eaton SKU 9PX1000IRT2UANZ

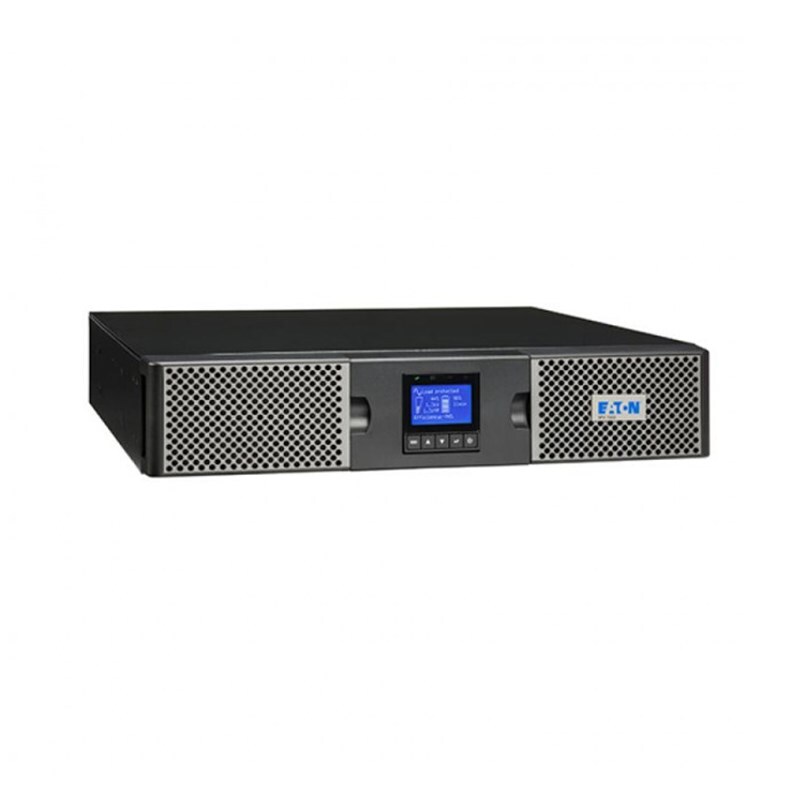

Eaton 9PX1000IRT2UANZ 1000VA/1000W Online 2U Rack/Tower UPS

The Eaton 9PX1000IRT2UANZ 9PX is a single-phase online double-conversion UPS rated at 1000VA / 1000W in a 2U rack/tower format.

The supplied record lists multilingual graphical lcd display, USB HID and serial connectivity, with the rail kit included.

1000VA / 1000WOnline double conversion2U rack/tower3-YearDeviceDeal authorised Eaton reseller

Product overview

1000VA / 1000W

The structured load capacity is 1000VA / 1000W.

Online double conversion

The supplied source classifies this model as a double-conversion online UPS.

2U rack/tower installation

The structured form factor is rack/tower with a listed rack height of 2U.

Source review: The structured power fields include 120V AC and 230V AC input values, while the product description identifies the supplied IEC C14 connection. Confirm the required input configuration for the installation.

Frequently asked questions

What capacity is listed for the Eaton 9PX1000IRT2UANZ?

The structured specification lists 1000VA / 1000W.

Which output connections are listed?

The description lists 8 x IEC C13 10A; the structured field lists 8 x IEC 60320 C13.

Which monitoring interfaces are listed?

The source lists multilingual graphical lcd display, USB HID and a serial port.

What warranty is supplied?

The source lists three years overall and specifies two years on the battery.

(9PX1000IRT2UANZ)

Features

Eaton 9PX1000IRT2UANZ 1000VA/1000W Online 2U Rack/Tower UPS

Power performance

Online double-conversion topology
Single phase
1000VA / 1000W
Sine wave

Connections and monitoring

Description input: IEC C14 10A
Structured input: IEC 60320 C14
Description outputs: 8 x IEC C13 10A
Structured outputs: 8 x IEC 60320 C13
Multilingual graphical LCD display
USB HID
Serial port

Installation and support

2U rack/tower
Dimensions (H x W x D): 86.5mm x 450mm x 440mm
Approximate weight: 17.40kg
Rail kit: Included

Confirm the source-review notes, connected load and installation requirements before purchase.

Technical specifications

Eaton 9PX1000IRT2UANZ 1000VA/1000W Online 2U Rack/Tower UPS

Product details
Brand	Eaton
Model / SKU	9PX1000IRT2UANZ
Series	9PX
Product type	Double-conversion online UPS
Phase	Single phase
Status display	Multilingual graphical LCD display
Power
Load capacity	1000VA / 1000W
Input-voltage values listed	120V AC; 230V AC
Output-voltage values listed	240V AC
Input-voltage range	100276V AC; 176276V AC
Input frequency	70Hz
Output frequency	60Hz
Waveform	Sine wave
Connections
Input stated in description	IEC C14 10A
Structured plug / connector	IEC 60320 C14
Outputs stated in description	8 x IEC C13 10A
Structured receptacle detail	8 x IEC 60320 C13
Serial port	Yes
USB HID-compliant port	Yes
Battery
Battery chemistry	Lead acid
Battery characteristics	Sealed
Hot swappable	Yes
Environment and additional fields
Sound emission	35dB
ENERGY STAR	Yes
Physical properties
Form factor	Rack / tower
Rack height	2U
Height	86.5mm
Width	450mm
Depth	440mm
Approximate weight	17.40kg
Product colours listed	Black; silver
Applications listed
Application / usage	Server

SKU	9PX1000IRT2UANZ
Barcode #	743172081407
Brand	EATON
Shipping Weight	24.0000kg
Shipping Width	0.024m
Shipping Height	0.058m
Shipping Length	0.055m

Warranty information

Eaton 9PX1000IRT2UANZ 1000VA/1000W Online 2U Rack/Tower UPS

3-Year Eaton Manufacturer Warranty

DeviceDeal is an authorised Eaton reseller. This product is covered by a three-year Eaton manufacturer warranty in Australia, as listed in the supplied product information. The description specifies two years of coverage on the battery.
